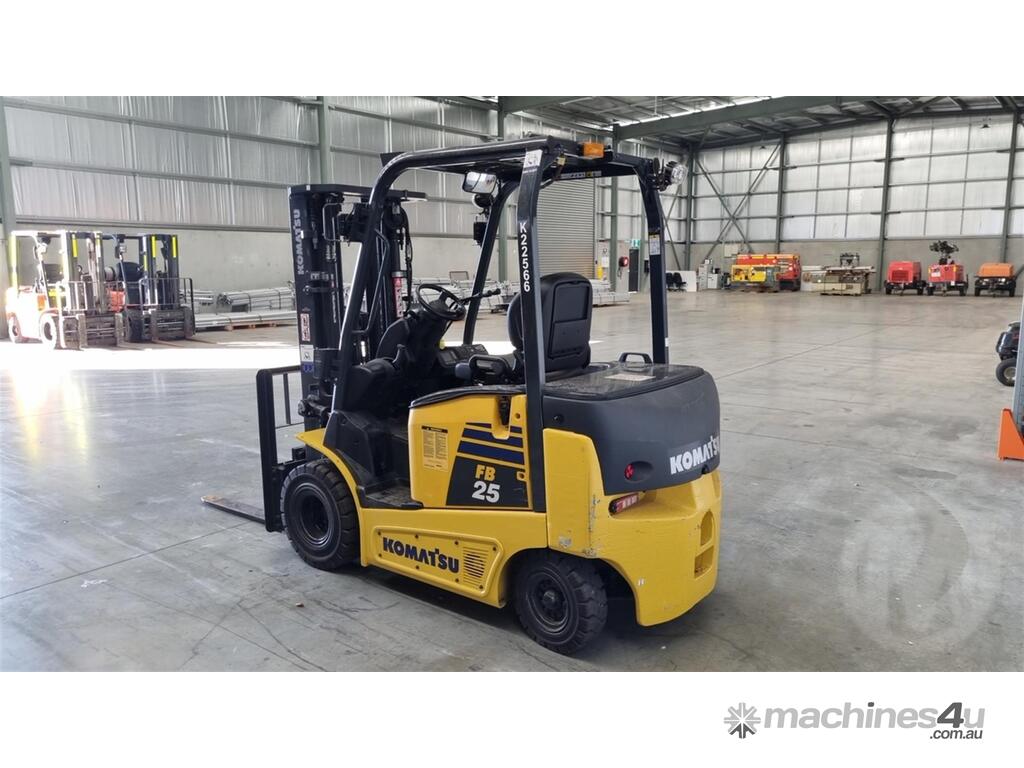

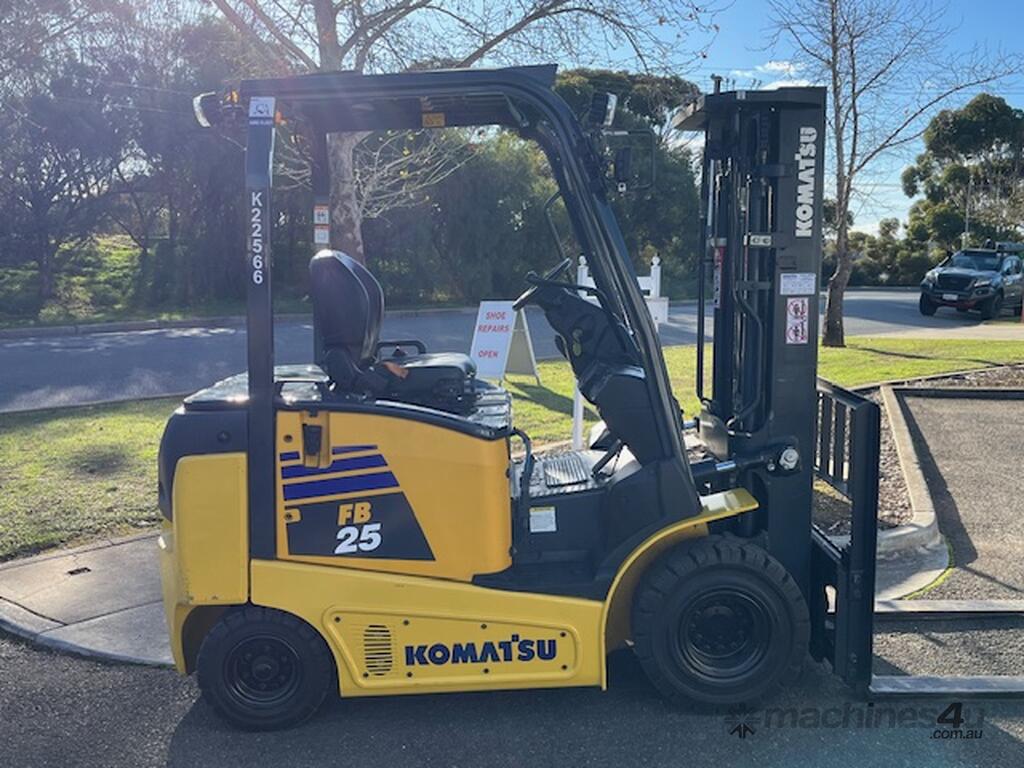

Electric Forklift Komatsu Container Mast

The Komatsu FB25-12 is a 2.5-tonne capacity electric counterbalance forklift designed for efficient and sustainable material handling in both indoor and outdoor environments. It incorporates advanced features to enhance performance, energy efficiency, and operator comfort.

Key Specifications
Load Capacity: 2,500 kg at a 500 mm nominal load center

Lifting Height: 3 Stage Container Entry Mast - Up to 4.5 meters

Attachment: Side Shift

Turning Radius: 2.12 meters

Travel Speed: Up to 16 km/h without load

Battery: 72V, 360Ah; battery weight approximately 1,085 kg

Total Weight: Approximately 4,075 kg

Dimensions: Width 1,200 mm; Height 2,155 mm

Tyres: Puncture-proof

Performance and Efficiency
Equipped with a highly efficient Permanent Magnet (PM) AC motor system, the FB25-12 delivers robust performance while reducing energy consumption by up to 20% compared to previous models. Its regenerative braking system further enhances energy efficiency and extends operating hours.

Durability and Environmental Resistance
Designed for durability, the FB25-12 features water-resistant and dustproof components, including sealed motors and controllers, meeting the IPX4 standard. This makes it suitable for various operating conditions, including outdoor and dusty environments.


Operator Comfort and Safety
The forklift's ergonomic design includes a spacious operator compartment with adjustable seating and intuitive controls. A large color monitor provides real-time information on truck status, battery discharge, and other essential metrics. Safety features such as an operator presence sensing system, travel neutral safety, ramp control, speed limiter, and over-speed alarm enhance operational safety.

Maintenance and Monitoring
Maintenance is streamlined through easily accessible components and simplified procedures, reducing downtime and operating costs. The FB25-12 is also equipped with KOMTRAX, Komatsu's remote machine monitoring system, allowing for real-time tracking of machine status, location, and usage metrics.


Overall, the Komatsu FB25-12 is a premium electric forklift that combines energy efficiency, durability, and operator-centric design, making it a reliable choice for businesses seeking sustainable and efficient material handling solutions.
