Ermaksan ETP-S Turret Punch

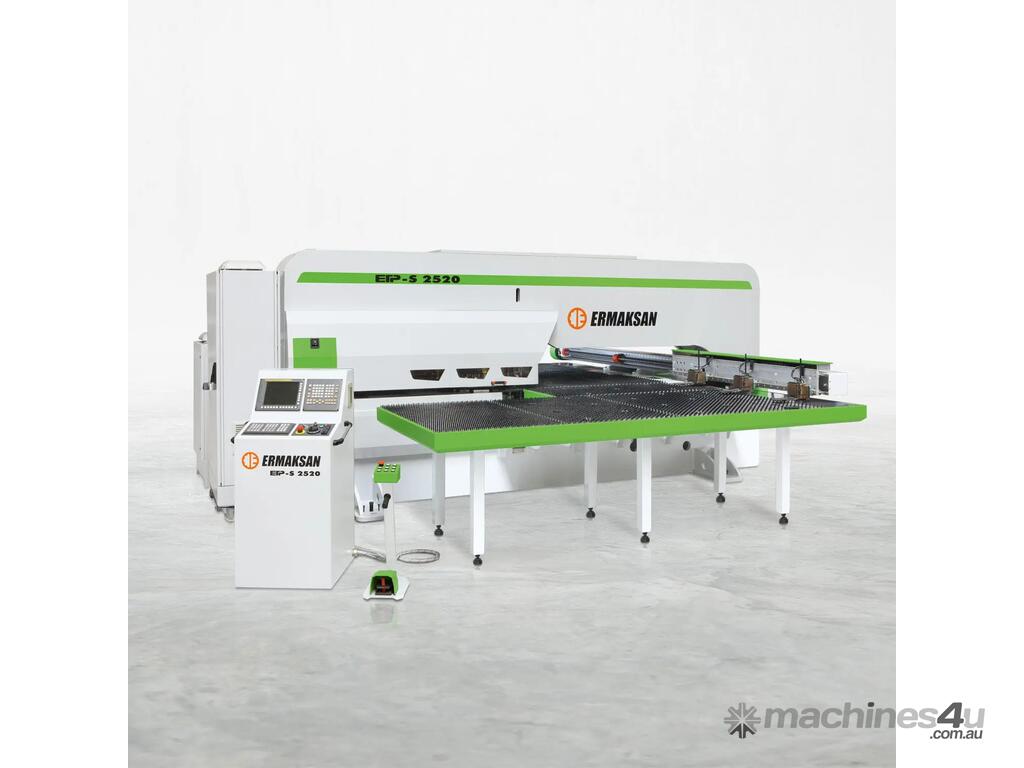

ETP?S CNC Servo Turret Punch Press

Faster • More Precise • Eco?Friendly

Designed for manufacturers who demand high productivity and accuracy, the Ermaksan ETP?S combines a rigid steel frame with a servo?electric press to deliver high?speed punching on sheet metal up to 6 mm thick. This servo?driven technology eliminates hydraulic pumps, cuts energy use and noise, and requires virtually no oil. With a large work area, rapid tool changes and automatic nesting software, it is ideal for high?mix, low?volume production as well as long runs.

Key Features
• 20 ton servo?electric press for powerful punching on mild and stainless steel.
• Large work area (3,000 × 1,500 mm) with repositioning for extra?long parts; maximum punch diameter Ø?88.9 mm.
• High speed & throughput – X and Y axes travel at 80 m/min; combined speed reaches 114 m/min. Up to 1,200 strokes/min for marking.
• Precision machining with ±?0.05 mm repeatability, ±?0.1 mm positioning accuracy and 0.01° index accuracy.

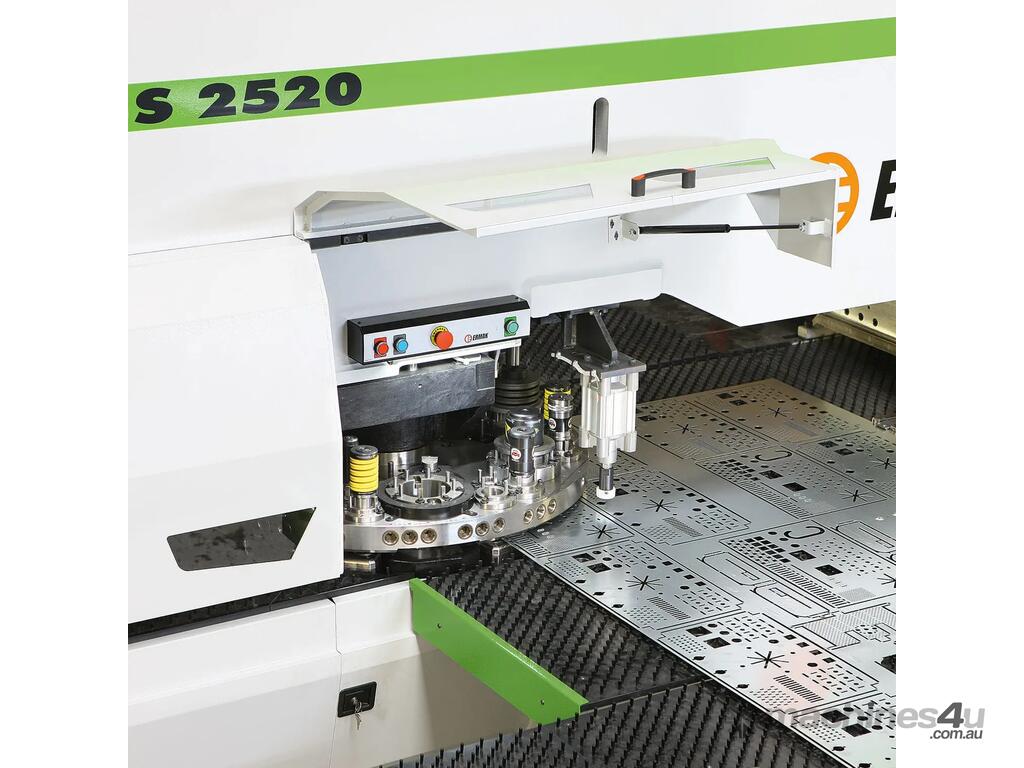

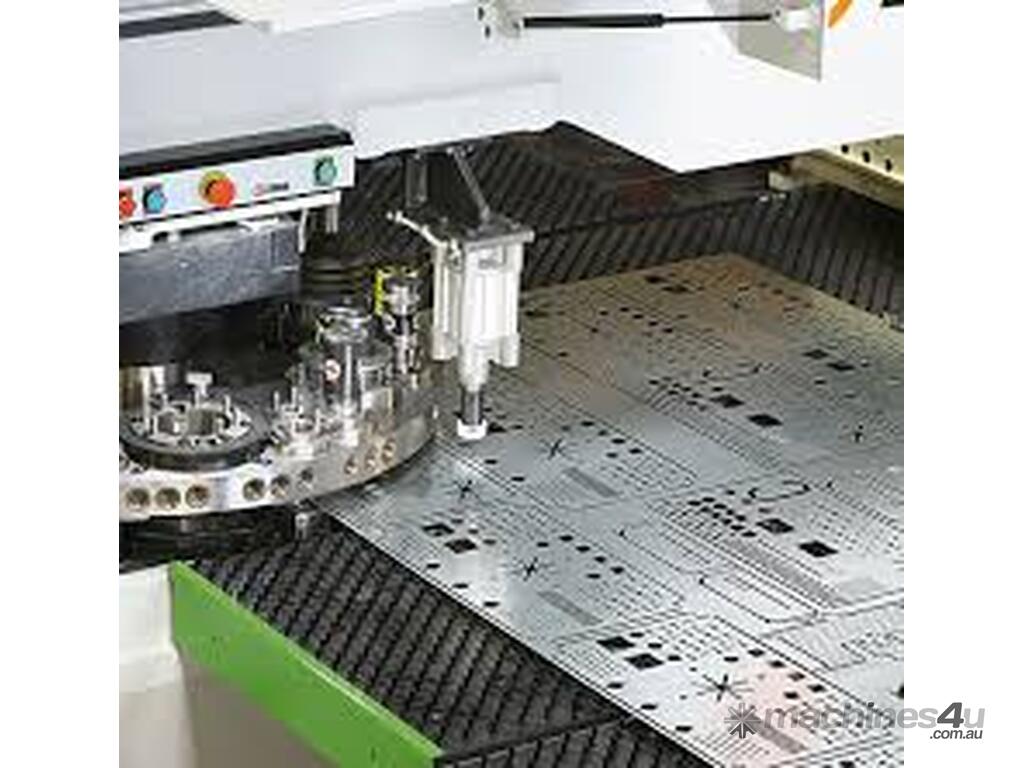

• 33?station turret with quick 3?second tool change (15 A, 12 B, 2 C, 1 fixed D, 3 auto?index D) .
• Rigid and strong frame provides dynamic and static rigidity .
• Energy?efficient & quiet – servo stroke system uses up to 40 % less energy than hydraulic punches and operates with very low noise.
• Eco?friendly design – oil?free drive means no cooling system and minimal lubrication .

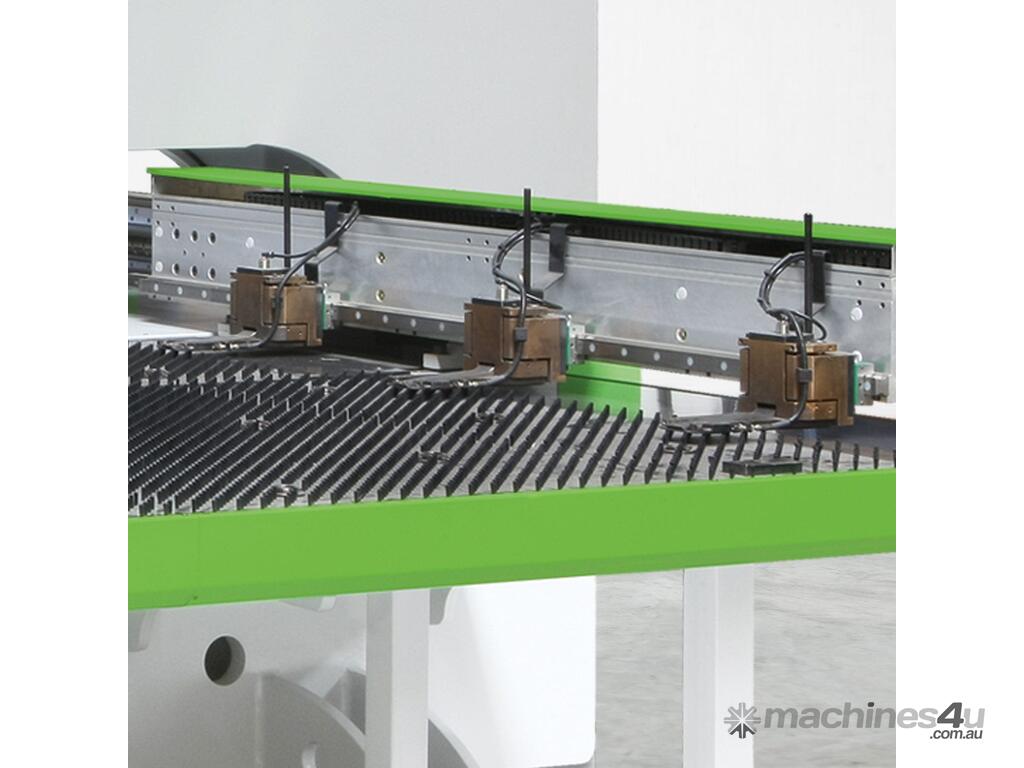

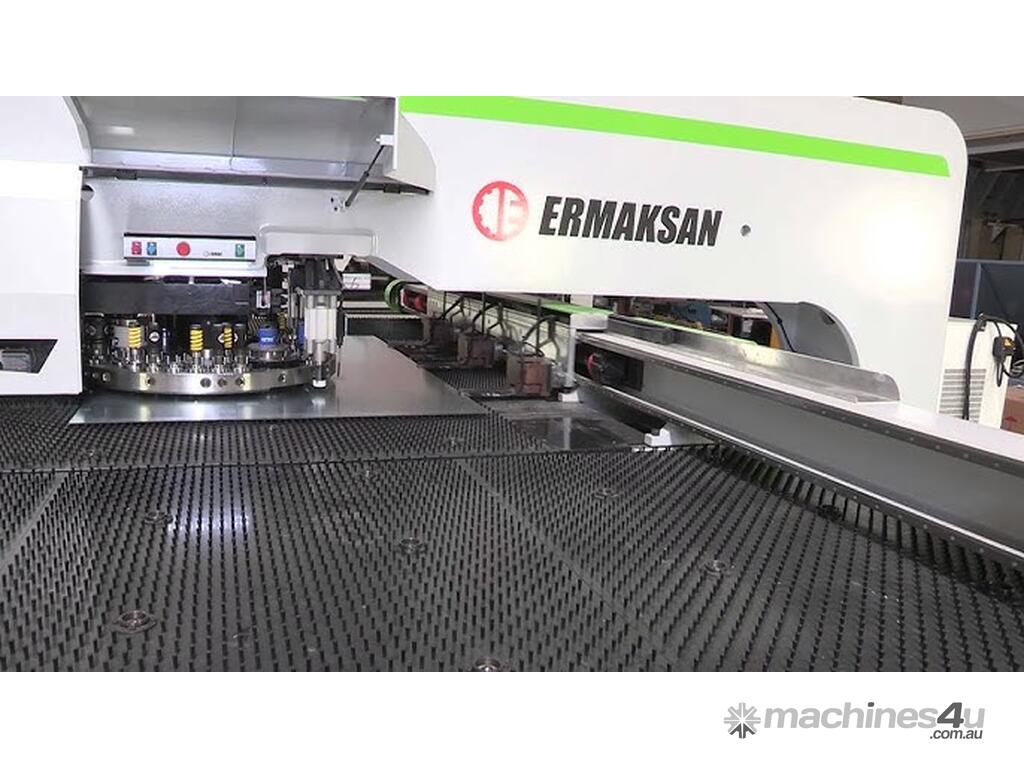

• Flexible table options with brush, ball or combined brush+ball surfaces and three pneumatic clamps; handles sheets up to 225 kg .
• Fanuc Oi?PF CNC control with servo motors on all axes, Harmonic?drive gearbox and advanced safety functions . Includes Metalix CAD/CAM software with auto nesting to optimize layouts and save programming time .
• Compact footprint – 5.5 m long × 6.7 m wide × 2.2 m high; weighs about 22 t.

Core Specifications

Specification Value
Press capacity (tonnage) 20 ton
Work area (X × Y) 3,000 × 1,500 mm
Max punch diameter 88.9 mm
Max sheet weight 225 kg
Axis speeds X/Y 80 m/min, combined 114 m/min
Max strokes (marking) 1,200 strokes/min
Accuracy ±?0.05 mm repeat, ±?0.1 mm positioning, 0.01° index
Tool stations 33 (15 A, 12 B, 2 C, 1 fixed D, 3 auto?index D)
Tool change time 3 s
Power supply 40 kW
Dimensions (L × W × H) 5,520 × 6,660 × 2,220 mm
Machine weight 22,000 kg


?
