EUMACH heavy duty ram type, twin column vertical machining centres are designed for applications where rigidity and accuracy are essential.
The EUMACH DVM twin column features a rigid single piece casting for the beam and columns, and a massive head casting containing a standard 380mm x 380mm ram or the extra heavy 420mm x 420mm.

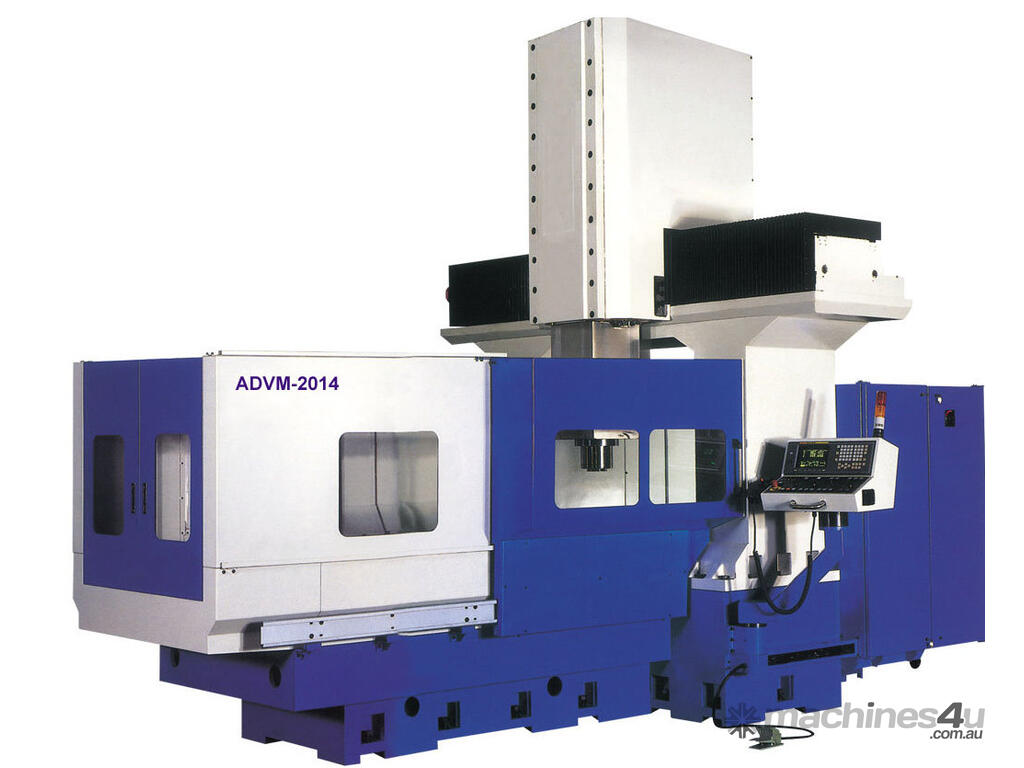

Constructed with 4 slideway X axis and 3 slideway Y axis plus direct coupled spindle motors as standard, the ADM Double Column will provide years of accurate productive service.
Available with various travel capacities and options of:

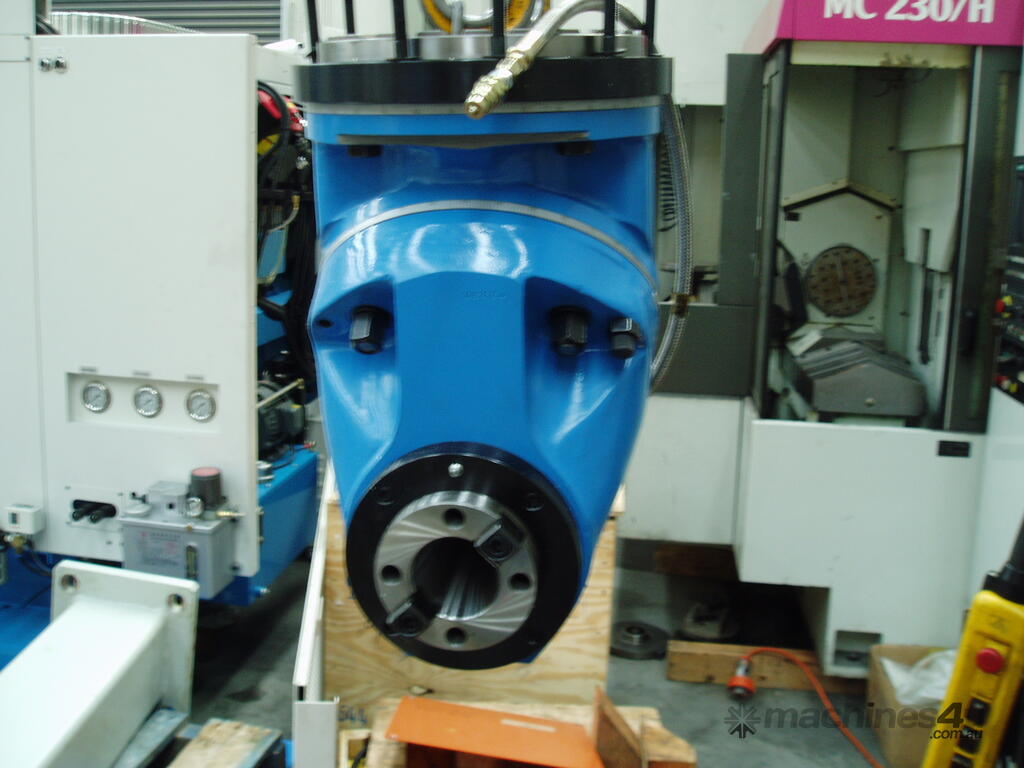

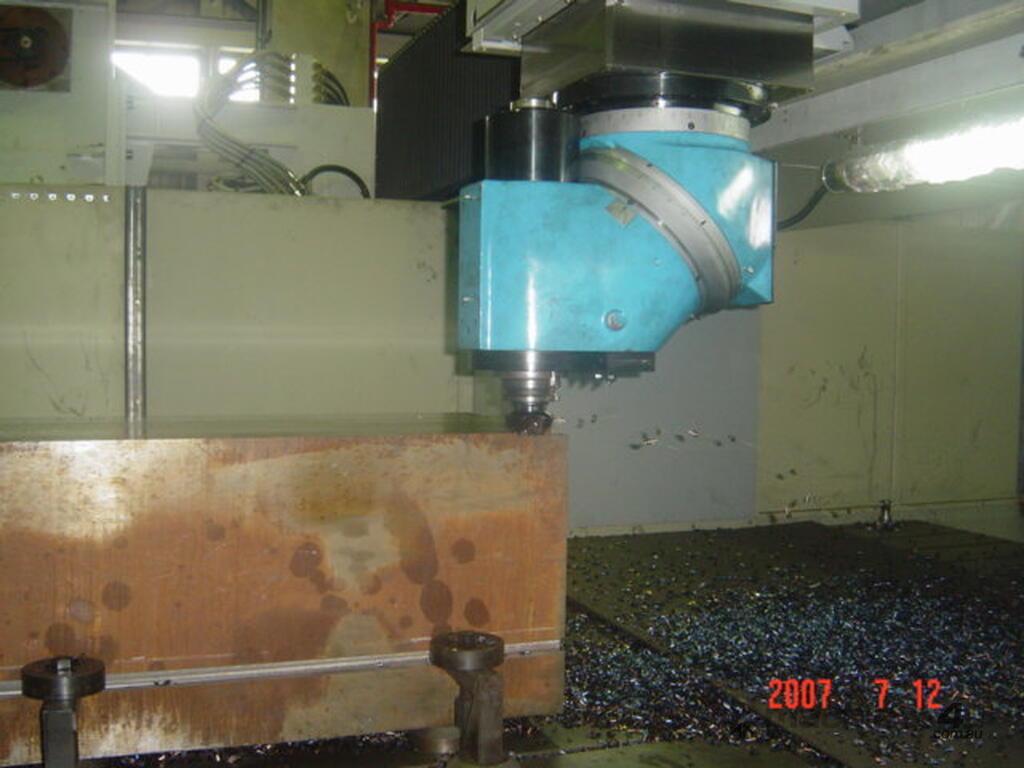

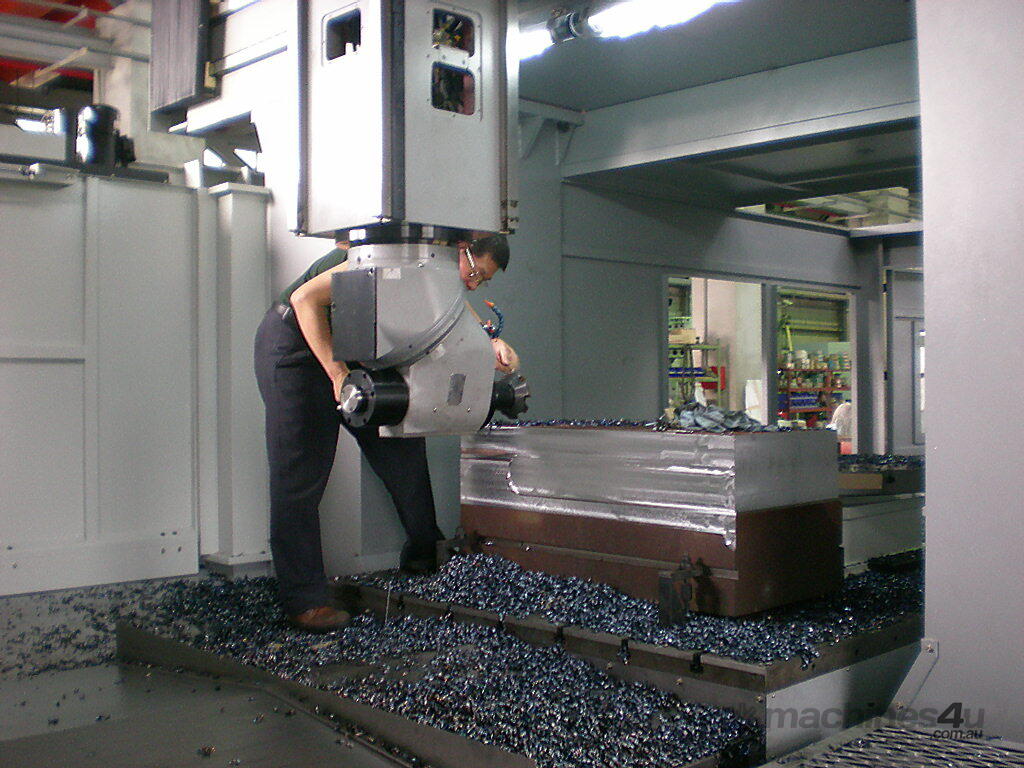

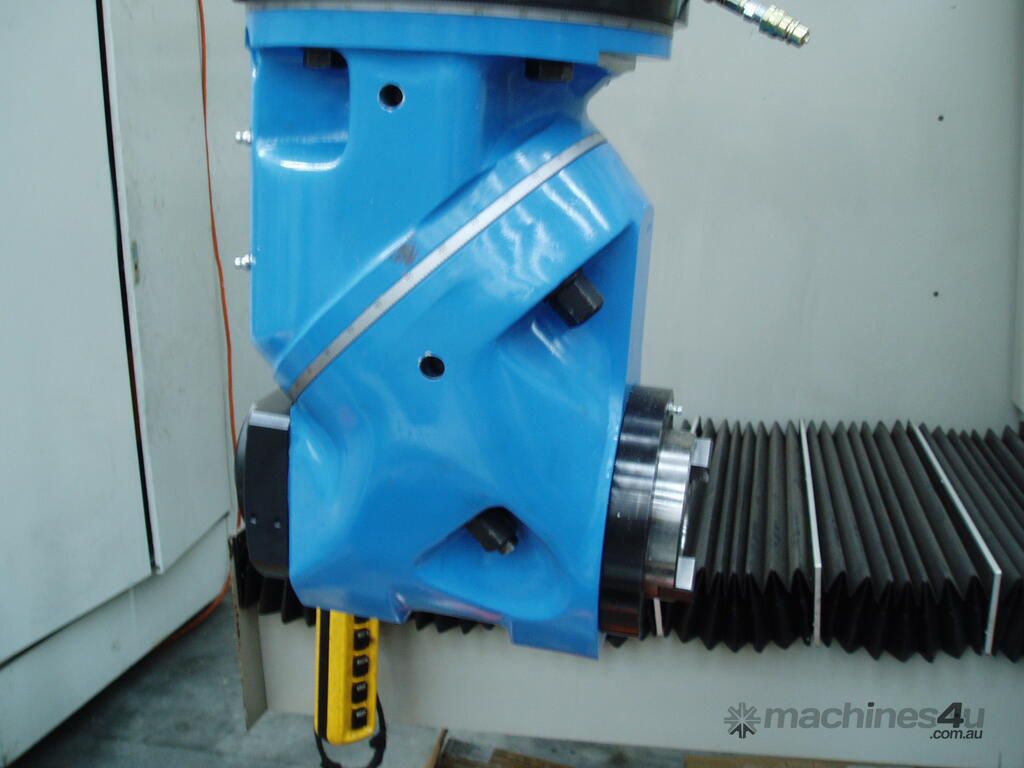

manual or programmable angled and universal heads,
tool changers with up to 120 tool capacity,

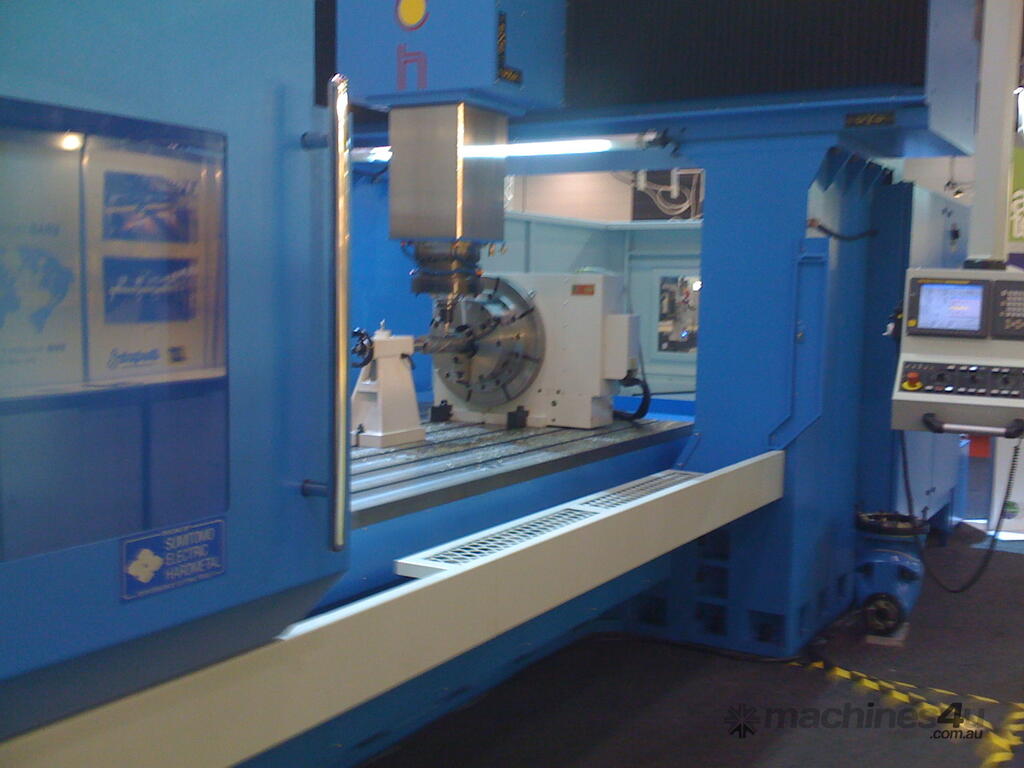

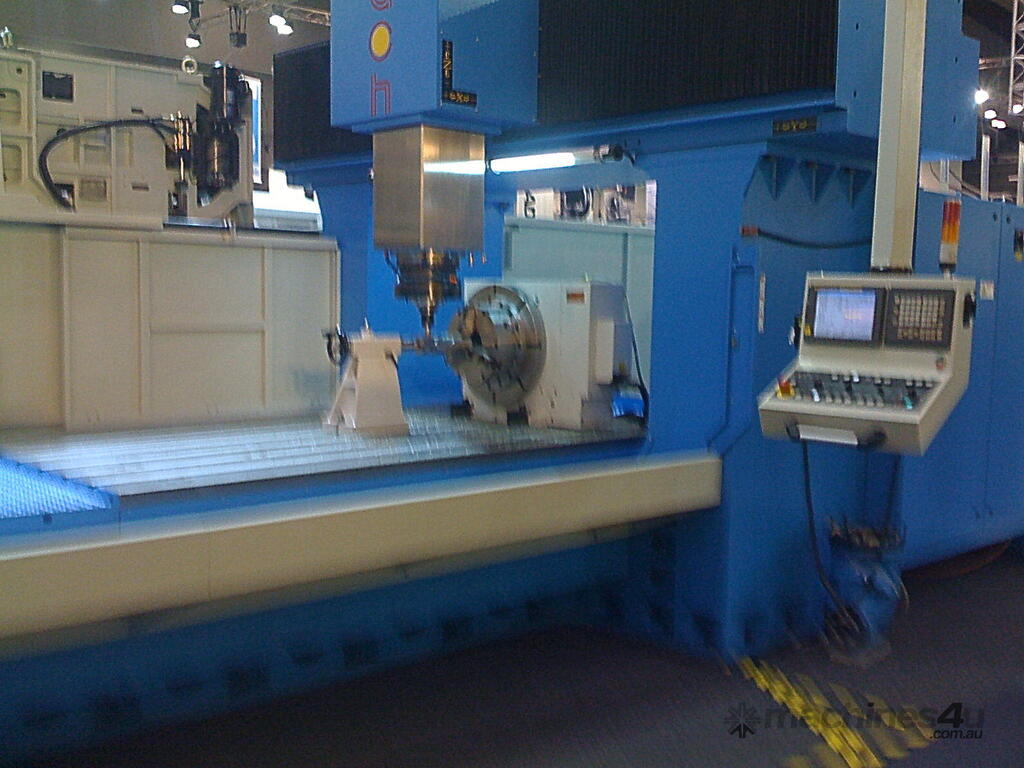

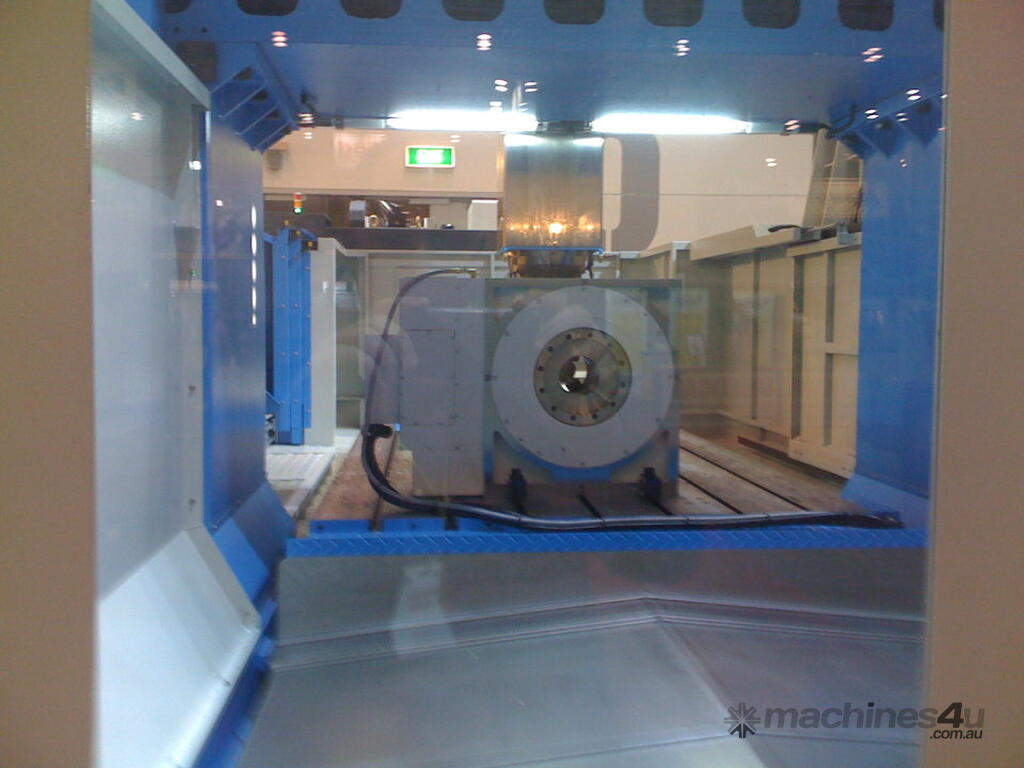

4th axis tables and more
the DVM may be configured to suit a wide variety of applications.

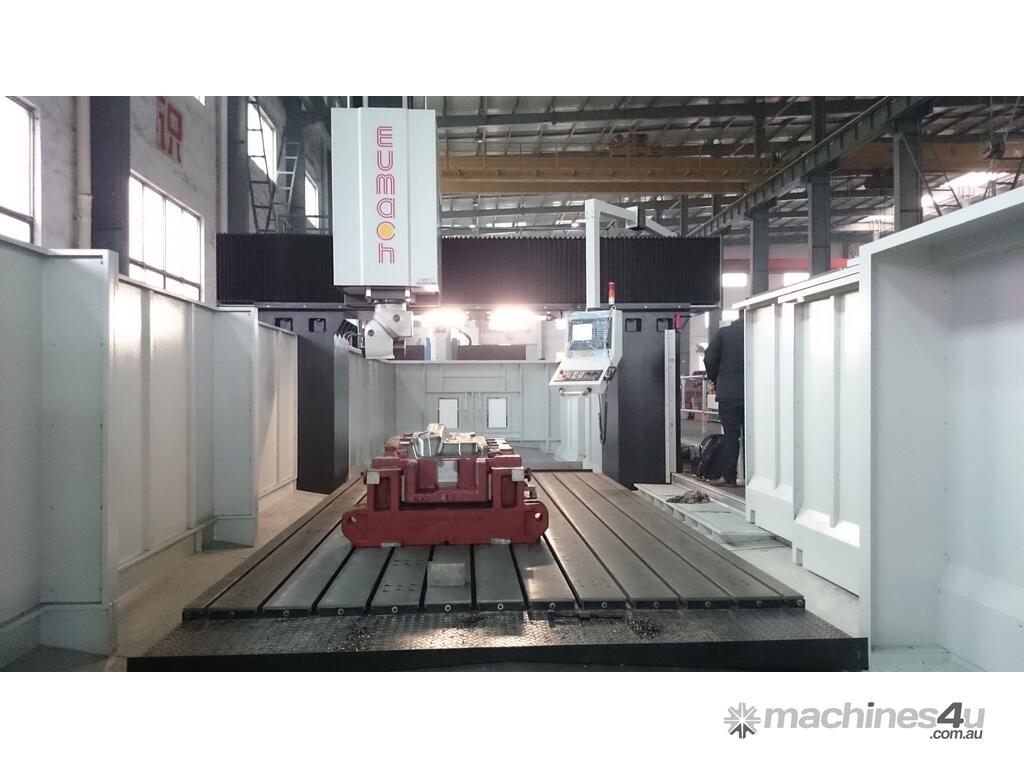

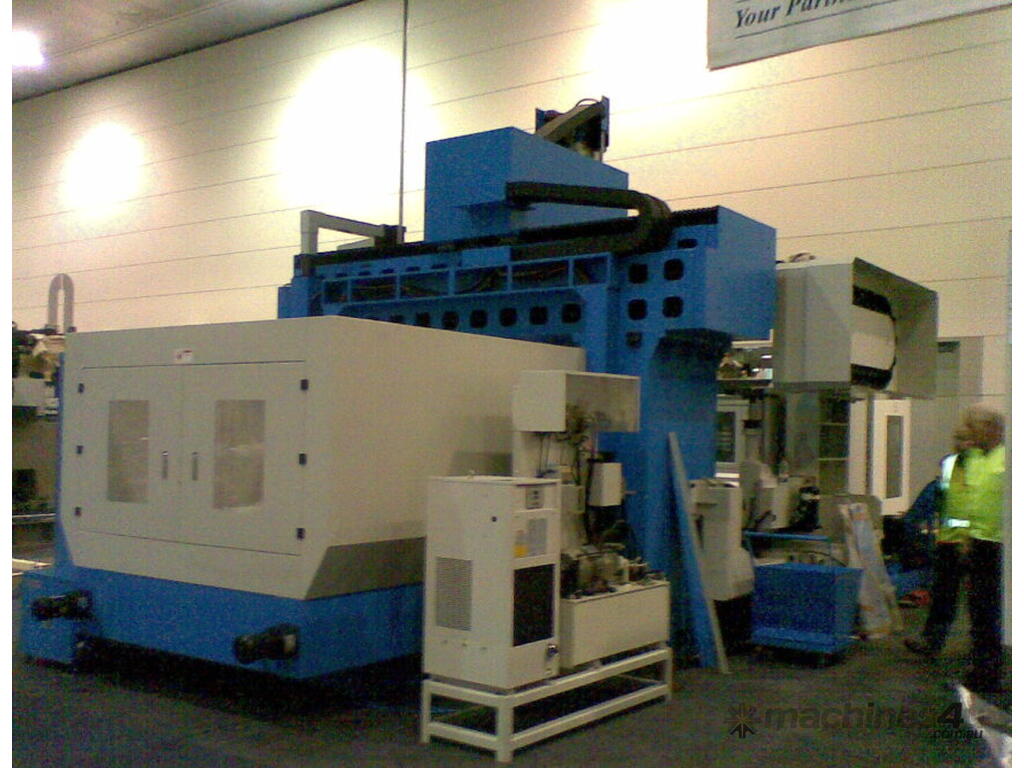

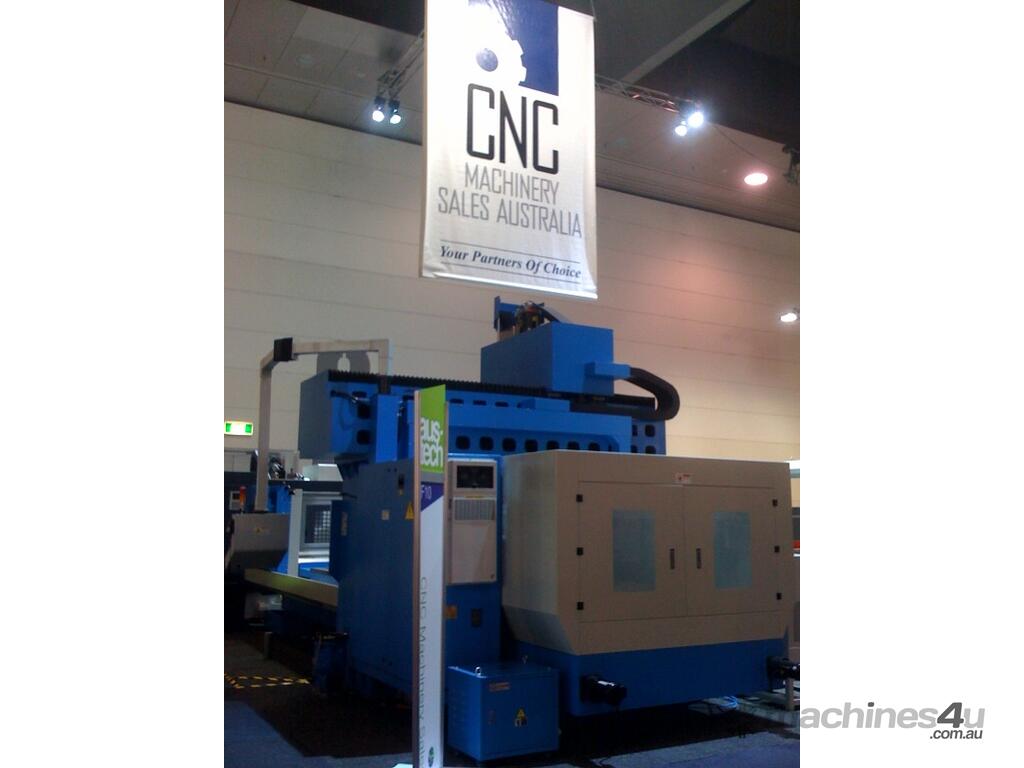

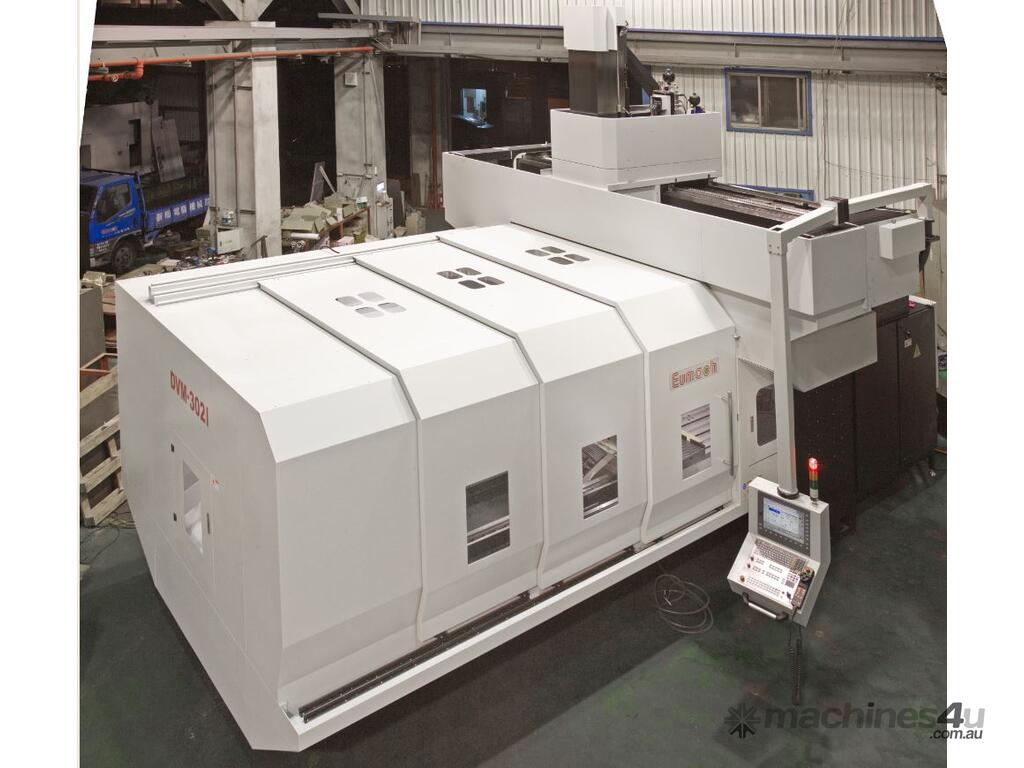

Pictured is the Eumach DVM4025 with travels 4200mm x 2600mm x 700mm, Table size 4000mm x 2100mm, Table load capacity 16000kg, Twin column distance 2530mm, with Fanuc 18-iMB & AICC, Spanish universal head, 10 bar high pressure through spindle coolant, 32 tool ATC, BT50/6000rpm motor spindle and 4th axis ready.
Eumach offer a wide range of twin column machining centres with numerous capacities and features.
Delivery, commissioning, training and ongoing support Australia wide.
Please call for additional information.
