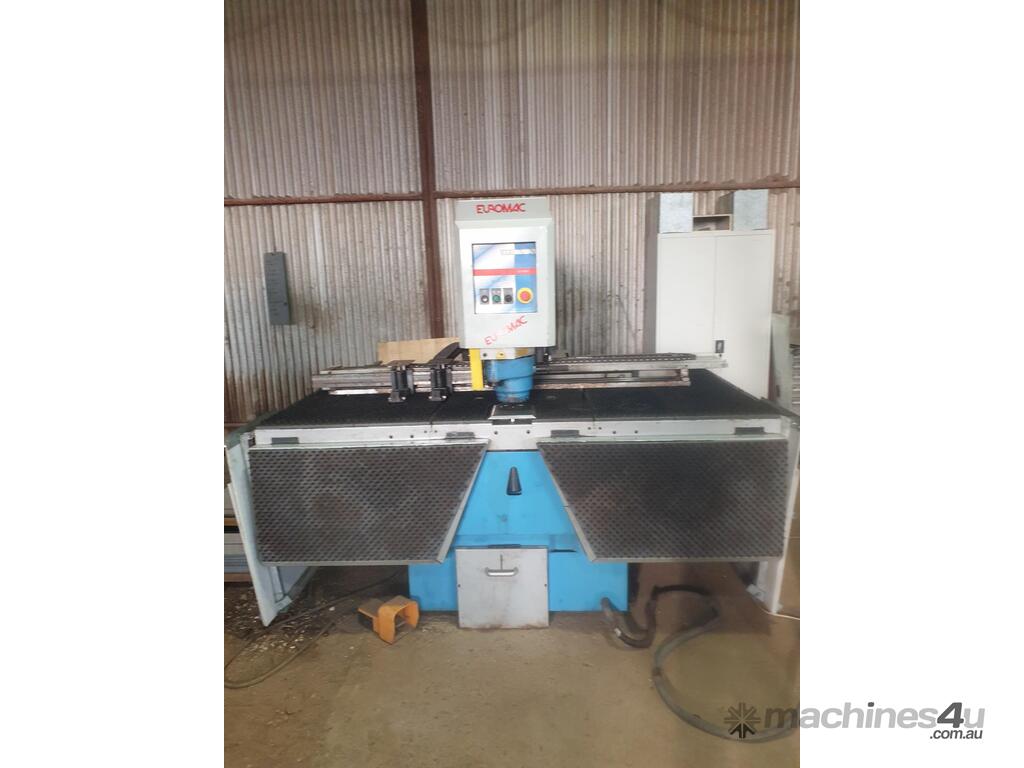

Euromac ZX1250/30-1200 CNC Turret Press

CNC Turret Punch Press – Euromac ZX 1250/30-1200

It is a 2003 model, ZX1250/30-1200, 1250mm sheet width x 1200 on the Y Axis but machine will reposition the clamp for longer parts, the current owner was doing 2700mm long parts with it.

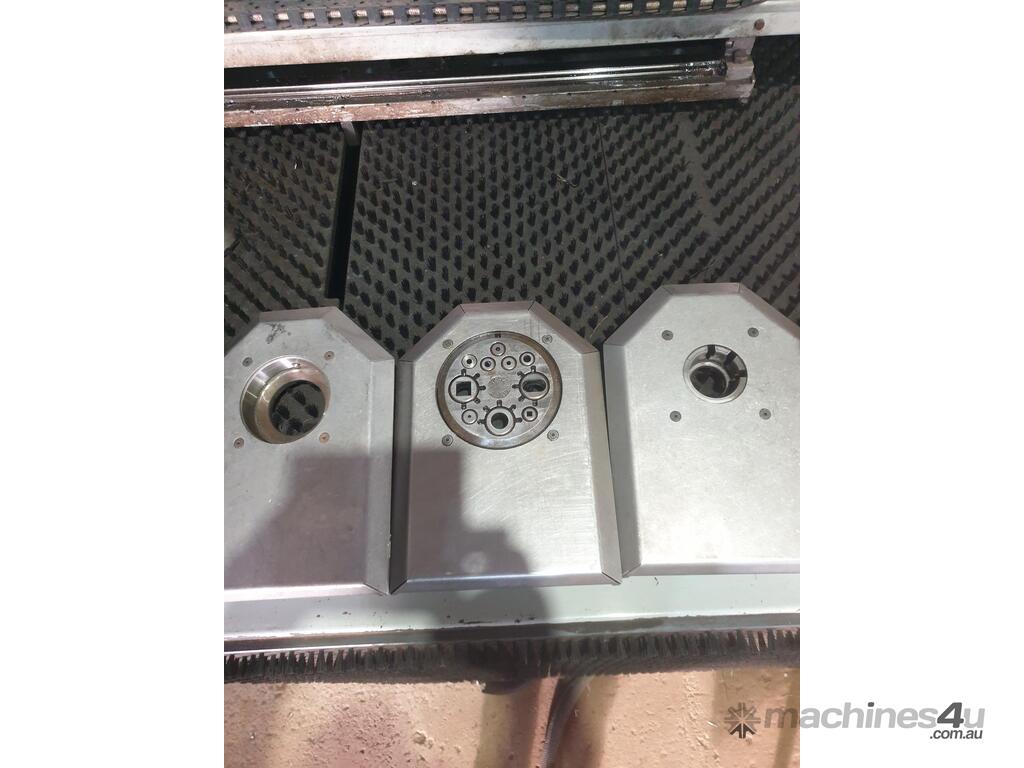

It comes with a single tool, 10 Station Multitool and 48x48 punch/die, it has been updated to a normal PC, this means the factory keyboard is no longer operational but machine works in the same way and it has the special clamps for pre-folded parts already on it.

The machine will accept up to 88.9mm Dia or 62.8mm Square tools.

The clearance between table & punch is approx. 27-28mm.

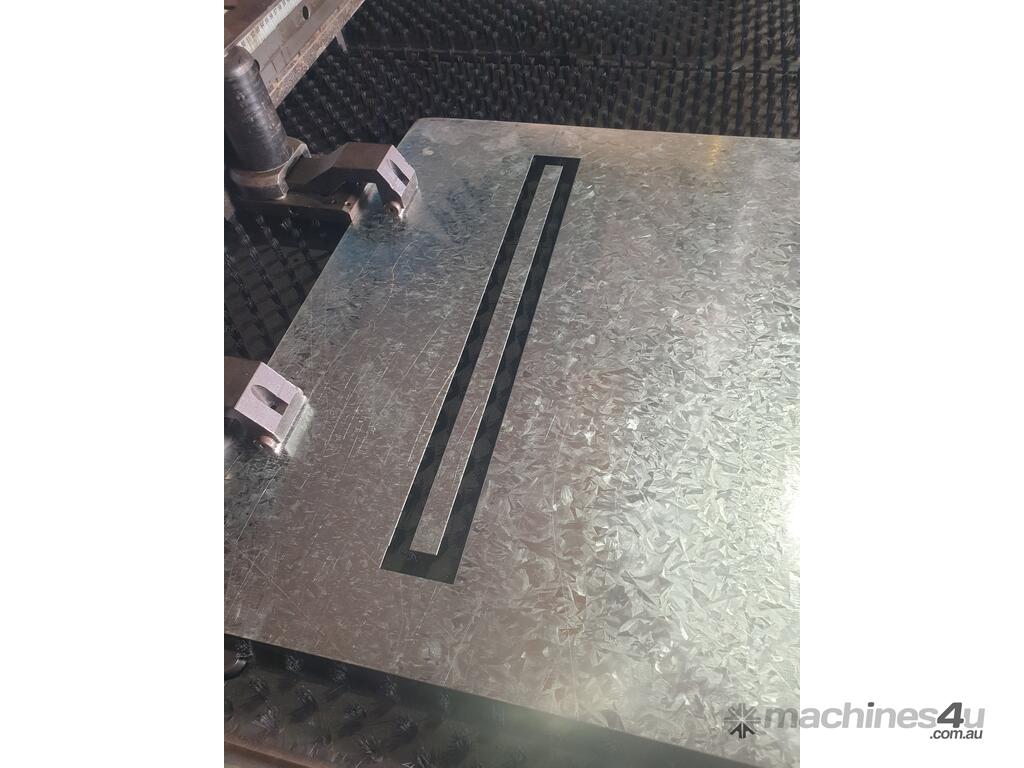

The clamps can take a folded edge of approx. 32 x 15mm


Machine Highlights:

30 tonnes of power for consistent accuracy across a wide range of materials

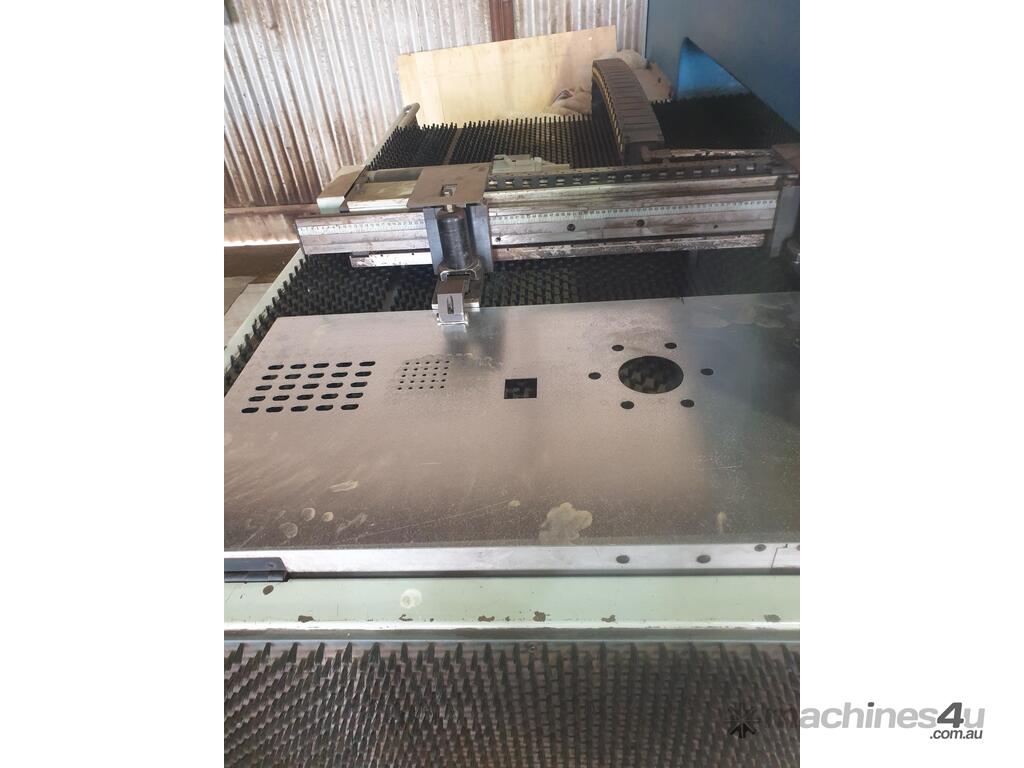

Punching Area of 1250 x 2500 mm (with repositioning) for flexibility on large sheets

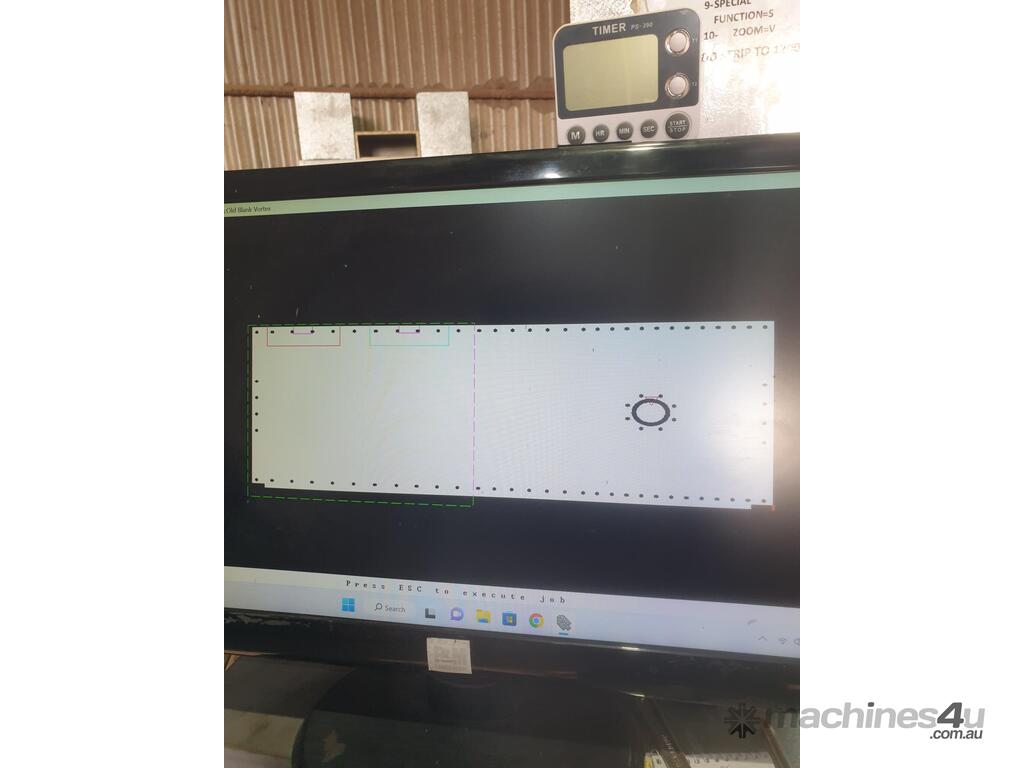

CNC control unit with easy-to-use interface

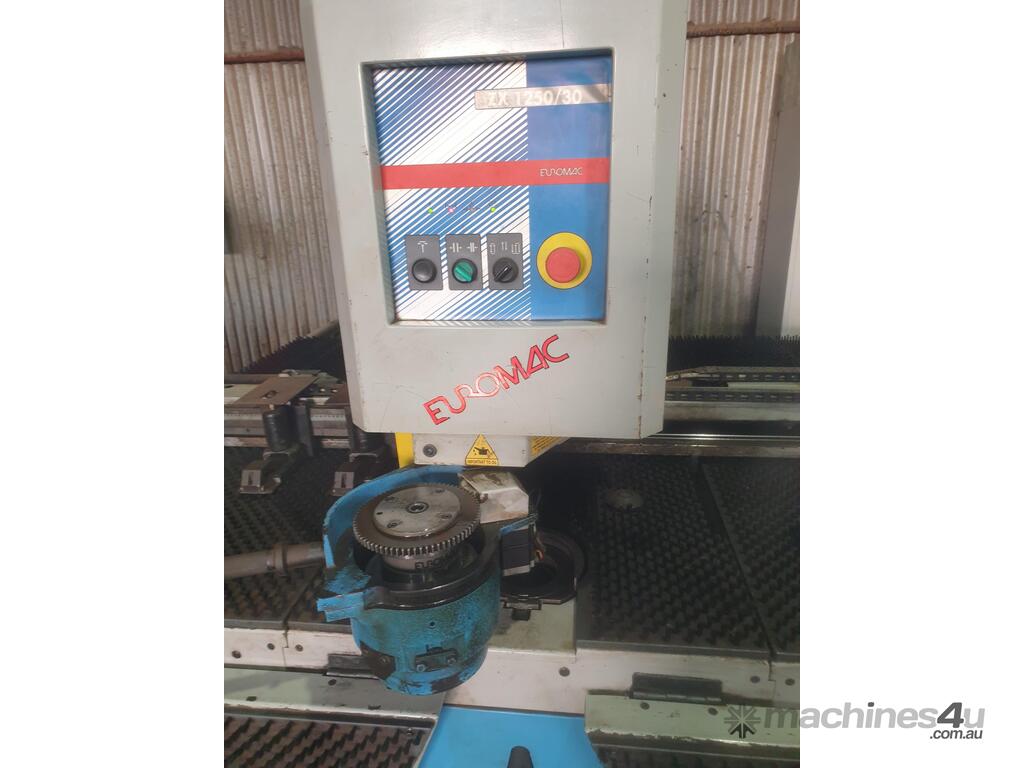

Multi-station turret with auto-indexing for rapid tool changes and complex layouts

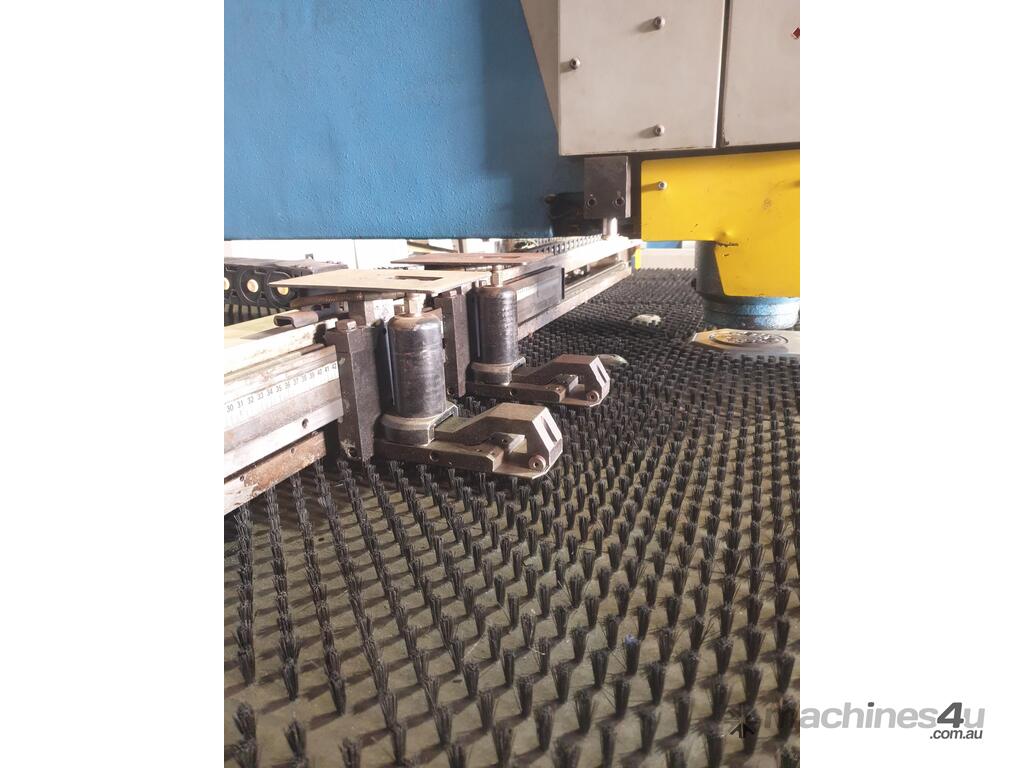

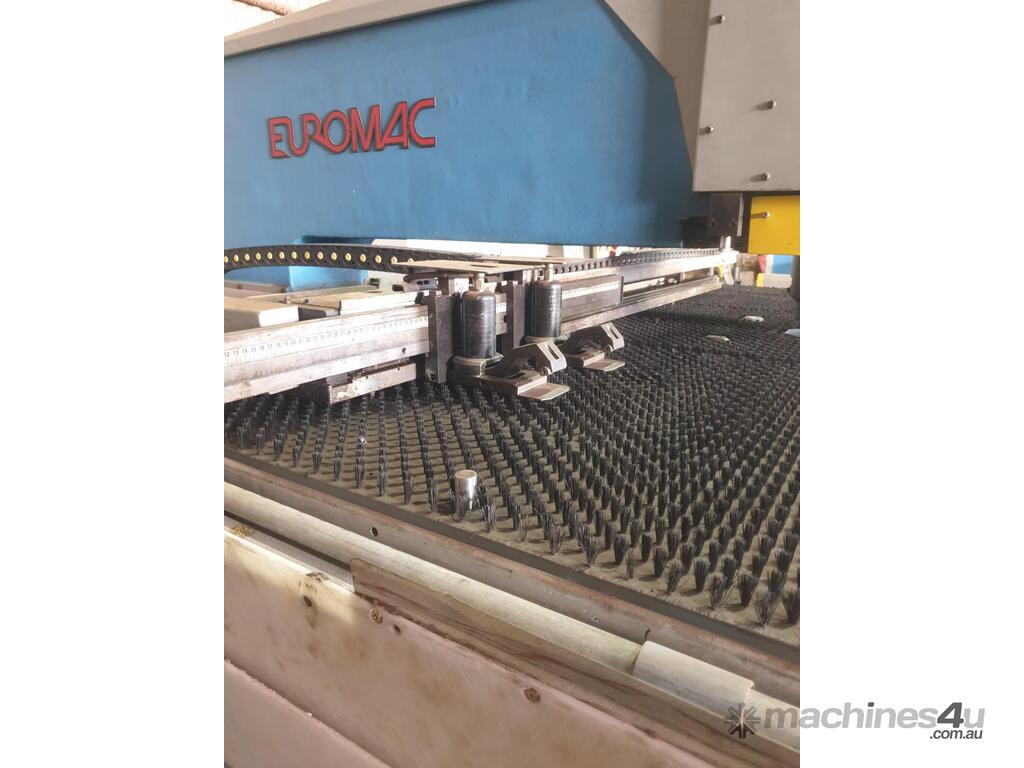

Dual hydraulic sheet clamps and brush worktable reduce marking and improve handling

Solid build quality from Euromac, designed for years of heavy-duty operation


Included with this machine:

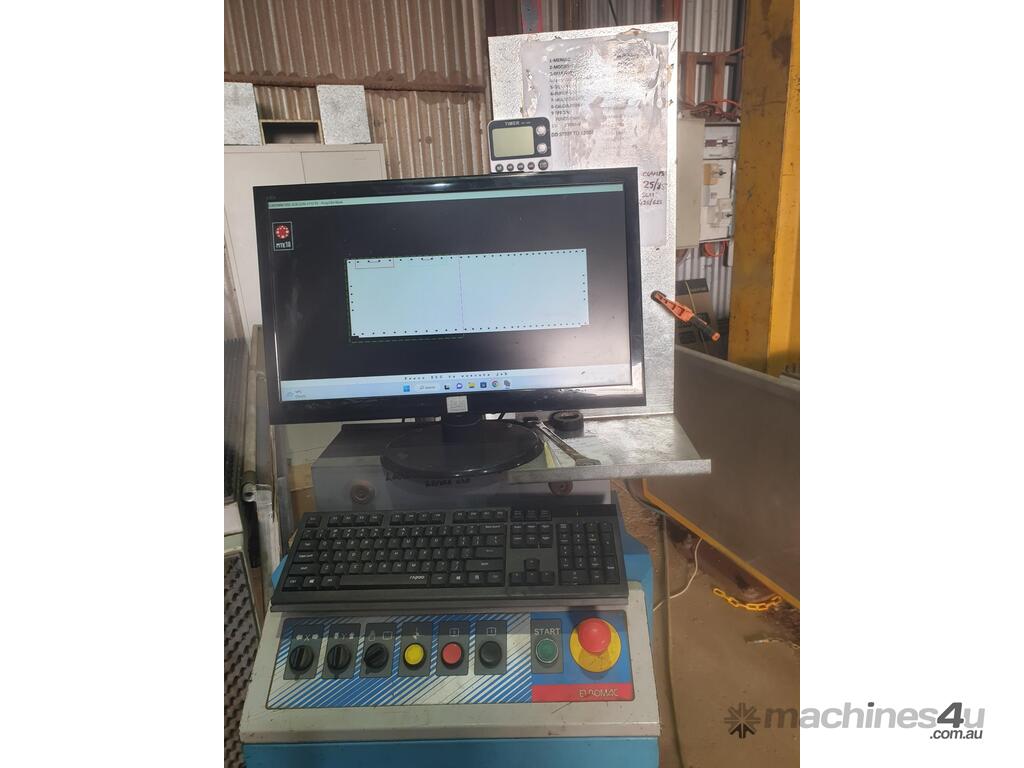

CNC control station with monitor, keyboard, and full operator panel

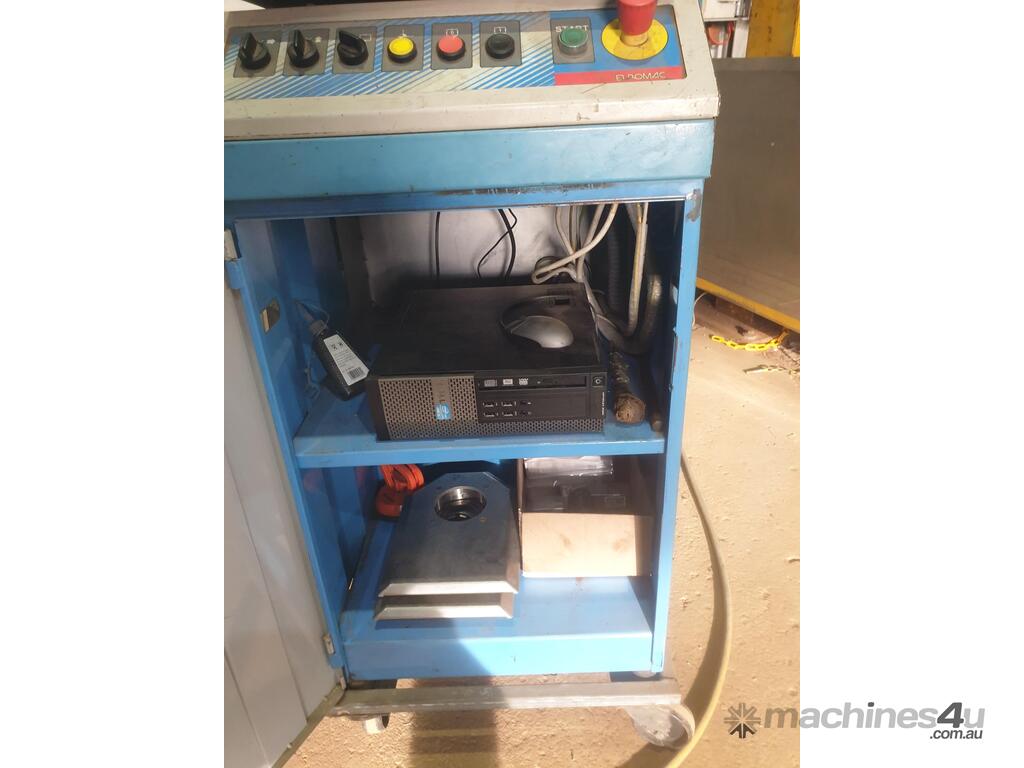

Integrated computer system with software support

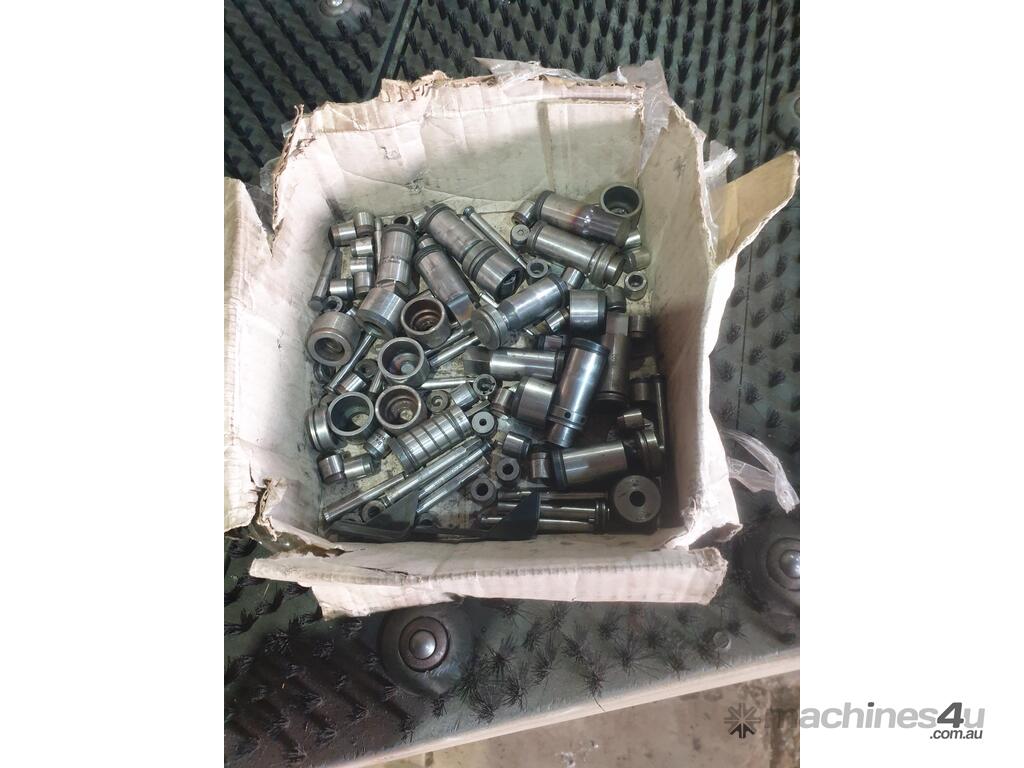

Tool holders and assorted tooling accessories

Safety guards and emergency stop systems

Weight of Machine - 7 Tonne
Dimensions of Machine - 3m x 2.3m x 1.9m
Has Lifting Lugs on the top

Power Supply - 3Phase
