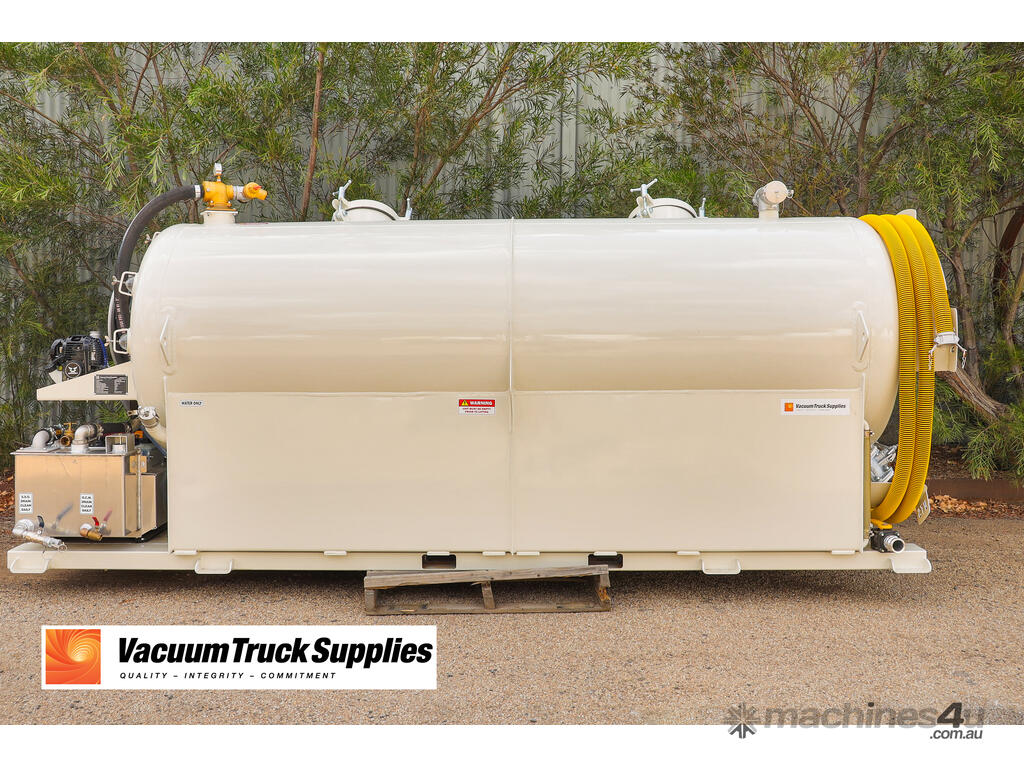

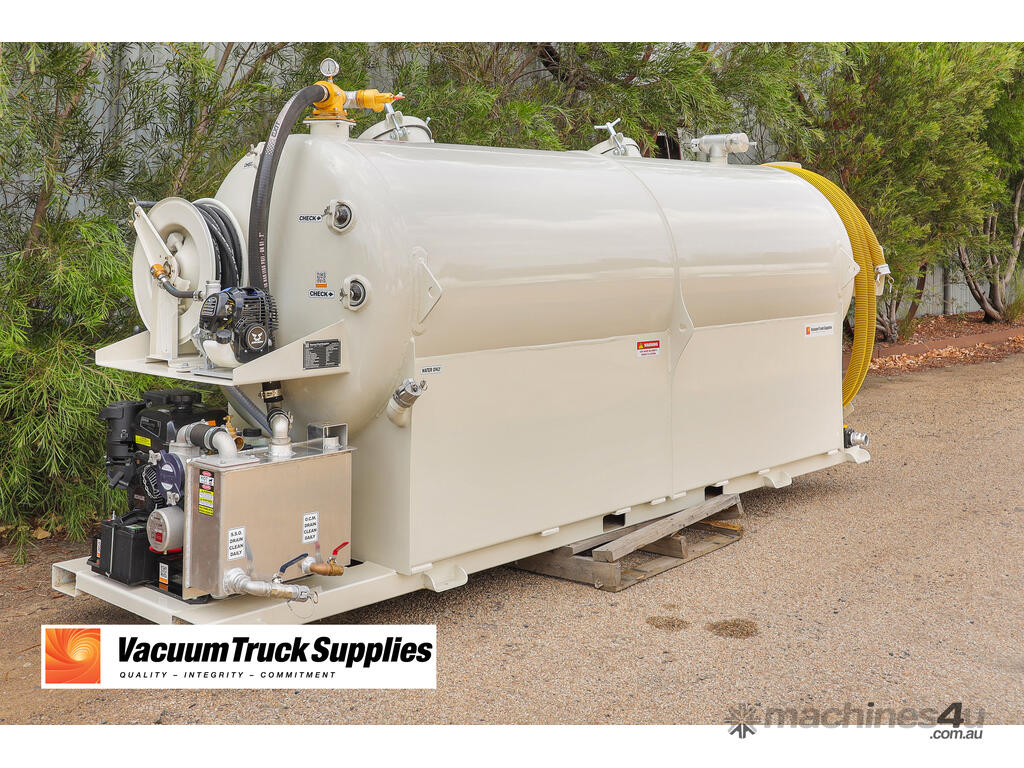

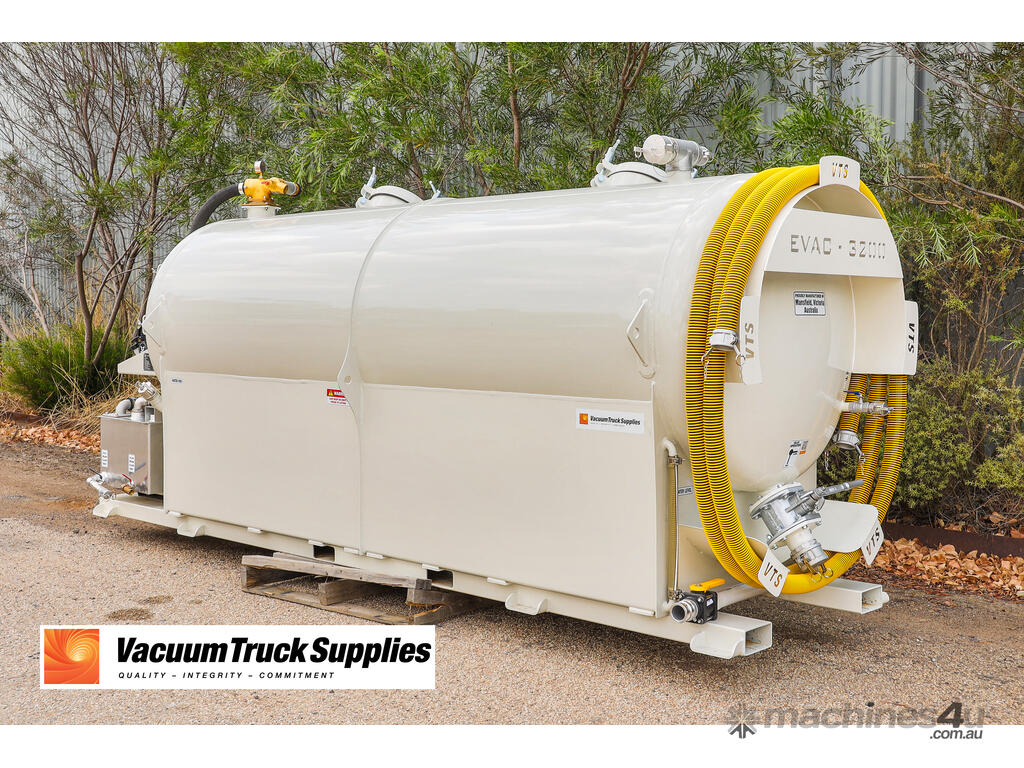

Evac 3200 Portable Vacuum Tank

Cost effective, portable and built to last

The VTS Evac range provides a portable vacuum solution for a wide range of applications. These units achieve equal vacuum to our full size trucks and trailers, but in a compact and sturdy package.


Rugged Construction
Compact, steel-framed units with industrial-grade pumps, valves and hose gear. Built to handle vibration, transport and daily use—on a flat bed truck, trailer, or site skid.

Easy Maintenance
Accessible filters, traps and seals make routine checks simple. Straightforward componentry means quick parts swaps and minimal downtime in the field.

Simple operation
Designed for plug-and-play use: intuitive controls, clear valve logic, and fast start-up. Backed by online training video support for safe, confident operation from day one.

Fit for Purpose
Purpose-built for tight access, emergency call-outs, and smaller jobs where agility matters. Mount it to a flat bed truck or suitable trailer and you’re on site, working—fast.


Capacity:
- 3,200 litres (also available in 800L and 1600L)

Vacuum Pump:
- 195 m3/h
- 115 CFM vacuum pump

Fresh Water System:
- 1,200 litres of fresh water
- Honda low-pressure pump

Barrel:
- 5mm stainless steel
- AS1210 CL3 and AS4343 compliant
- Work Safe plant approved

Vacuum Pressure:
- Vacuum tested to -101 kPa
- Pressure tested to 100 kPa

Engine:
- Honda petrol drive motor

Extras:
- Fully self-contained vacuum and fresh water system
