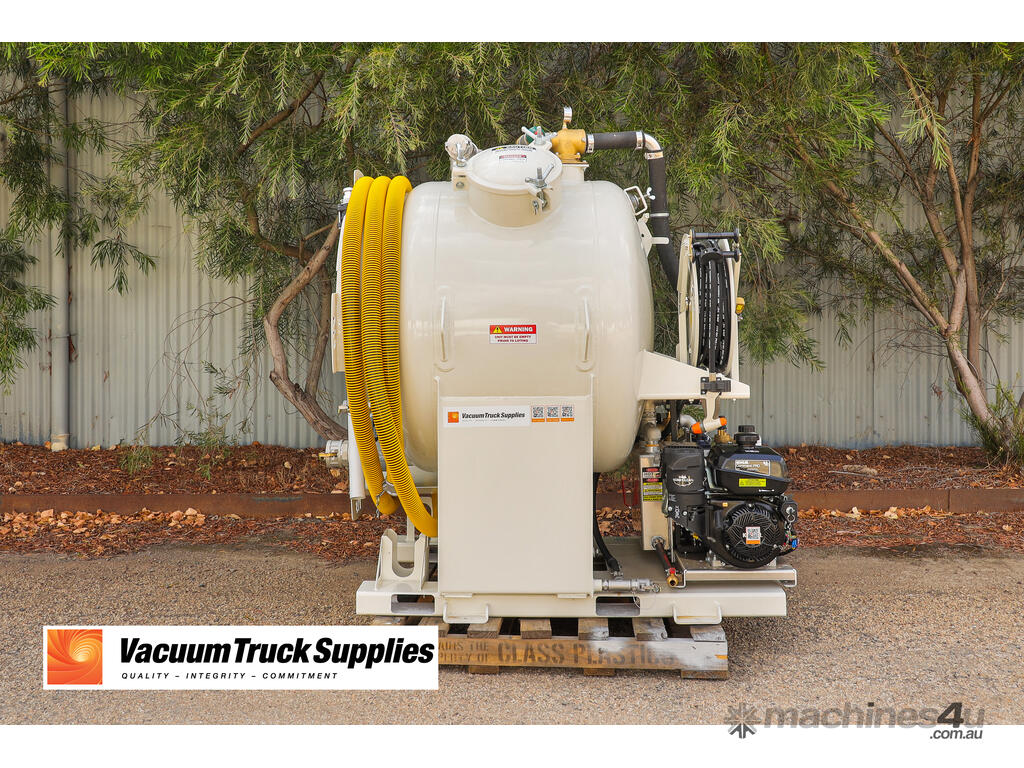

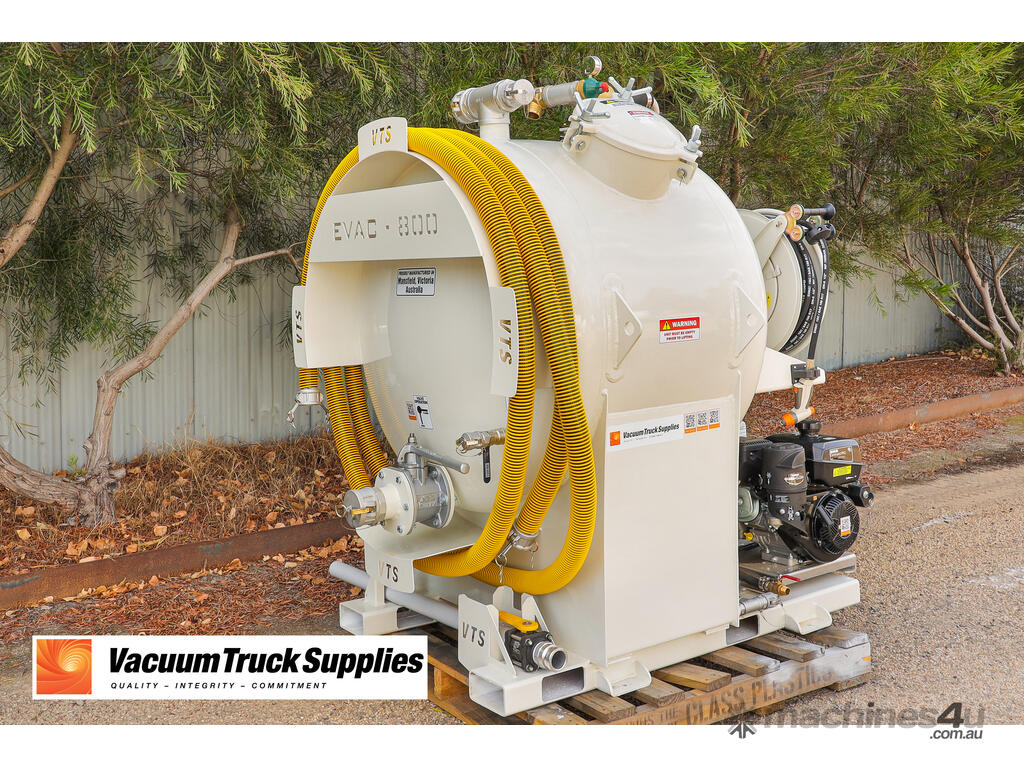

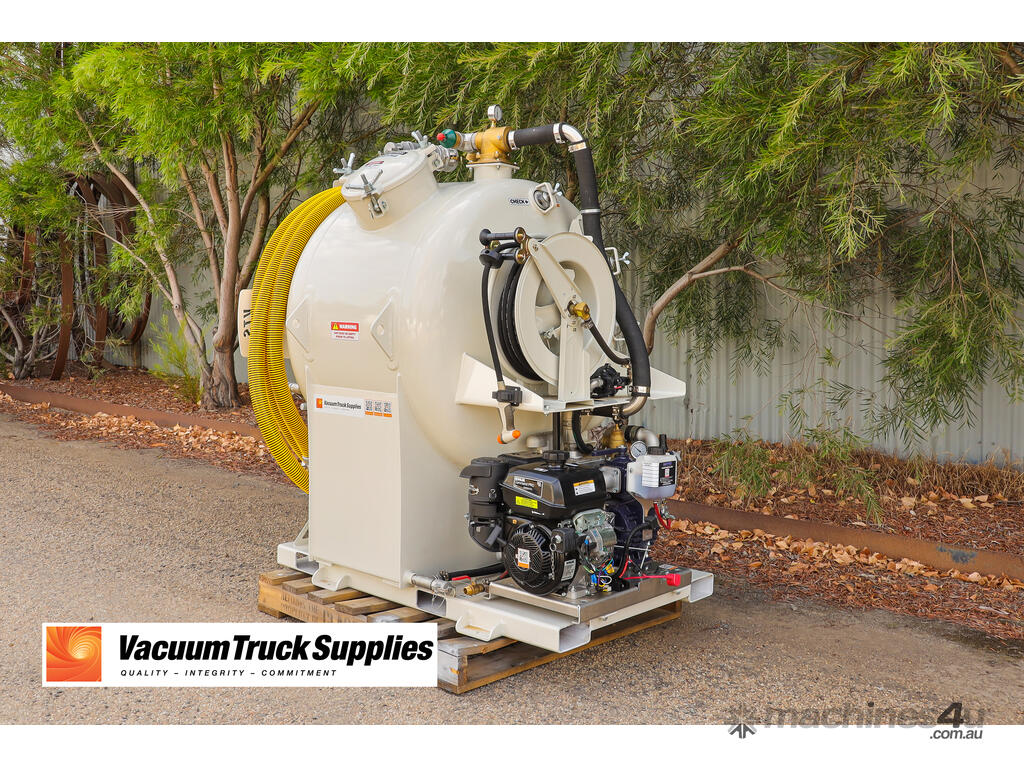

Evac 800 - portable Vacuum tank

Cost effective, portable and built to last

The VTS Evac range provides a portable vacuum solution for a wide range of liquid waste applications. These units achieve equal vacuum to our full size trucks and trailers, but in a compact and sturdy package.


Rugged Construction -

Compact, stainless steel units with industrial-grade pumps, valves and hose gear. Built to handle vibration, transport and daily use—on a ute, trailer, or site skid.

Easy Maintenance -

Accessible filters, traps and seals make routine checks simple. Straightforward componentry means quick parts swaps and minimal downtime in the field.

Simple operation -

Designed for plug-and-play use: intuitive controls, clear valve logic, and fast start-up. Backed by VTS online training video support for safe, confident operation from day one.

Fit for Purpose -

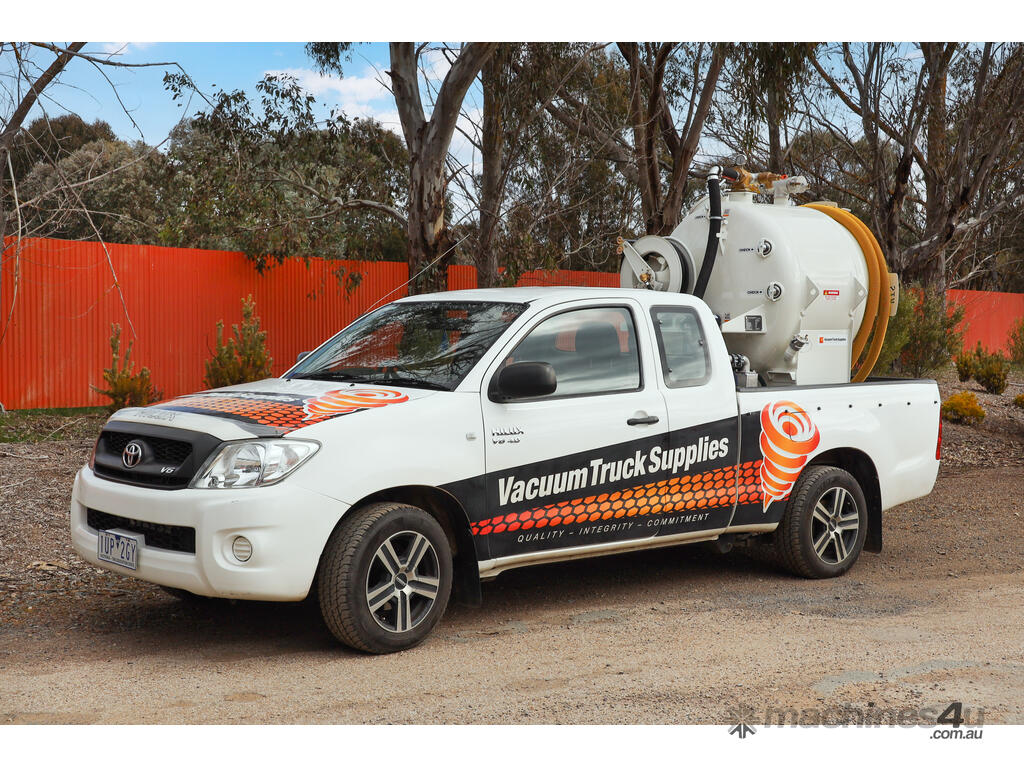

Purpose-built for tight access, emergency call-outs, and smaller jobs where agility matters. Mount it to a suitable ute or trailer and you’re on site, working—fast.


Capacity:
- 800 litres (also available in 1600L and 3200L)

Vacuum Pump:
- 120 m3/h
- 70 CFM vacuum pump

Fresh Water System:
- 300 litres of fresh water
- Honda low-pressure pump

Barrel:
- 5mm stainless steel
- AS1210 CL3 and AS4343 compliant
- Work Safe plant approved

Vacuum Pressure:
- Vacuum tested to -101 kPa
- Pressure tested to 100 kPa

Engine:
- Honda petrol drive motor

Extras:
- Fully self-contained vacuum and fresh water system

Available for delivery.
