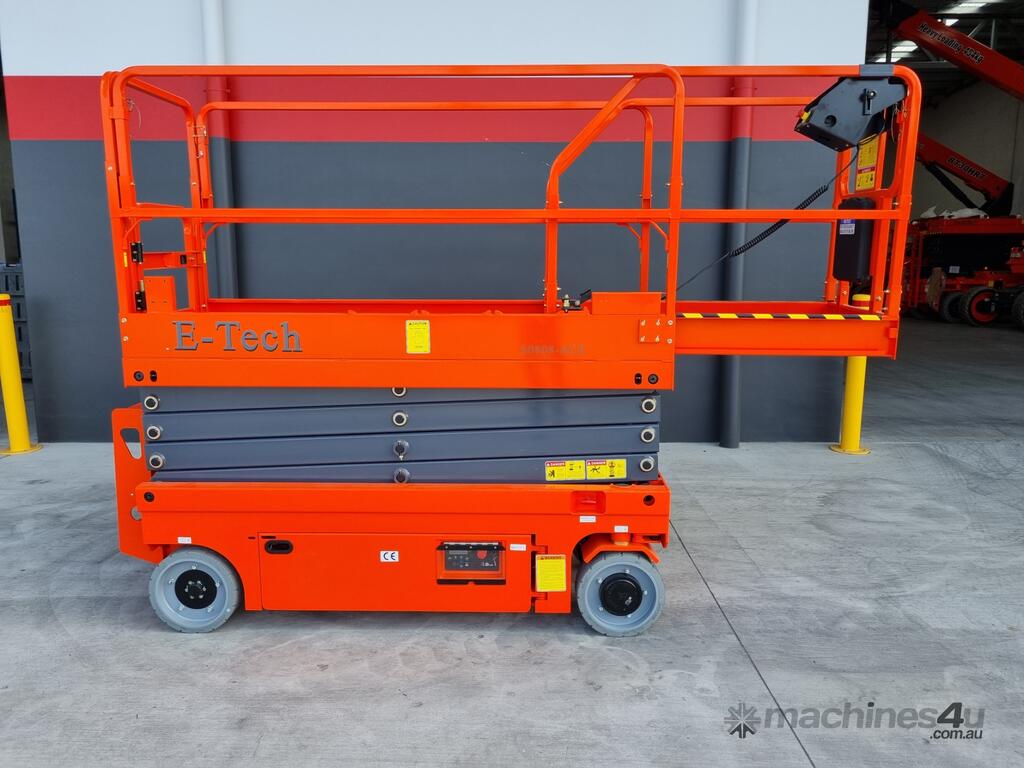

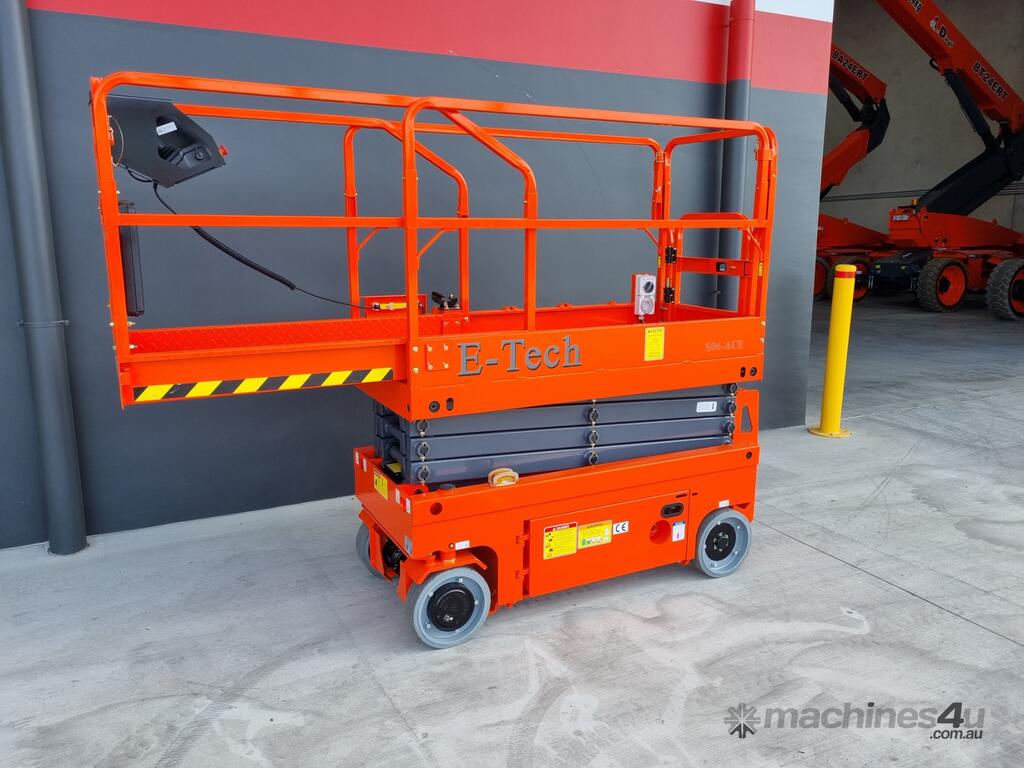

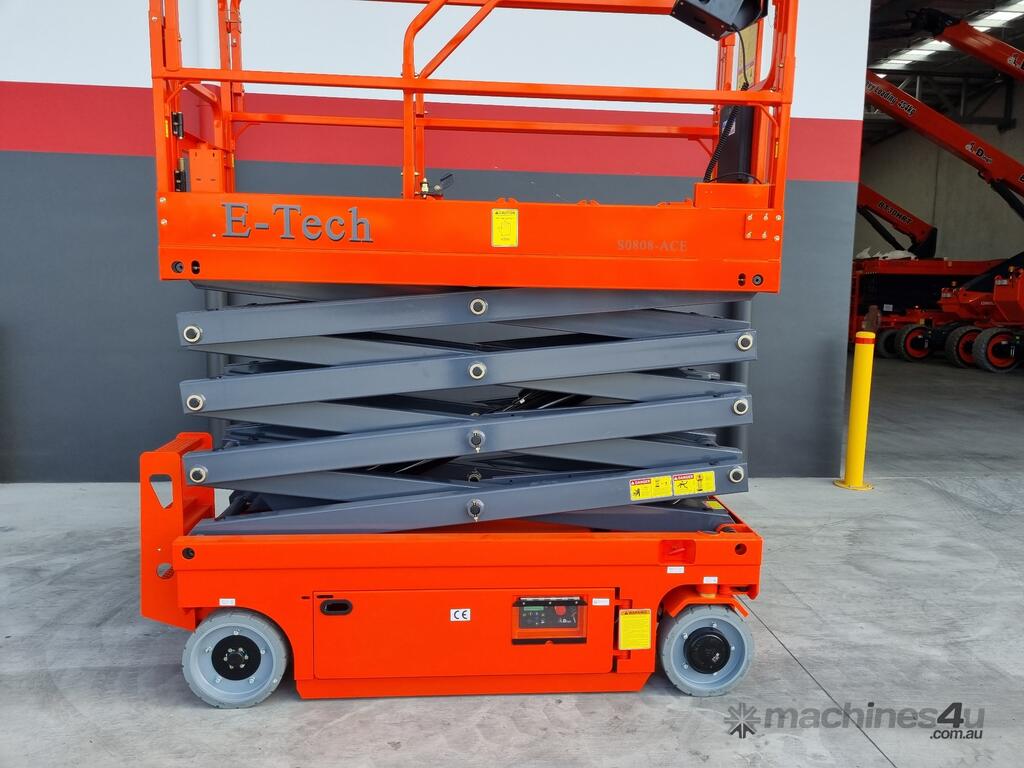

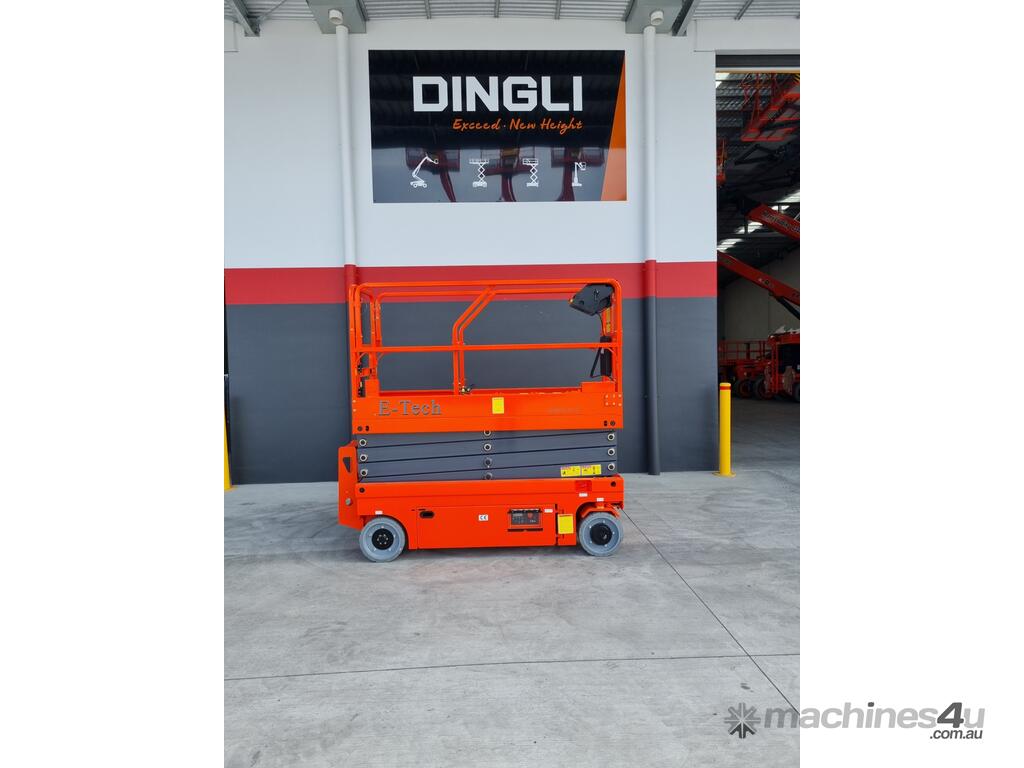

Dingli ACE S06 Electric Scissor Lift - Compact, Clean and Built for Access

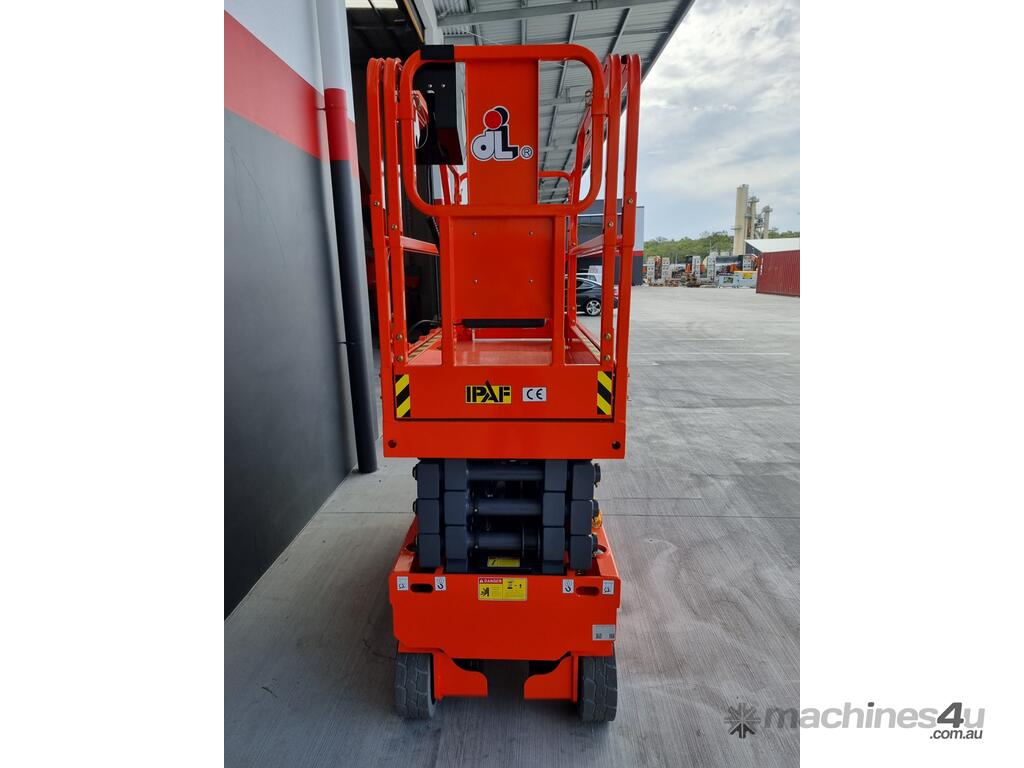

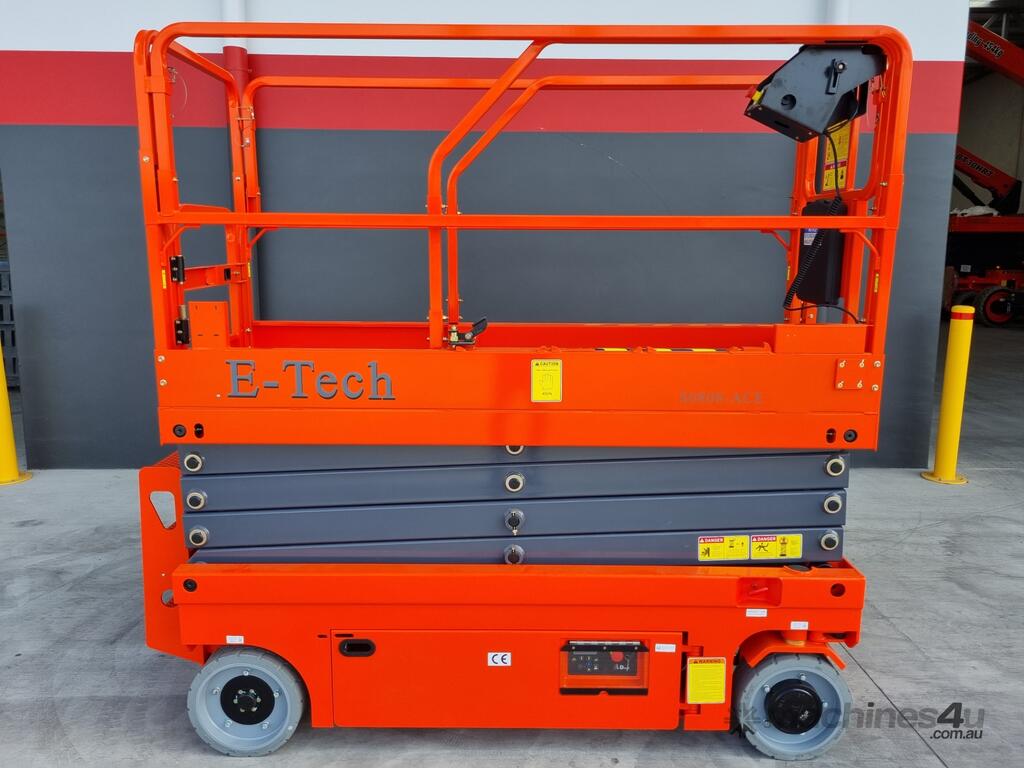

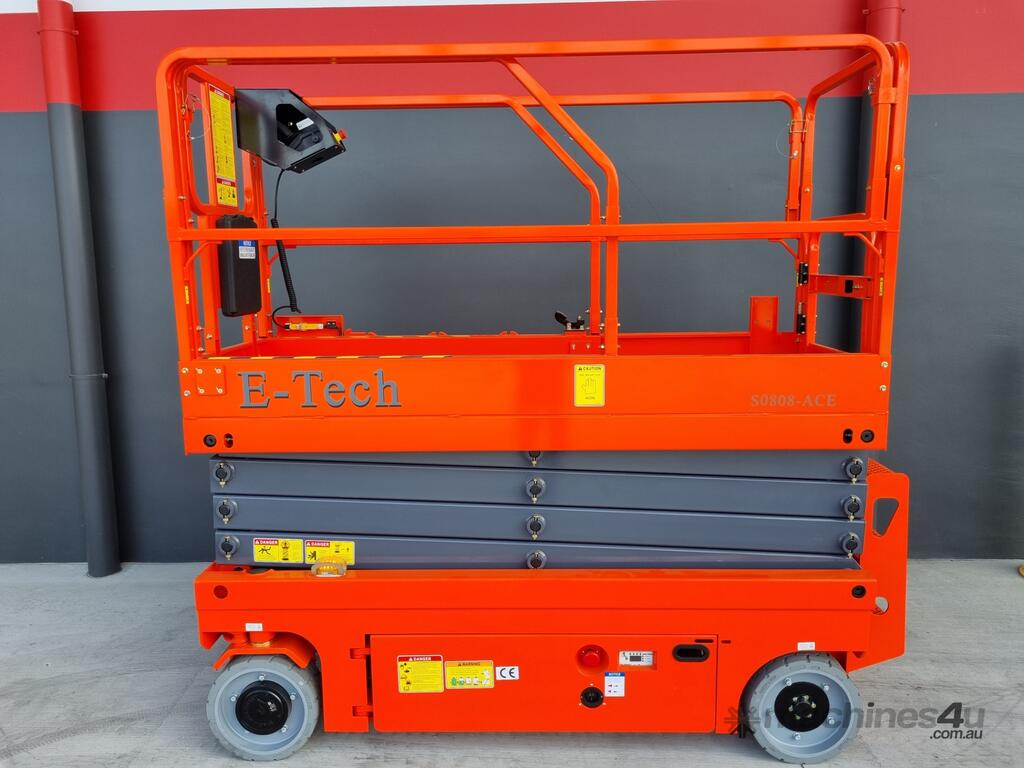

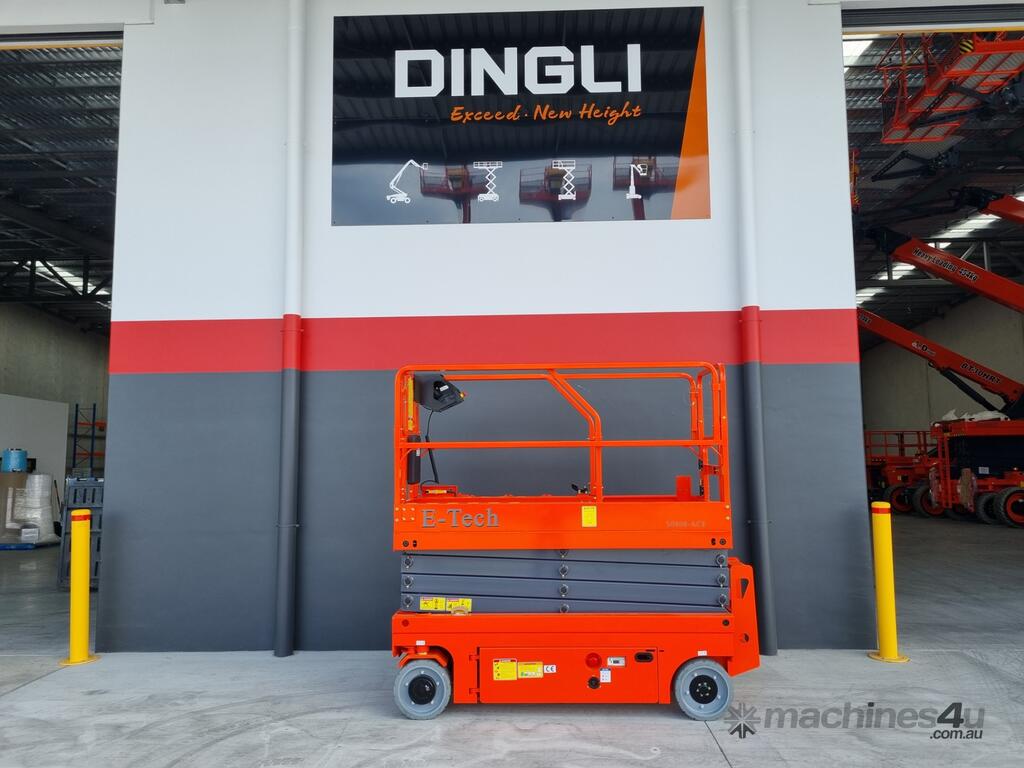

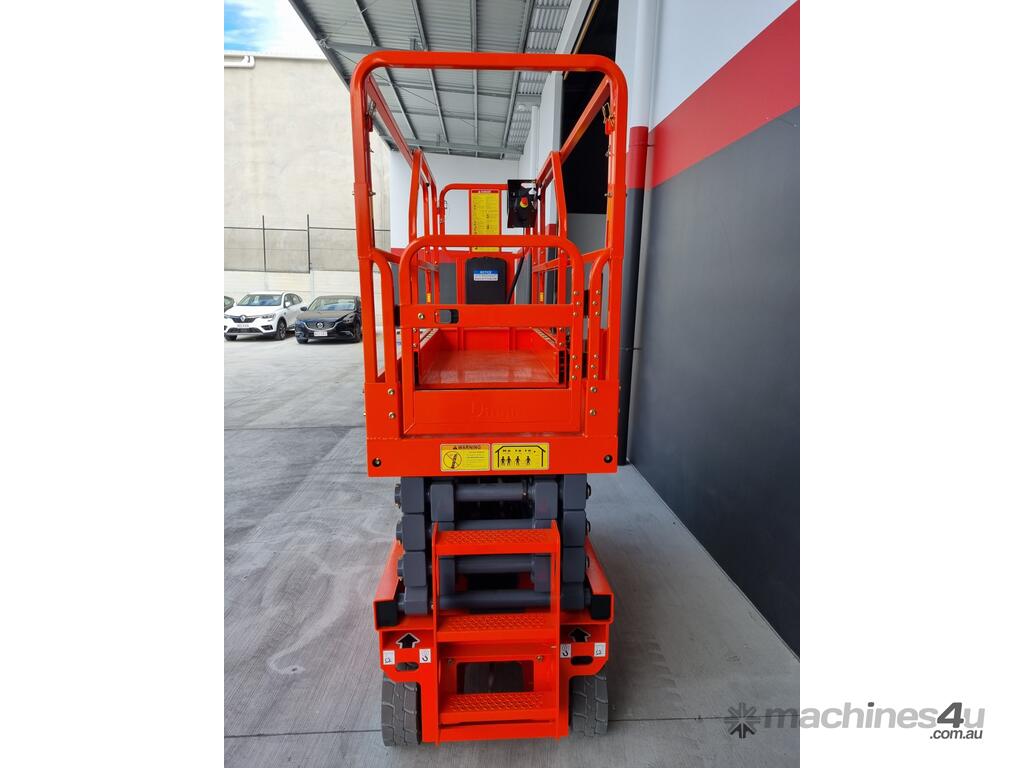

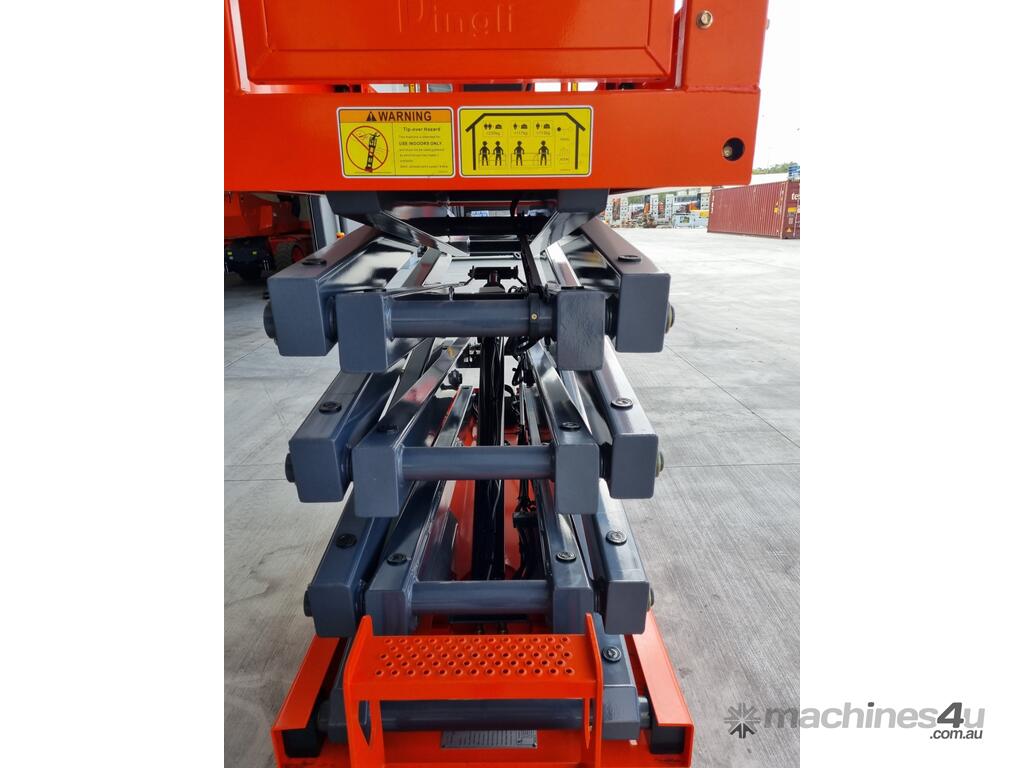

The Dingli ACE S06 is a compact 19ft electric scissor lift, designed for smooth, zero-emissions operation in both indoor and outdoor environments. Featuring an all-electric AC drive system and a factory-fitted anti-crush detection system, it’s built with safety, reliability and efficiency in mind.
Key Specifications:
- Platform Height: 5.80 m
- Working Height: 7.80 m
- Platform Capacity: 230 kg
- Platform Extension Capacity: 113 kg
- Machine Width: 0.76 m
- Machine Length: 1.86 m

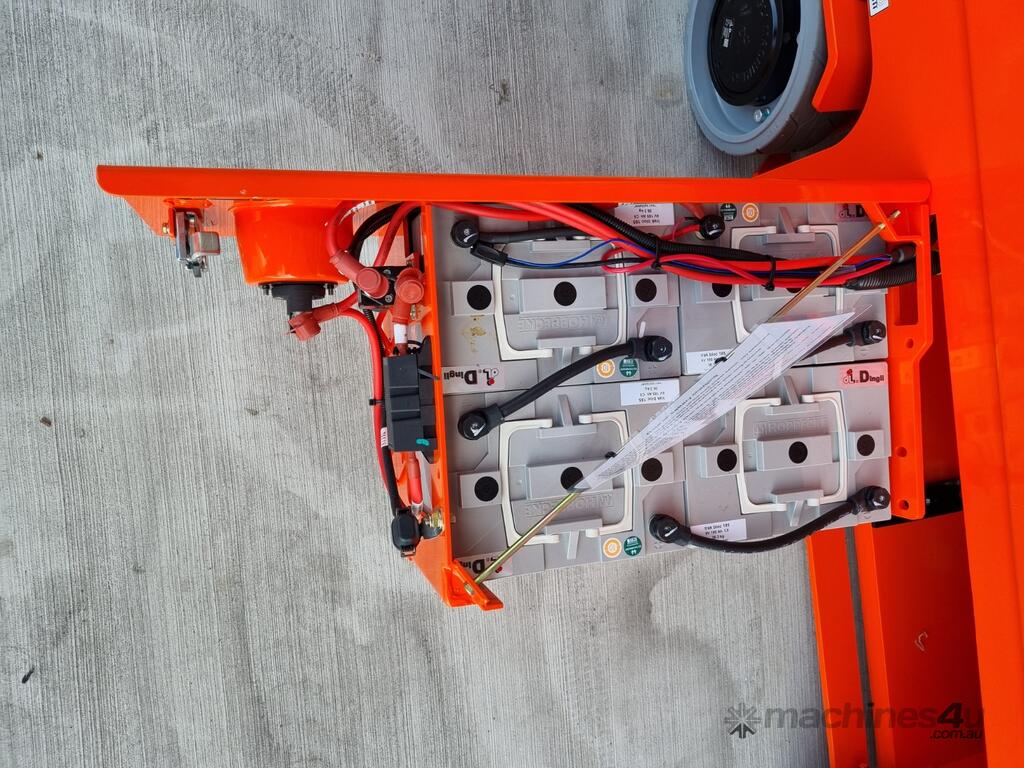

- Weight: 1,630 kg (lead-acid) / 1,580 kg (lithium)
- Turning Radius (Inside/Outside): 0 m / 1.64 m
- Gradeability: 25%
- Travel Speed (Stowed): 4.5 km/h
- Travel Speed (Raised): 0.6 km/h
- Max Slope: X-1.5° / Y-3°
Standard Features:
- All-electric AC drive – quiet, maintenance-friendly and emissions-free

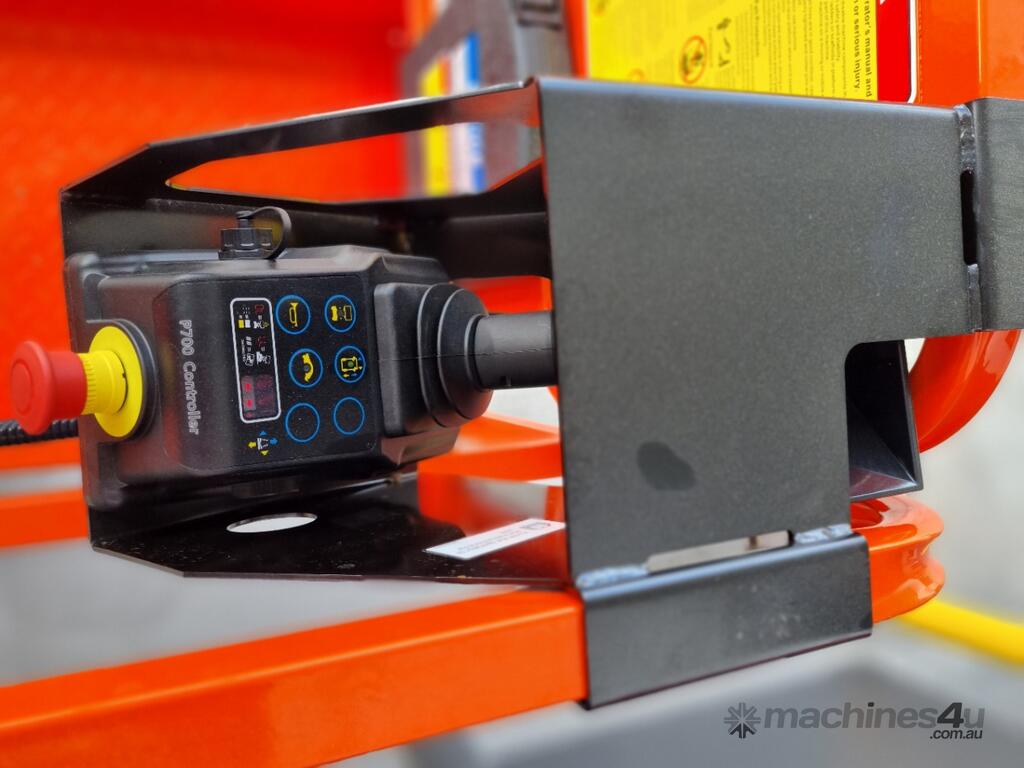

- Proportional joystick controls for precise operation
- One-way platform extension for added reach
- Drivable at full height
- Non-marking tyres for sensitive surfaces
- Self-locking gates and folding rails
- Automatic braking system
- Emergency descent system
- Tubing explosion-proof system for added safety

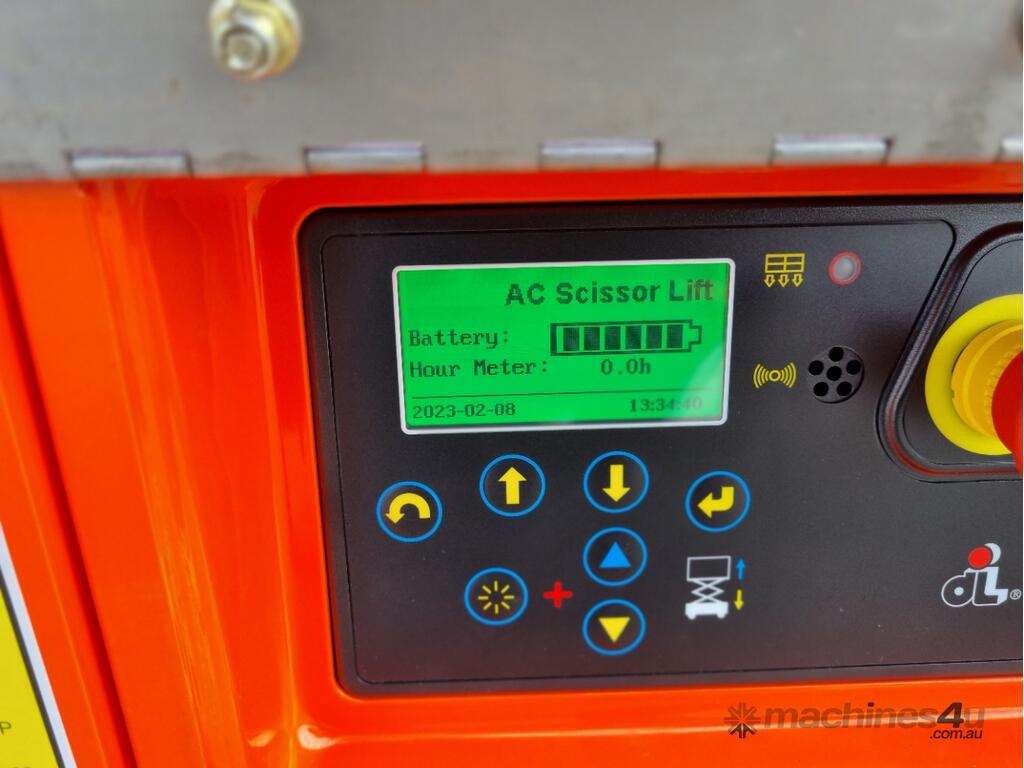

- Onboard diagnostic system for fast troubleshooting
A smart choice for contractors, hire fleets and facility maintenance teams needing a reliable, zero-emissions scissor lift with compact dimensions and full-height mobility.
