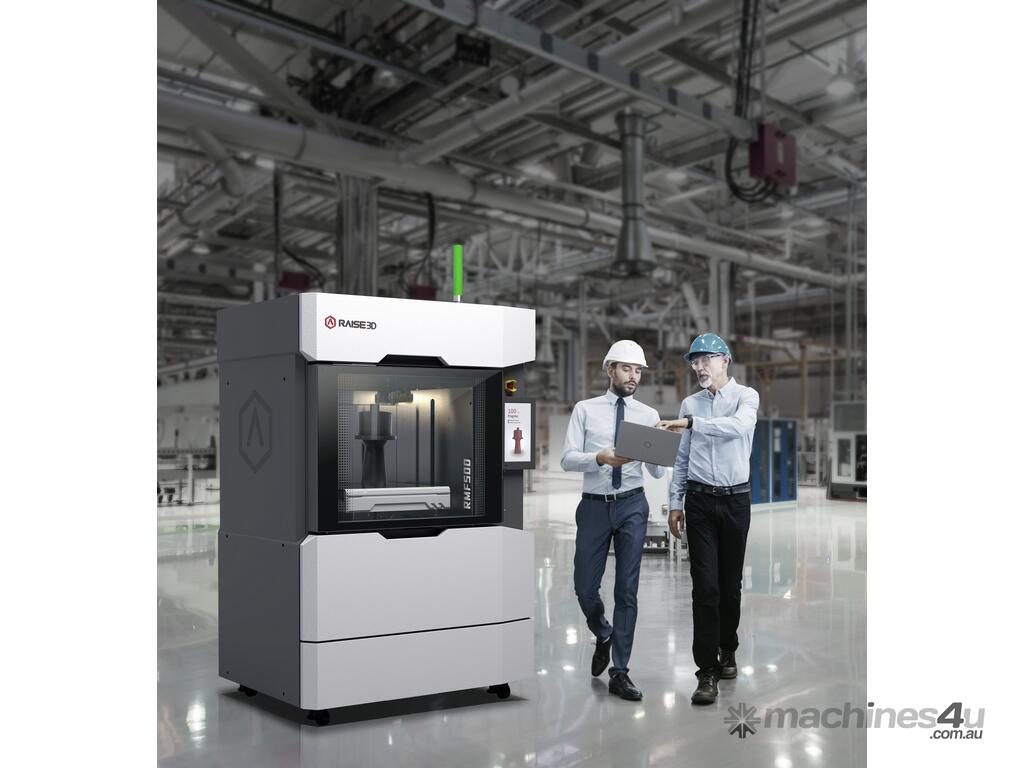

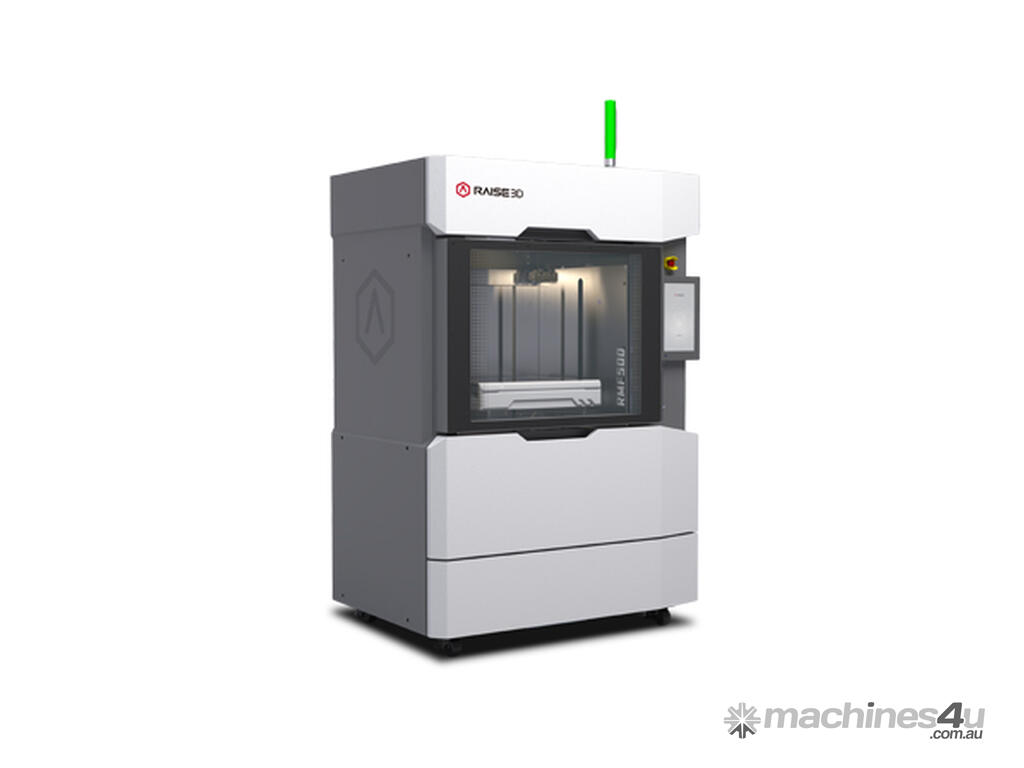

Ex-Demo Raise3D RMF-500

This printer has been used by Bilby3D (the distributor) for demonstration prints. It includes factory upgrades and many spares.

This is a heavy duty Industrial 3D Printer, designed for reliable, repeatable round the clock production of high-performance engineering materials, such as PETG-CF and ABS.

The RMF500 was conceived to allow Raise3D industrial customers to expand their business to a more demanding level, where they can precisely and repeatedly fabricate end-use parts made of carbon fibre reinforced material at high speed.

The Key Capabilities of the RMF500

The RMF500 has been designed to offer three main features that place it in a strong position within its segment:
• Highly Accurate Production Repeatability
• High Speed and Large Build Volume
• The ability to use High-Performance Material

Highly Accurate Production Repeatability

With its linear motors, the RMF500 can execute models with an accuracy of 0.001mm along the X and Y axes. Meanwhile it achieves precision of 0.0009765mm along the Z axis. Its 1µm closed-loop synchronous control reduces speed variations with load changes of the motor, enhancing precision even further.

High Speed and Large Build Volume

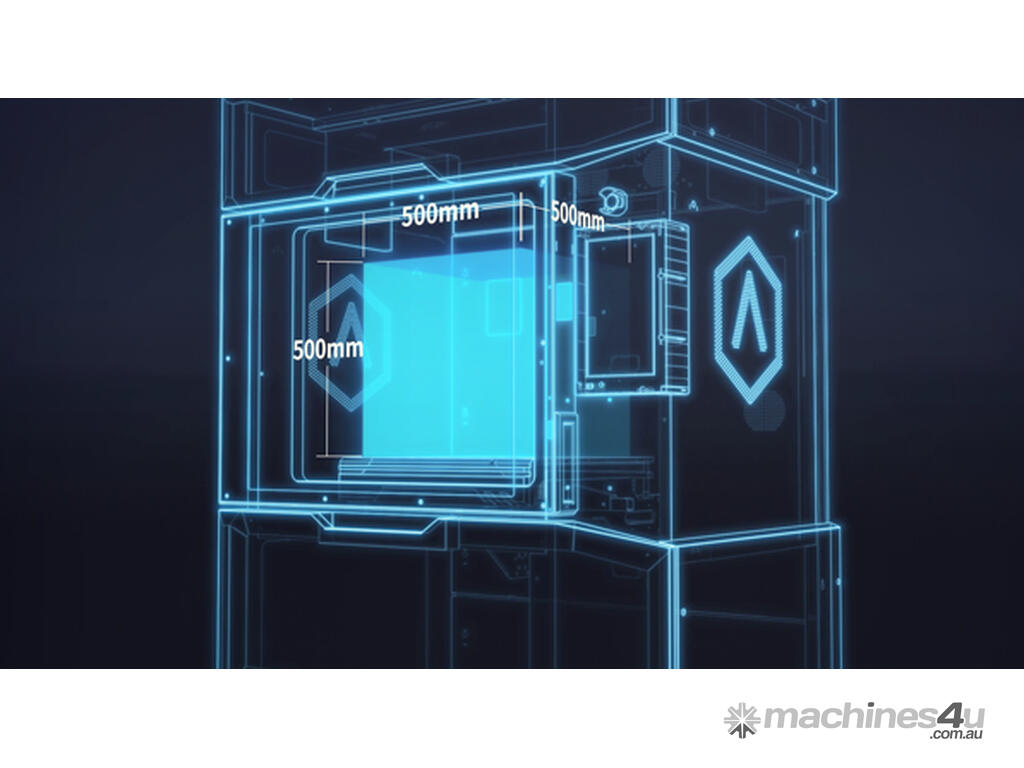

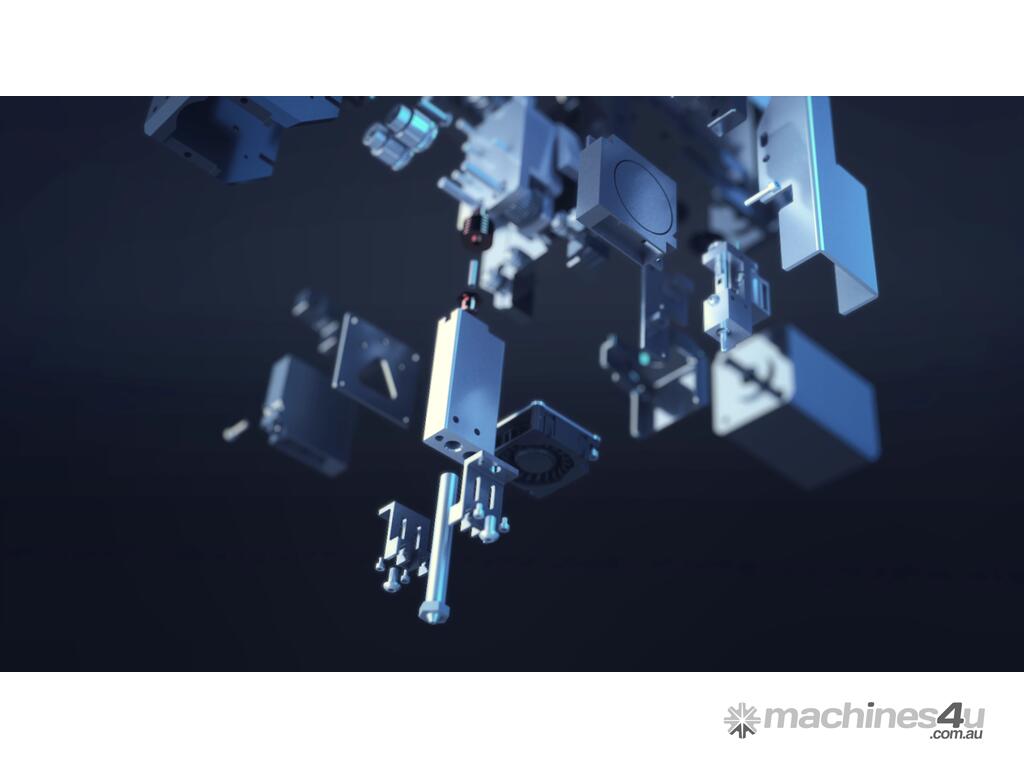

The RMF500 has a large 500 x 500 x 500mm build area and can reach print speeds of up 500mm/s along with an acceleration of up to 2G and movement of up to 1000mm/s. Furthermore, with its Independent Dual Extruder system (IDEX), it is possible to execute 2 print jobs simultaneously, making the RMF500 even quicker and more productive.

High-Performance Materials

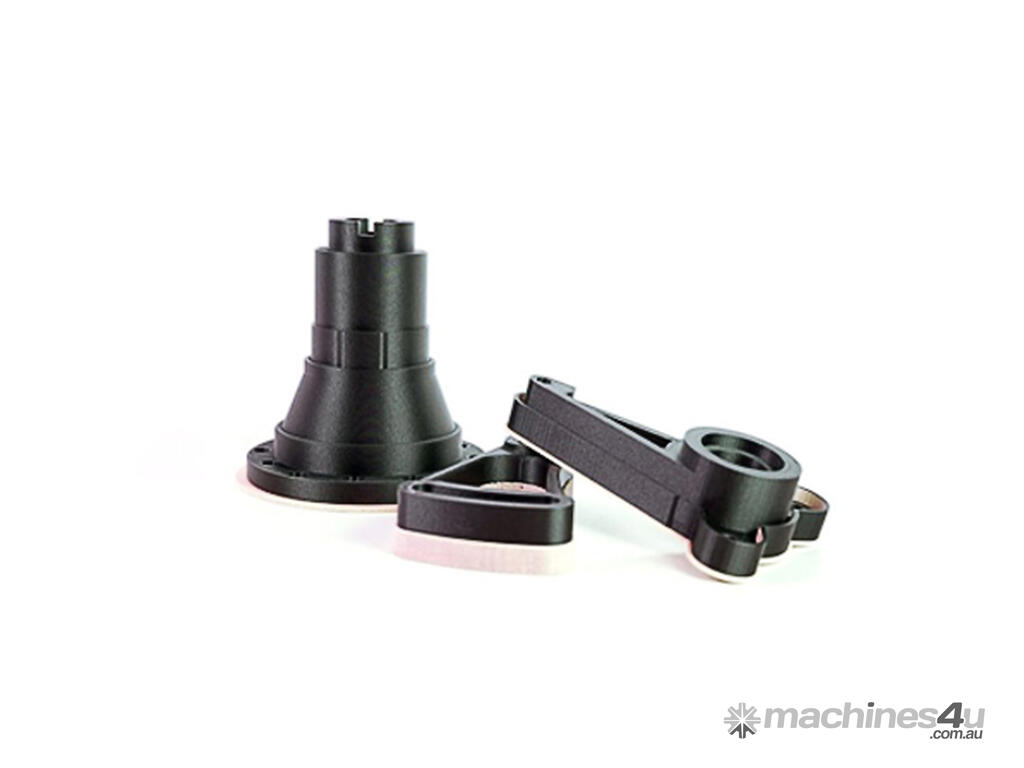

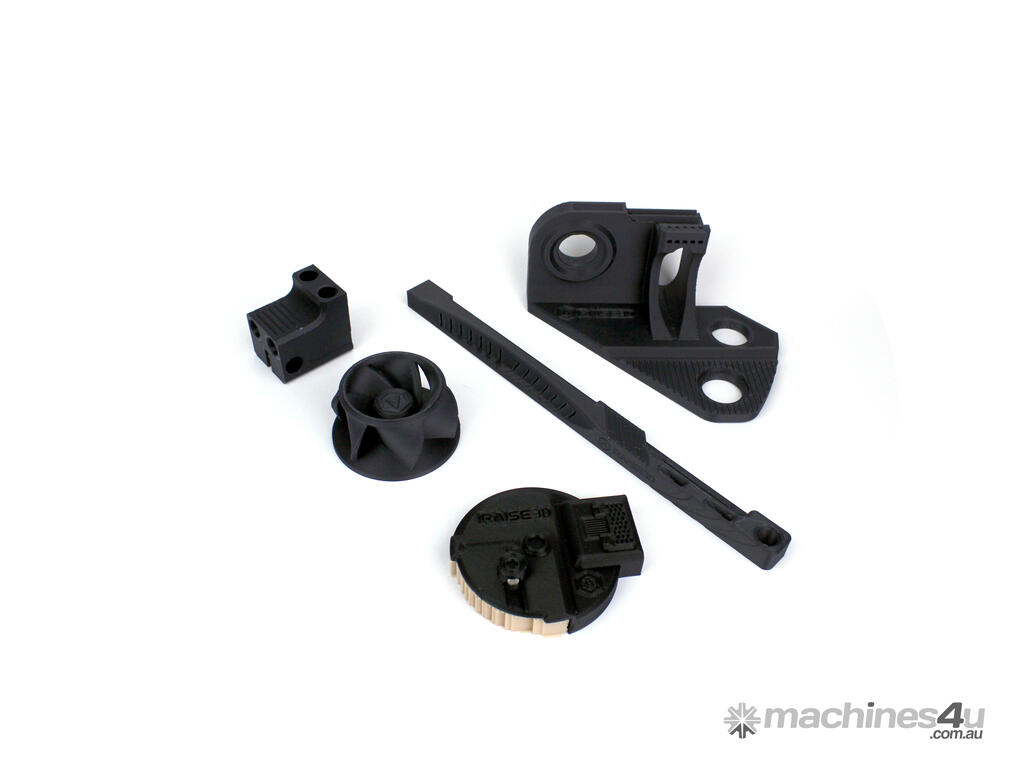

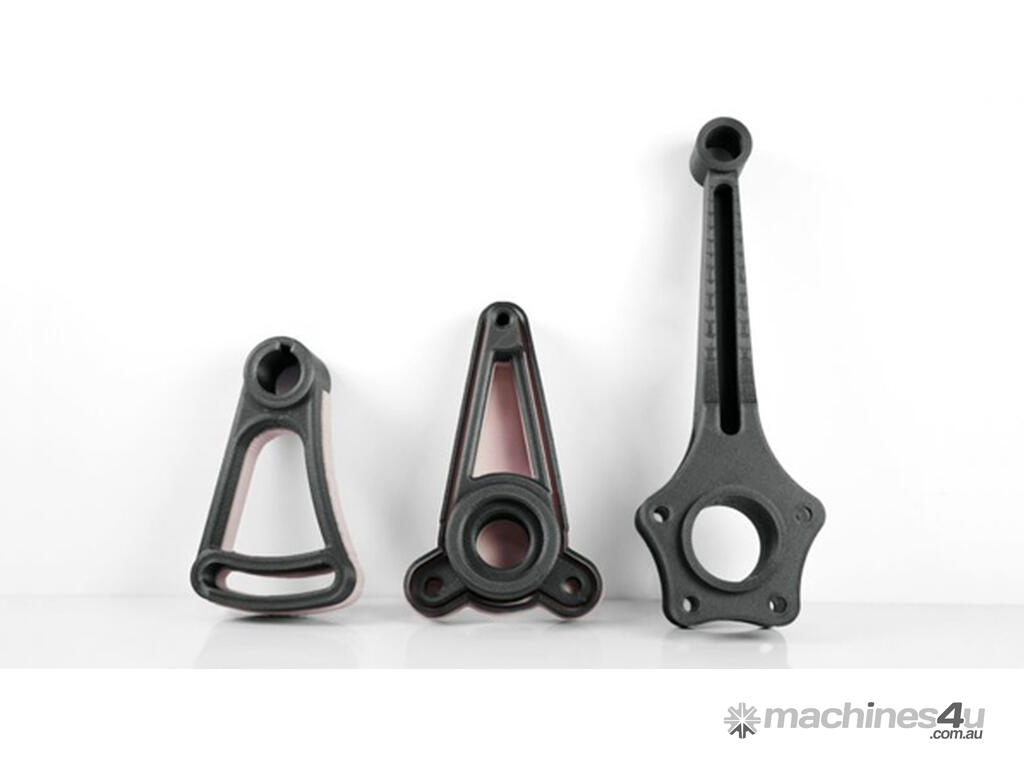

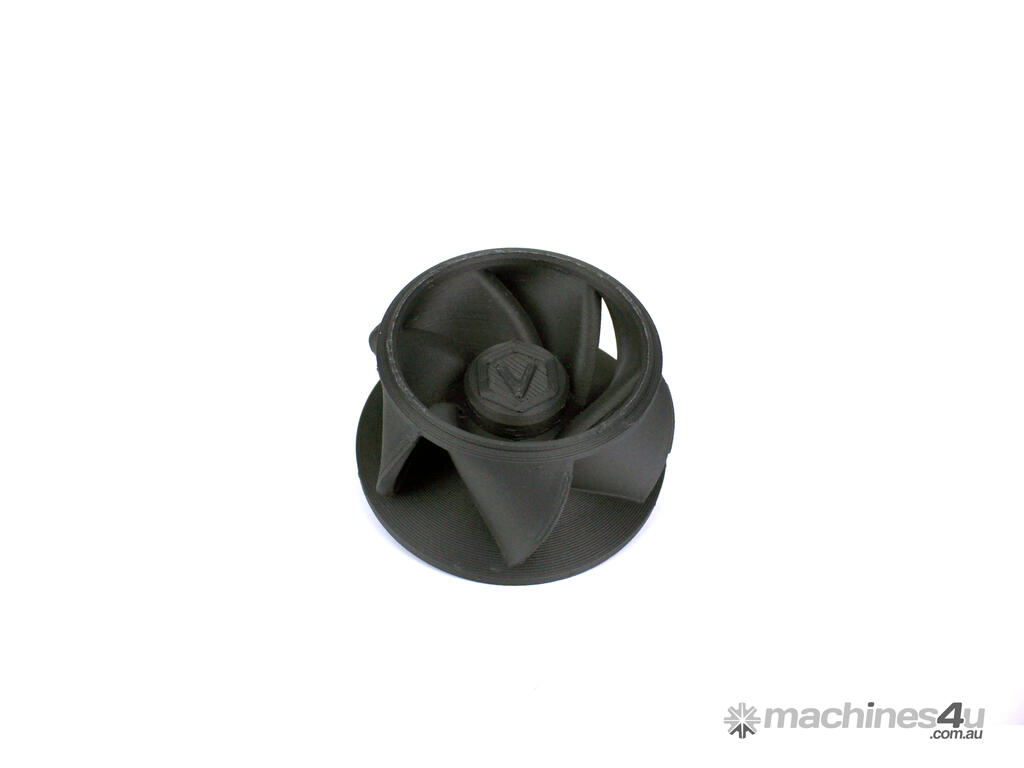

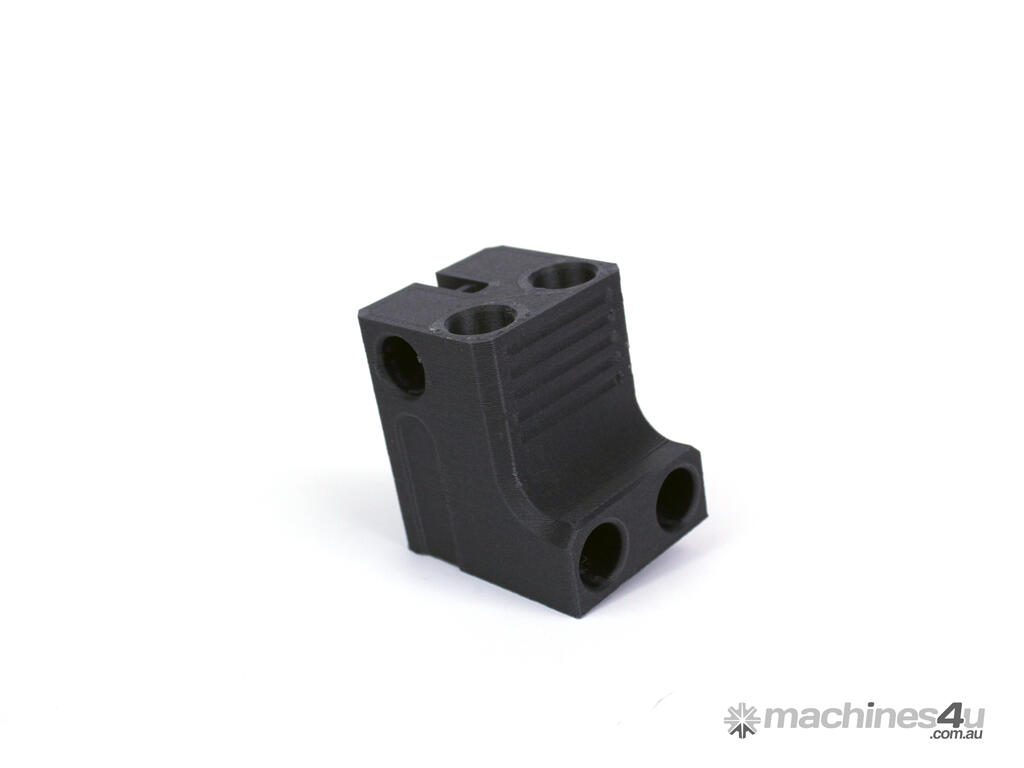

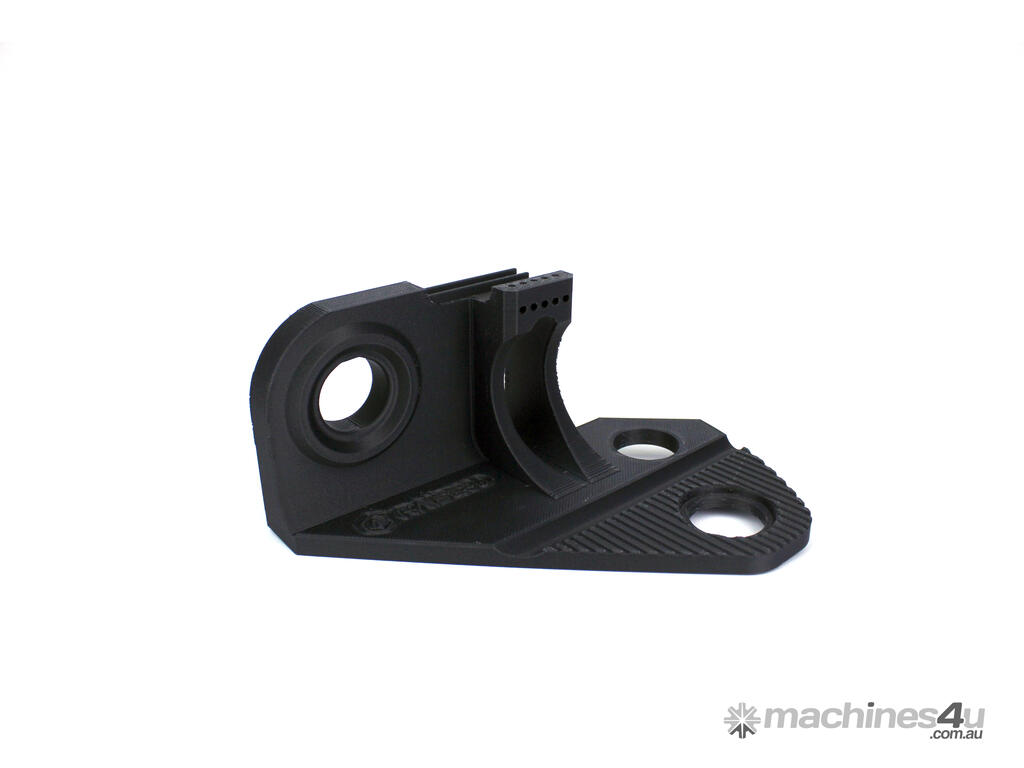

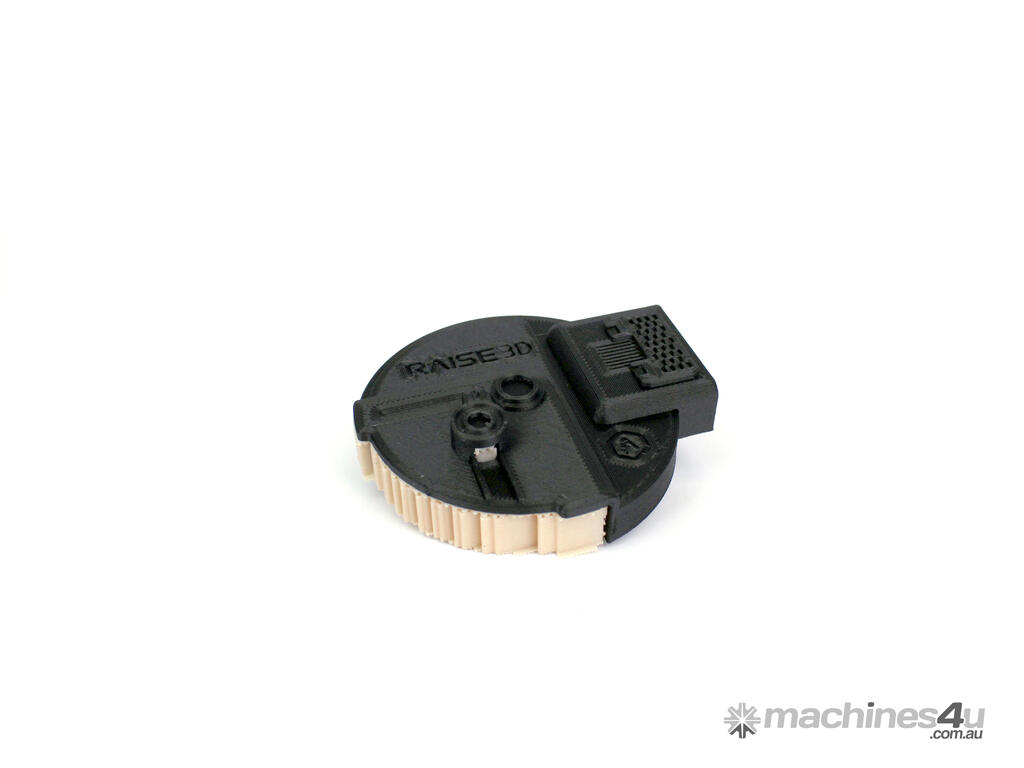

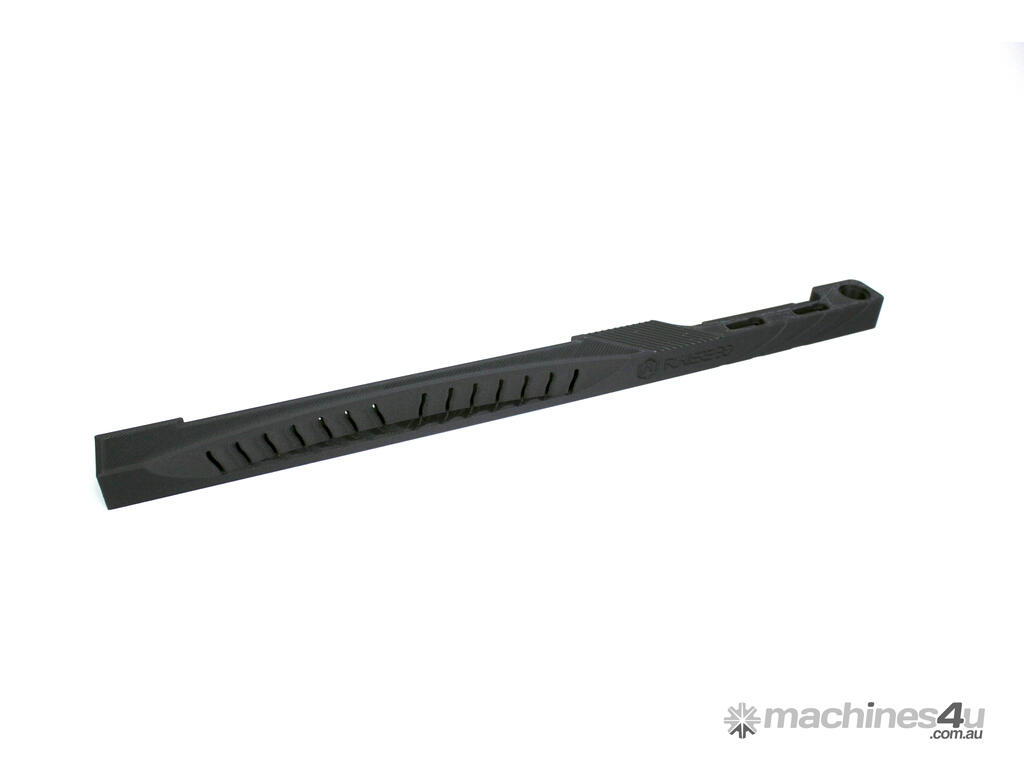

Raise3Ds material scientists insistently worked to determine the best materials for reliable, uninterrupted printing of strong end-use parts. The result is a carbon fiber reinforced filament with higher rigidity and lower shrinkage ratio, it does not need a heated chamber to avoid warping, as is so customary in 3D printing. This leads to a far more efficient printer, that does not need to draw so much power, using 120W to power a single hotend. The resulting parts made from the carbon fiber reinforced filament are lightweight yet extremely strong, making them a potentially perfect alternative to metal parts.

Non-stop printing

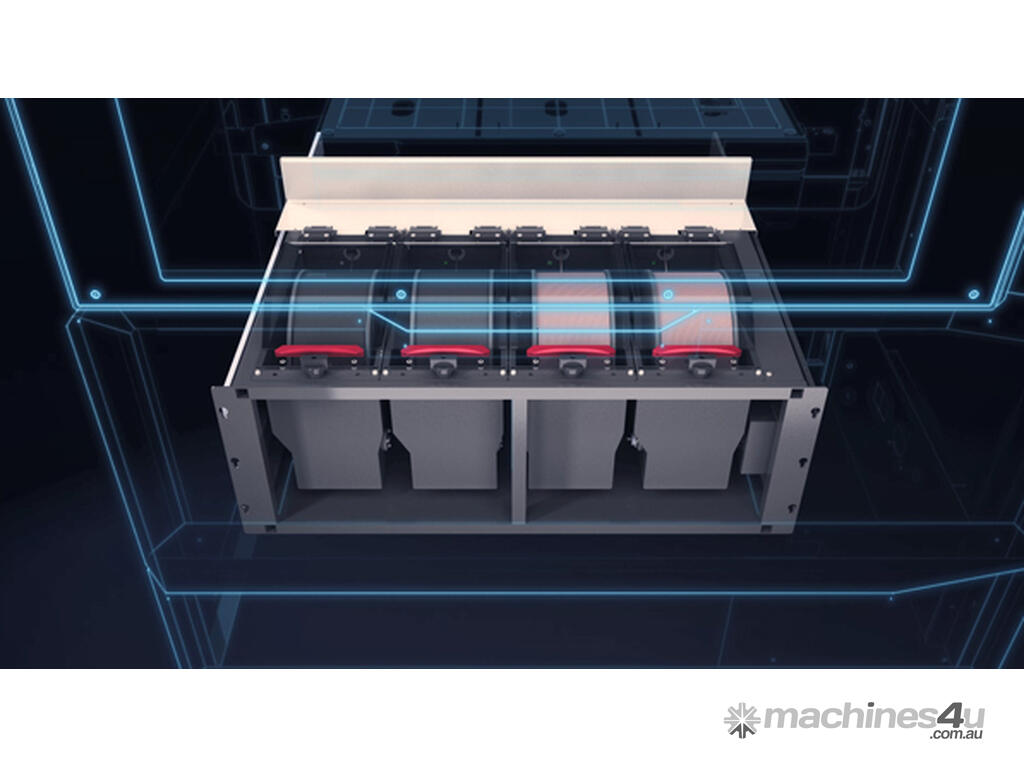

To ensure customers experience trouble-free, uninterrupted printing, the RMF500 is equipped with four 2.5kg super large filament bins (main and auxiliary, with sets each), where the 3D printer can switch automatiy between main/auxiliary bins and reducing the need for constant intervention. Positive pressure humidity control keeps chamber humidity under 5% relative humidity.

Sturdy, durable construction

Apart from all the other advantages, the RMF500 offers more benefits. All load-bearing structural parts of the RMF500 are made of high-grade hardened steel, with the maximum load the Z-axis can withstand being around 100kg. The linear motor driven system has low clearance and low maintenance requirements. The deflection error of Z axis with a high load in the entire moving range is estimated to be 50% lower than that of competitive products.

Specifications:

• Build Volume: 500 x 500 x 500mm
• PRINT Speeds up to 500 mm/s, travel speed can be higher
• Travel Speeds up to 1000 mm/s
• Twin Independant Extruders (IDEX)
• Max. Extruder Temperature: 330°C
• Max. Bed Temperature: 110°C
• Accuracy: 1µm XY, 0.09765µm Z-Axis
• Layer Heights: 0.05 - 0.75mm
• Filament: 1.75mm materials from the Raise3D OFP 2.0 (Open Filament Program) only
• Nozzle Size: 0.4mm (default), 0.6mm (coming soon)
• Magnetic PEI textured bed

• Memory: 2 Gb
• Onboard Flash Memory: 16 Gb
• MicroSD Card: 128 Gb
• Connectivity: Wi-Fi, LAN, USB port, Live camera

• Machine Size: 1340 x 990 x 2370mm
• Machine Weight: 790kg
• Packging Size: 1800 x 1160 x2260mm (4.cmb)
• Packaged Weight: 1048.1kg
• Electrical Requirement: 25 A 3-Phase 380 V AC
• Operating Environment 15-30°C, 30-70% RH Non-Condensing (HOLD)
