New Excetek V1280 Wire Cut EDM Submerged Type

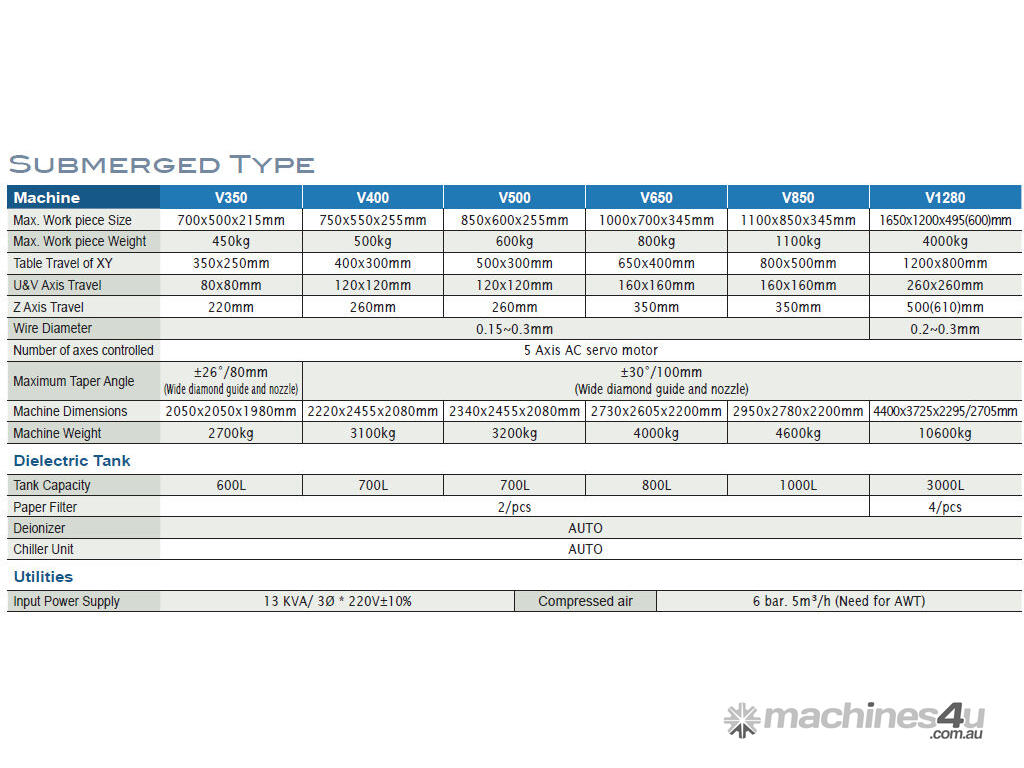

Max work piece size (mm): 1650 x 1200 x 495 (600, 800 & 1000 opt)
Travels X, Y, Z, U, V (mm): 1200 x 800 x 500 (Z= 600, 800 & 1000 opt) x 260 x 260
Max table load (kg): 4000

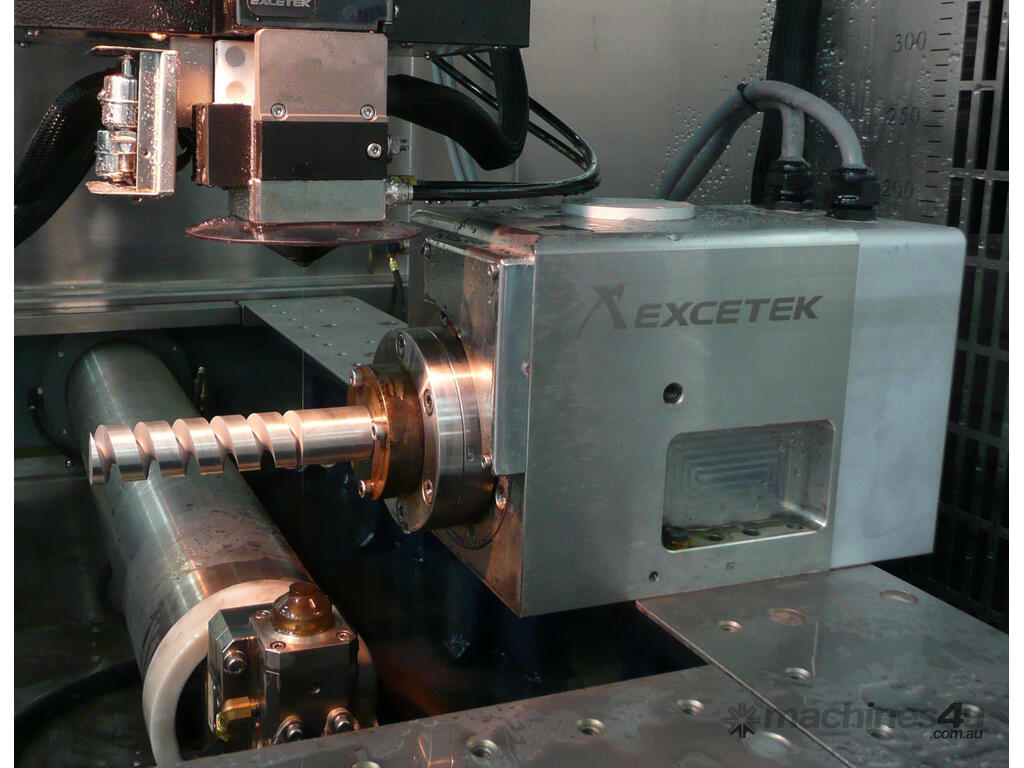

Optional W Axis (rotary axis) available!
Features Include:

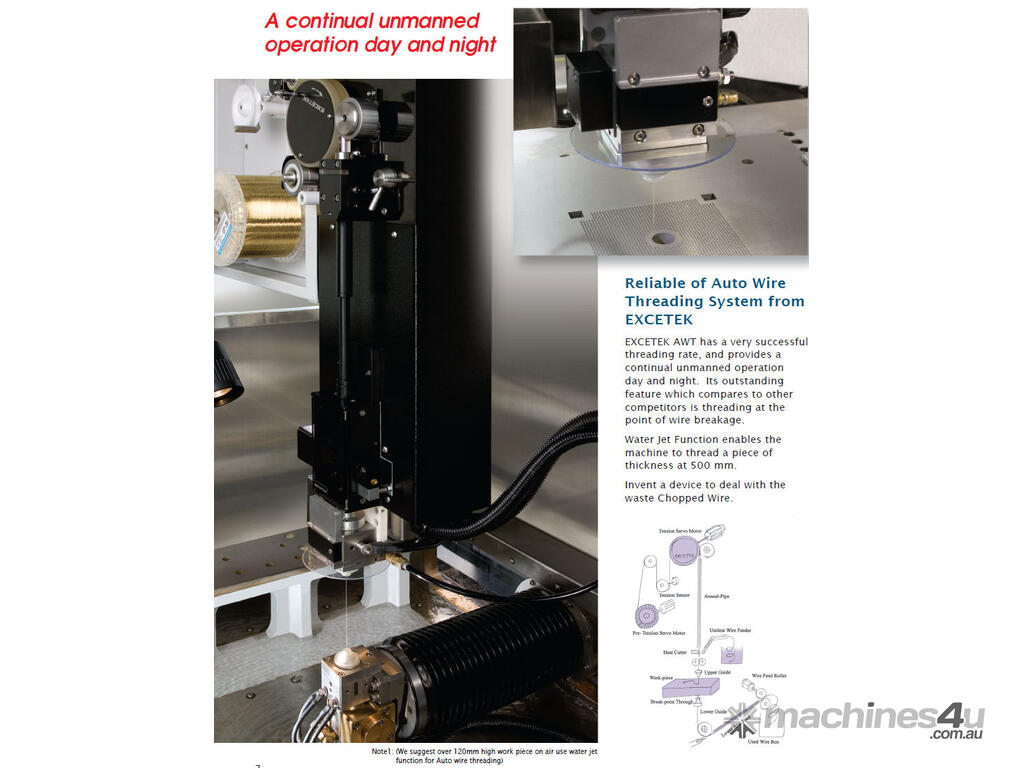

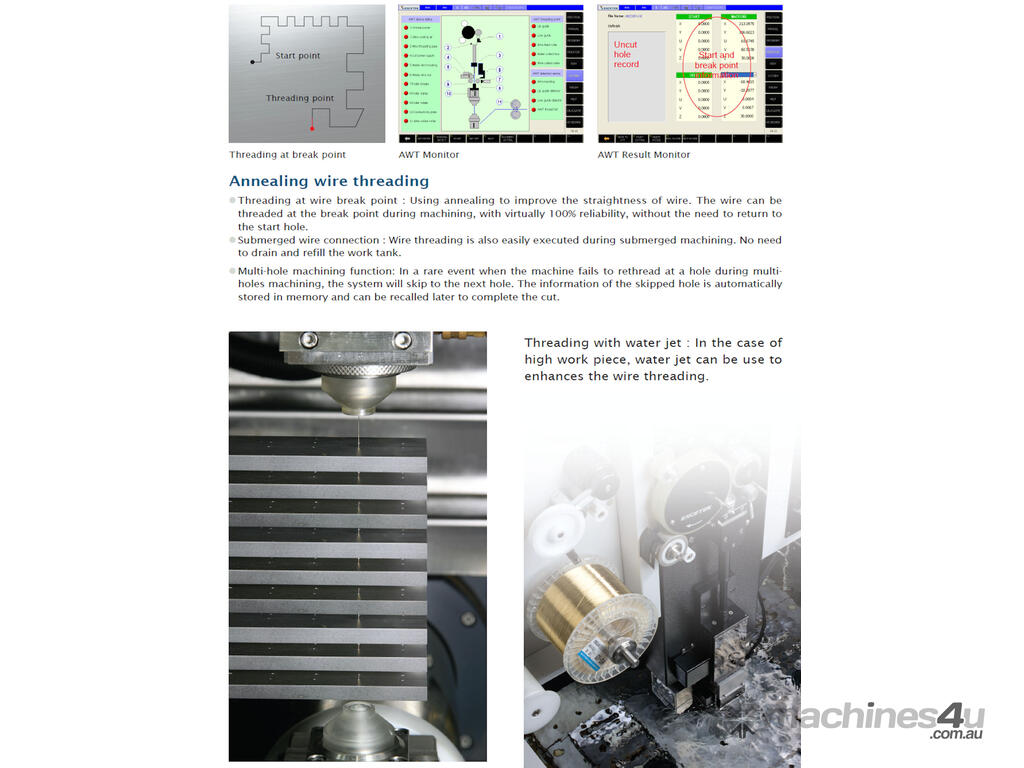

Standard Auto Wire Threading option with a threading time of approximately 10 seconds offers threading at the break point with almost 100% reliability, threading with water jet as well as threading under water.
The Intelligent Ignition Circuit automatically adjusts the cutting speed depends on work piece material and thickness.

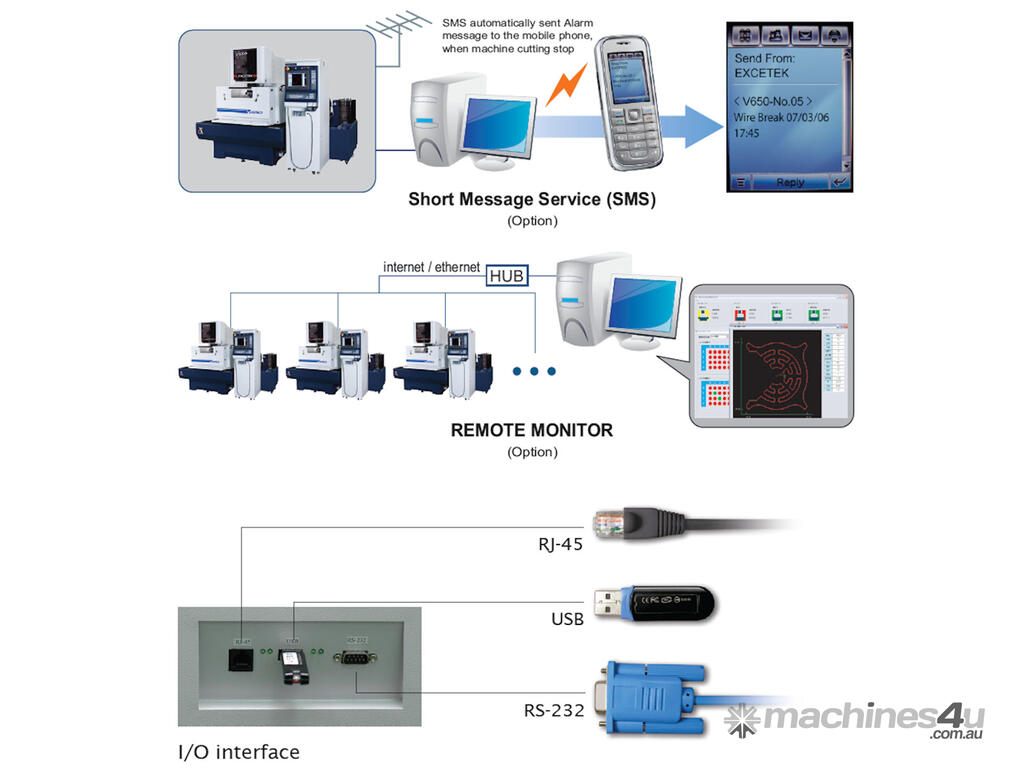

Remote Monitoring by means of internet or ethernet

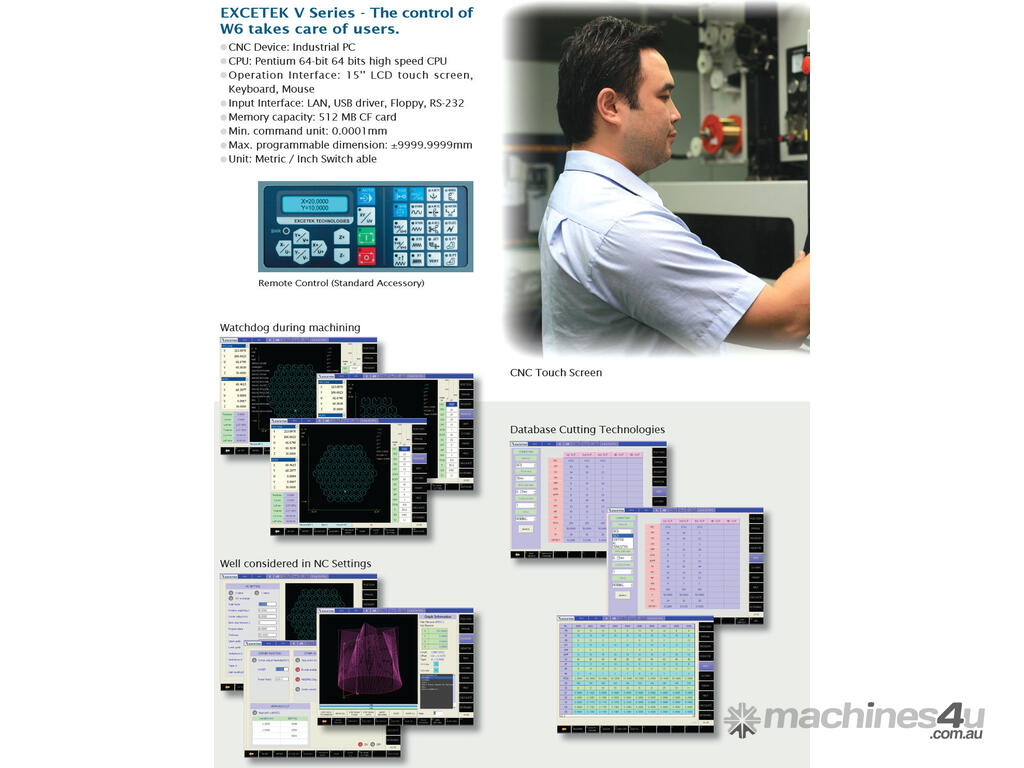

User friendly windows based control system with 15” TFT screen
Real time machine messaging by means of SMS
Excetek machines are 100% Taiwanese and from tests performed on machines installed cutting times are faster than much higher priced Japanese competitors!
