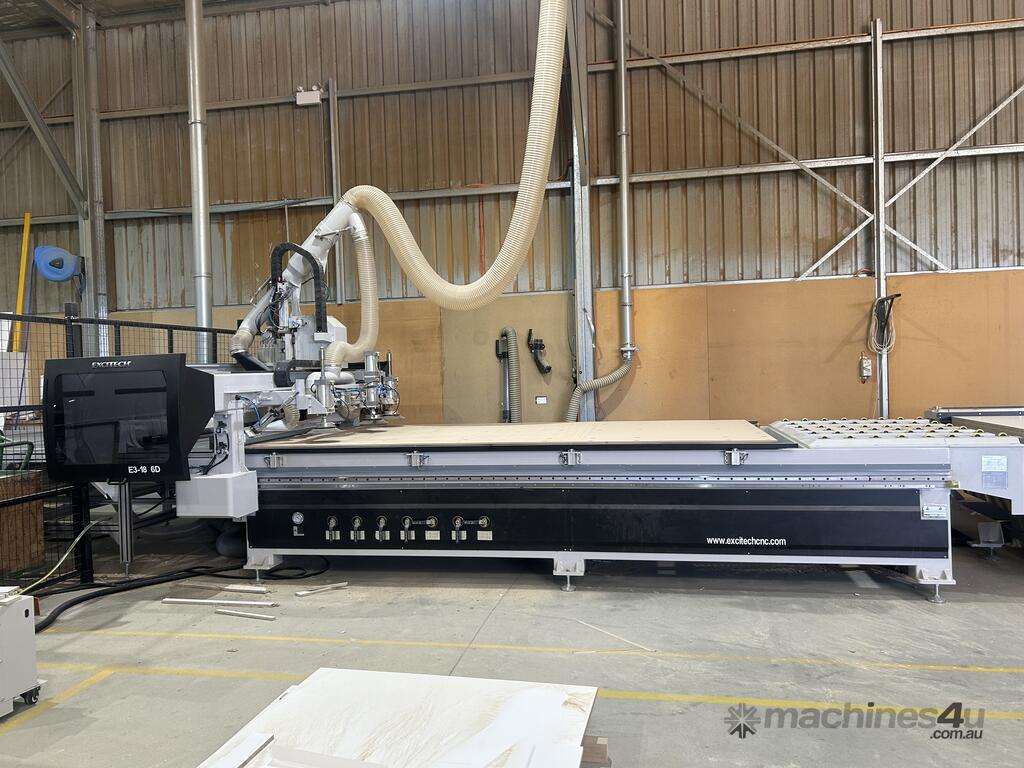

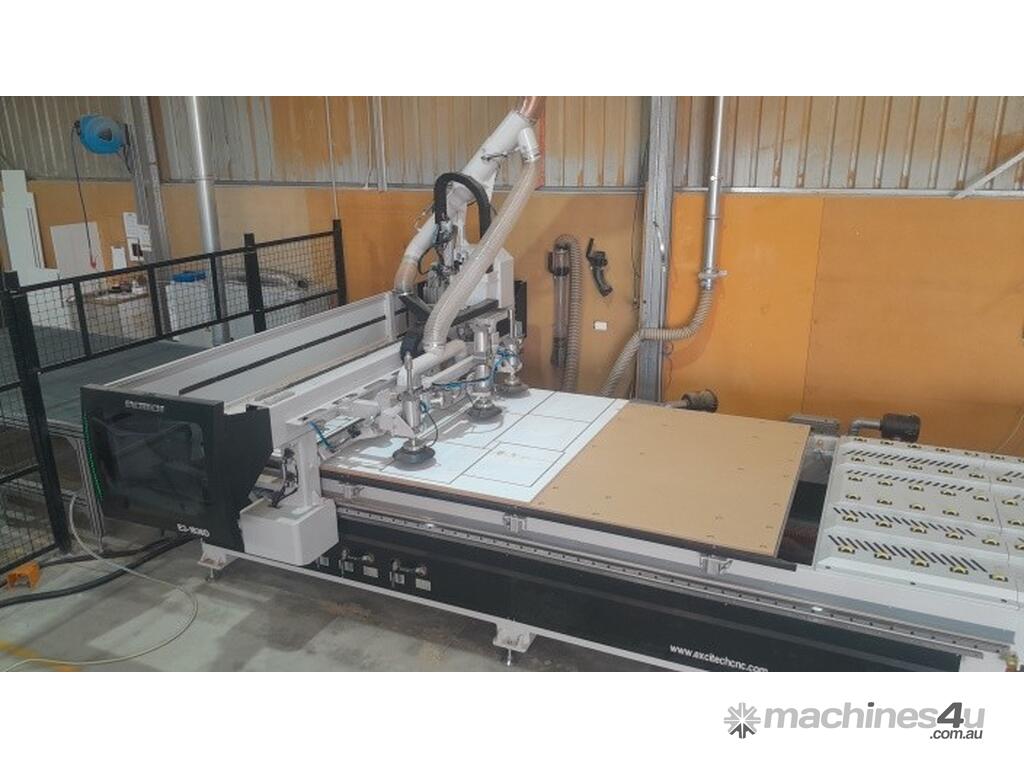

Excitech CNC Machine

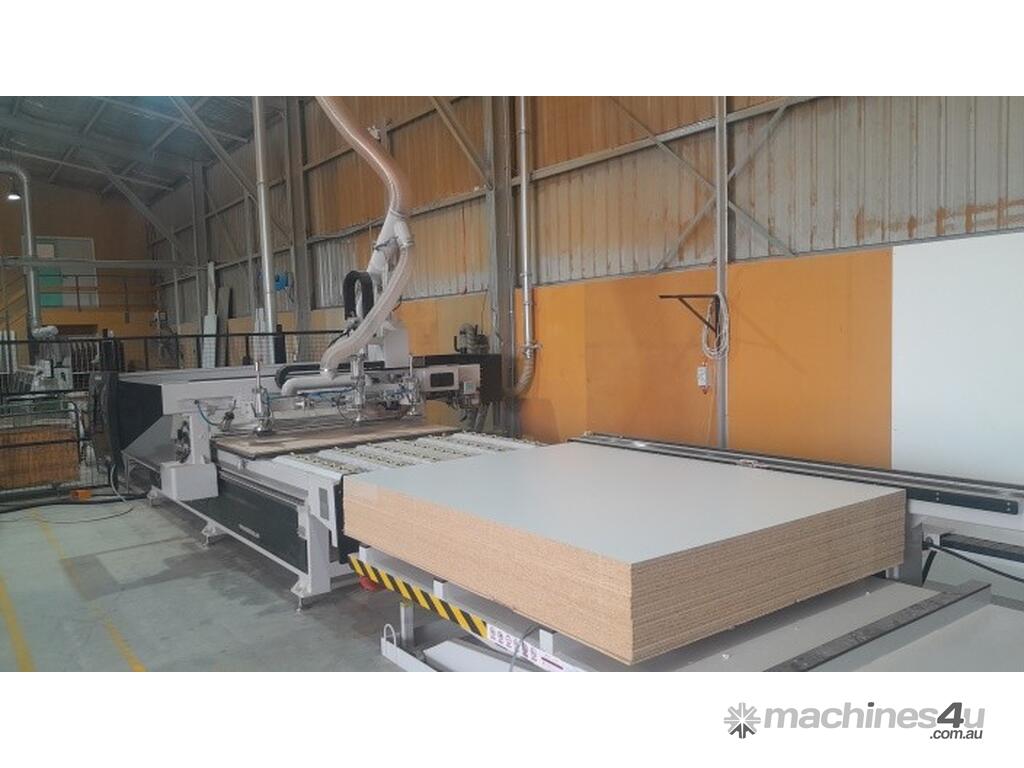

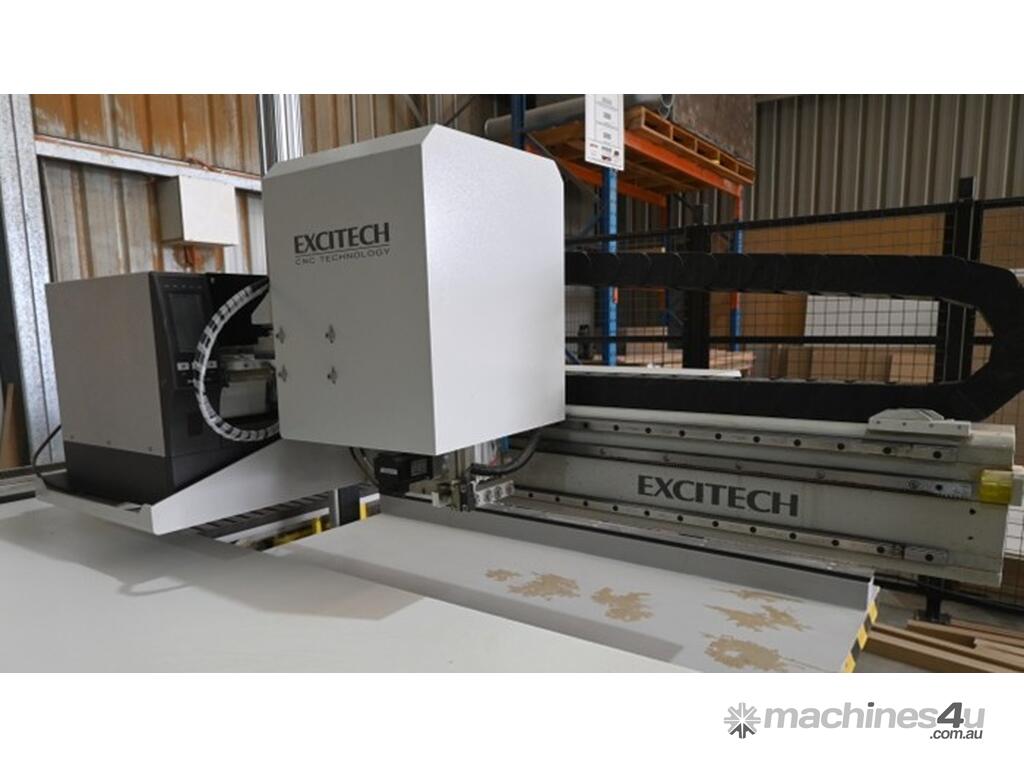

This nesting machine is an E3 1836 with auto pre-labelling
Standard configurations
Model E3 1836 nesting with auto pre-labelling
Traveling size 3600*1850*200mm
Working size 3600*1820*50mm?max infeed height
50mm)
Table size 3600*1820mm
Transmission X/Y rack and pinion drive, Z ball screw drive

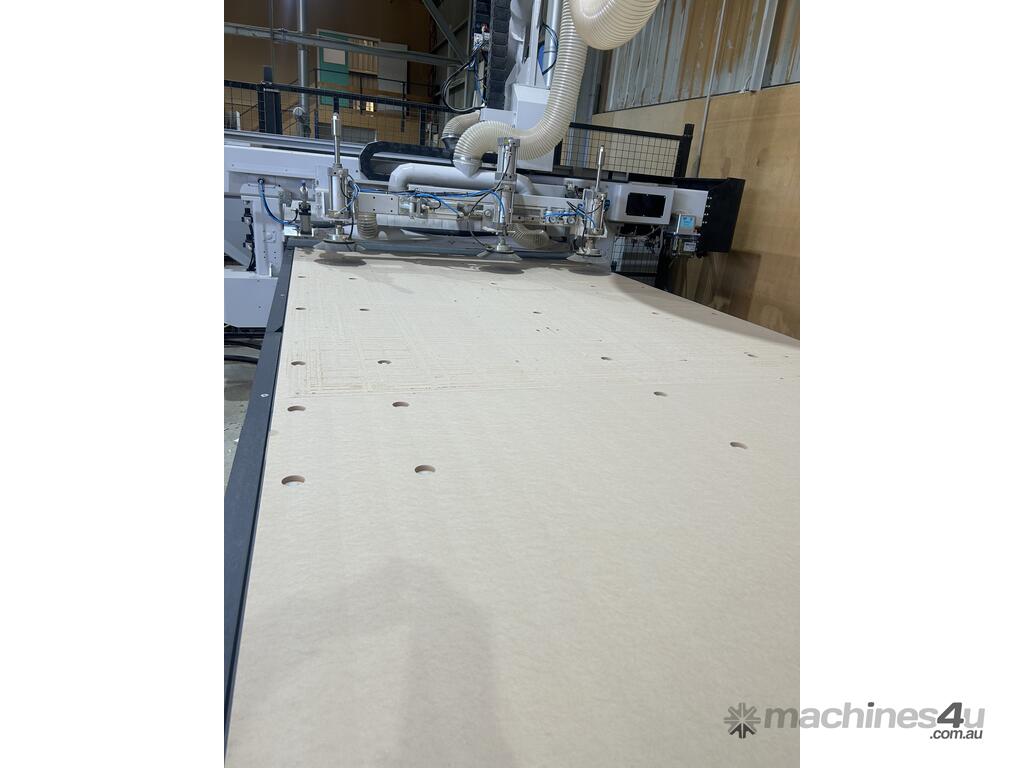

Table Vacuum table
Spindle 9KW SI EXCITECH air cooling spindle ISO
coupling with dust cover 200mm diameter

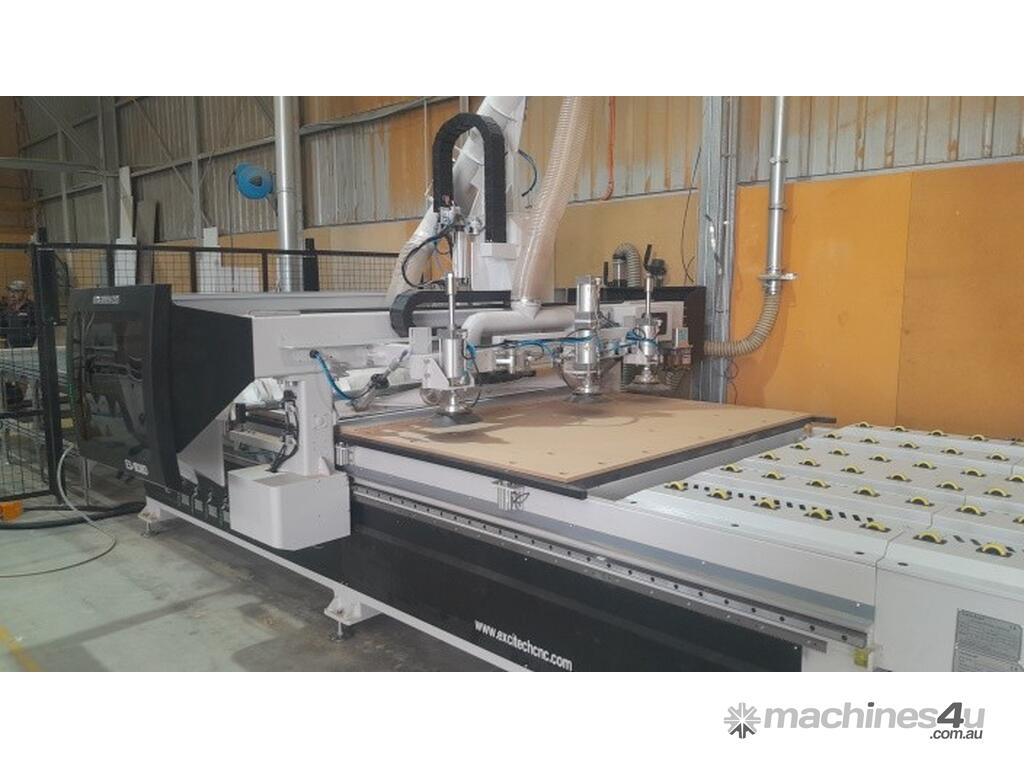

Drill bank EXCITECH 9 VERTICLE drill bank
Protection cover Protection covers around spindle and drill
bank
Air conditioner Air conditioner for electrical cabinet
light barrier 2 pairs of light barriers
Traveling speed 80 m/min
Pressing roller pressing roller for helping hold small panels
Tool magazine Carousel with 16-slot SERVO
Software Exclusive, to be prepared by buyers

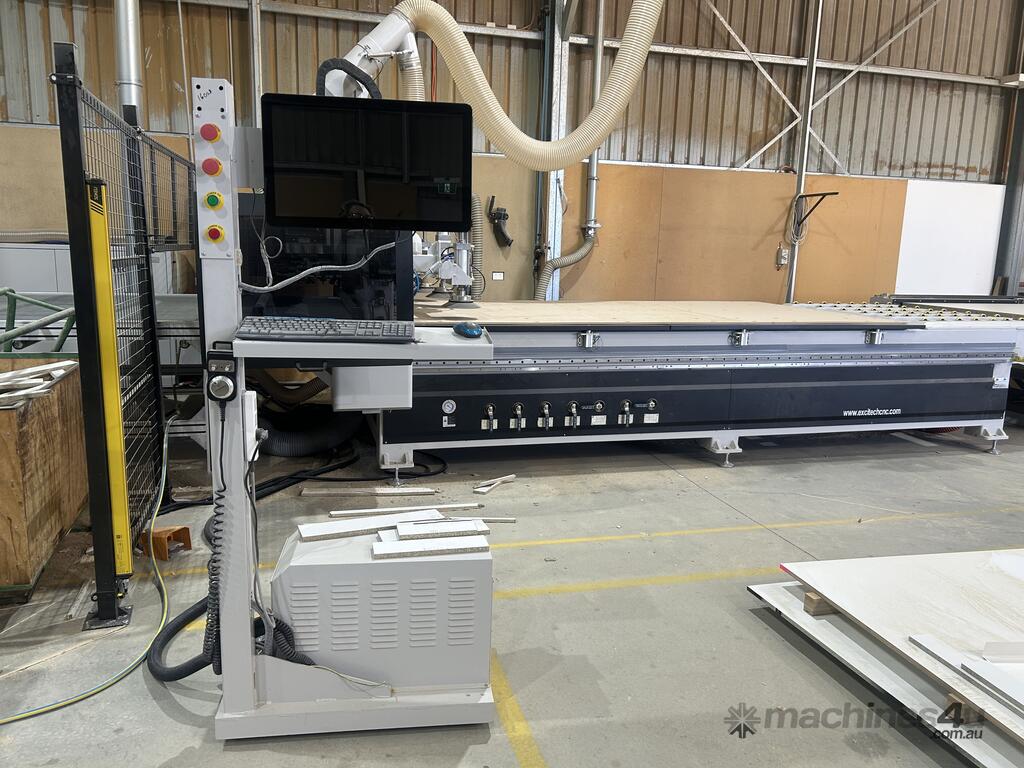

Controller NC Studio controller -Separate type +Lenovo
computer 21.5 inches with touch screen
Positioning Pop up pins+ positioning rails
auto board width setting on the infeed
Ability -split apart
Machines can be split apart. Customer can buy
the 1836 CNC ONLY and not the loading and
unloading, then order just the load and unload
later
Driving system INOVANCE Drivers
Pump 2 sets, 5.5KW pump
Dust extractor Exclusive, to be prepared by buyers
Voltage 3P 415V 50HZ
