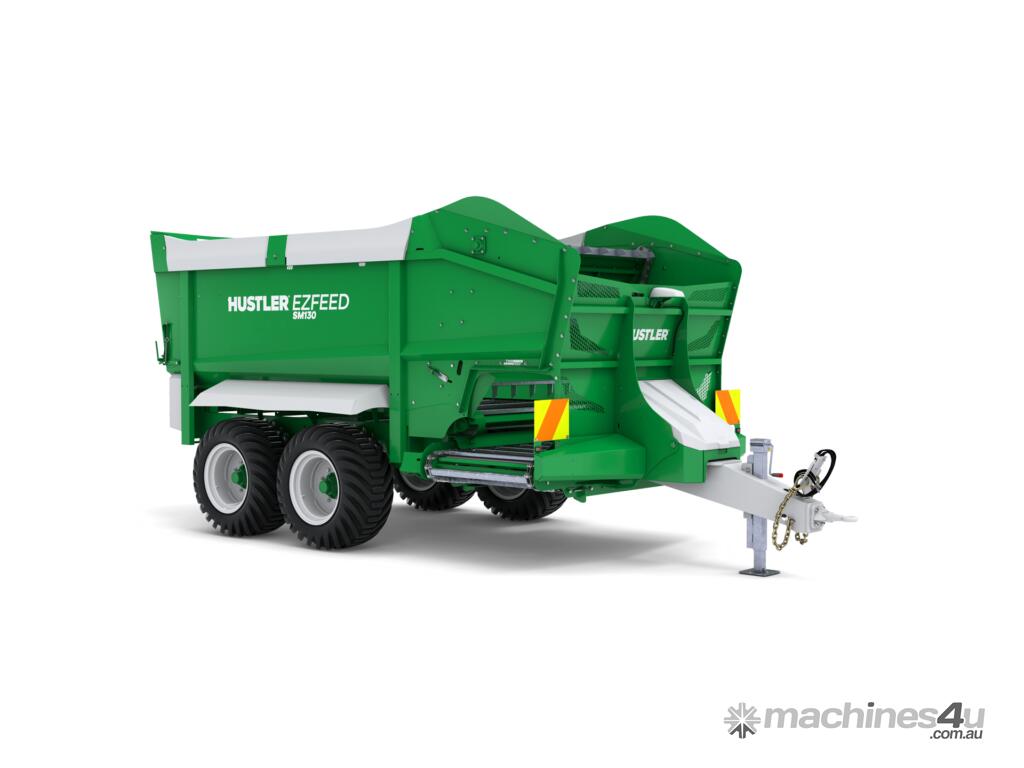

EzFeed Silage Wagon Range

Sick of frequent tightening and derailed link chains? With a slew of innovative new features, EzFeed resolves the most painful frustrations that have plagued conventional silage wagons for over 30 years!

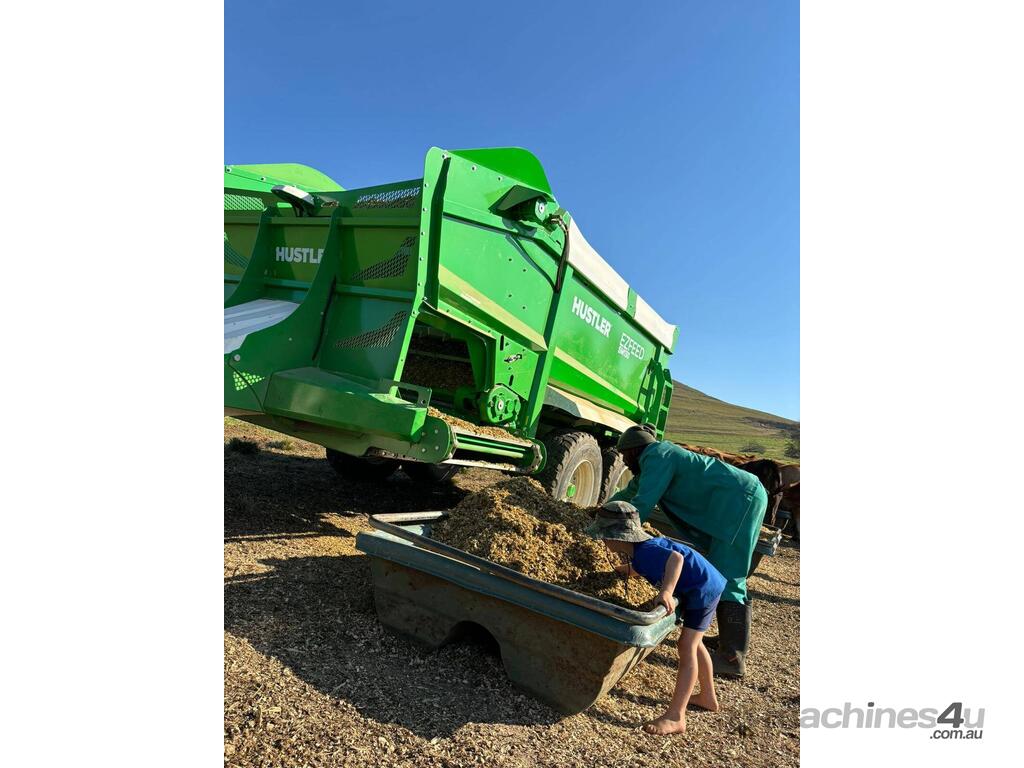

The most simple, reliable silage wagon on the market designed for farmers who simply cannot afford downtime and rely solely on silage as the supplementary feed of choice. Ideal for trough feeding, feeding under a wire, feeding along a fence line avoid trampling and general pasture feeding.

Length: 7050 mm | 277.5 in
Width: 2800 mm | 110.2 in
Height: 2710 mm | 106.6 in
Loading Height: 2600 mm | 102.3 in
Tare weight: 3800 kg | 8377 lb
Loose Silage (load-level): 13 m³ | 459 ft³
Loose Silage (heaped load): 14 m³ | 494.37 ft³
Maximum Load: 10,000 kg | 22,046 lb
Tyres: 400 / 60 x 15.5 Flotation Grip Tread
Axle: Tandem Walking Beam
Brakes: Optional 2 or 4 wheel braking
Guards: Standard removable HD guards
Mudguards: Sloping mudguards to reduce material build-up
Remote greasing: Standard
Ladder: Standard
Weigh Scales: Optional Feedlink weighing and feed management system
Floors (Bed Floor): 15mm (0.6 in) HD Puck Board
Chains (Bed / Elevator / Conveyor): Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains
Feed bars (Bed / Elevator / Conveyor): 65 x 35 RHS / 65 x 35 RHS / 50 x 25 RHS
Drive system (Bed / Elevator / Conveyor): Sealed Reduction Gearbox / Direct Drive / Direct Drive
Drive Sprockets: High-tensile (Bisalloy®) drive sprockets welded on the shaft (without bushes)
Hydraulics required: 1 x double acting
Hydraulic Flow: 50-70 L/min (80 L/min maximum) | 13.2-18.5 gal/min (21.1 gal/min maximum)
Hydraulic Pressure: 2610-2900 psi | 180-200 bar
Conveyor: TwinFeed LH & RH side discharge, 1000mm (39.4”) wide chain/slat
Jack: 80 mm | 3.1 in 2-speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand
Towing Eye Size: 50 mm | 2 in
Tailgate: Auto-release, removable (without tools)
