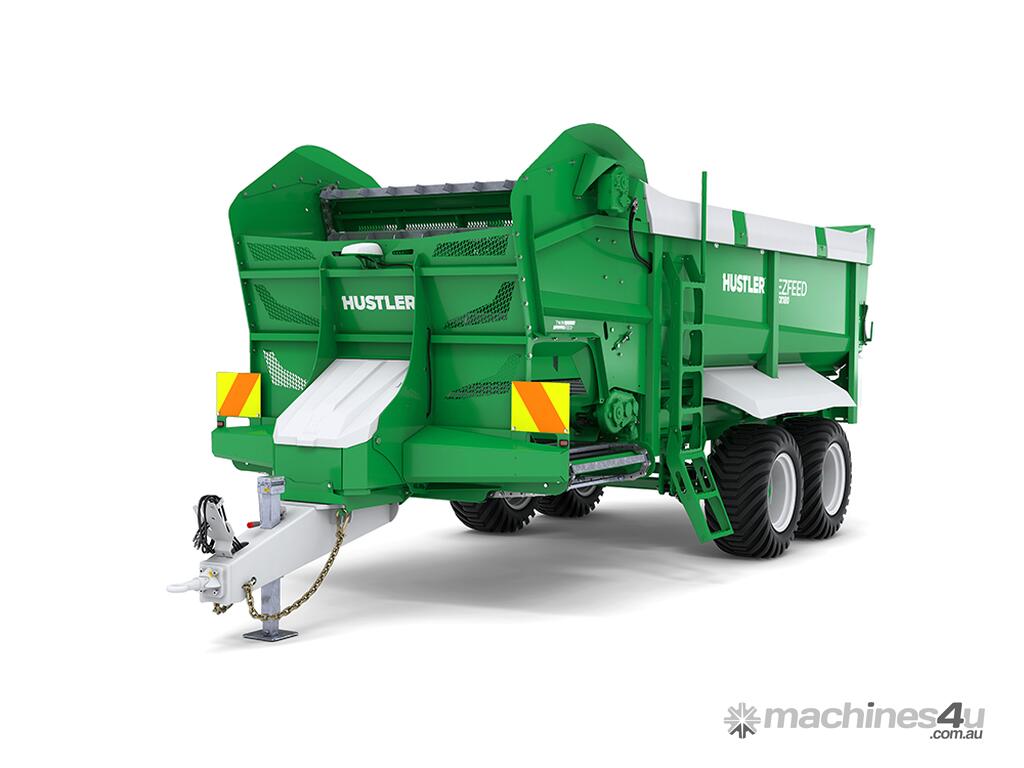

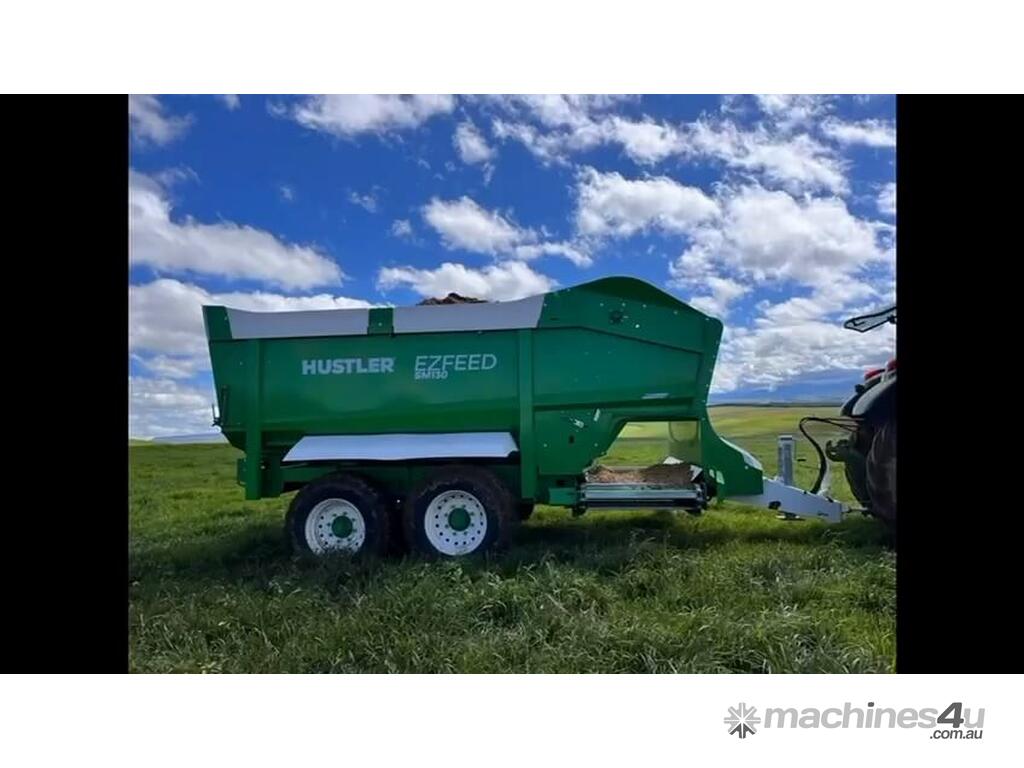

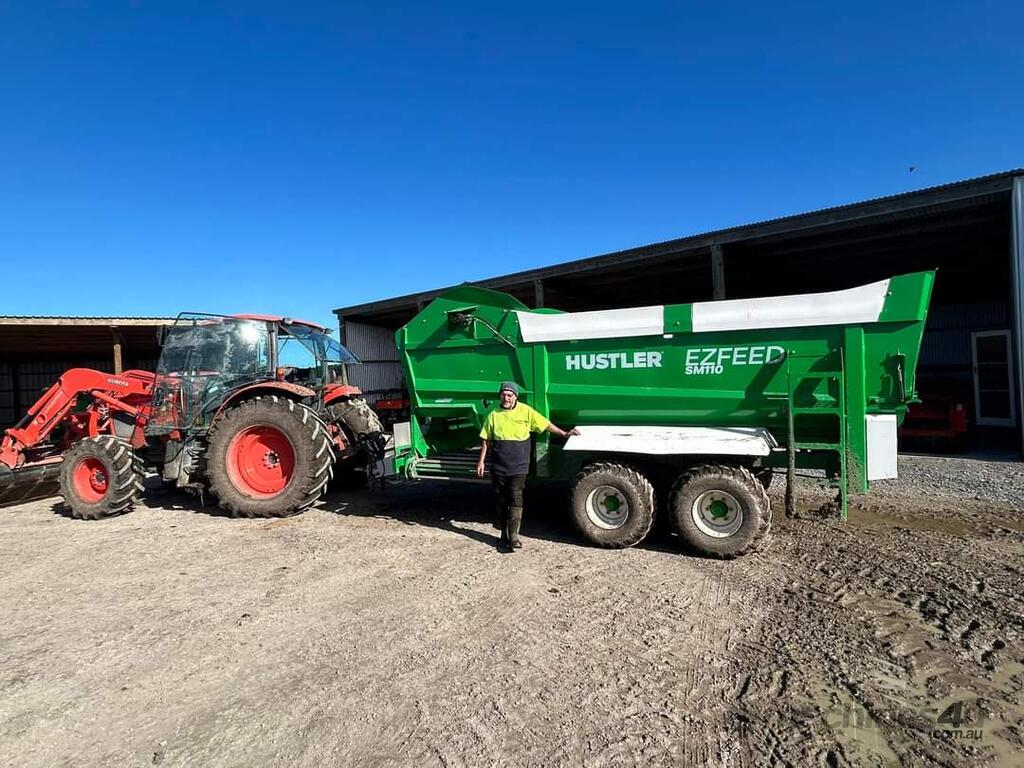

Sick of frequent tightening and derailed link chains? With a slew of innovative new features, EzFeed resolves the most painful frustrations that have plagued conventional silage wagons for over 30 years!

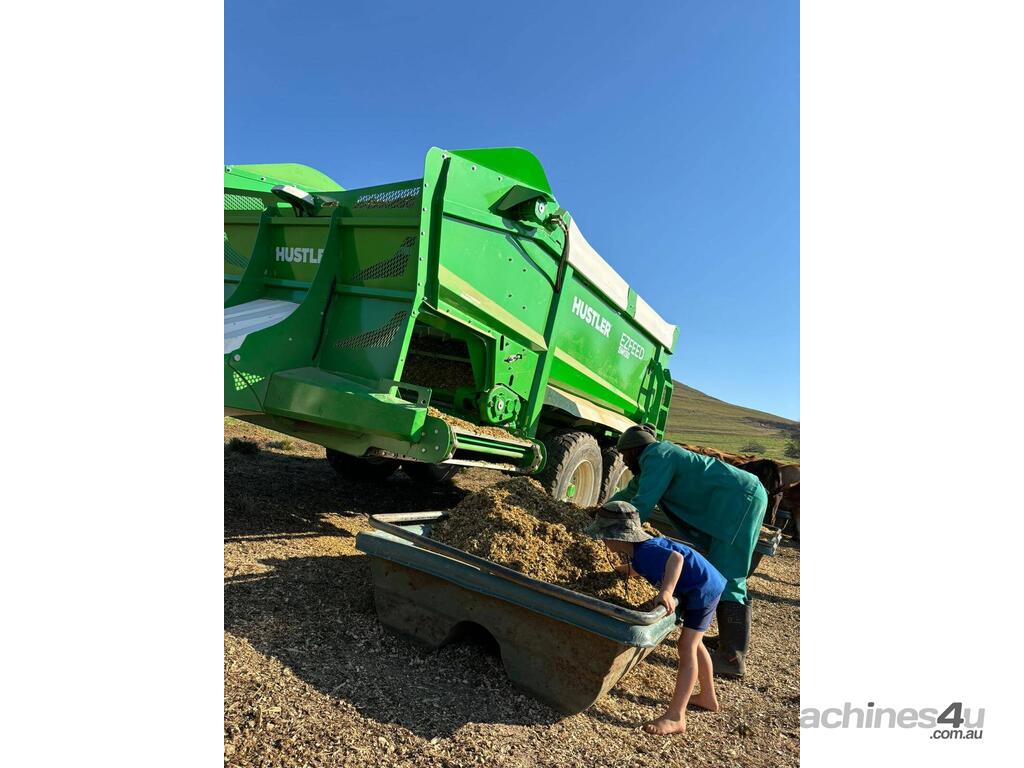

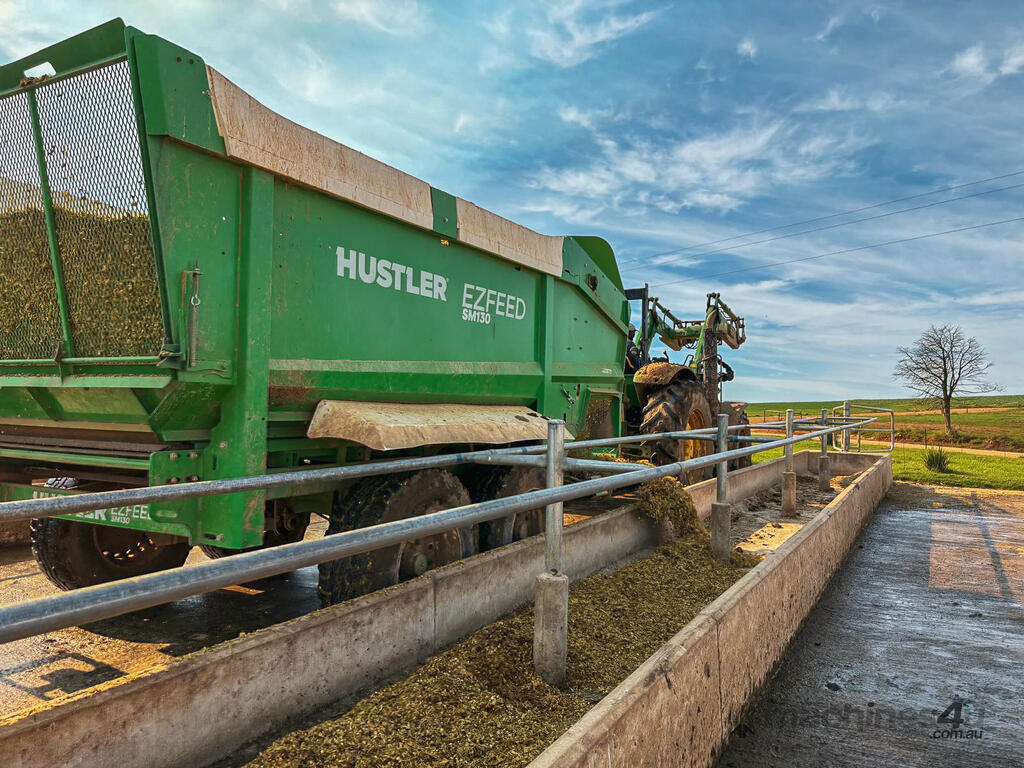

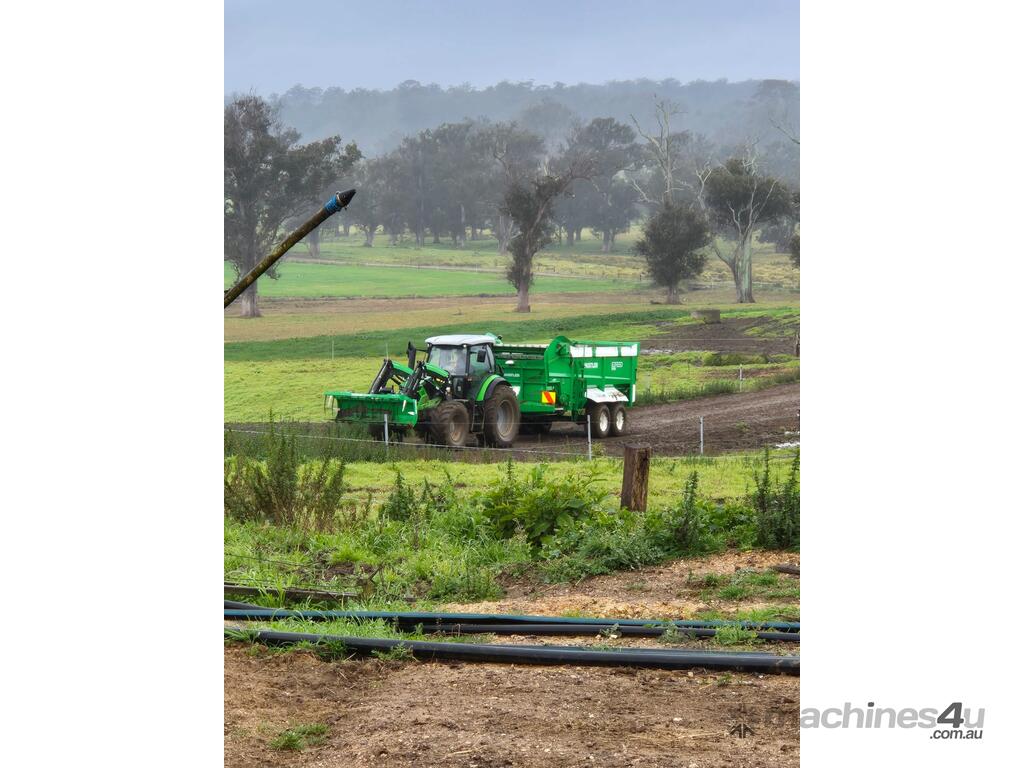

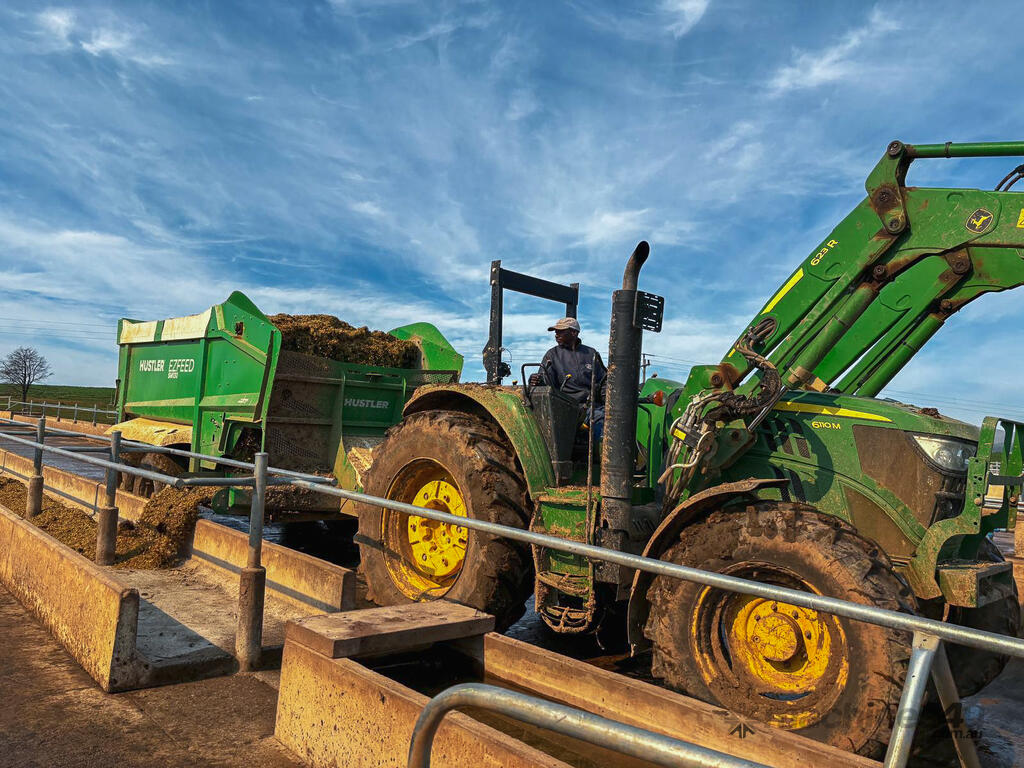

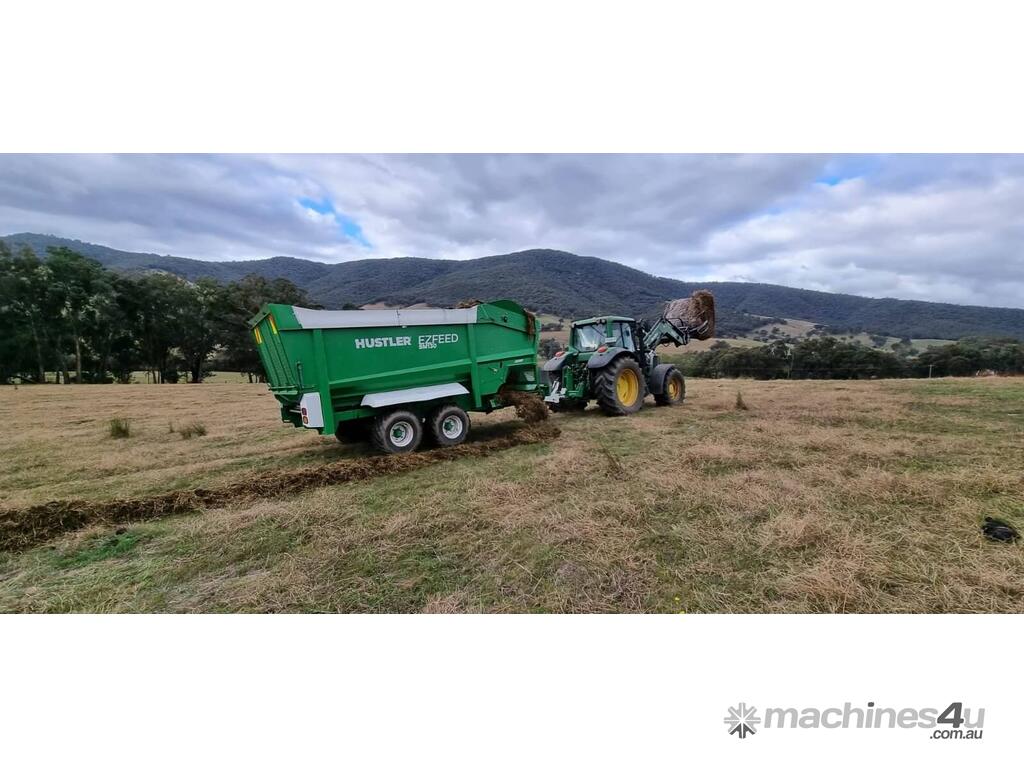

The most simple, reliable silage wagon on the market designed for farmers who simply cannot afford downtime and rely solely on silage as the supplementary feed of choice. Ideal for trough feeding, feeding under a wire, feeding along a fence line avoid trampling and general pasture feeding.
Length: 8555 mm
Width: 2982 mm
Height: 3055 mm
Loading height: 2759 mm
Tare weight (twin axle version): 4600 kg | 10141 lb
Loose Silage (load-level): 18 m³ | 635.7 ft³
Loose Silage (heaped load): 21 m³ | 741.6 ft³
Maximum Load: 15,000 kg
Standard Tyres: 500/50 x 22.5 Flotation Grip Tread
Axle: Tandem Load Sharing Suspension Axle
Brakes: Optional 2 or 4 wheel braking
Guards: Standard removable HD guards
Mudguards: Sloping mudguards to reduce material build-up
Remote greasing: Standard
Ladder: Folding Premium Ladder
Weigh Scales: Optional Feedlink™ weighing and feed management system
Floors (Bed Floor): 15 mm HD Puckboard
Chains (Bed / Elevator / Conveyor): Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains / Twin 12,000 lb Roller Chains
Feed bars (Bed / Elevator / Conveyor): 65 x 35 RHS / 65 x 35 RHS / 50 x 25 RHS
Drive system (Bed / Elevator / Conveyor): Sealed Reduction Gearbox / Gearbox Drive / Direct Drive / Hydraulic sideshift (optional)
Drive Sprockets: High-tensile (Bisalloy®) drive sprockets welded on the shaft (without bushes)
Hydraulics required: 1 x double acting. (1x extra set of remotes required when adding Hydraulic side-shift)
Hydraulic Flow: 50-70 L/min (80 L/min maximum)
Hydraulic Pressure: 2610-2900 psi

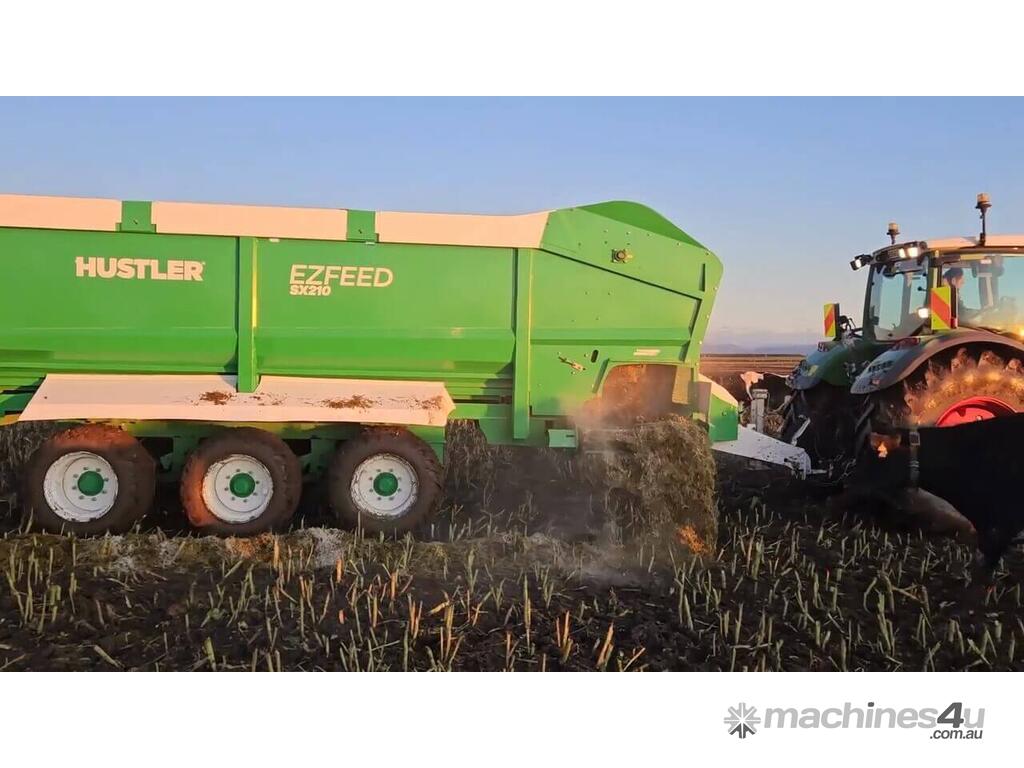

Conveyor: TwinFeed™ LH & RH side discharge, 1000 mm wide chain/slat
Jack: 80 mm 2-speed screw, with quick adjustment. Designed strong enough for use as quick hitch stand
Towing Eye Size: 50 mm
Tailgate: Auto-release, removable (without tools)
