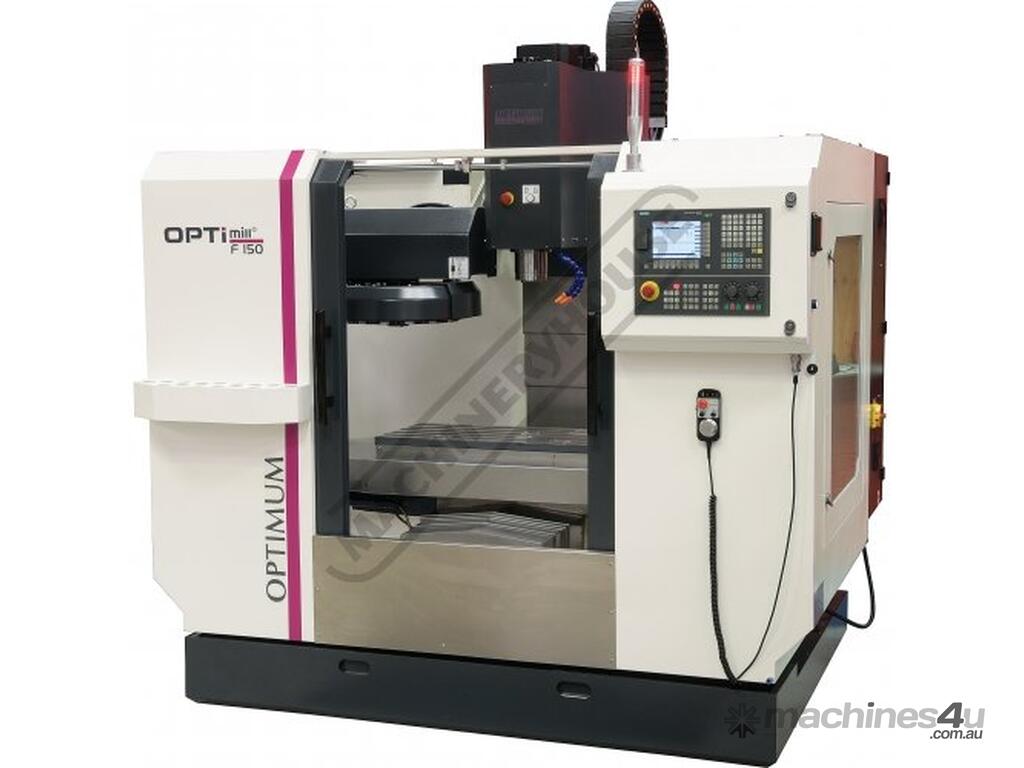

OPTIMUM F150E OPTi-Mill Optimum CNC Milling Machine (X) 750mm (Y) 500mm (Z) 500mm
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: M908
Designed and Engineered in Germany the OPTIMUM CNC range is a market leader in Europe and is now available in Australia through Hare and Forbes Machinery House. Offering exceptional value for money the OPTIMUM range can have you set up for in house CNC machining at a fraction of the financial outlay previously required.
Features:
Siemens 808AD CNC control (Advanced PPU15X)
Travel X 750mm Y 500mm Z 500mm
Table Size 900mm x 500mm
Table load capacity 350kg
BT40 - 10000rpm Spindle
16 tool automatic tool change
3-Axis linear guide-ways
Axis servo motor control
Flood coolant system
High output LED work light
Full CE Safety enclosure with Safety PLC
100-600mm spindle nose to table
Central lubrication unit
Specifications:
ORDER CODE: M908
MODEL: F150E
Table Travel (X-Axis) (mm): 750
Table Travel (Y-Axis) (mm): 500
Head Travel (Z-Axis) (mm): 500
Motor (X & Y-Axis) (Nm): 15
Motor (Z-Axis) (Nm): 22
Table T Slot Size (mm): 18
Position Accuracy (mm): 0.008
Automatic toolchanger (Pockets): ~
Spindle Taper: BT40
Spindle Speed Range (rpm): 80 - 10000
Motor Torque (Nm): ~
Motor Power (kW / hp): 7.5 / 10
Voltage / Amperage (V / amp): 415 / 32
Dimensions (mm): 2400 x 2100 x 2400
Nett Weight (kg): 4500
To Purchase Online Please Visit The Machineryhouse & Search For 'M908'
