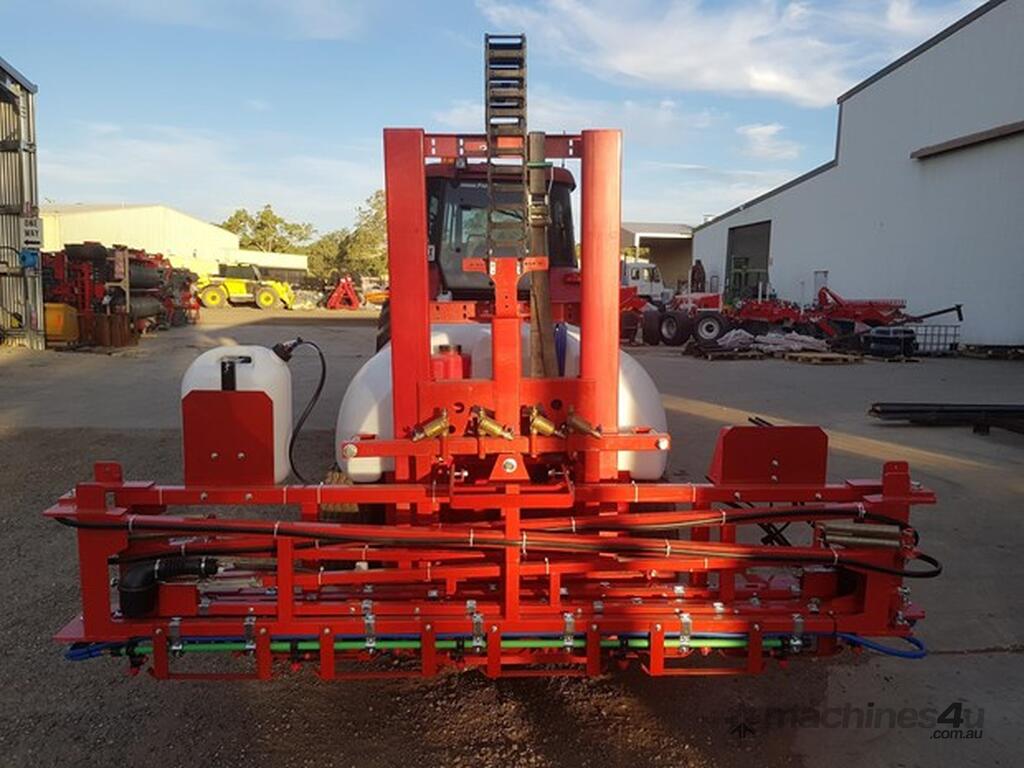

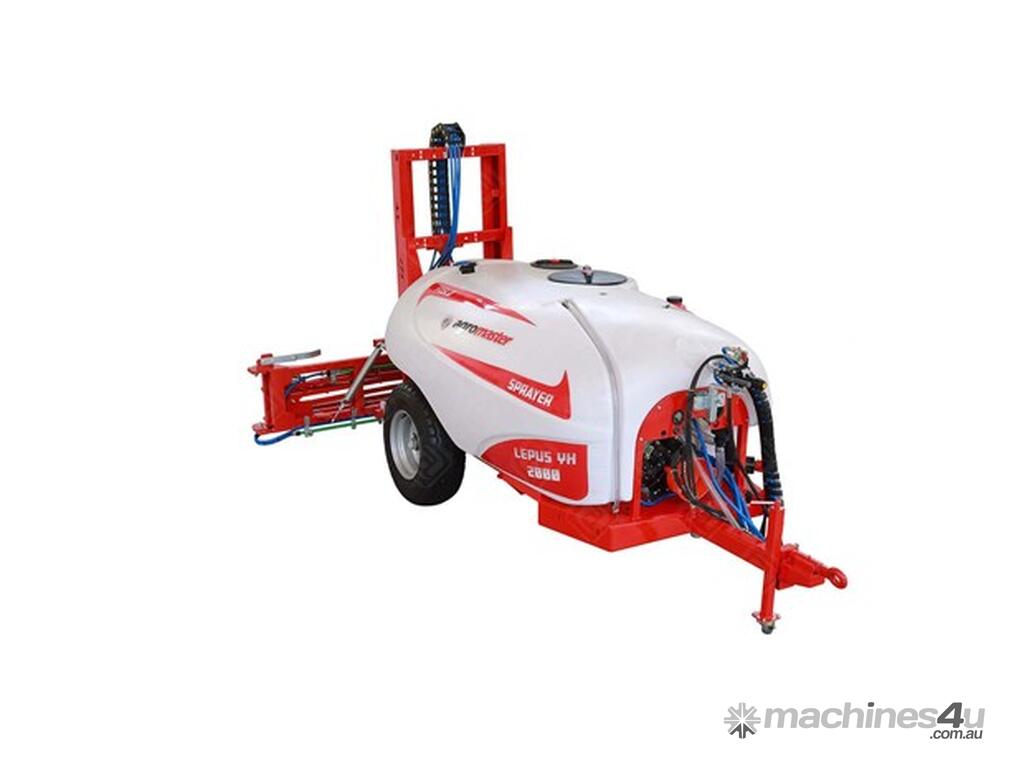

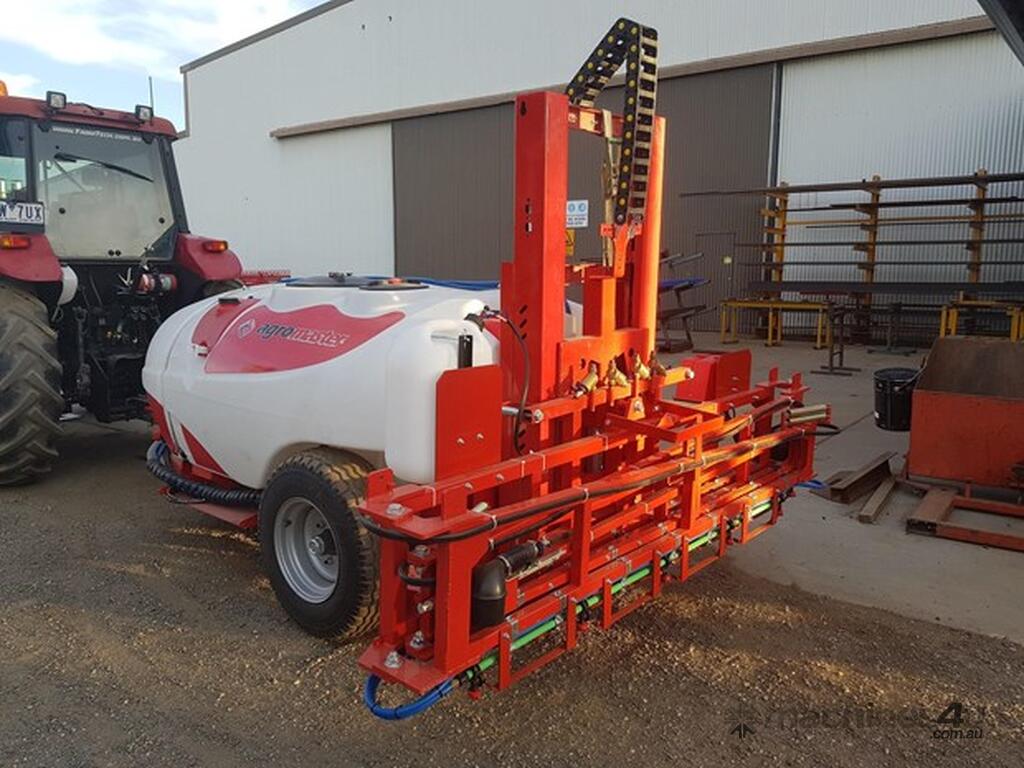

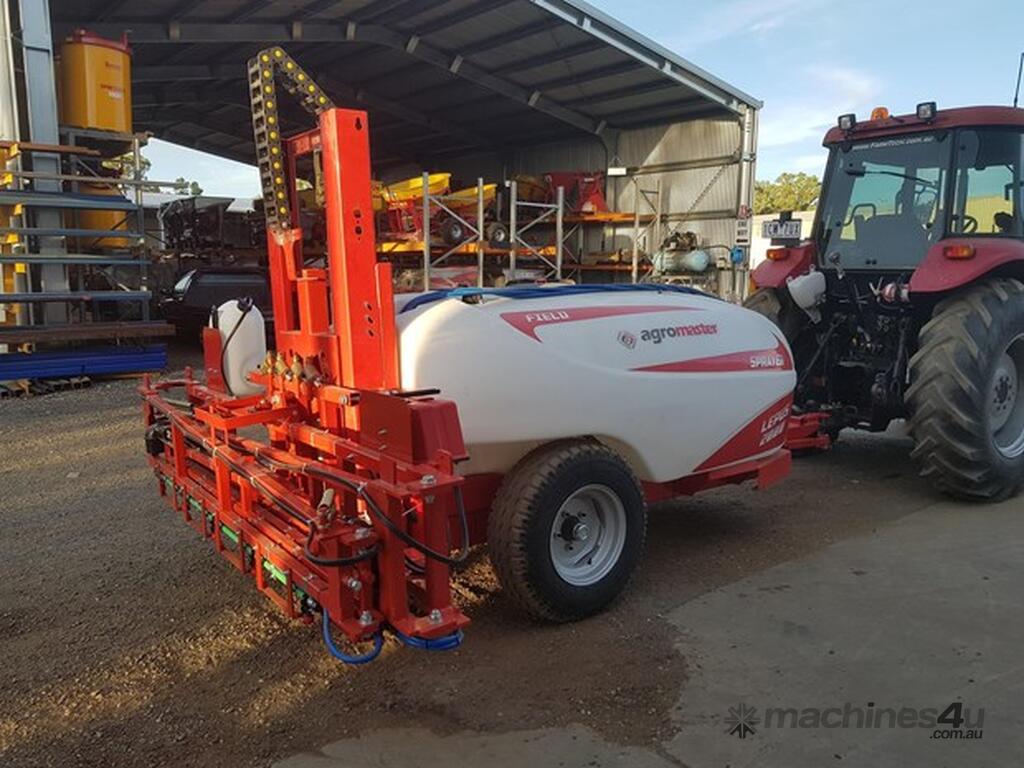

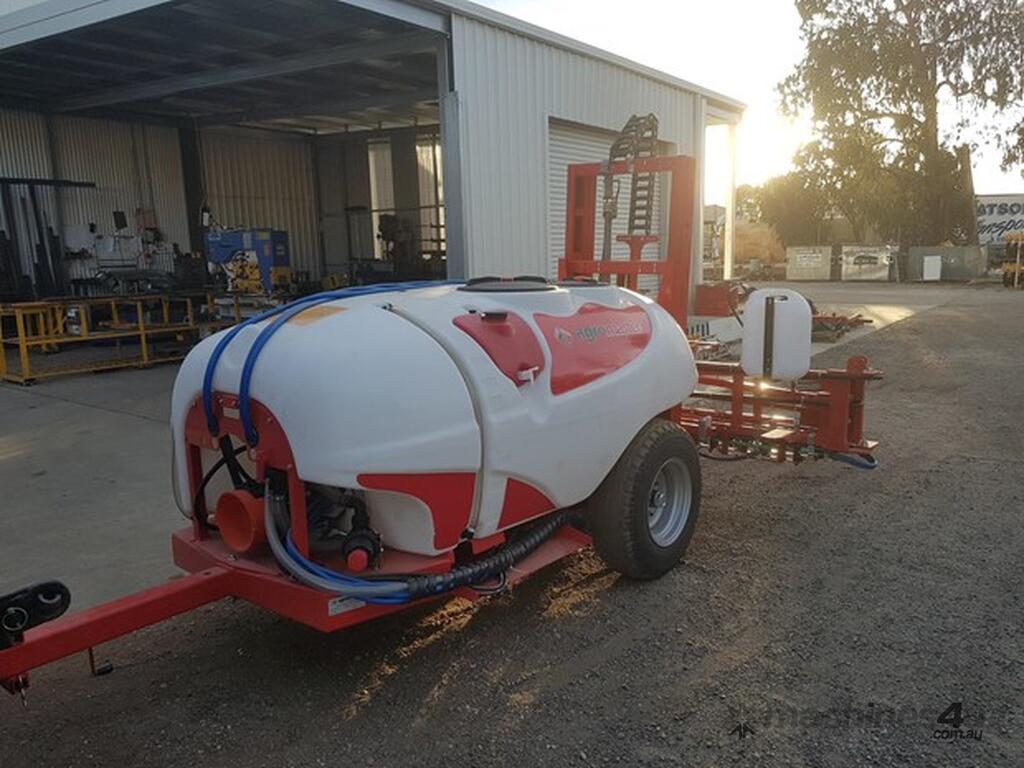

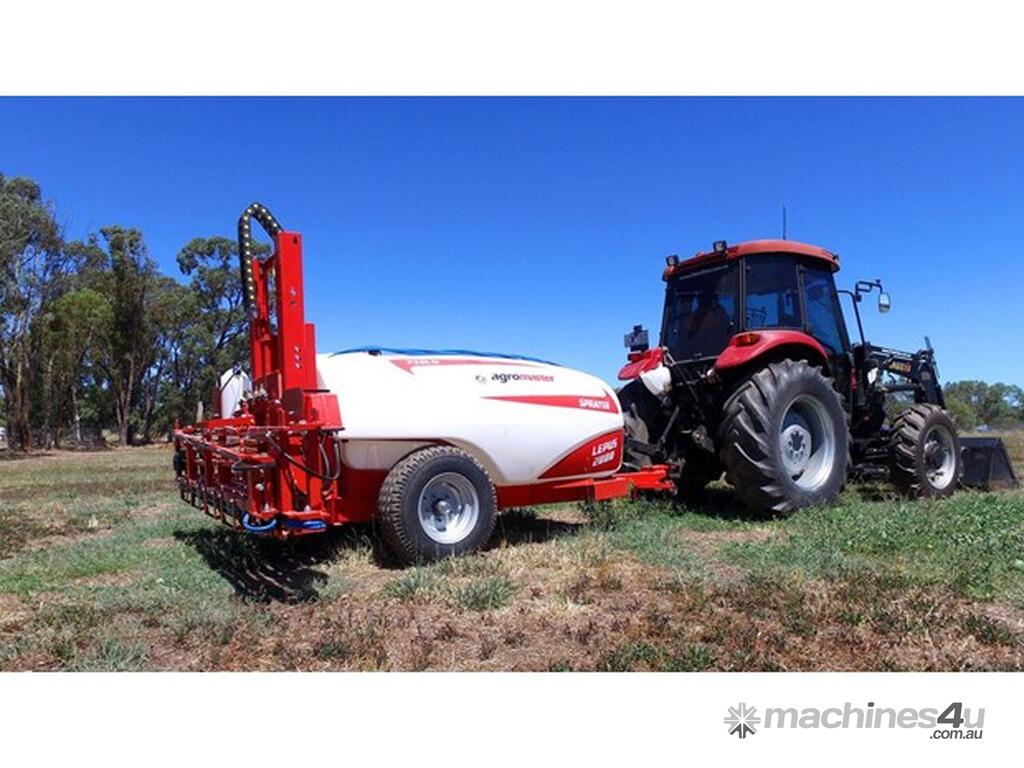

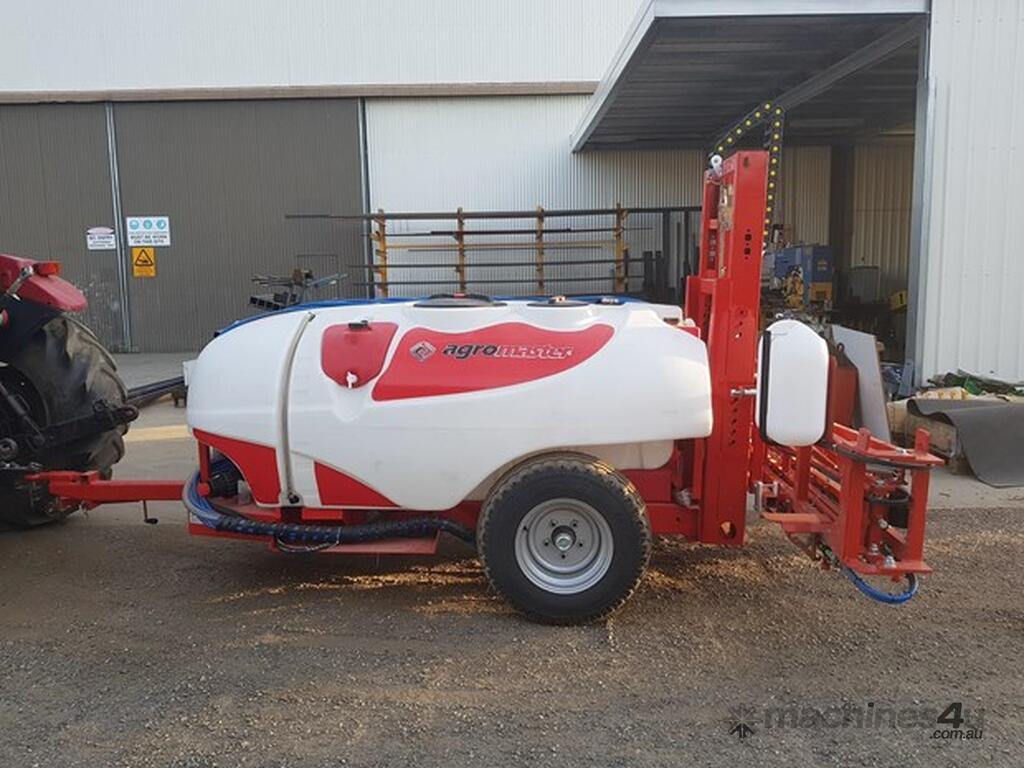

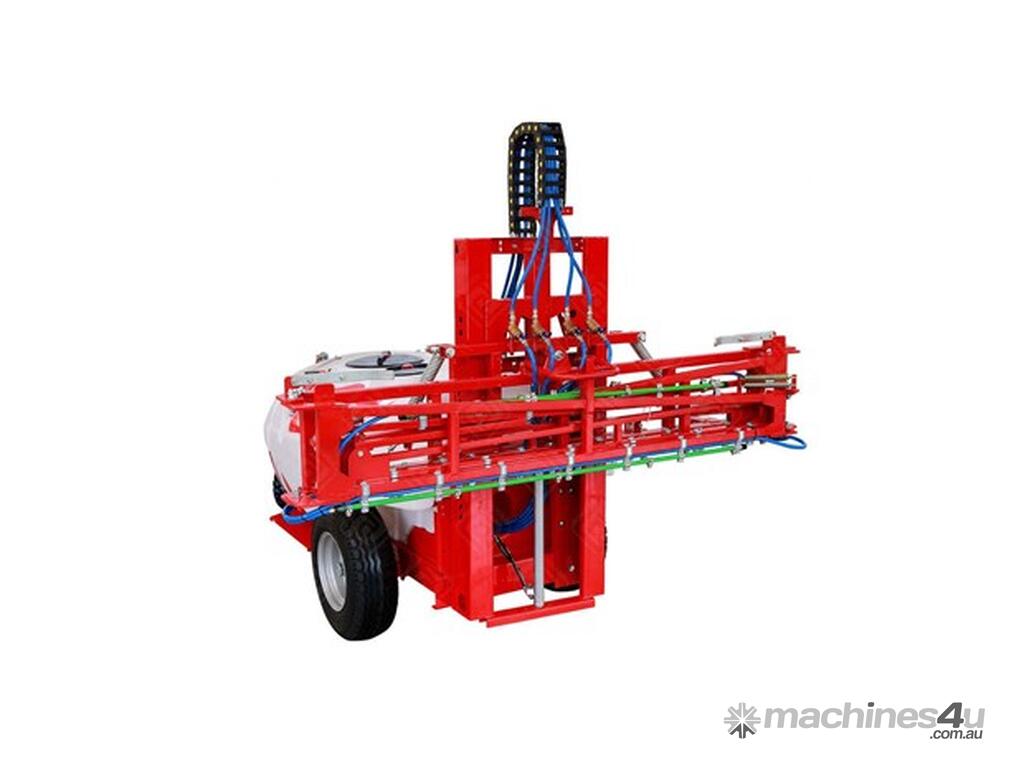

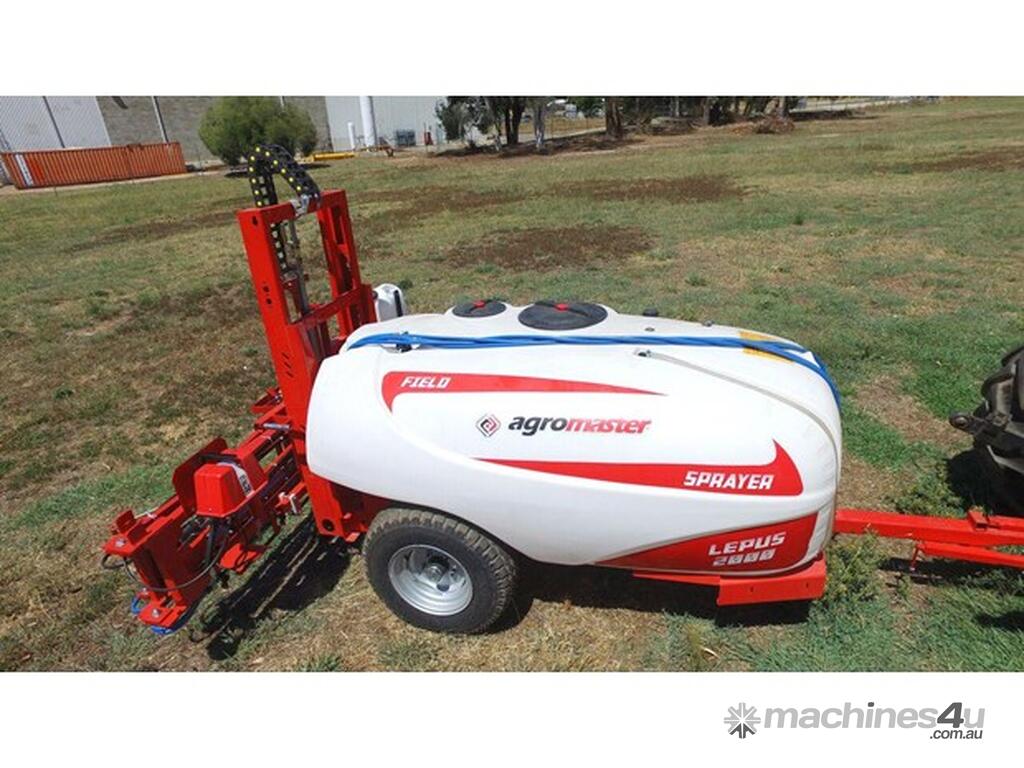

FARMTECH LEPUS 2000 HYD16 SEMI HYDRAULIC BOOM SPRAYER (2000L)

Quality European-made product. Farmtech produces versatile sprayers. F series HEAVY-DUTY Semi-hydraulic Boom sprayer are durable for many options and it finds use in traditional farming, horticulture, orchards, vineyards, and on grasslands. Trailed type 1000, 1600, 2000 L field sprayers are used for multipurpose plant protection. Sprayers connected to the drawbar of the tractor and powered by P.T.O. With those sprayers all kinds of field crops could be sprayed. Using TeeJET or conical nozzles on booms, destruction of weeds and diseases which are affecting the health of plants like; wheat, barley, sorghum, corn, canola, raps, cotton, sugar beet, sunflower, etc.1000, 1600, 2000L sprayer tanks are produced from polyethylene or fiberglass material. Either mechanical as standard or balanced hydraulic lifting for adjusting the height. Sprayer booms are produced in lengths 10, 12, 14, 16, 18m. 18M available in full hydraulic and boom functions can be controlled from the tractor cabin. The booms are connected to the damper system from two sides and it enables the distance along the whole arm to be parallel to the ground and provides an equal level between nozzles and the surface. Boom sprayers are optimum for plant protection processes such as herbicide, pesticide, fungicide, etc. Also for the sprayers, hoses and spray guns are attachable.

AFS series trailed semi-hydraulic boom field sprayers has;

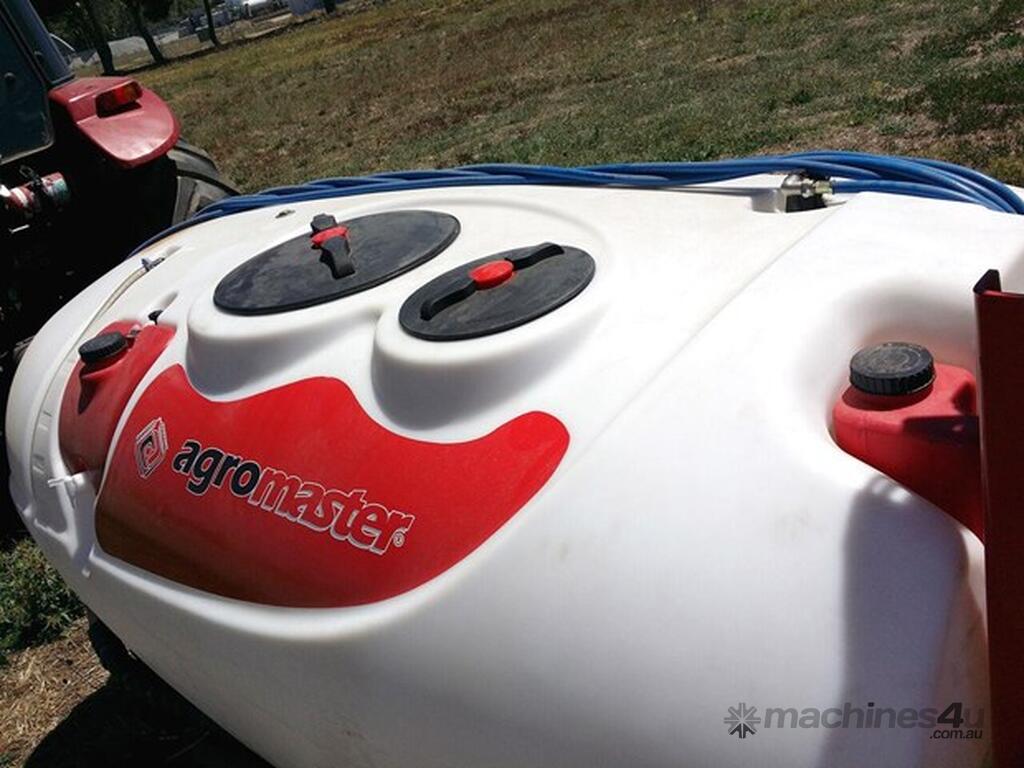

Polyethylene tank

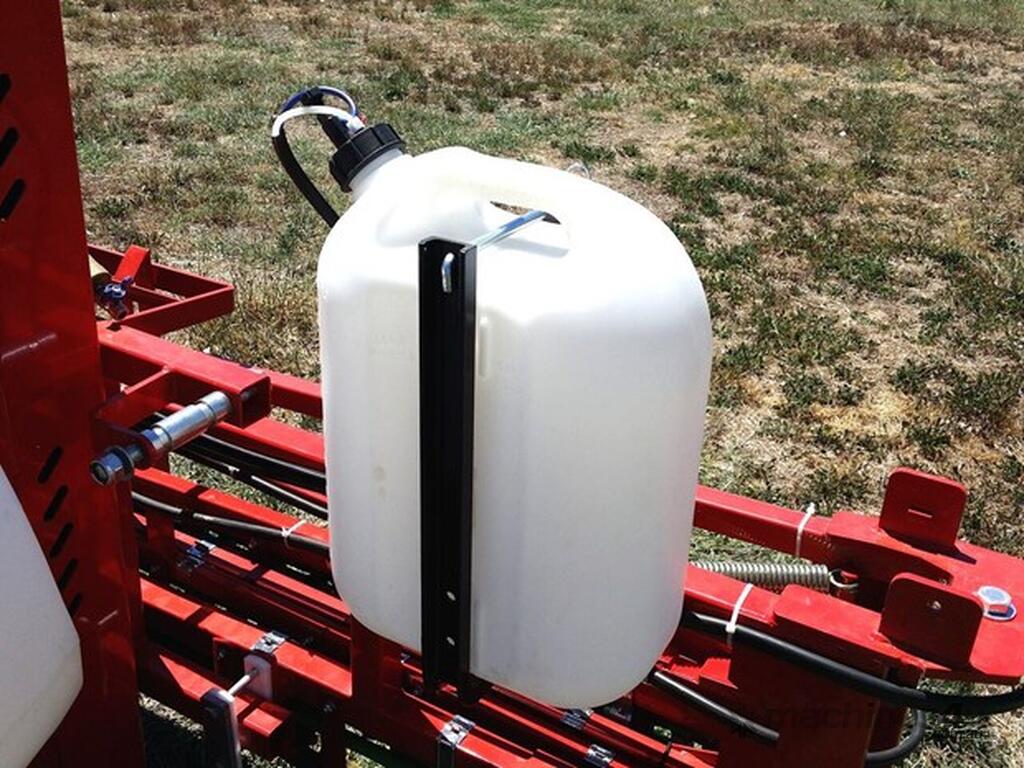

Hand washing tank apart from the main tank supplies clean water
Painted steel chassis
High-pressure pump
Manual regulator
7 partition boom support
An automatic filling system with a filter that fills into the spraying tank by pumping water from the canal or any source with the suction höse
The hydraulic mixer is provided to the homogeneous chemicals-water mixture

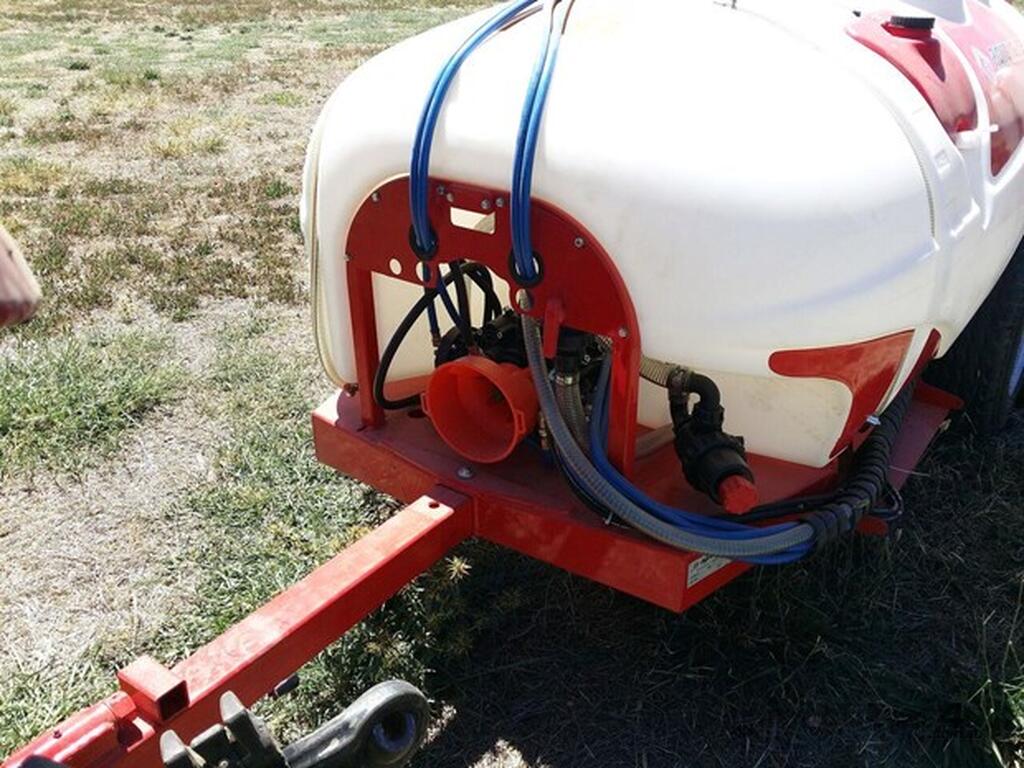

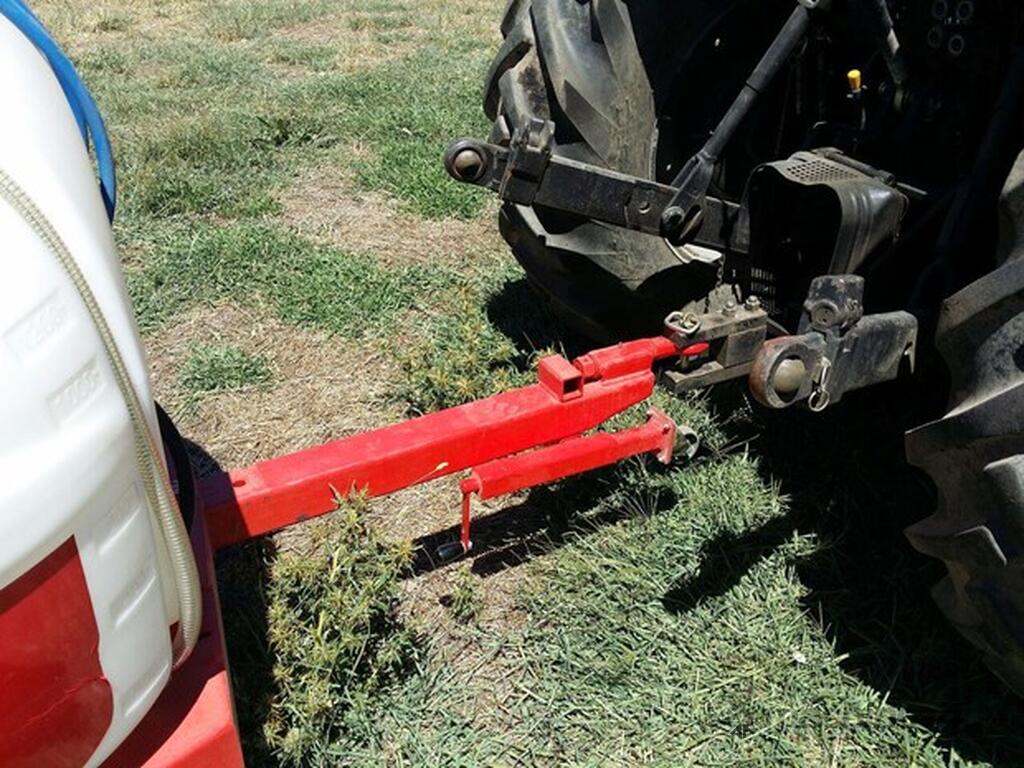

Drawbar connection
Easy fix nozzles; Long-lasting and cleanable nozzle provides homogeneous disinfection. According to demand, TeeJet and brass nozzles can be fixed to sprayer booms
Hydraulic hoses and easy connections
Locked-pin mechanism; When, the sprayer booms are in the working position, the fixed double spring tension system enables it to follow a regular line and the end boom is opened and connected to the locked-pin mechanism; in this way, the lever will be rigid.
Durable wheels to all-terrain conditions
Hydraulic boom height adjusting



Specifications: AFS-2000
Capacity (ltr): 2000
Capacity (Gallon): 528
Total Width (mm): 2000-2600
Total Width (ft.in): 6'7"-8'6"
Total Length (mm): 3450
Total Length (ft.in): 11'4"
Total Height (mm): 2250
Total Height (ft): 7'5"
Pump Type: Membrane
Boom Length (m): 10-18
Boom Length (ft): 32'-59'
Number of regulator outlet (pcs): 3-7
Pressure Safety Valve: Standard
Tank Mixer: Standard
Tank Material: Fiberglass / Polyethylene
PTO Rotation (rpm): 540
Required Power (kmph): 60
Total Weight (kg): 852
Total Weight (lbs): 1878

Standard Boom Specifications
Working Width (m): 16
Working Width (ft): 52
Total Width (mm): 2720
Total Width (ft): 8'11"
Total Length (mm): 1640
Total Length (mm): 5'5"
Boom Type: Mechanical
Number of the nozzles: 33
Nozzle Type: Conical / TeeJet
Distance between Nozzle (cm): 50
Distance between Nozzle (ft): 1'8"
Height (mm): 750
Height (ft): 2'6"
Weight (kg): 156
Weight (lbs): 343
Tractor Connection Trailed
Tank Capacity - l 2000
Width - m 10



Optional Extras
Other booms sizes available - 12, 14, 16 & 18m. Unit is available in low profile or high clearance tyre configurations. Foam markers, nozzle protectors, section control, elec. control

Upon request, we can source larger (3000 & 4000L) and smaller (1200 & 1600L) trailing models from our factory. Approx wait time on these models

NOTE: The pictures in the photo gallery may show optional extras or workshop adjustments as per a previous purchaser. These photos may not denote the base model machine.

Machine/Equipment base price only, additional price for optional extras.
