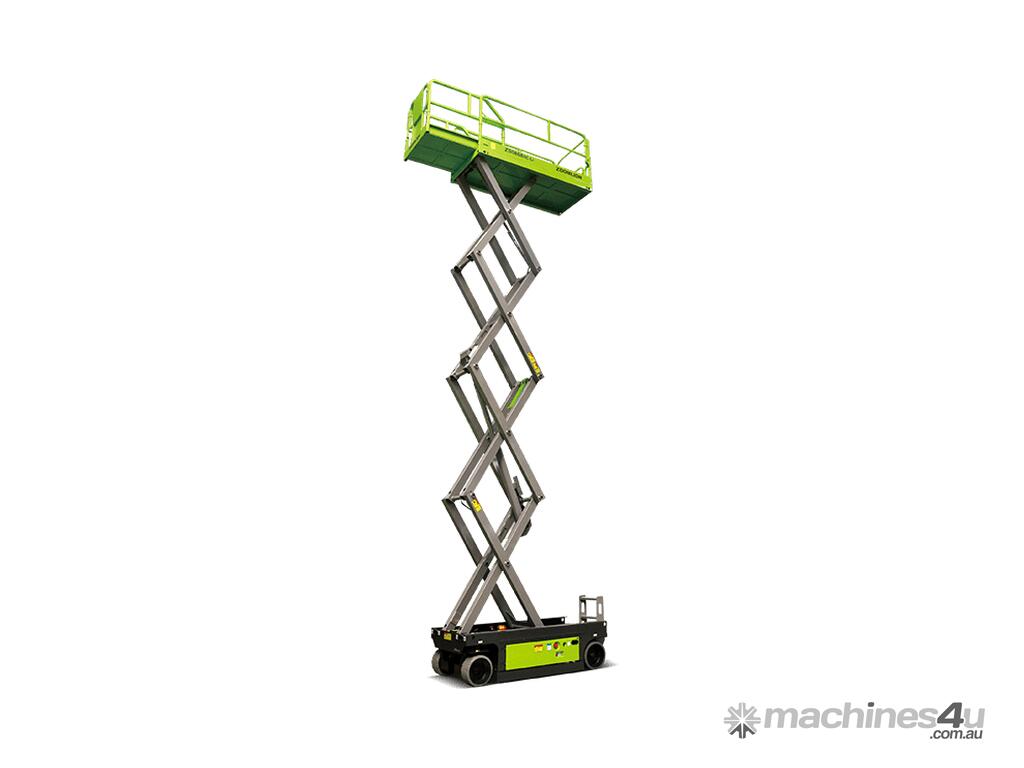

Electric powered scissor lifts, with work height ranging from 7.8m to 15.7m, providing high efficiency and safe operation around jobsites.
AC system offers higher working efficiency;
IP67 reached that AC motor offers longer lifespan;
Lithium-ion batteries features long service life that the running time increases by 30%, and could apply to -20? cold working conditions.
Size
Features
METRIC / IMPERIAL
Work Height 10.00m/7.8m

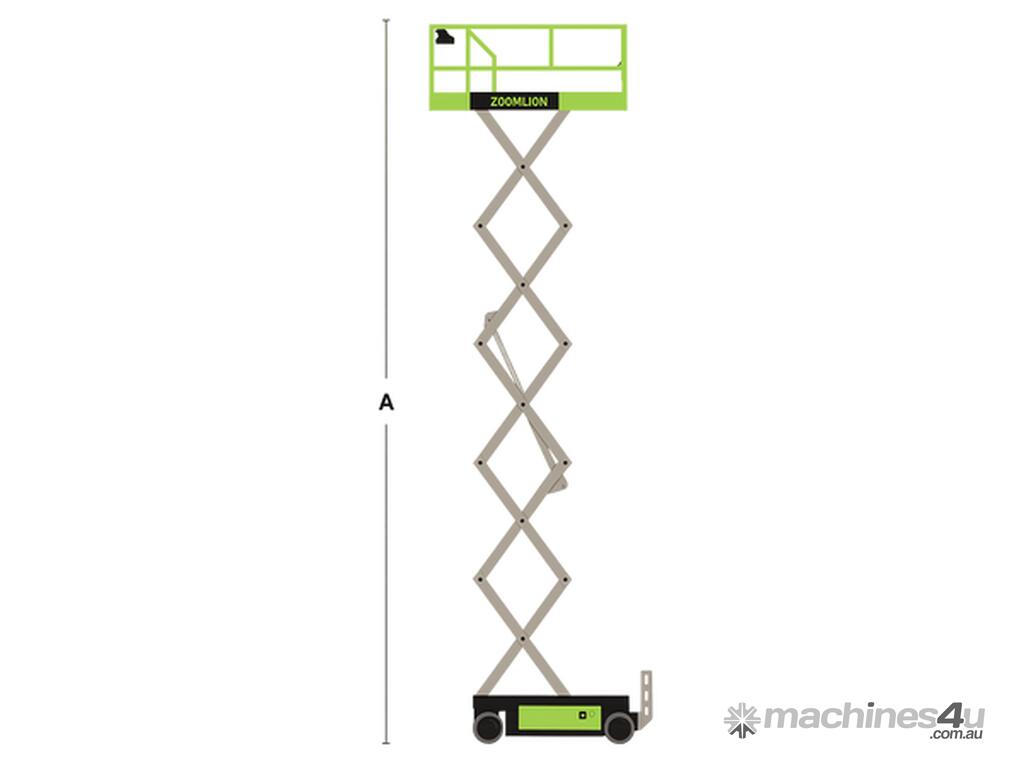

A - Platform Height-Elevated 8.00m/5.8m

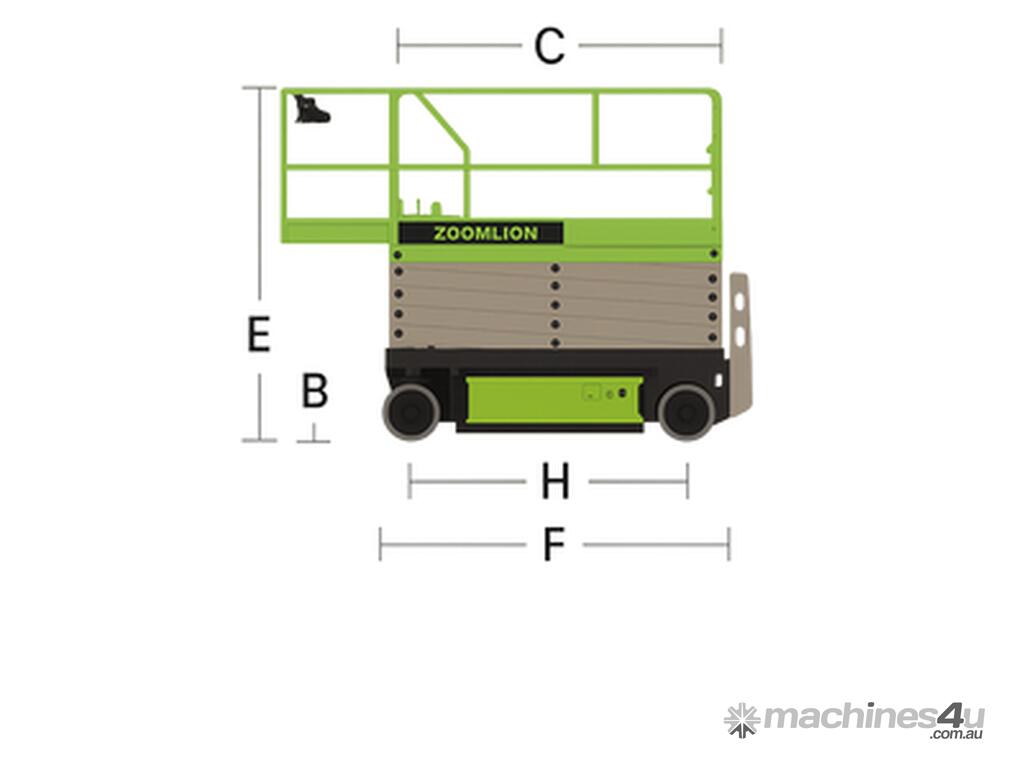

B - Platform Height-Stowed 1.26m
C - Platform Length 2.30m
D - Platform Width 0.81m
Platform Extension 0.91m
E - Overall Height (Rails Up) 2.4m
Overall Height (Rails Down) 1.9m
F - Overall Length 2.49m

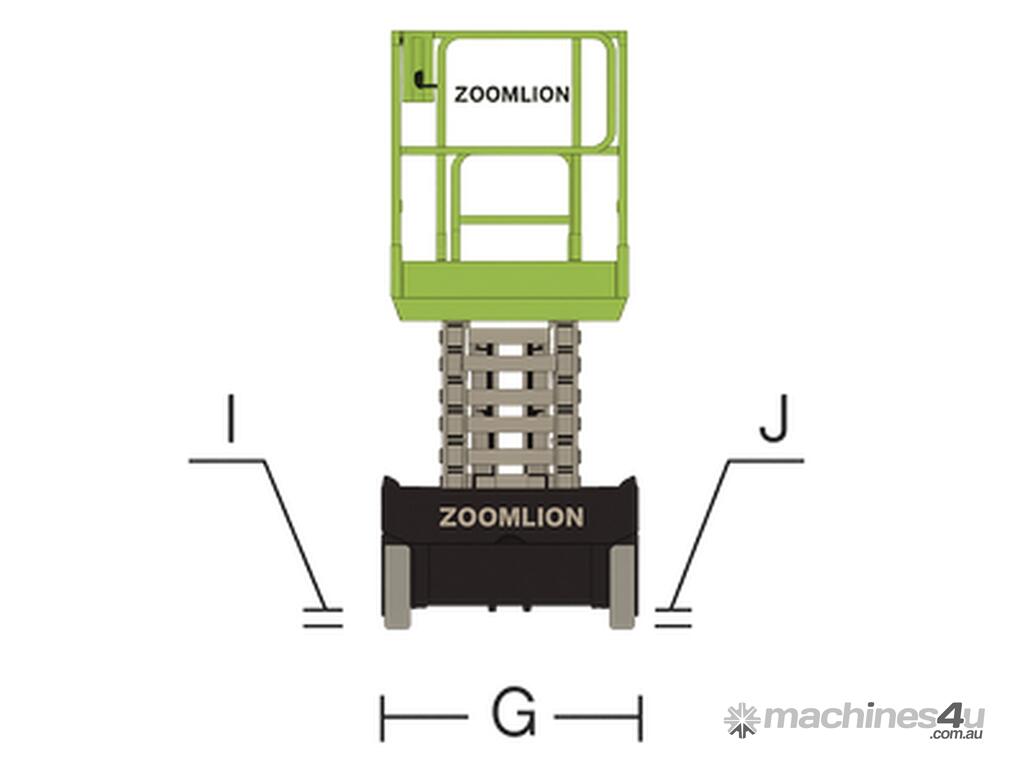

G - Overall Width 0.81m
H - Wheelbase 1.85m
I - Ground Clearance (Stowed) 0.11m
J - Ground Clearance (Raised) 0.02m
