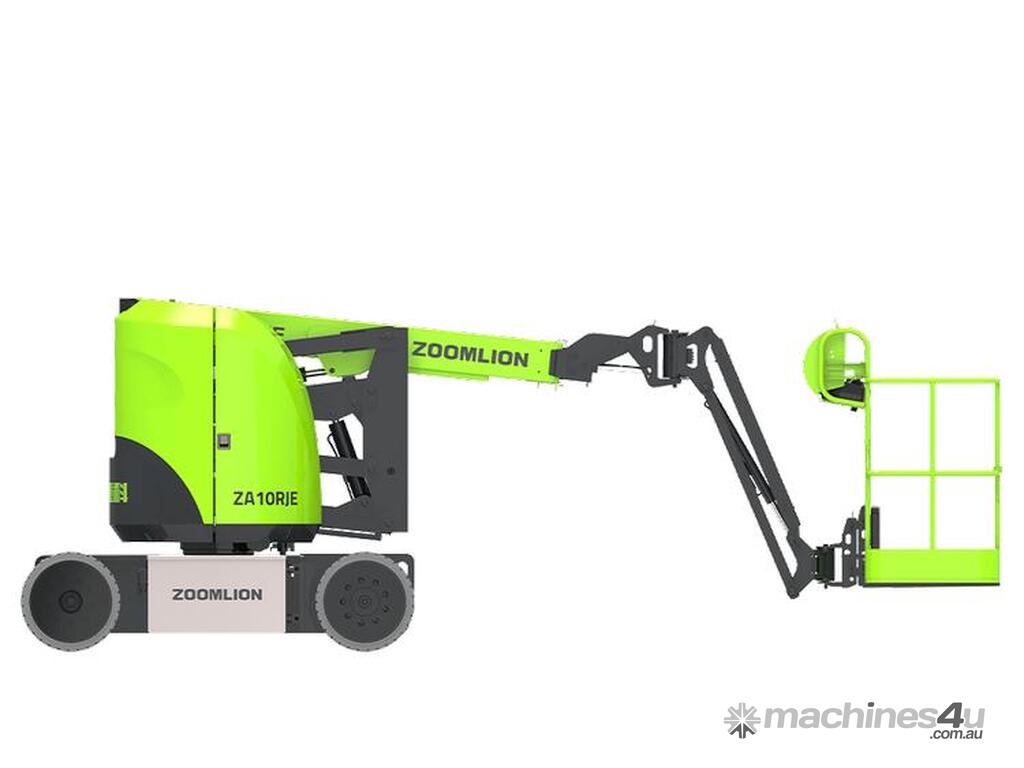

FERAQuip 12m electric boom lift - ZA10RJE ($1293 per month) FINANCE AVAILABLE

Center layout, great structural rigidity, and small boom deflection

Advanced dual control system (valve control + pump control) offers a energy-saving, smooth and efficient control

±90° Jib rotation offers great up and over height

Compact dimension of 1.19m (3ft 11in) stowed width, ideal for narrow working conditions

Size
Features
METRIC / IMPERIAL

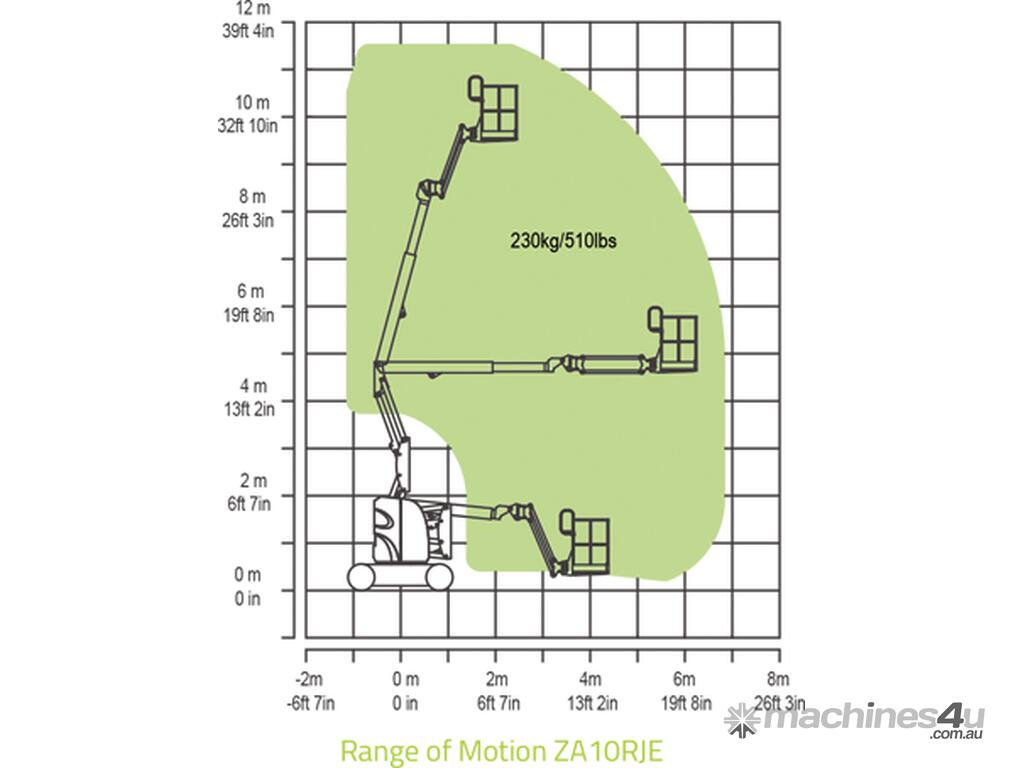

Work Height 11.55m
Platform Height 9.55m
Horizontal Outreach 6.85m
Up and Over Height 4.6m

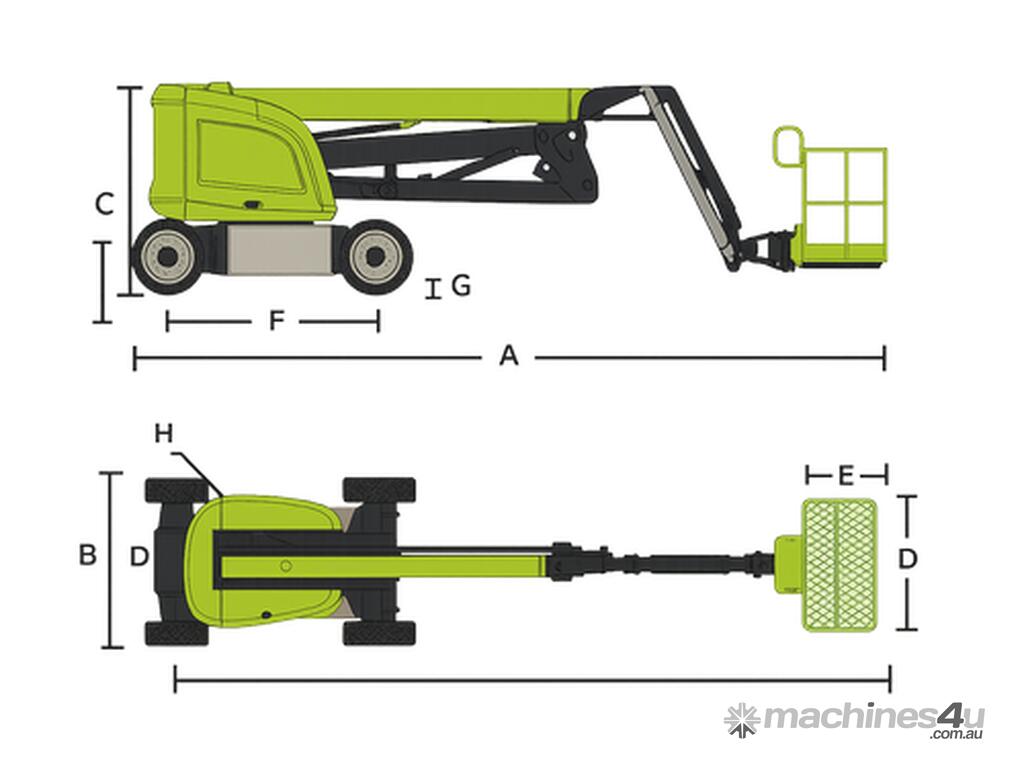

A - Stowed Length 5.5m
B - Stowed Width 1.19m
C - Stowed Height 1.98m
D - Platform Length 1.17m
E - Platform Width 0.76m
F - Wheelbase 1.65m
G - Ground Clearance 0.1m
Jib length 1.24m
Transport Length (jib tucked under) 3.95m
Transport Height (jib tucked under) 2.45m

Performance
Features
METRIC / IMPERIAL
Platform Capacity 230kg
Drive Speed 5km/h
Gradeability 35% (19°)
Axles Oscillation -
Turning Radius (Inside) 1.7m
Turning Radius (Outside) 3.25m
Jib Swing 355° non-continuous
Turntable Swing ±90°
Platform Rotation ±90°
H-Tail Swing 0m
Max. Working Slope -
Max. Wind Speed 12.5m/s

Power
Features
METRIC / IMPERIAL
Battery 24×2V/330Ah
Charger 48V/35A
Drive Motor AC 32V/3.3kW
Lift Motor DC 48V/4.5kW
Auxiliary Power Electric pumpDC
Hydraulic Tank Capacity 15L

Tire
Features
METRIC / IMPERIAL
Type 22×7×17.75 seamless tire

Weight
Features
METRIC / IMPERIAL
Gross 6550kg



*All prices are subject to change without prior notice. E&OE.
*Finance is subject to approval and standard terms and conditions apply.
