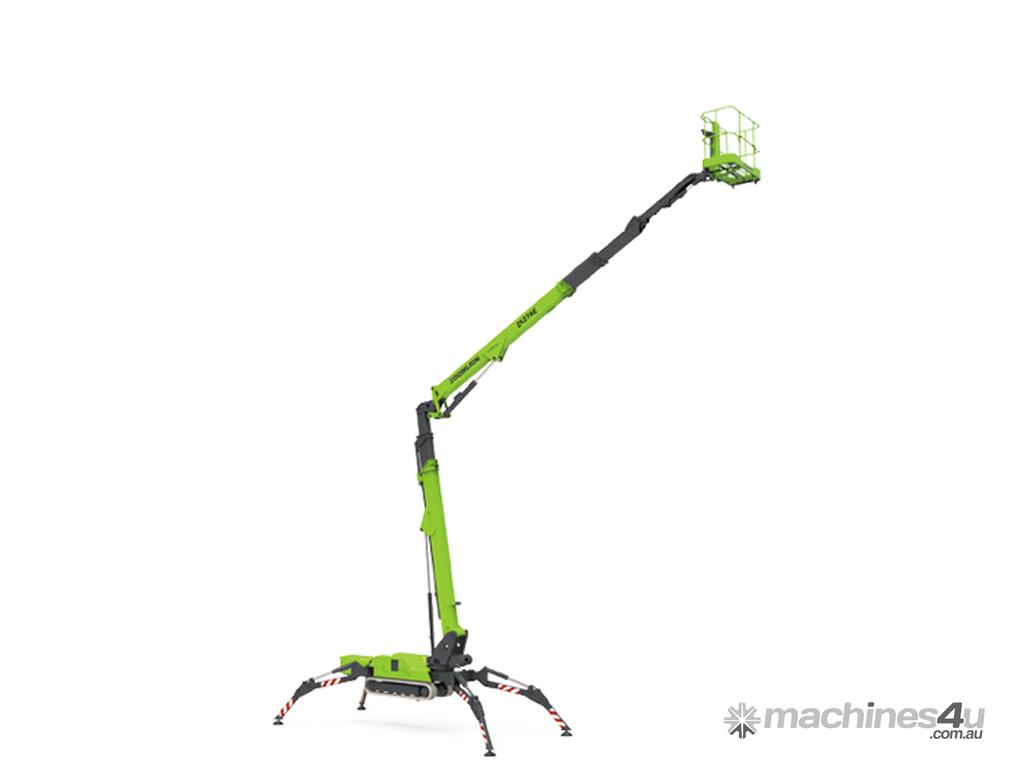

FERAQuip 23m electric spider lift ZX23AE ($829 p/w) FINANCE AVAILABLE

0.89m ultra-narrow width, quick-change work platform, easy access to compact spaces

Pure lithium-ion battery power features environmental protection and quiet operation

Accurate and efficient permanent magnet synchronous motor provides strong power and stable control

Non-marking rubber track suitable for all terrains

Central layout, great structural rigidity, and small boom deflection

Size
METRIC / IMPERIAL

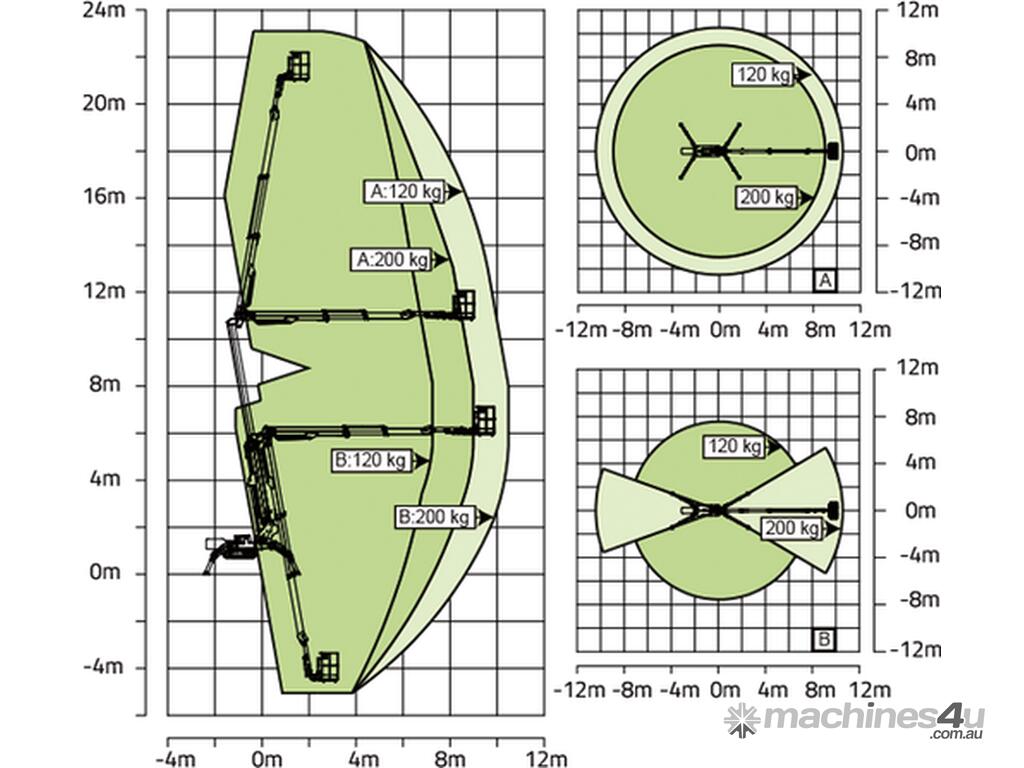

Work Height 23m
Platform Height 21m
Horizontal Outreach 10.5m
Up and Over Height 10.87m
Below Ground Reach 4.4m

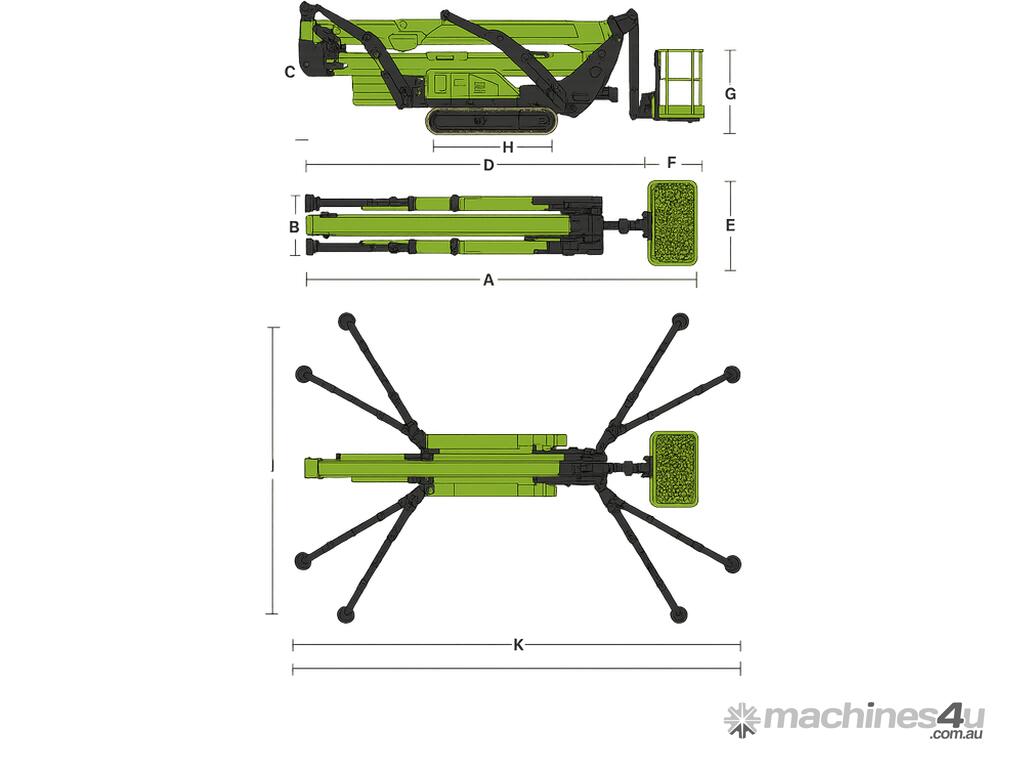

A - Stowed Length (w/ platform) 5.44m
D - Stowed Length (w/o platform) 4.93m
B - Stowed Width 0.85m
C - Stowed Height 1.95m
E - Platform Length 1.4m
F - Platform Width 0.7m
G - Platform Height 1.25m
H - Crawler Size (Length×Width) 1.124m × 0.23m
I - Max Length w/ Outrigger Extending (Standard) 3.85m
J - Max Width w/ Outrigger Extending (Standard) 3.85m
K - Max Length w/ Outrigger Extending (Narrow) 5m
L - Max Width w/ Outrigger Extending (Narrow) 2.6m
Outrigger Pad Size (Diameter) 0.26m
Approach Angle 25°
Departure Angle 27°
