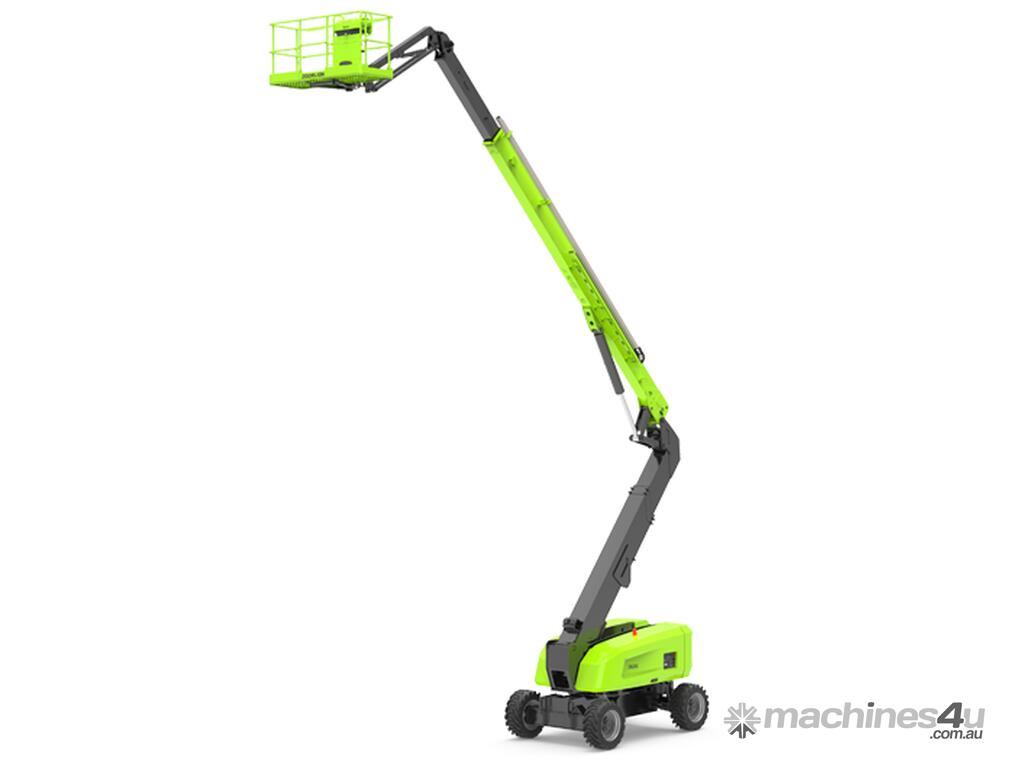

FERAQuip 28m Articulated Boom ($911 per week) Finance Available

Large work range, max work height of 28.2m, max outreach of 19.4m, and up and over height of 9.48m

Build-in multiple pressure control leveling system to enhance stability

Precise load sensing system to improve overload safety operations

Pump control + valve control for accurate flflow distribution

Outstanding below ground reach of 6.5m?16ft 9in)

Size
METRIC / IMPERIAL
Work Height 28.2m
Platform Height 26.2m
Horizontal Outreach 19.4m
Up and Over Height 9.48m
A - Stowed Length 11.75m
B - Stowed Width 2.49m
C - Stowed Height 2.82m
D - Platform Length 2.44m
E - Platform Width 0.91m
F - Wheelbase 3.05m
G - Ground Clearance 0.42m

Performance
METRIC / IMPERIAL
Platform Capacity 250kg
Drive Speed 5.0km/h
Gradeability 45%(24°)
Axles Oscillation 0.2m
Turning Radius (Inside) 3.14m
Turning Radius (Outside) 6.48m
Turntable Swing 360° non-continuous
Platform Rotation ±90°

Power
METRIC / IMPERIAL
Diesel Engine Kubota V2607/KubotaV3307
Fuel Tank Capacity 150L
Auxiliary Power 12V
Control Voltage 12V
Hydraulic System Capacity 263L
Hydraulic Tank Capacity 180L
H-Tail Swing 1.422m

Weight
METRIC / IMPERIAL
Gross 18800kg
Max. Working Slope 5°
Max. Wind Speed 12.5m/s
