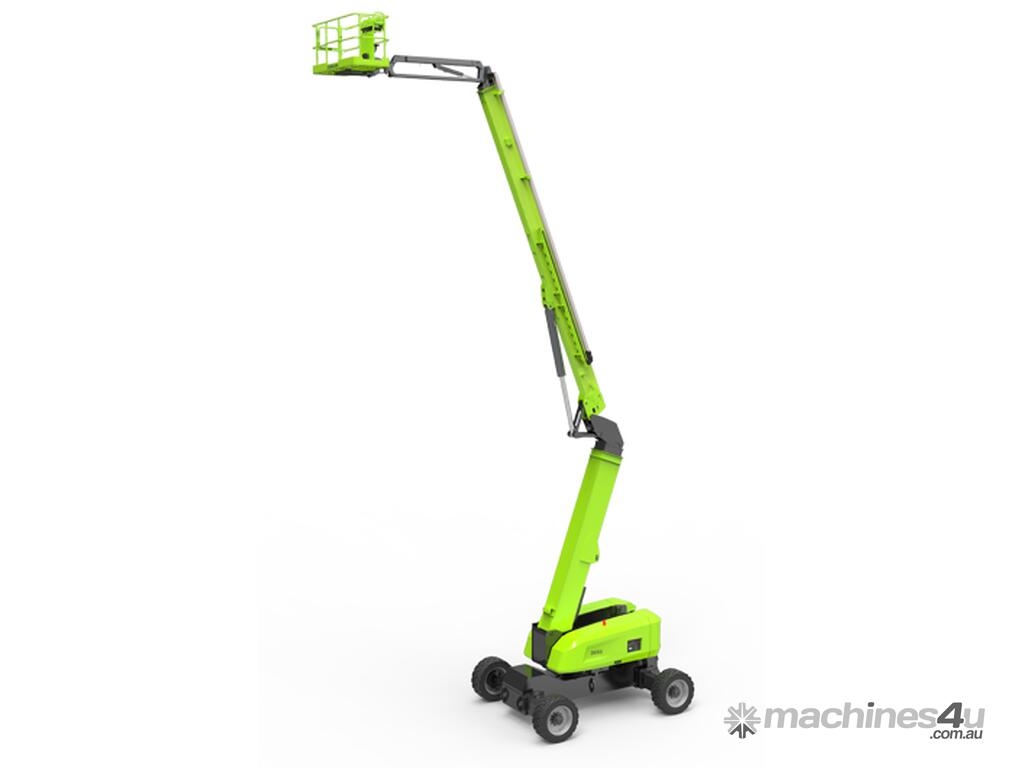

FERAQuip 34m height ZA32J Articulated Boom($1155 p/w) FINANCE AVAILABLE

Provide heavy lifting of 250kg load for 28% higher efficiency

Build-in multiple pressure control leveling system to enhance stability

Deadweight Lowering System for smooth operation and energy efficiency

Outstanding below ground reach of 5.7m

Precise load sensing system to improve overload safety operations

Size
METRIC / IMPERIAL

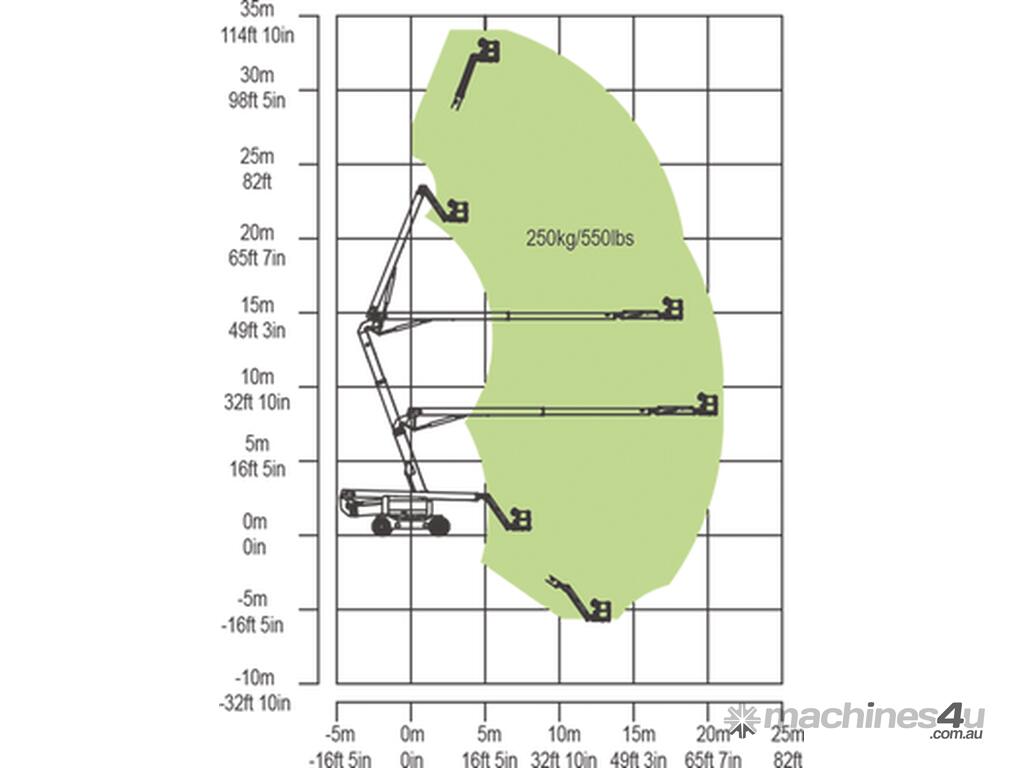

Work Height 33.85m
Platform Height 31.85m
Horizontal Outreach 21.17m
Up and Over Height 14.52m

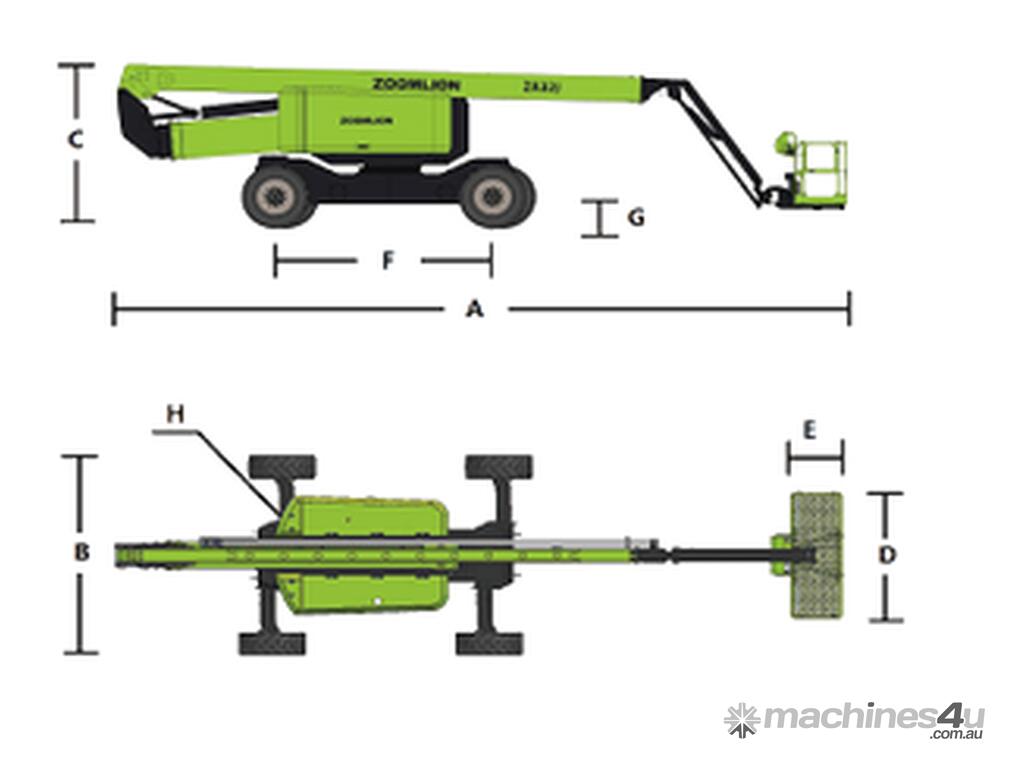

A - Stowed Length 12.6m
B - Stowed Width 2.49m
C - Stowed Height 3.1m
D - Platform Length 2.44m
E - Platform Width 0.91m
Jib Length 2.44m
F - Wheelbase 3.81m
G - Ground Clearance 0.42m

Performance
METRIC / IMPERIAL
Platform Capacity 250kg
Drive Speed 5.2km/h
Gradeability 45%
Axles Oscillation 0.2m
Turning Radius (Inside) 7.7/3.3m
Turning Radius (Outside) 10.8/8.2m
Turntable Swing 360° continuous
Platform Rotation ±90°
H-Tail Swing 0
Max. Wind Speed 12.5m/s

Power
METRIC / IMPERIAL
Diesel Engine Cummins QSF2.8 54kw/2400rpm Kubota V2607 55.4kw/2700rpm
Fuel Tank Capacity 200L
Auxiliary Power 12V
Control Voltage 12V
Hydraulic System Capacity 300L
Hydraulic Tank Capacity 200L

Weight
METRIC / IMPERIAL
Gross 19200kg
