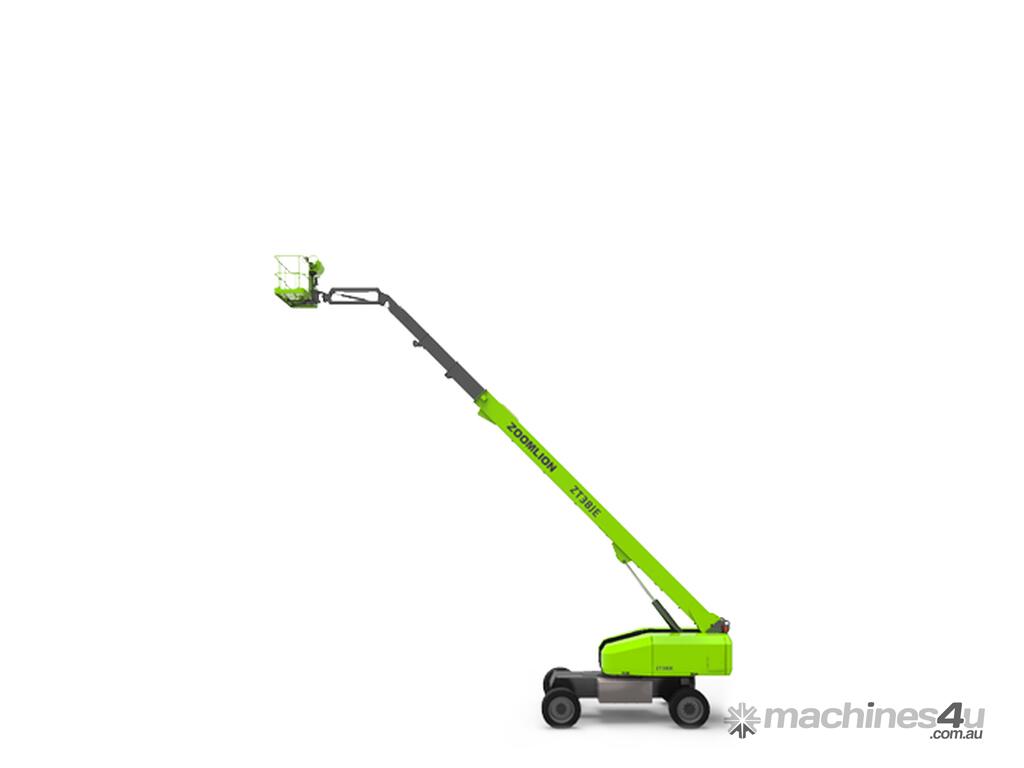

FERAQuip 40m Boom lift - ZT38JE ($1160 p/w) FINANCE AVAILABLE

Light weight design, low operating cost

High frequency and low amplitude response control with buffer

X-type chassis, large span, good stability on slope

Compact transportation size makes it available for container

Dual jib rotary actuator for large work range, folded jib for compact transportation size, reducing transporting cost

Micro-motion technology of container transport for safe and stable container shipping

Load-sensitive and engine condition matching energy-saving technology, as well as the boom self-weight lowering function, reducing energy consumption by 18% compared to peers

Remote controller upgrade and mobile parameter adjustment, high service efficiency

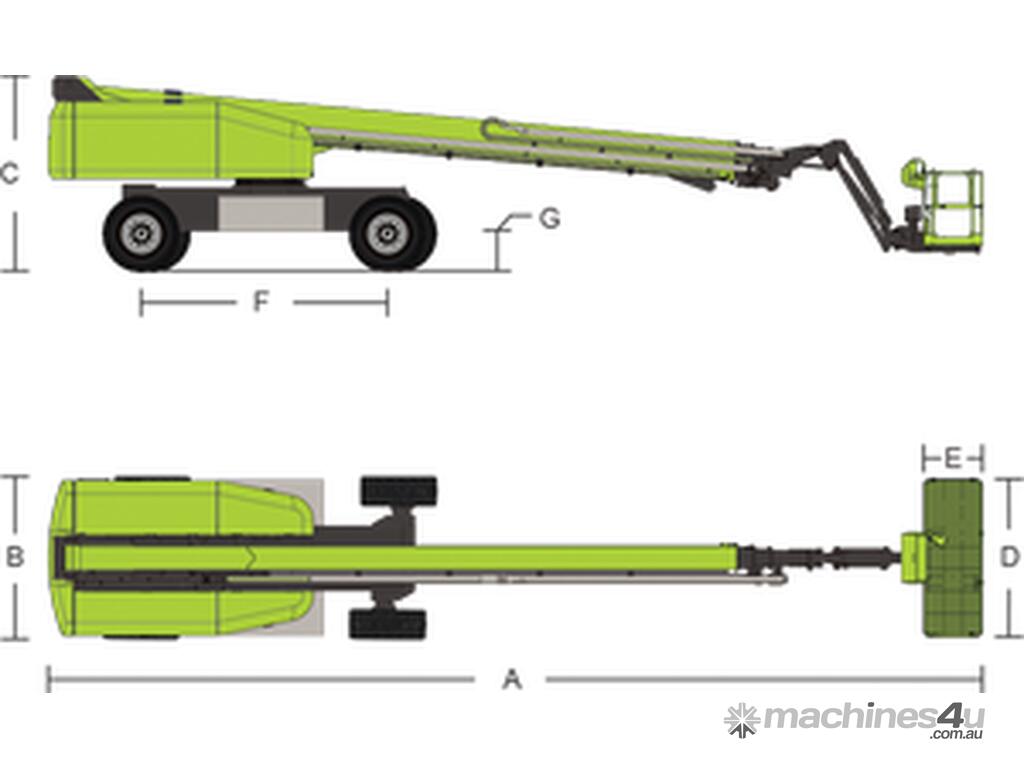

Size
METRIC / IMPERIAL
Work Height 40.22m
Platform Height 38.22m
Horizontal Outreach 22.64m
A - Stowed Length 12.26 (14.35) m
B - Stowed Width 2.49/3.87m
C - Stowed Height 3m
D - Platform Length 2.44m
E - Platform Width 0.91m
F - Wheelbase 3.81m
Tread 2.49/3.87m
G - Ground Clearance 0.41m
