18.2kw large power range extender provides power in low electric quantity for long working hours
Light weight for low operating cost
High frequency and low amplitude response control technology, click to move with buffer
X-outrigger for large lifespan, stable on slope
Dual jib rotary actuators for large work range, folded design for short transportation length and less transportation cost
Micro-motion technology of container transport for safe and stable container shipping
Load-sensitive and engine condition matching energy-saving technology, as well as the boom self-weight lowering function, energy consumption reduced by 18% compared to conventional technology
Controller remote upgrade and mobile parameter adjustment for high service efficiency

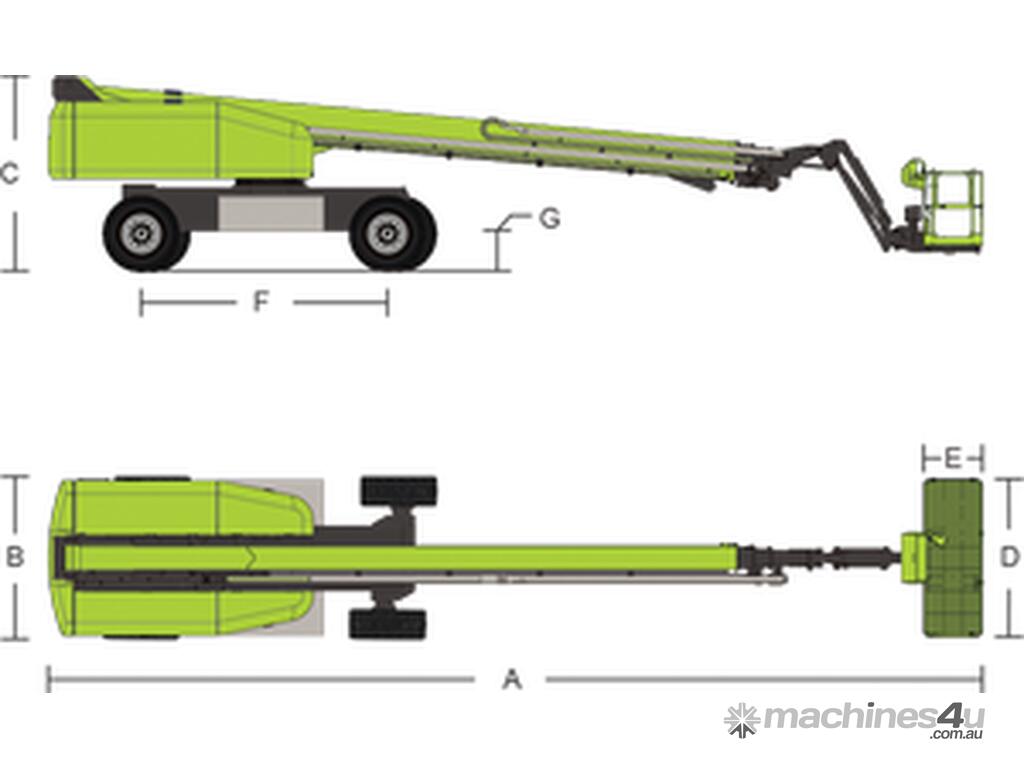

Size

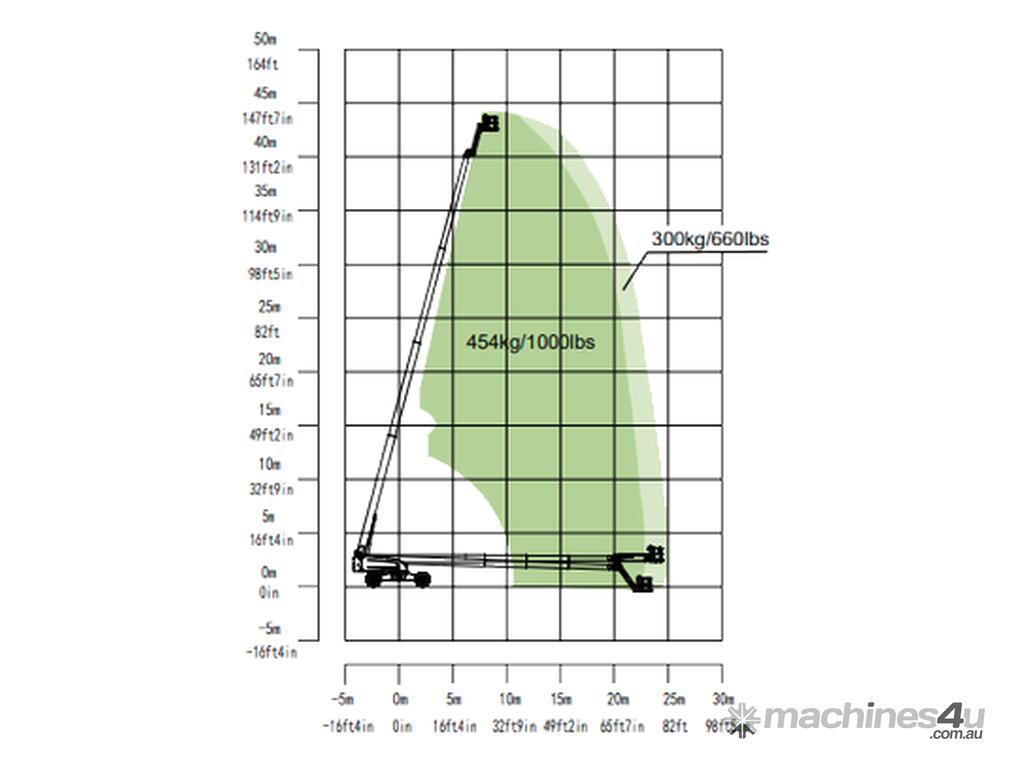

Work Height 44m
Platform Height 42m
Horizontal Outreach 25m
A Overall Length (Stowed) 16.22m
B Overall Width (Stowed) 2.46m
C Overall Height (Stowed) 2.86m
D Platform Length 2.44m
E Platform Width 0.91m
F Wheelbase 3.81/4.15m
Track Width 2.46m/4.07m
G Ground Clearance 0.4m
