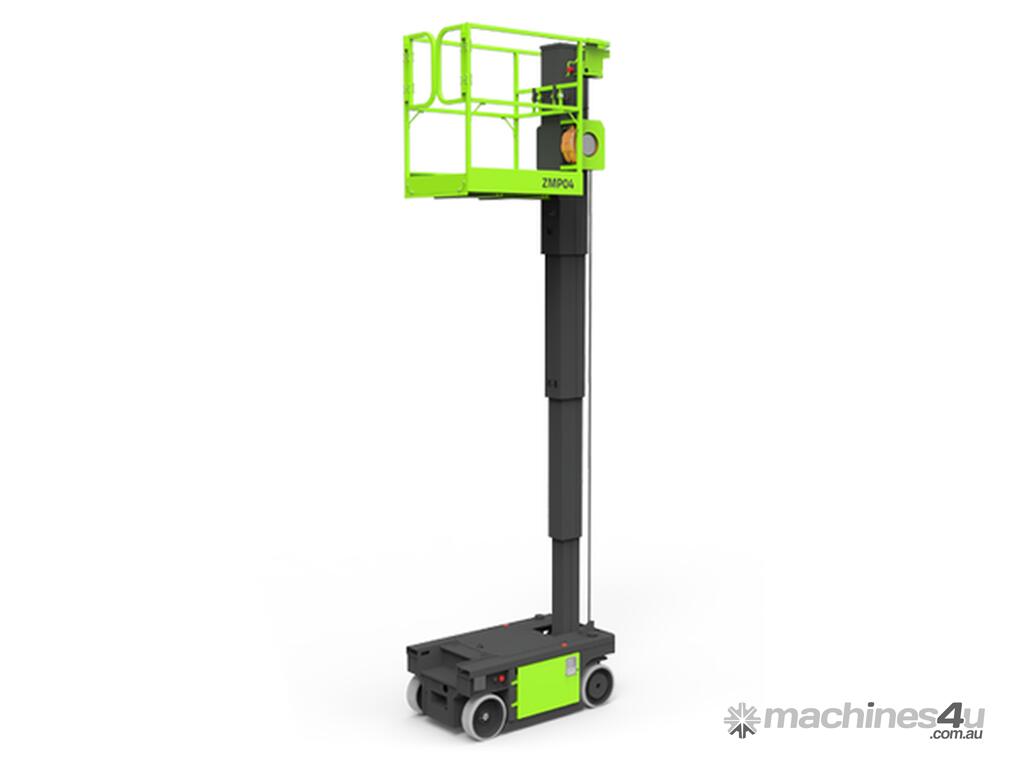

FERAQuip 6m ZMP04 Vertical Mast Lifts ($57 per week) Finance Available

Permanent magnet synchronous traveling motor, energy saving and high efficiency

Standard large-diameter tires and collectable pothole plates, easy to pass the threshold

Front wheel driving and steering and small turning radius for flexible indoor movement

Multi-arm synchronous lifting, fast and no impact Compact dimensions, access to lifts, and ideal for indoor applications

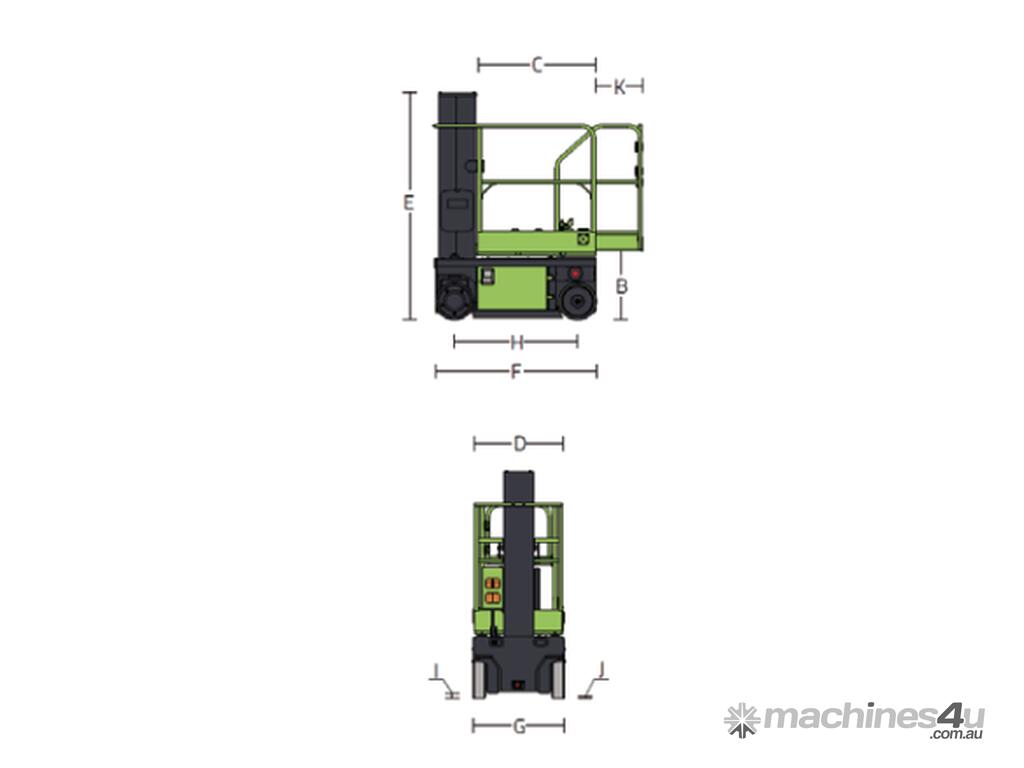

Size
Work Height 5.82m
A - Platform Height-Elevated 3.82m
B - Platform Height-Stowed 1.06m
C - Platform Length 1.02m
D - Platform Width 0.76m
K - Platform Extension 0.5m
E - Overall Height 1.72m
F - Overall Length 1.39m
G - Overall Width 0.78m
H - Wheelbase 1.06m
I - Ground Clearance (Stowed) 0.065m
J - Ground Clearance (Raised) 0.017m
