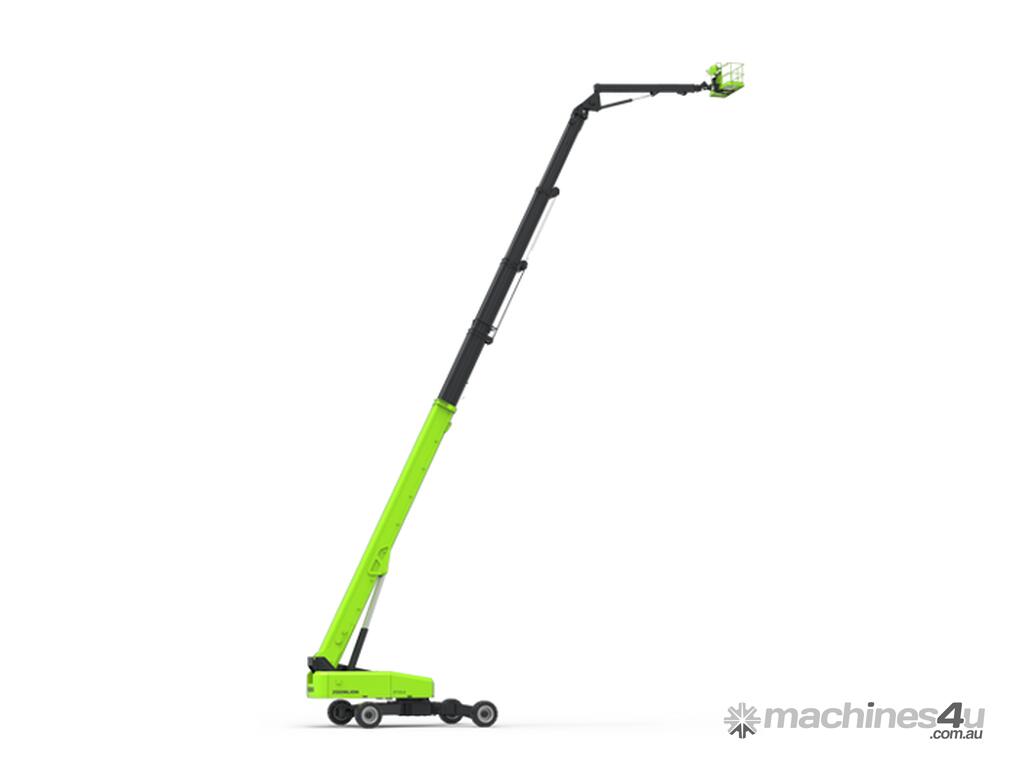

FERAQuip - 72m boom lift - ZT72J (Biggest in Australia)

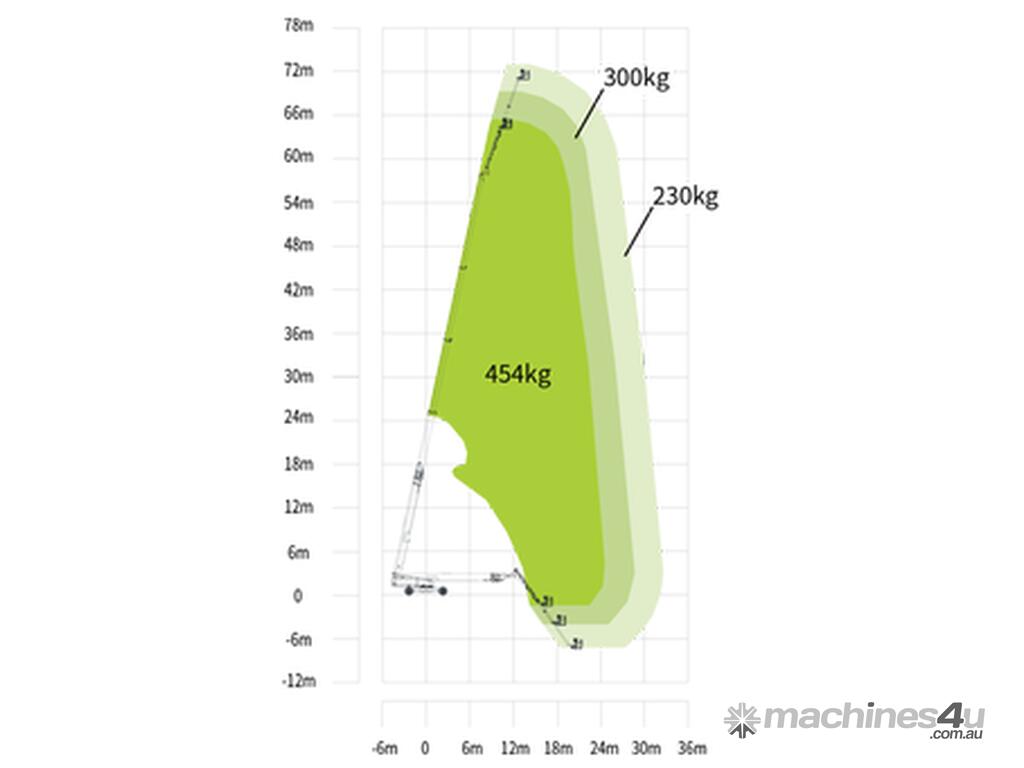

Highest telescopic boom lift that work height up to 72.3m and horizontal outreach up to 32m

Innovative polygonal boom with light weight and small side deformation for stable operation

X outrigger offers larger working envelope, stronger off-road ability, and better stability

13.1m ultra-long telescopic jib for large work envelope and convenient application

Ultra long boom with multiple sensors for safe and efficent application

Double lifting cylinder layout provides more smooth lifting, better boom rigidity and less platform shakes

Size
METRIC / IMPERIAL
Work Height 72.3m
Platform Height 70.3m
Horizontal Outreach 32.6m
A - Stowed Length 16.5m
B - Stowed Width 2.5m
C - Stowed Height 3.16m
D - Platform Length 2.44m
E - Platform Width 0.91m
F - Wheelbase 6.2/5.4m
Tread 2.5/5.6m
G - Ground Clearance 0.40m
