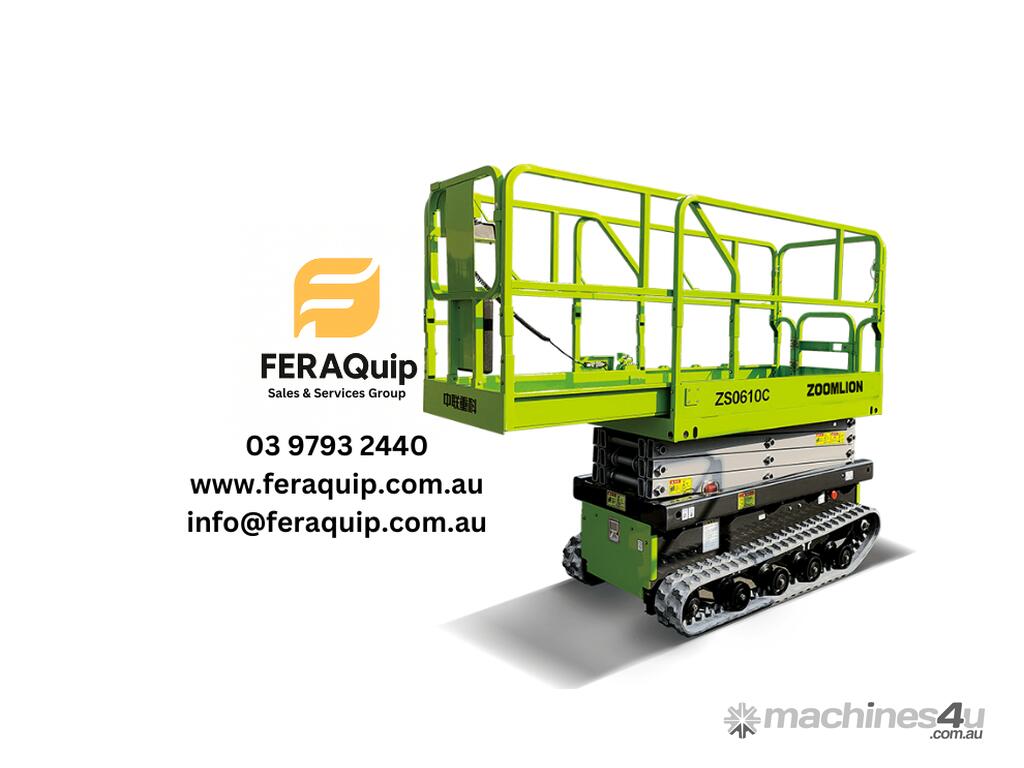

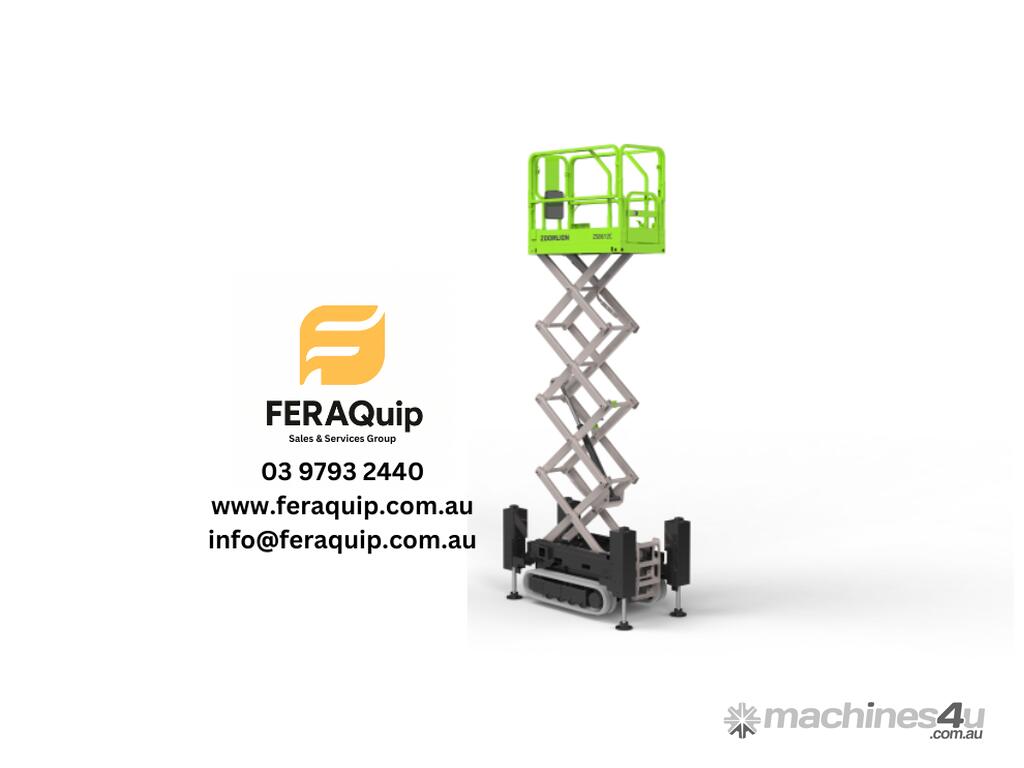

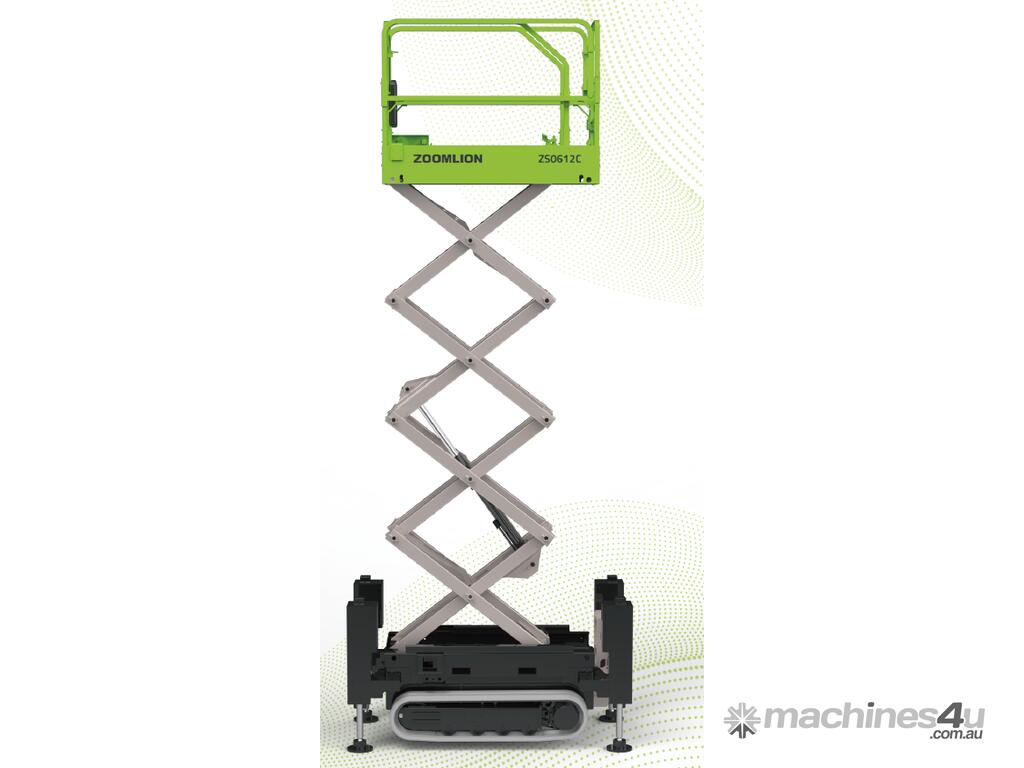

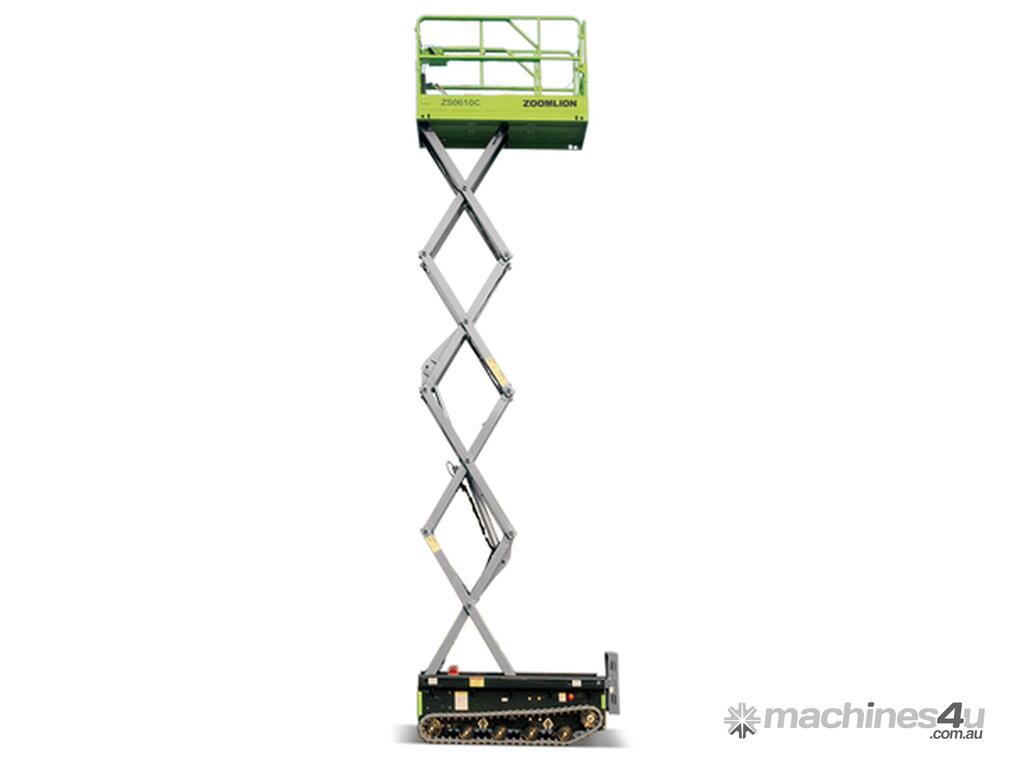

FERAQuip 8m Crawler Scissor ZS0612C FINANCE AVAILABLE

Rubber crawler provides small ground pressure and great obstacle crossing ability

Pivot steering with good manoeuvrability

Simple single handle control for steering and walking

High Performance
- Rubber crawler for small ground pressure and great obstacle crossing ability
- Pivot steering with good maneuverability
- Simple single joystick control for steering and walking
- Click-to-level, simple to operate

Cost-Effectiveness
- Knuckles lubrication-free and maintenance-free
- AC motor full lifecycle maintenance-free
- Drawler battery tray, easy to maintain
- Emergency lifting arm, easy to service

Intelligent Connectivity
- Remote monitoring and rental system, easy to acquire machine info,
efficient to run fleet

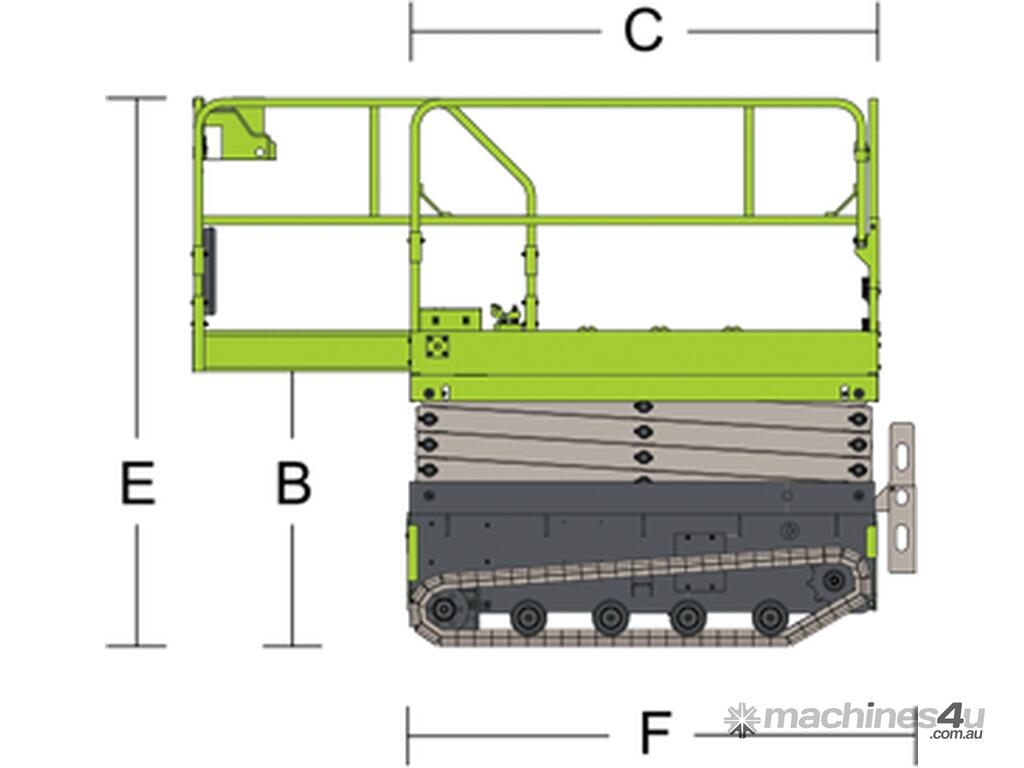

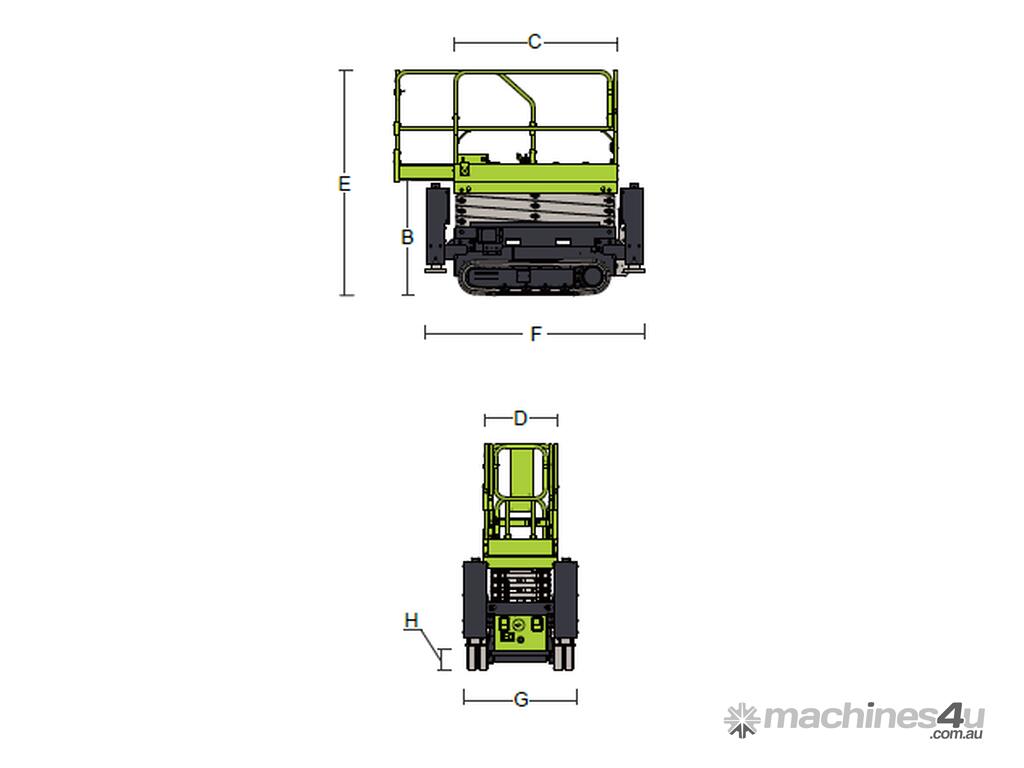

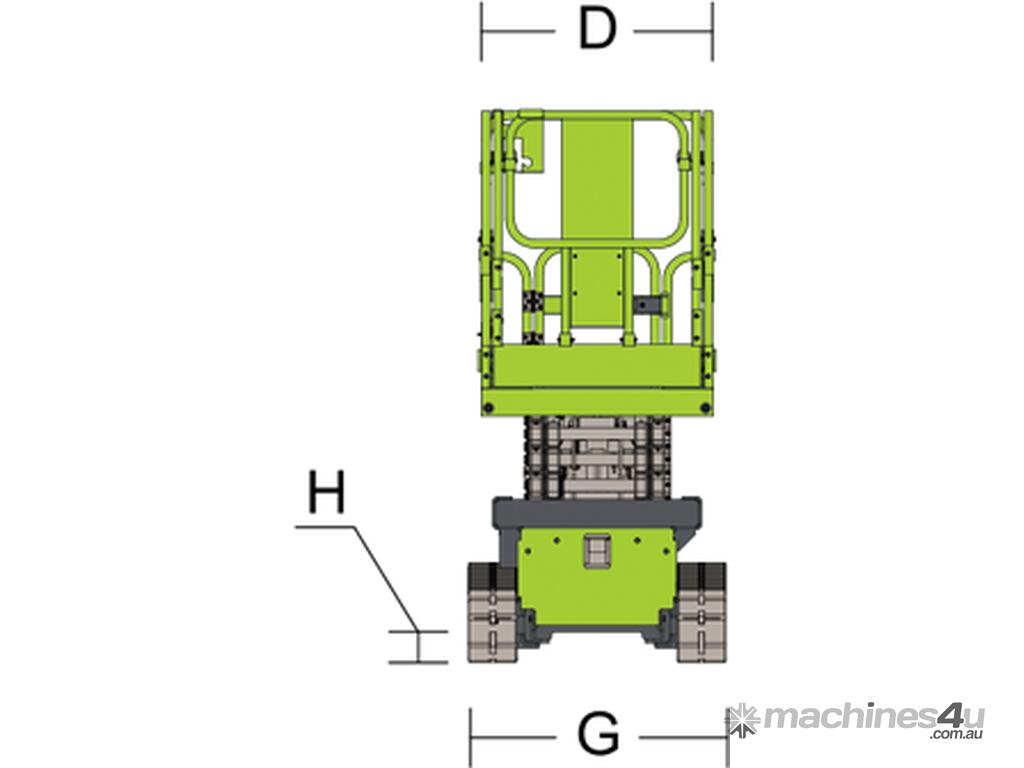

Size ( Metric / Imperial )
Work Height 7.8m 25ft 7in

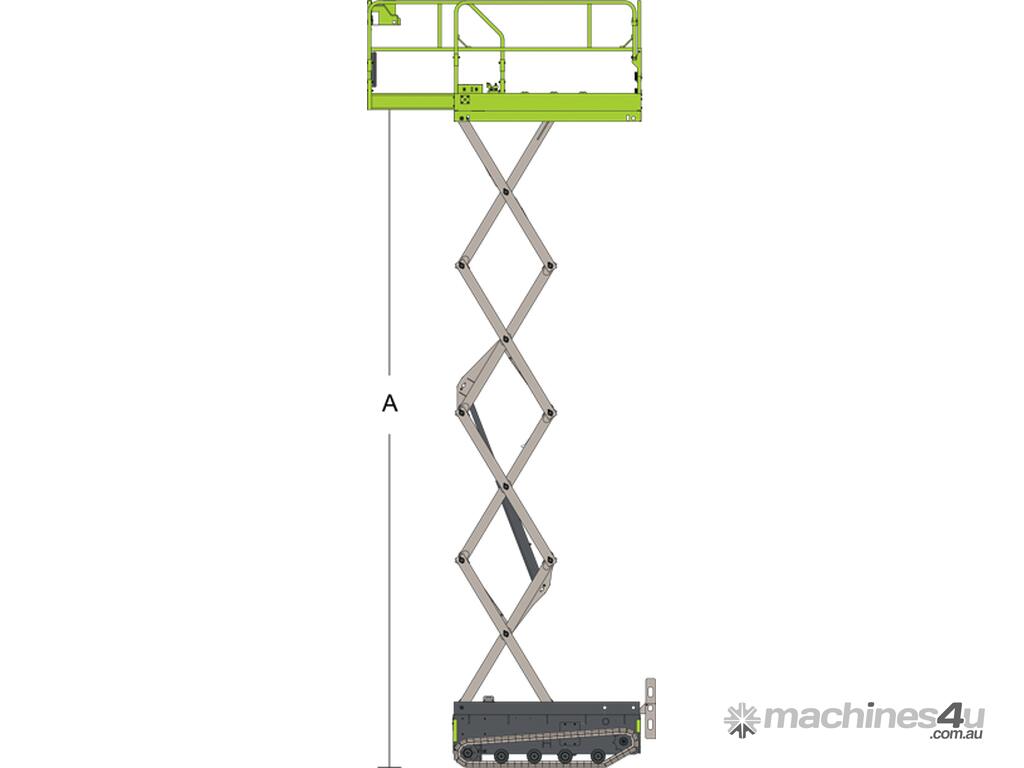

A Platform Height-Elevated 5.8m 19ft
B Platform Height- -Stowed 1.13m 3ft 8in
C Platform Length 1.65m 5ft 5in
D Platform Width 0.74m 2ft 5in
Platform Extension 0.9m 2ft 11in
E Overall Height (Rails Up) 2.27m 7ft 5in
Overall Height (Rails Down) 1.88m 6ft 2in
F Overall Length 2.19m 7ft 2in
G Overall Width 1.15m 3ft 9in
H Ground Clearance 0.08m 3in
Performance
Platform Capacity 230kg 510lb
Capacity on Deck Extension 113kg 250lb
Max. Number of Workers 2
Drive Speed (Stowed) 2km/h 1.25mph
Drive Speed (Raised) 0km/h 0km/h
Drive Motor 24V/2×2KW
Up/Down Time 20/24s
Gradeability 30%?17°?
Max. Working Slope 12°/7°
(Lateral/Vertical)
Drive Rear Wheels
Brake Rear Wheels
Power
Battery 4×12V/240Ah
Charger 24V/30A
Weight
Gross 1900kg 4188lb




*All prices are subject to change without prior notice. E&OE.
Finance is subject to approval and standard terms and conditions apply.
