FERAQuip Excavator ZE36GU(Canopy)

Zero-tail swing
ROPS canopy
Suspended seat
A visual display screen
Air conditioner (warm & cool)

Basic Technical Data
Operating Range
Operating Weight 3690 kg
Standard bucket capacity (Range) 0.1 m³ (0.038 m³ ~ 0.17 m³)
Slewing Speed 9 r/min
Traveling Speed (high/low) 4.2 / 2.3 km/h
Max. Drawbar Pull 28.6 kN
Digging Force of Bucket 31.5 kN
Digging Force of Stick 19.5 kN

Engine
Operating Range
Engine Manufacturer Kubota
Engine Model D1703
Rated Power 18.2 kW / 2200 rpm
Displacement 1.647 L
Emission Standard EU Stage V / Tier 4F

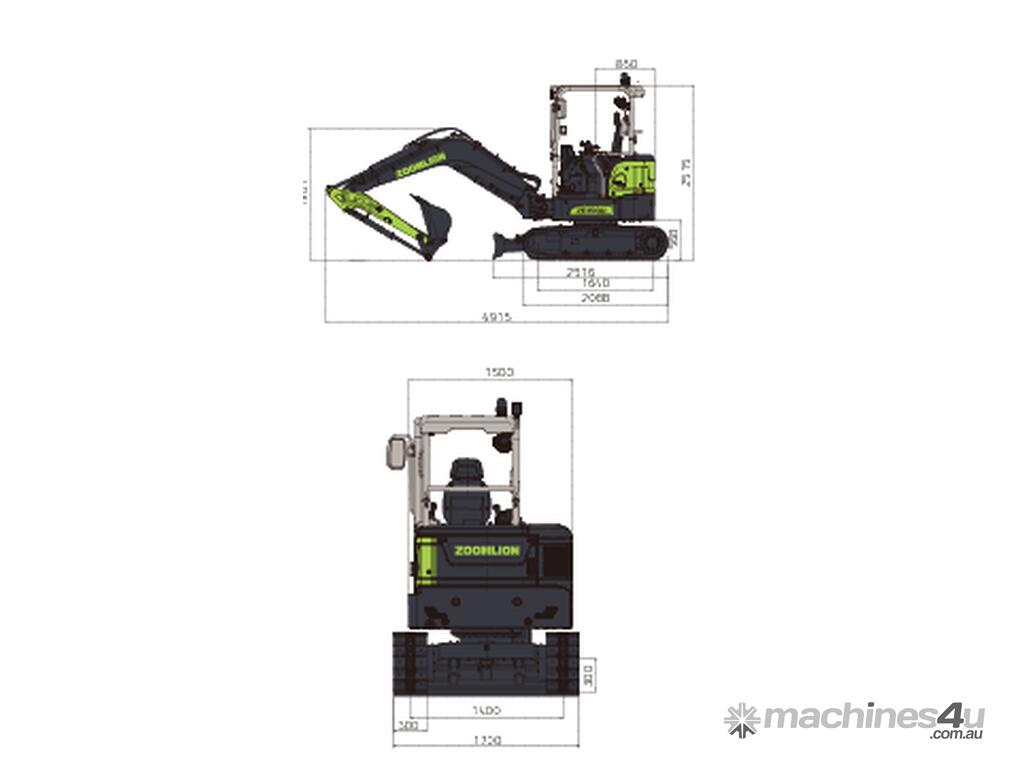

Dimensions
Operating Range
Length 4915 mm
Width 1700 mm
Height 2515 mm
Boom Length 2540 mm
Stick Length 1350 mm
Tail Slewing Radius 850 mm
Track Gauge 1400 mm
Length of Track On Ground 1640 mm
