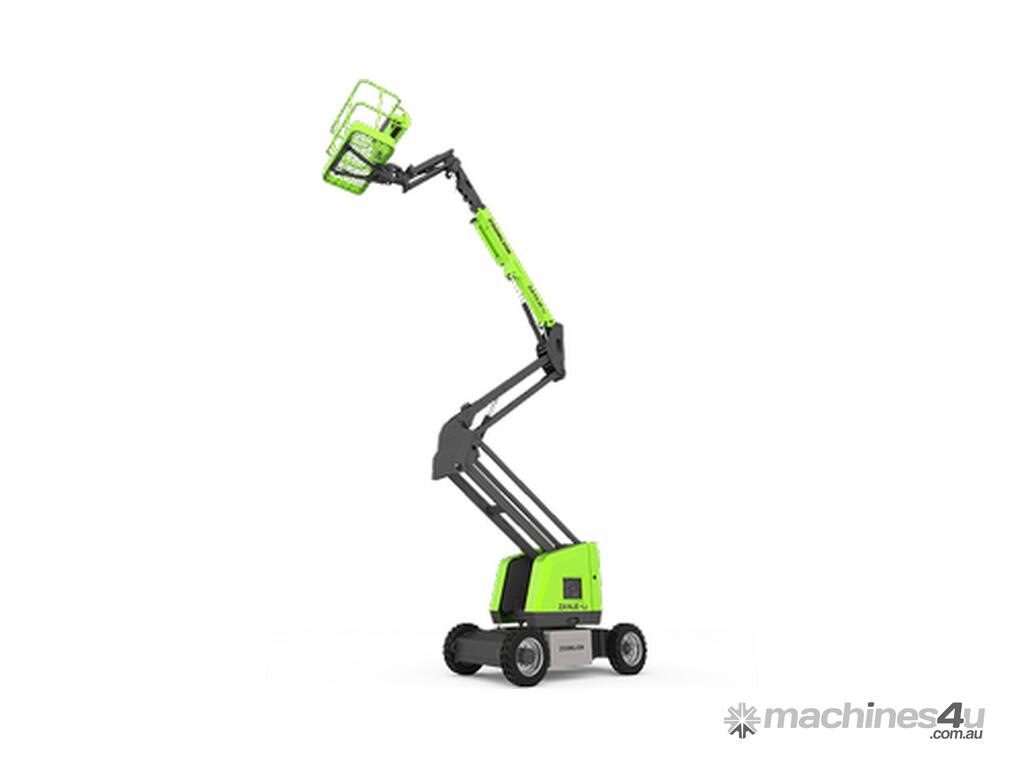

ZA14JE-Li features compact dimensions, 360° continuous rotation, dual controll system, certer layout and energy conservation and environment protection.
It is the industry's first lithium-ion articulating boom lift with longer running time and maintenance-free advantage compared with lead batteries.
Size
Features
METRIC / IMPERIAL
Work Height 16m
Platform Height 14m
Horizontal Outreach 8.10m
Up and Over Height 7.74m
A - Stowed Length 6.6m
B - Stowed Width 1.75m
C - Stowed Height 2m
D - Platform Length 1.52m
E - Platform Width 0.76m
F - Wheelbase 2.05m
G - Ground Clearance 0.20m
Performance
Features
METRIC / IMPERIAL
Platform Capacity 230kg
Drive Speed 5.4km/h
Gradeability 30%(17°)
Axles Oscillation /
Turning Radius (Inside) 0.79m
Turning Radius (Outside) 3.15m
Turntable Swing 360° continuous
Platform Rotation ±90°
H-Tail Swing 0m
Max. Working Slope 3°/4°
Max. Wind Speed 12.5m/s
Tire
Features
METRIC / IMPERIAL
Type 240/55D17.5 Foam-filled Tires
Weight
Features
METRIC / IMPERIAL
Gross 6800kg
