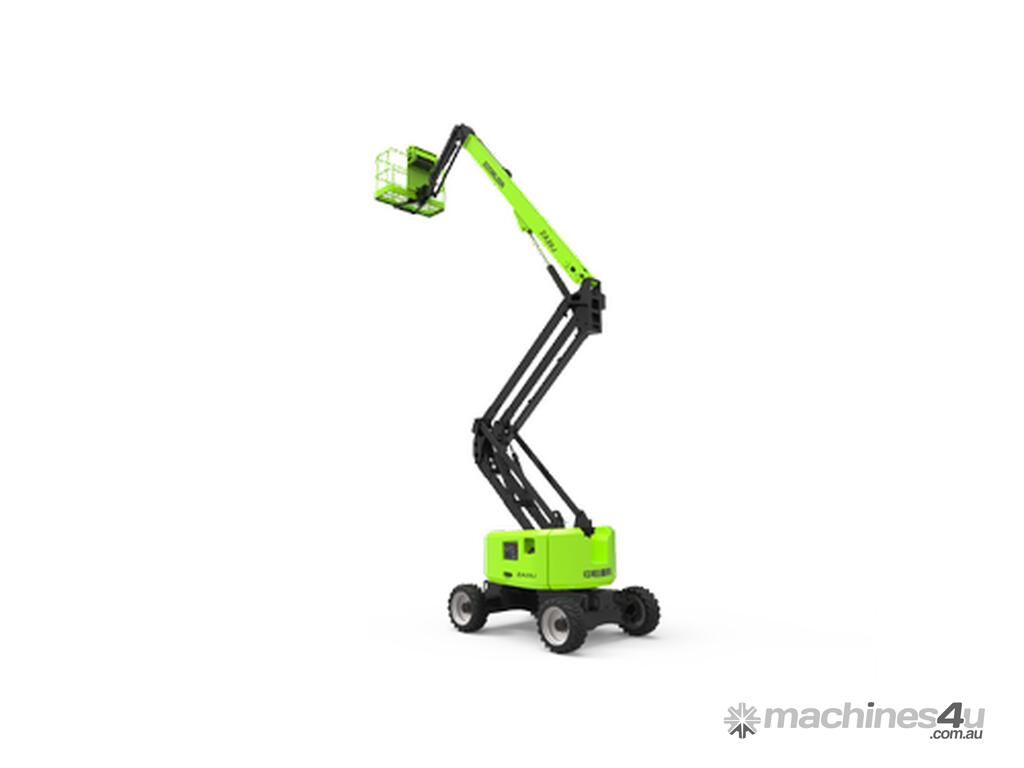

FERAQuip ZA20J 22m Articulated Boom($630 per week) Finance Available

250/360kg platform capacity for higher efficiency

Build-in multiple pressure control leveling system to enhance stability

Precise load sensing system to improve overload safety operations

Integrated with rotary reducer to enhance rotation stability

Hostile Kits available for dusty working environment

Size
Features
METRIC / IMPERIAL

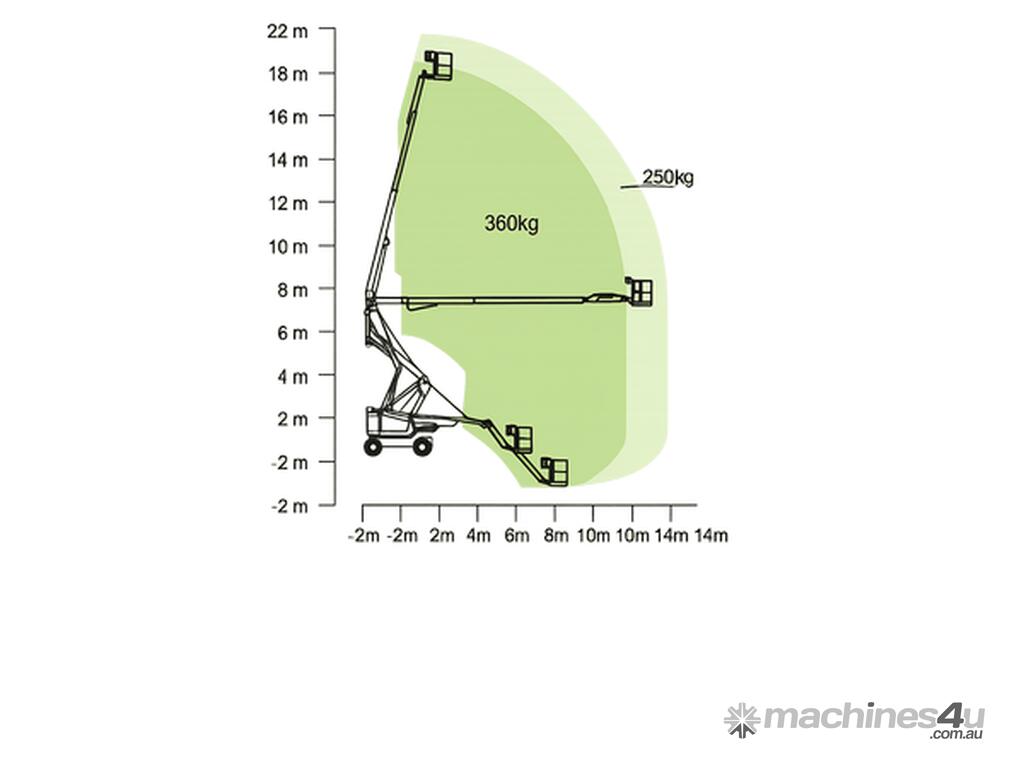

Work Height 21.38m
Platform Height 19.38m
Horizontal Outreach 12.3m
Up and Over Height 8.25m

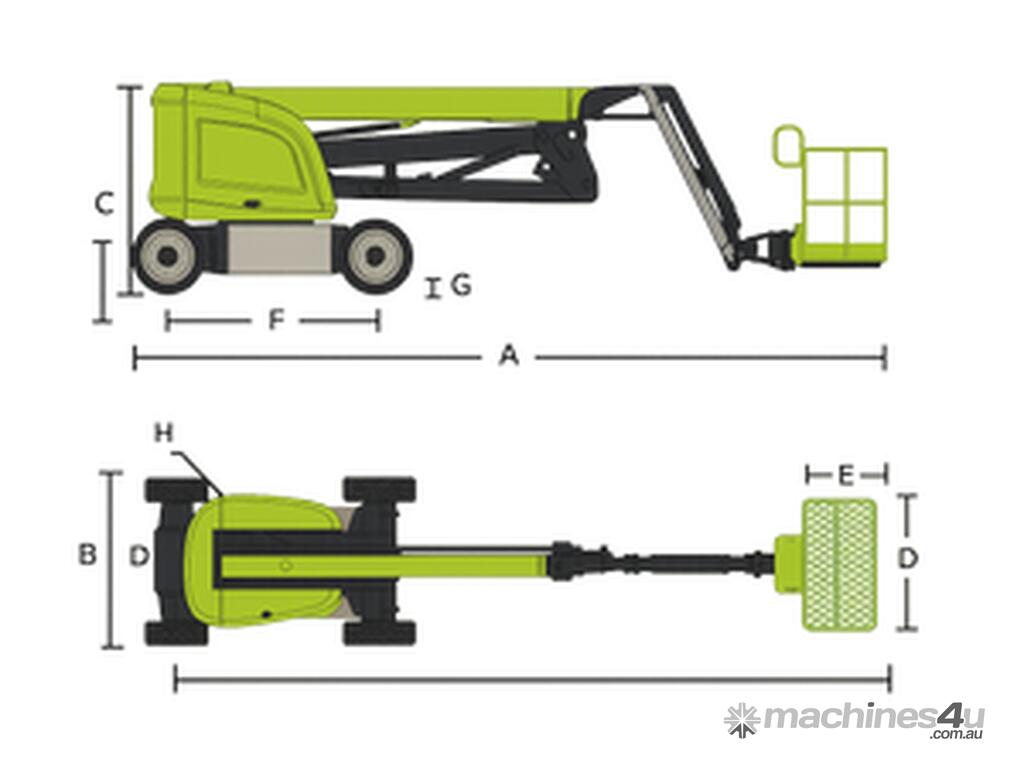

A - Stowed Length 8.82m
B - Stowed Width 2.46m
C - Stowed Height 2.52m
D - Platform Length 2.44/1.83m
E - Platform Width 0.91/0.76m
F - Wheelbase 2.52m
G - Ground Clearance 0.42m

Performance
Features
METRIC / IMPERIAL
Platform Capacity 250kg/360kg
Drive Speed 6.1km/h
Gradeability 45%(24°?
Axles Oscillation 0.2m
Turning Radius (Inside) 2.51m
Turning Radius (Outside) 5.47m
Turntable Swing 360° continuous
Platform Rotation ±90°
H-Tail Swing 0.4m

Tire
Features
METRIC / IMPERIAL
Type 33×12/D610 Foam-filled Tires
Max. Working Slope -

Weight
Features
METRIC / IMPERIAL
Gross 10000kg
Max. Wind Speed 12.5m/s
