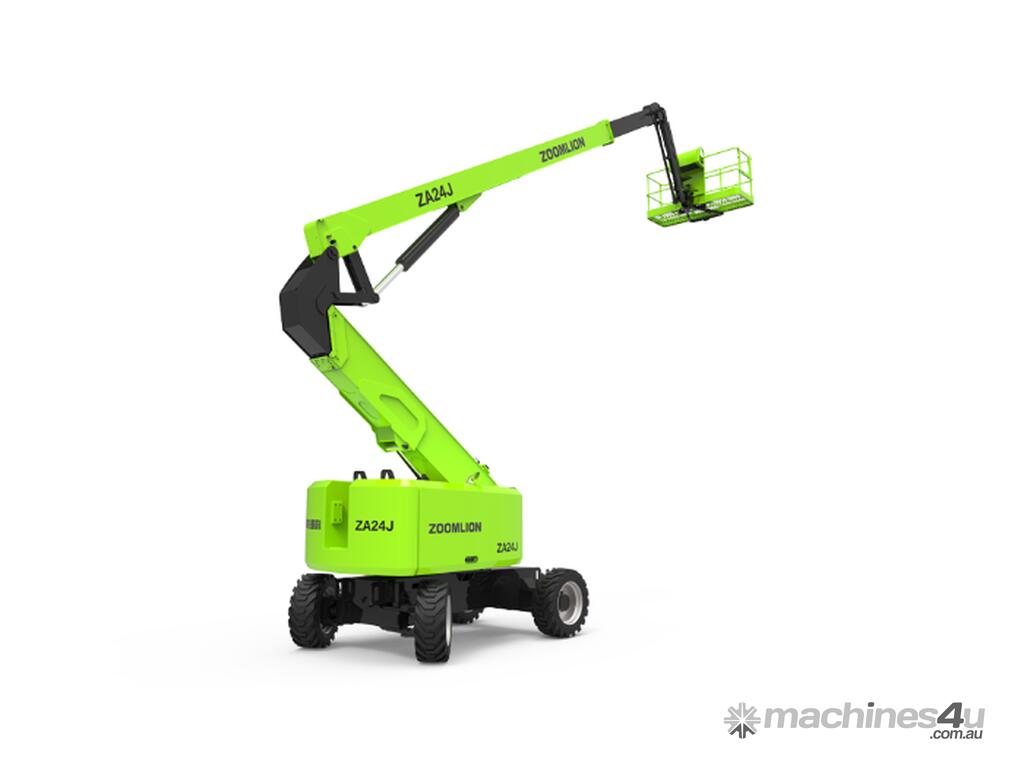

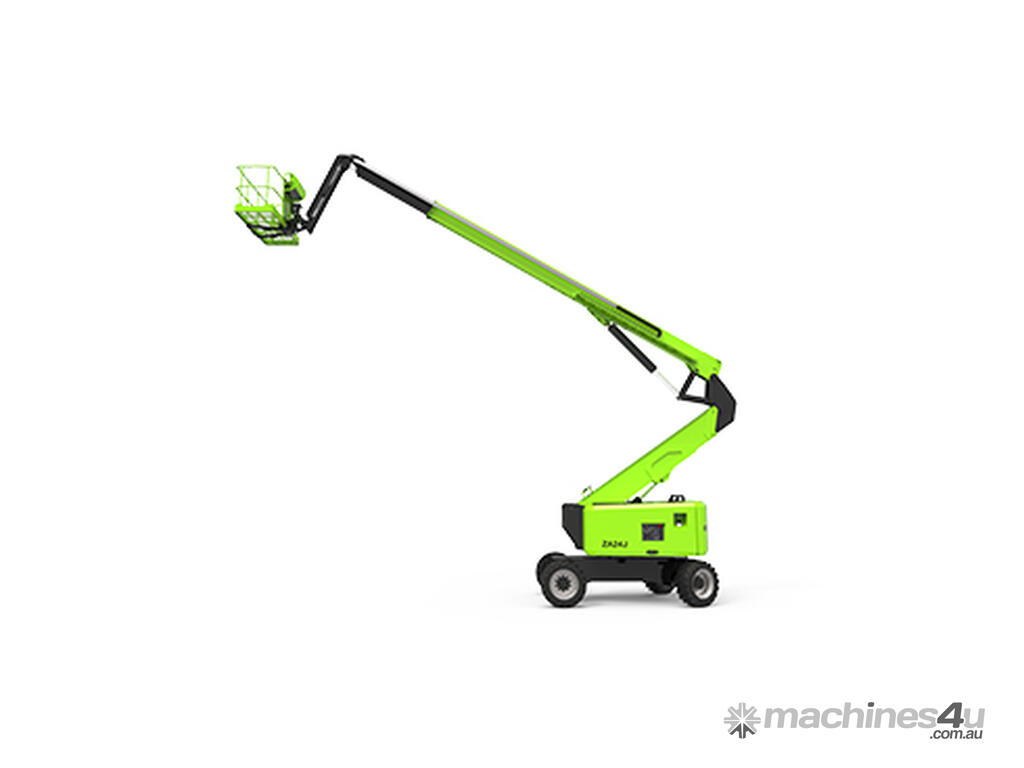

FERAQuip ZA24J Articulated Boom

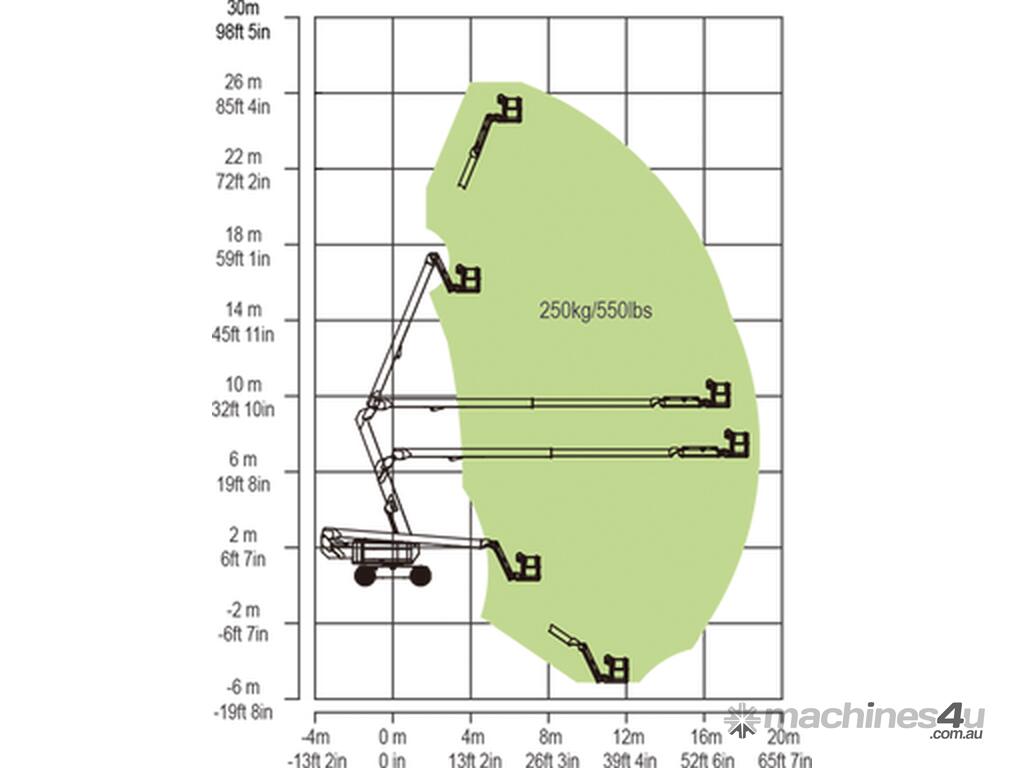

Provide a work height of 26.23m, horizontal outreach of 18.9m,up and over height of 9.29m, and lift capacity of 250kg for higher efficiency

Build-in multiple pressure control leveling system to enhance stability

Precise load sensing system to improve overload safetyoperations

Platform fast lifting function provides high-efficient performance without tower boom

Size
Weight
Features
METRIC / IMPERIAL
Work Height 26.23m
Platform Height 24.23m
Horizontal Outreach 18.9m
Up and Over Height 9.29m

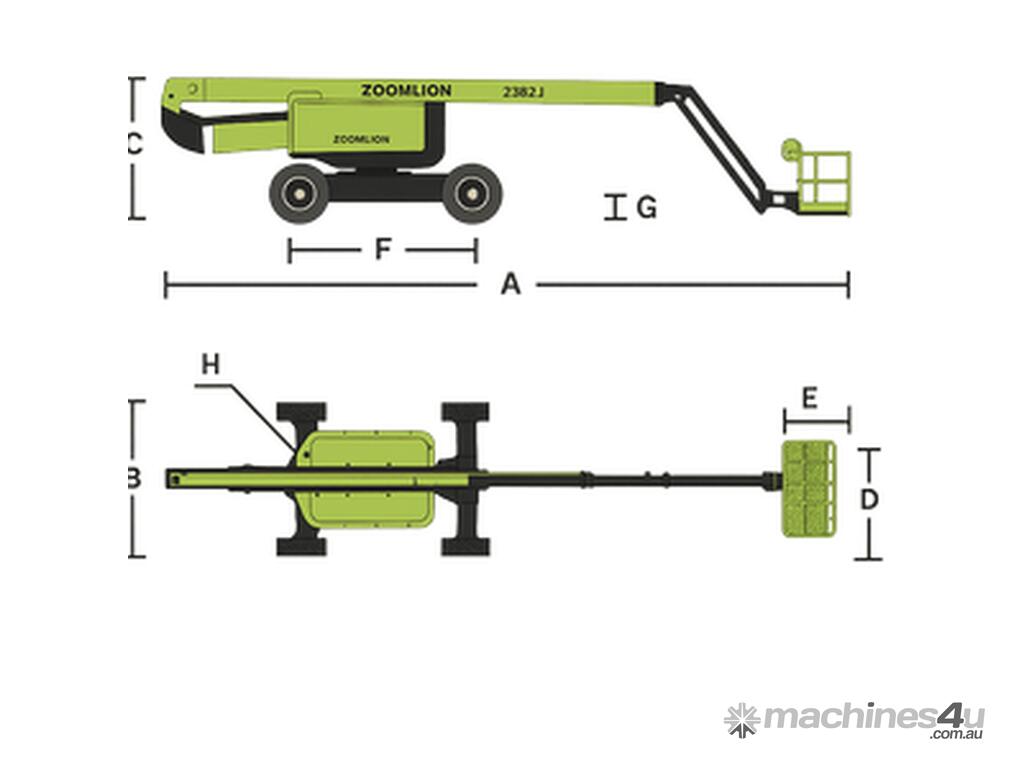

A - Stowed Length 11.27m
B - Stowed Width 2.49m
C - Stowed Height 2.82m
D - Platform Length 2.44m
E - Platform Width 0.91m
F - Wheelbase 3.05m
G - Ground Clearance 0.42m

Performance
Weight
Features
METRIC / IMPERIAL
Platform Capacity 250kg
Drive Speed 5.0km/h
Gradeability 45%(24°)
Axles Oscillation 0.2m
Turning Radius (Inside) 3.14m
Turning Radius (Outside) 6.48m
Turntable Swing 360° continuous
Platform Rotation ±90°
H-Tail Swing 1.022m
Max. Working Slope 4°
Max. Wind Speed 12.5m/s

Power
Features
METRIC / IMPERIAL
Diesel Engine Cummins QSF2.8 54kw/2400rpm Kubota V2607 55.4kw/2700rpm
Engine Power -
Fuel Tank Capacity 150L
Auxiliary Power 12V
Control Voltage 12V
Hydraulic System Capacity 240L
Hydraulic Tank Capacity 180L

Weight
Features
METRIC / IMPERIAL
Gross 18140kg
