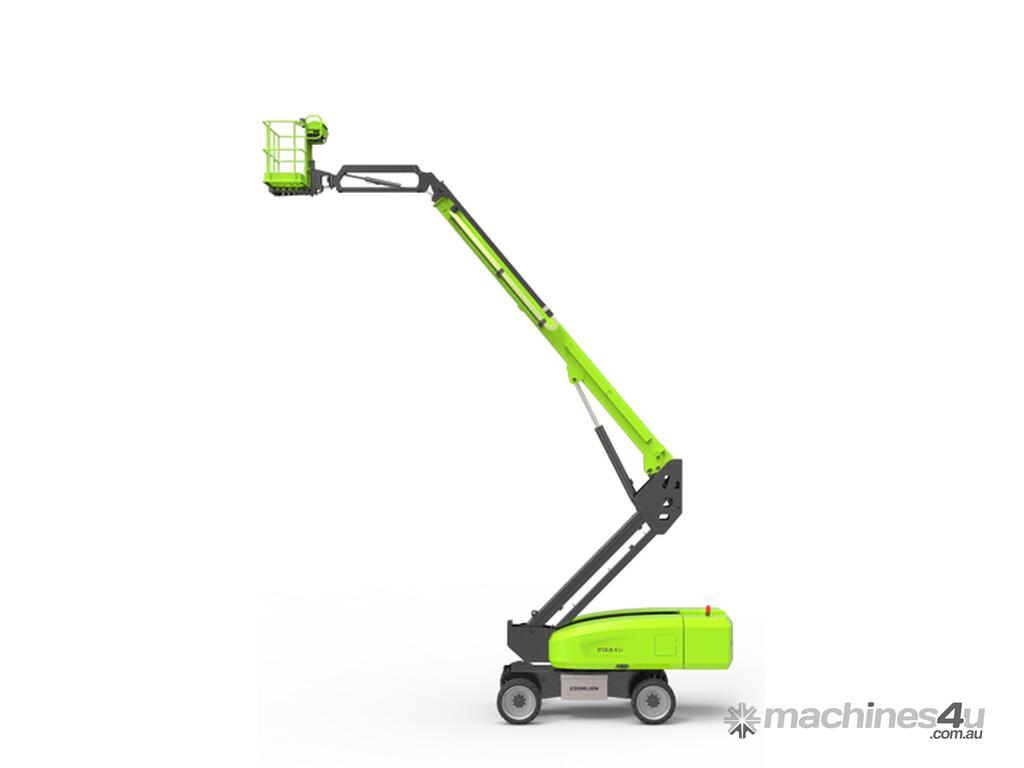

FERAQuip ZT18JE boom lift

Pure electric power features green, environmental protection and zero-emission

Parallel four-link and two-section/three-section (ZT18JE-V/ZT21JE-V) telescopic boom, dynamic CG and compact structure.

Brand-new rough terrain chassis provide gradeability of 45% and strong over-obstacle capacity

Accurate traveling AC system and boom movement AC driving system provide strong power and stable control, with maintenance-free motor

Size
METRIC / IMPERIAL

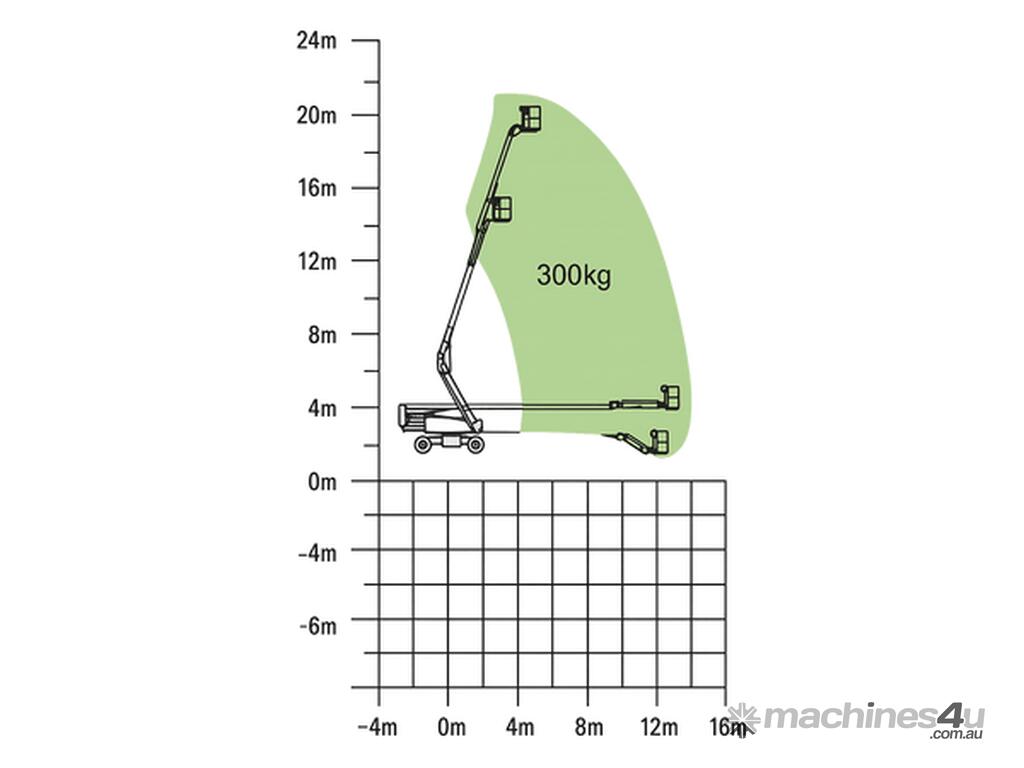

Work Height 20.60m
Platform Height 18.60m
Horizontal Outreach 13.3m

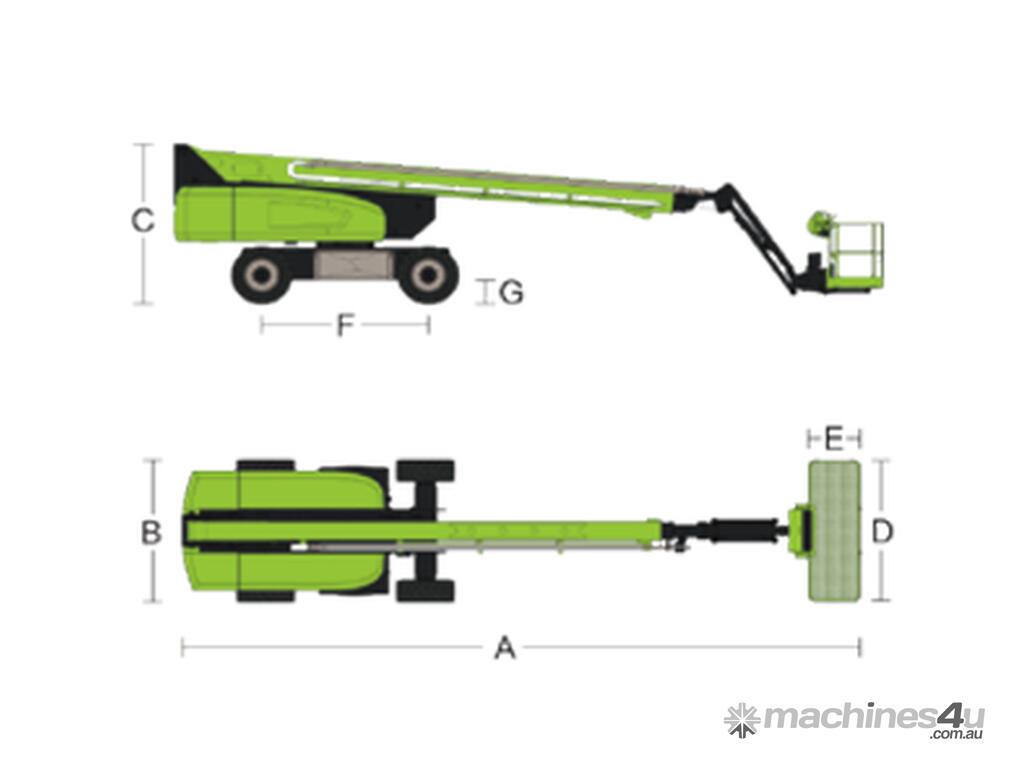

A - Stowed Length 9.74m(7.6m)
B - Stowed Width 2.28m
C - Stowed Height 2.57m
D - Platform Length 1.83m
E - Platform Width 0.76m
F - Wheelbase 2.52m
Tread 2.28m
G - Ground Clearance 0.33m
