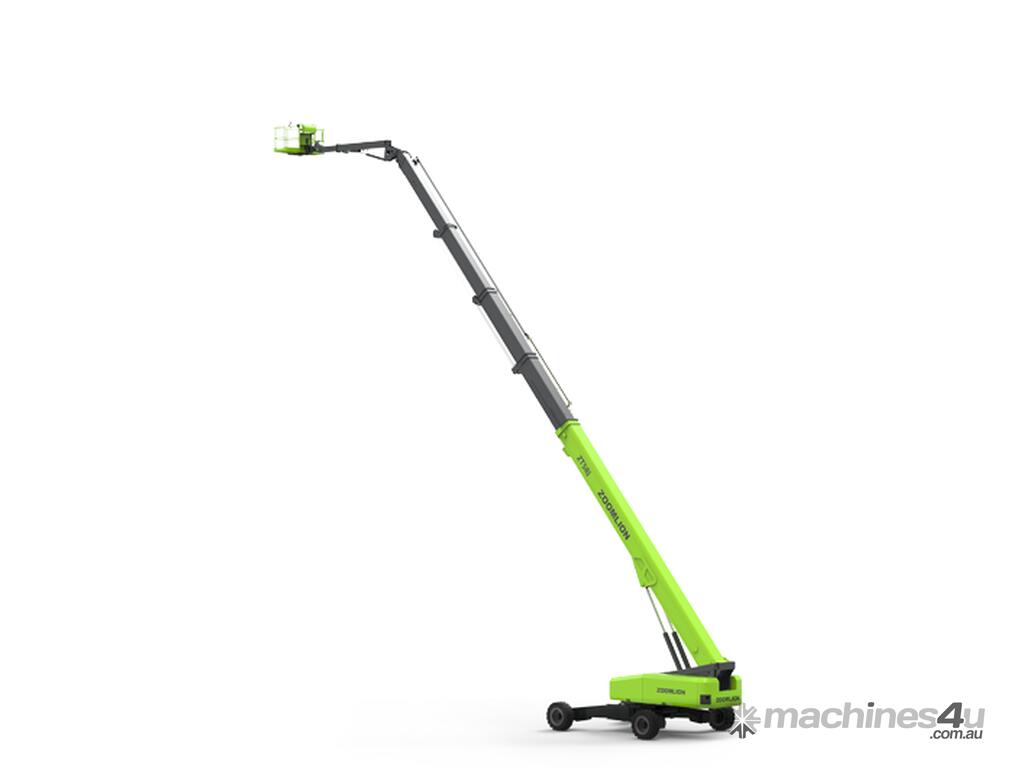

FERRAQuip Telescopic Boom Lift 58m height ZT58J

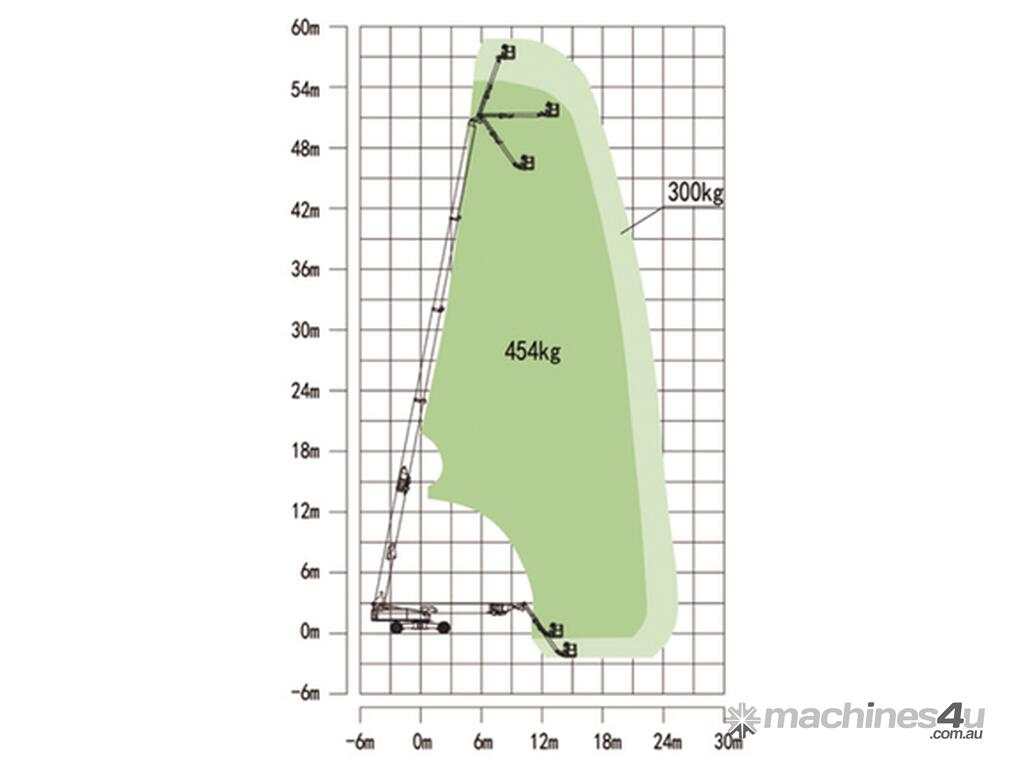

Work height up to 58.8m and horizontal outreach up to 25.5m (ZT58J Only)

Highest self-propelled telescopic boom lift with a Work height of 67.5m and a horizontal outreach of 31m (ZT68J Only)

Industry's first polygonal innovative boom, boom weight reduced by more than 10%, vertical stiffness increased by 25%, torsion resistance increased by 20%, and offers small deformation and stable control

X outrigger offers larger working envelope, stronger off-road ability, and better stability

Intelligent control of four-wheel steering ensure coordination and consistency of outriggers during steering and expansion

All-wheel steering angles are automati cally matched ensure straight travel

Five-section boom synchronously extends, efficient and stable

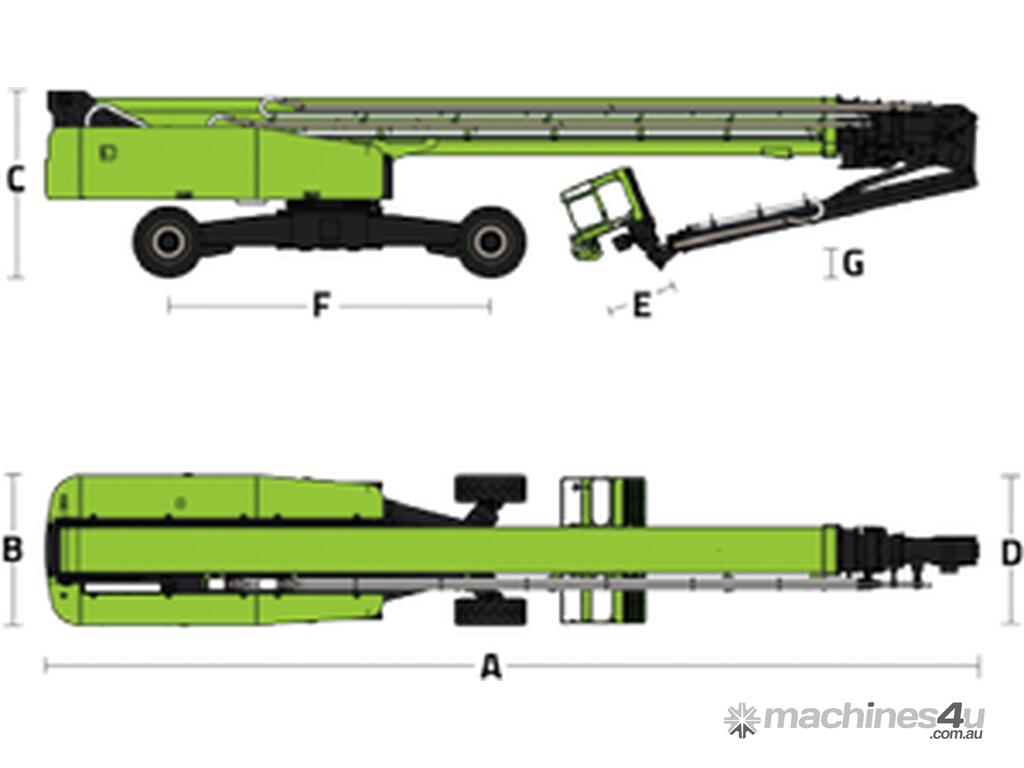

Size
METRIC / IMPERIAL
Work Height 58.8m
Platform Height 56.8m
Horizontal Outreach 25.5m
A - Stowed Length 14.4m
B - Stowed Width 2.5m
C - Stowed Height 3.06m
D - Platform Length 2.44m
E - Platform Width 0.91m
F - Wheelbase 5.357/4.69m
Tread 2.5/5.15m
G - Ground Clearance 0.40m
