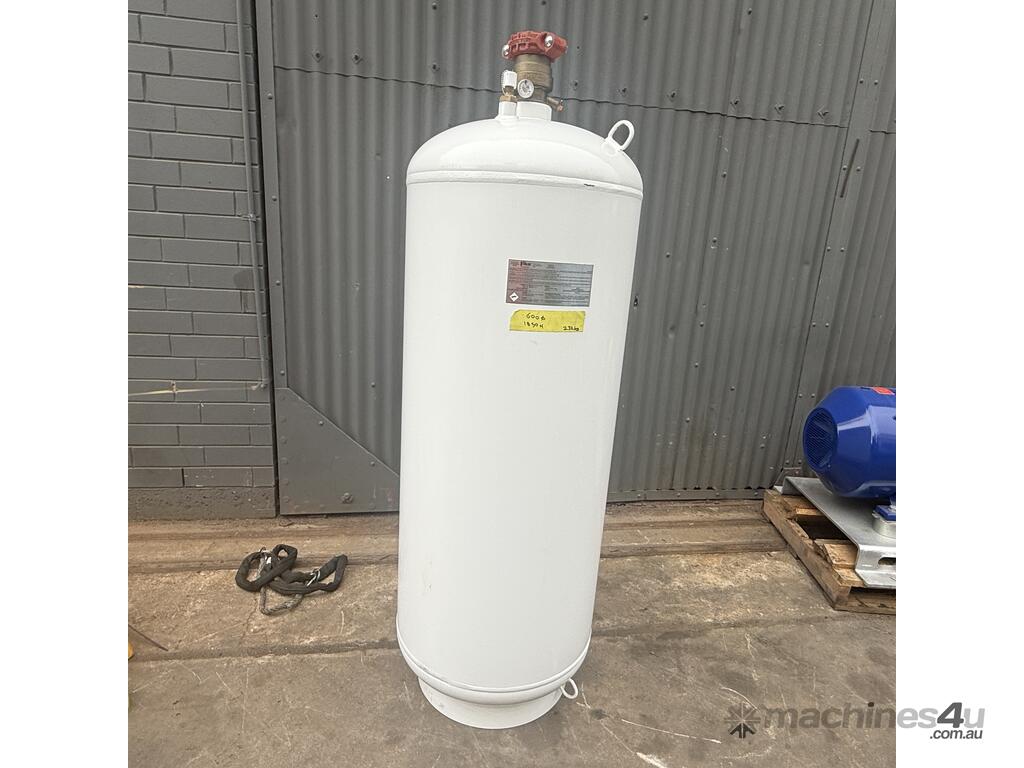

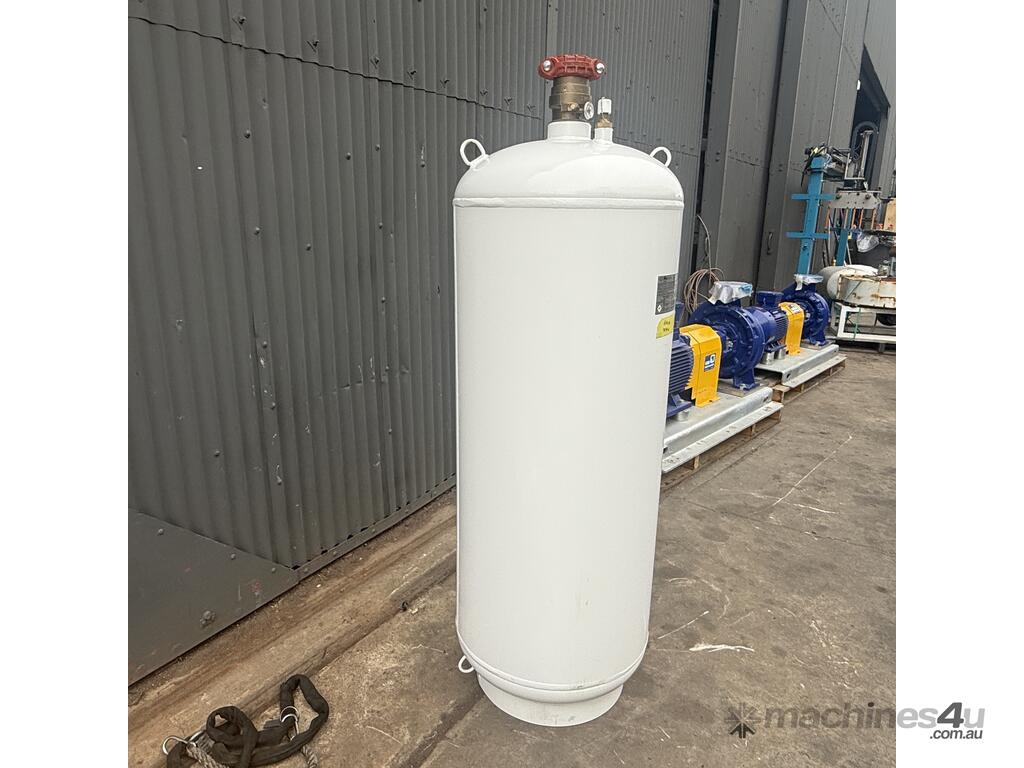

FIKE Clean Agent Extinguishing System compressed gas high pressure vessel tank 500L DOT 4BW 500 psi

FIKE Clean Agent Extinguishing System compressed gas pressure vessel tank

500psi Approx 500L

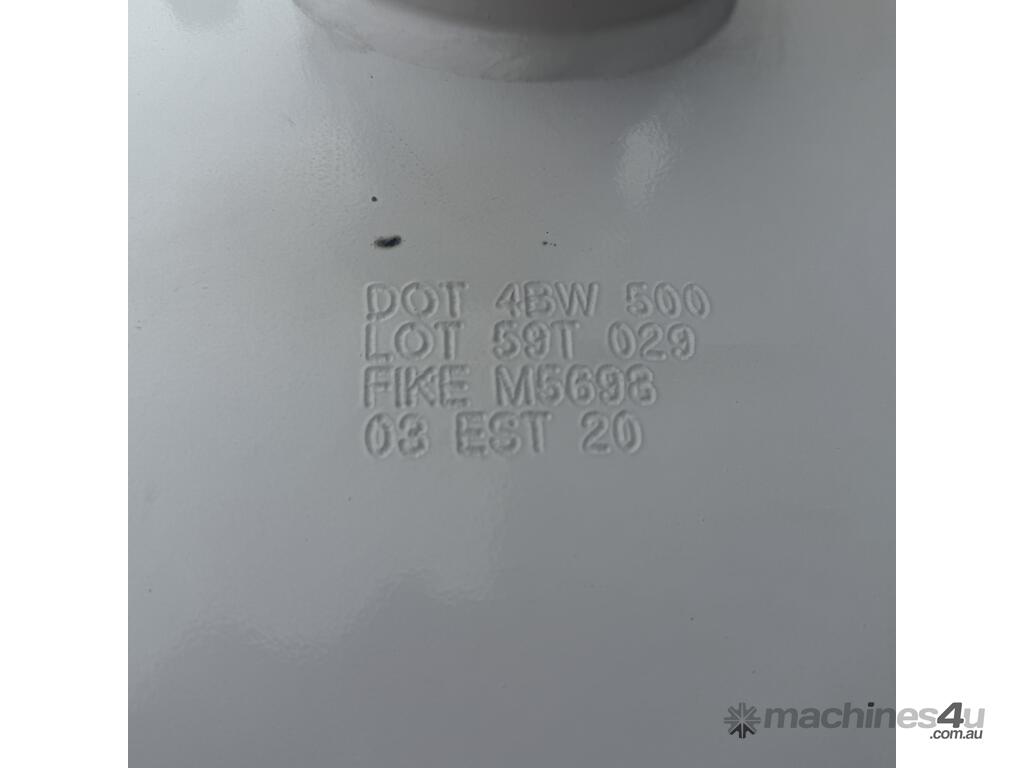

DOT 4BW 500



600x 600 x 1850mm
232kg

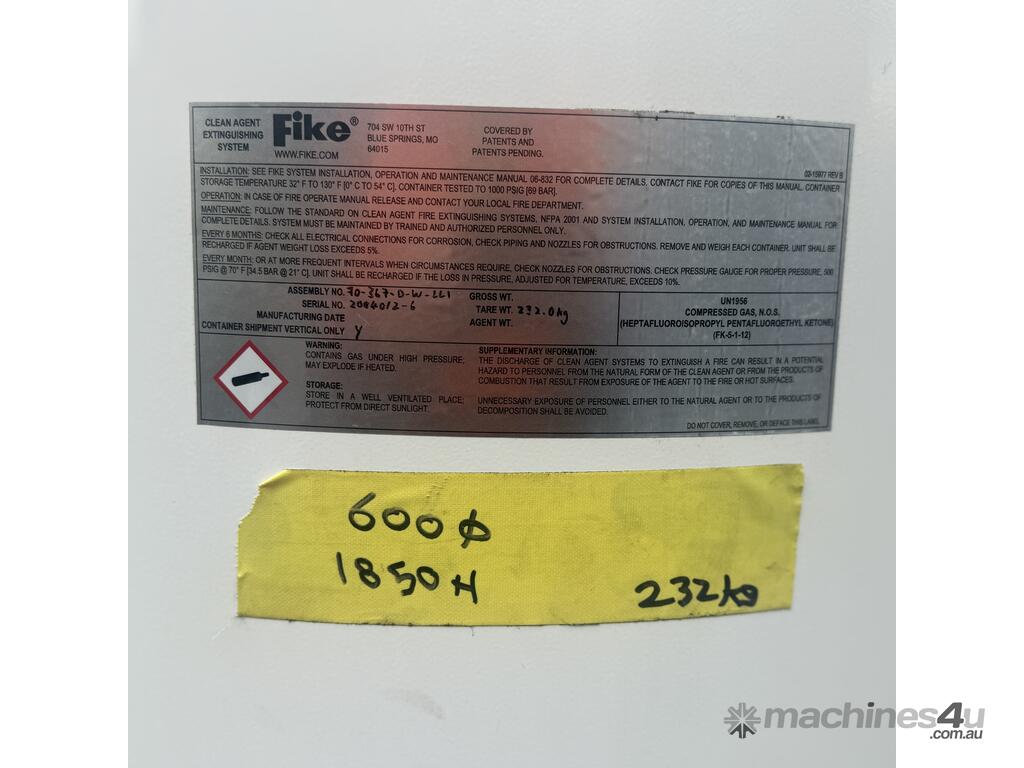

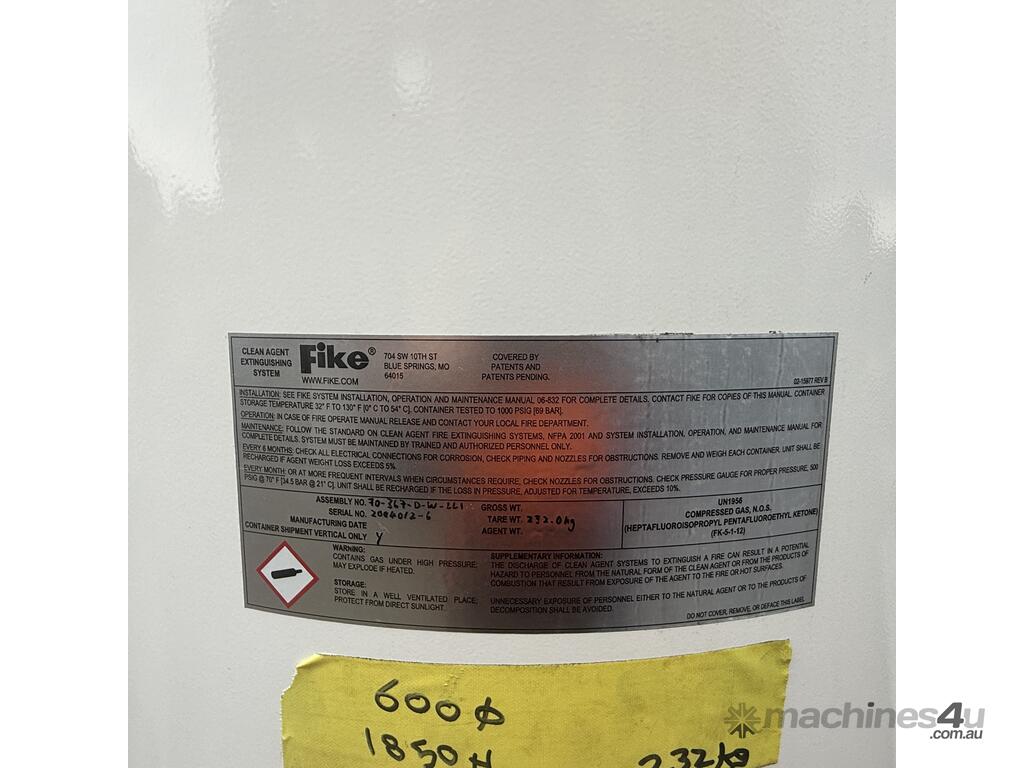

CLEAN AGENT EXTINGUISHING SYSTEM

Fike

R

704 SW 10TH ST BLUE SPRINGS, MO 64015

COVERED BY

PATENTS AND PATENTS PENDING.

FIKE

02-15977 REV B

INSTALLATION: SEE FIKE SYSTEM INSTALLATION, OPERATION AND MAINTENANCE MANUAL 06-832 FOR COMPLETE DETAILS. CONTACT FIKE FOR COPIES OF THIS MANUAL. CONTAINER STORAGE TEMPERATURE 32° F TO 130° F (0° C TO 54° C]. CONTAINER TESTED TO 1000 PSIG [69 BAR].

OPERATION: IN CASE OF FIRE OPERATE MANUAL RELEASE AND CONTACT YOUR LOCAL FIRE DEPARTMENT.

MAINTENANCE: FOLLOW THE STANDARD ON CLEAN AGENT FIRE EXTINGUISHING SYSTEMS, NFPA 2001 AND SYSTEM INSTALLATION, OPERATION, AND MAINTENANCE MANUAL FOR COMPLETE DETAILS. SYSTEM MUST BE MAINTAINED BY TRAINED AND AUTHORIZED PERSONNEL ONLY.

EVERY 6 MONTHS: CHECK ALL ELECTRICAL CONNECTIONS FOR CORROSION, CHECK PIPING AND NOZZLES FOR OBSTRUCTIONS. REMOVE AND WEIGH EACH CONTAINER. UNIT SHALL BE RECHARGED IF AGENT WEIGHT LOSS EXCEEDS 5%.

EVERY MONTH: OR AT MORE FREQUENT INTERVALS WHEN CIRCUMSTANCES REQUIRE, CHECK NOZZLES FOR OBSTRUCTIONS. CHECK PRESSURE GAUGE FOR PROPER PRESSURE, 500 PSIG 70° F [34.5 BAR 21° C). UNIT SHALL BE RECHARGED IF THE LOSS IN PRESSURE, ADJUSTED FOR TEMPERATURE, EXCEEDS 10%.

ASSEMBLY NO. 10-367-D-W-LLI

SERIAL NO. 2004012-6

MANUFACTURING DATE

CONTAINER SHIPMENT VERTICAL ONLY Y

WARNING:

CONTAINS GAS UNDER HIGH PRESSURE; MAY EXPLODE IF HEATED.

STORAGE:

STORE IN A WELL VENTILATED PLACE; PROTECT FROM DIRECT SUNLIGHT.

GROSS WT.

TARE WT. 232.0kg

AGENT WT.

SUPPLEMENTARY INFORMATION:

UN1956 COMPRESSED GAS, N.O.S. (HEPTAFLUOROISOPROPYL PENTAFLUOROETHYL KETONE)

(FK-)



7 available, the price is for 1.

7600 X 600 X 1850mm
232kg


Item is too heavy to post but we can assist with making freight arrangements. Please send your full DETAILS if requesting a freight quote.

I have other items available in my store, please check it out.

Contact and inspection of goods
Please contact Tim Marshman with any questions. This item may be inspected by appointment at 9 Vernon Smith Court, Ottoway, South Australia
