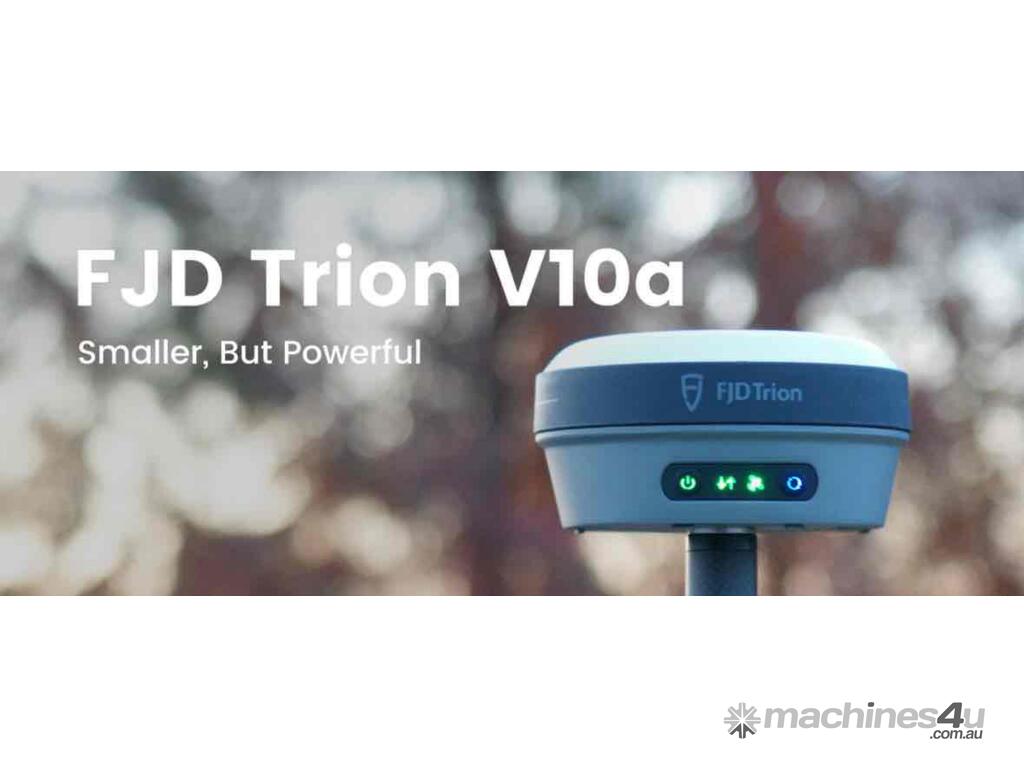

The FJD Trion V10a is a compact, lightweight GNSS receiver designed for professional surveying, featuring millimeter-level RTK accuracy, an integrated 4G modem, and dual 5 MP cameras for AR stakeout.
Key Specifications
Feature Specification Source
Positioning Accuracy (RTK Horizontal) 8mm + 1 ppm RMS
Positioning Accuracy (RTK Vertical) 15 mm + 1 ppm RMS
Satellite Tracking 1408 channels, supporting GPS, GLONASS, Galileo, BeiDou, QZSS
Tilt Compensation Up to 60° angle with IMU sensor
Cameras Dual 5 MP cameras with 83° field of view (FOV)
Connectivity Integrated 4G modem, Wi-Fi, NFC, built-in UHF radio
Data Storage 32 GB internal memory
Ingress Protection IP68 (dustproof, protected from continuous immersion to 1 m depth)
Durability
Designed to survive a 2-meter pole-drop
Dimensions (D x H) ?130 × 68 mm
Weight Approximately 800g
Battery Life Base: 10 h, Static: > 25 h
Australia wide sales and service! Phone us today to taylor the best package for you.
