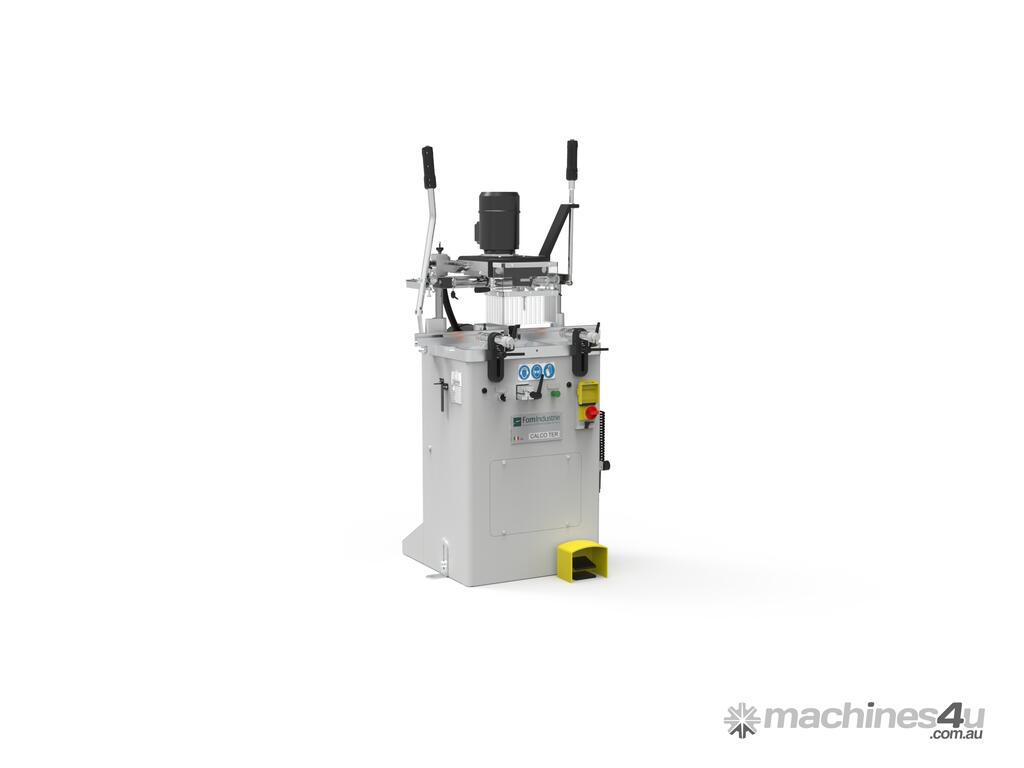

A robust, quick and easy to use copy router. Large levers ergonomically placed make machining movements smooth and controlled. A quick change tool system (ER16 collett holder). Two adjustable pneumatic vices for secure extrusion clamping
Spindle speed 12,000 rpm
Horizontal vices with safety valves
Dual pressure clamp system for operator safety
Pneumatic tracer
Possibility of machining with copying jigs or
Mechanical stops
Mist spray lubrication
Milling tool shank clamping size: from 5 to 8 mm
Quick spindle stop for tool changing
Working pressure: 7 bar
Three phase motor (1 HP) – 2,800 rpm 230/400V – 50Hz
Air consumption per work cycle 2.8 Nl
Total dimension mm 800 x 730 x 1600h, Kg 85
