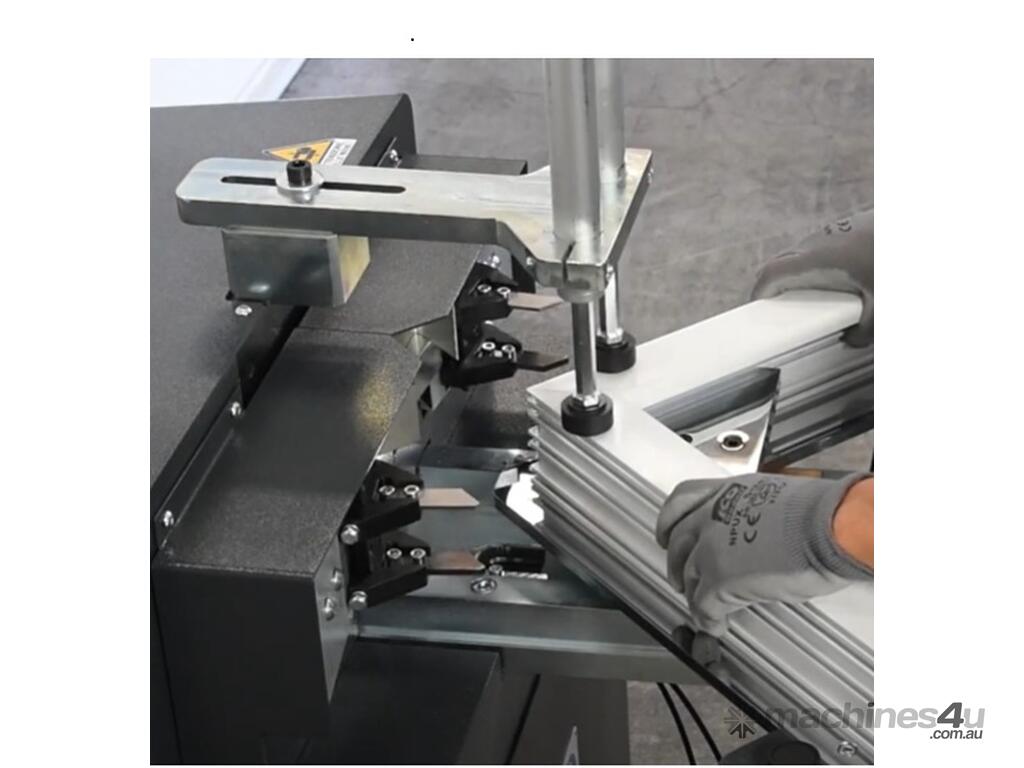

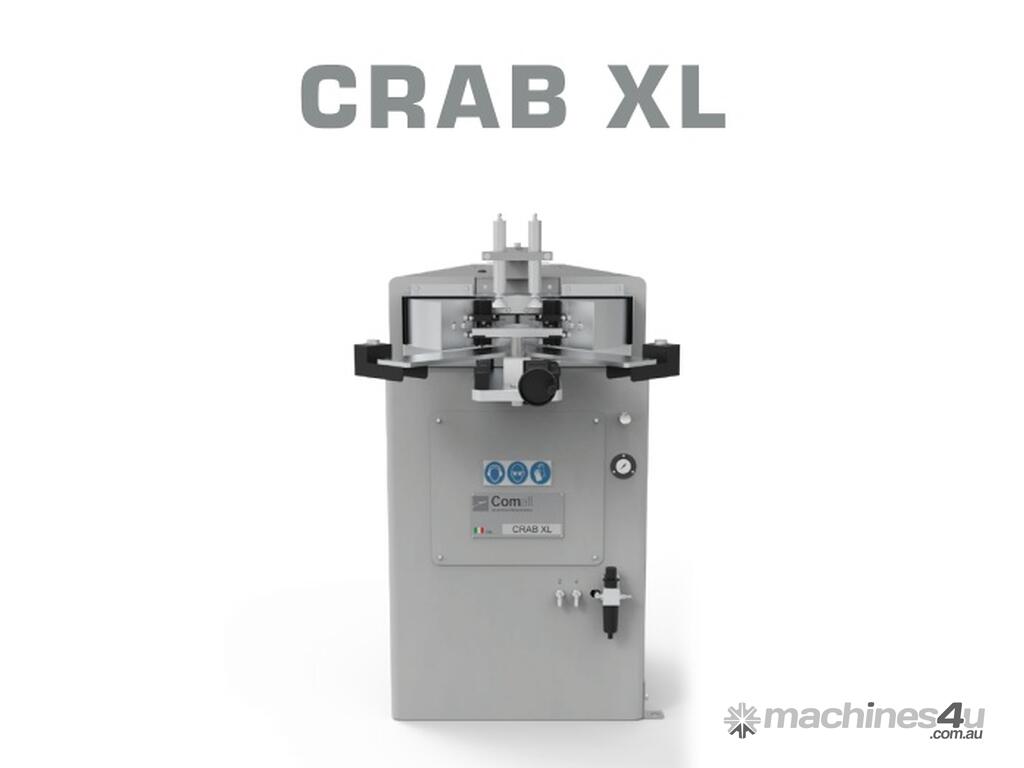

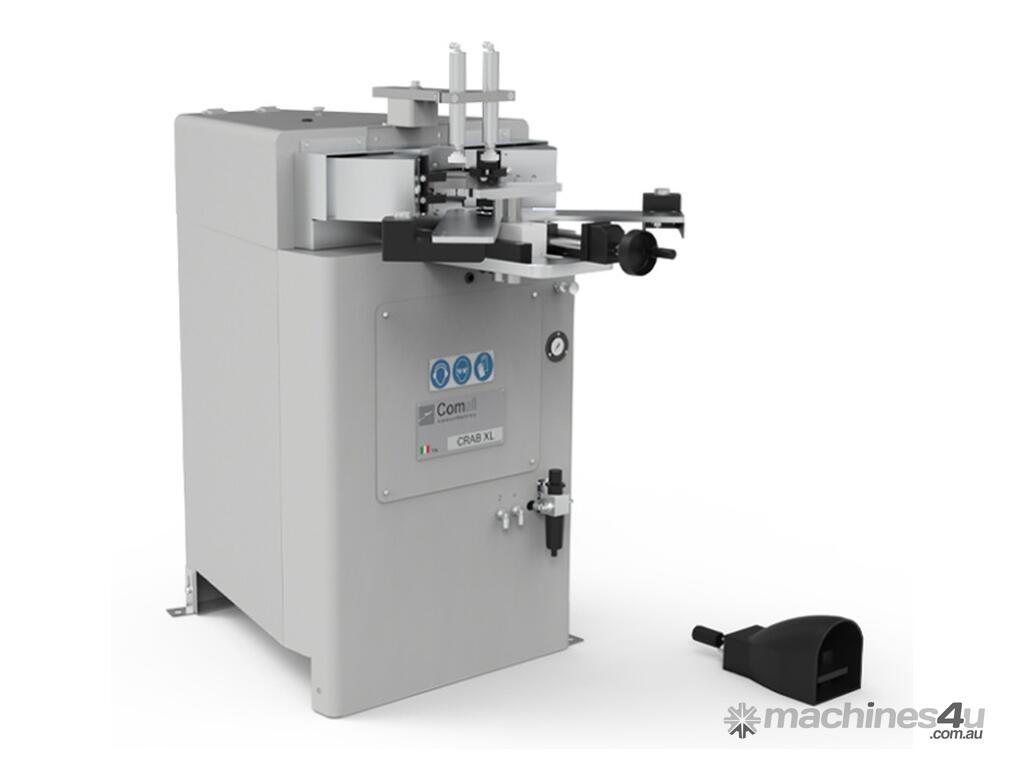

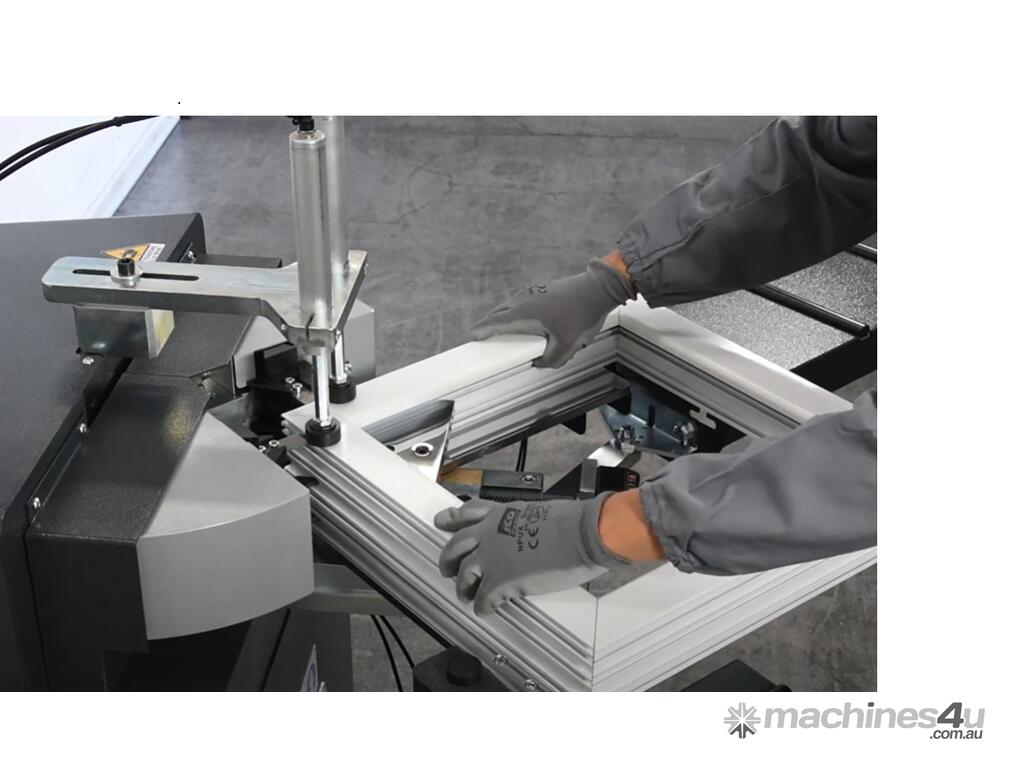

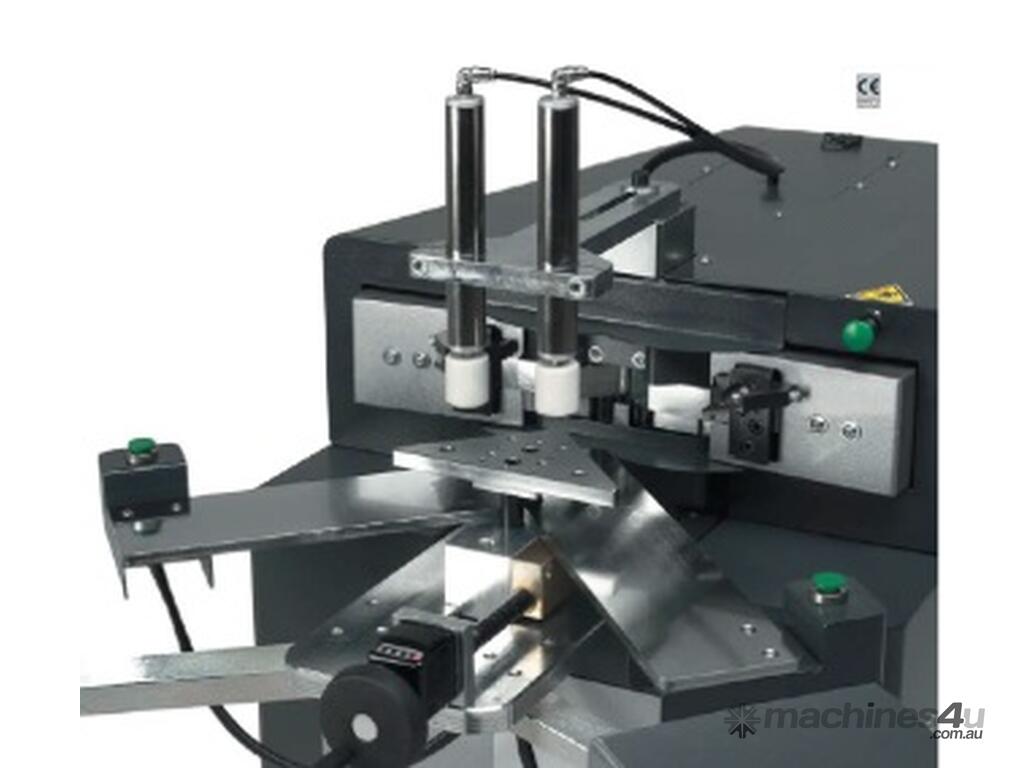

A newly conceived crimping machine where the head exiting system ensures a working power equal to that of larger, automatic models
TECHNICAL SPECIFICATIONS:
Includes 2 x 5mm blades and 2 x 2mm blades and 4 x blade holders.
Maximum thrust on each crimping side: 1,950kg
Movement of the blade holder heads: Pneumatic
Stroke adjustment for crimping blade approach: Manual ring nut and manual 6 position selector.
Movement of the section holder carriage: Manual
Carriage positions: With manual 6 position selector.
Carriage stroke: 90mm
Adjusting height of the counter section: Manual
Crimping blade span: min 12mm – Max 119mm
Operating pressure: 8 bar
Air consumption: 26 Liters
Dimensions: 650 x 1000 x 1350 mm
Weight: 130 KG

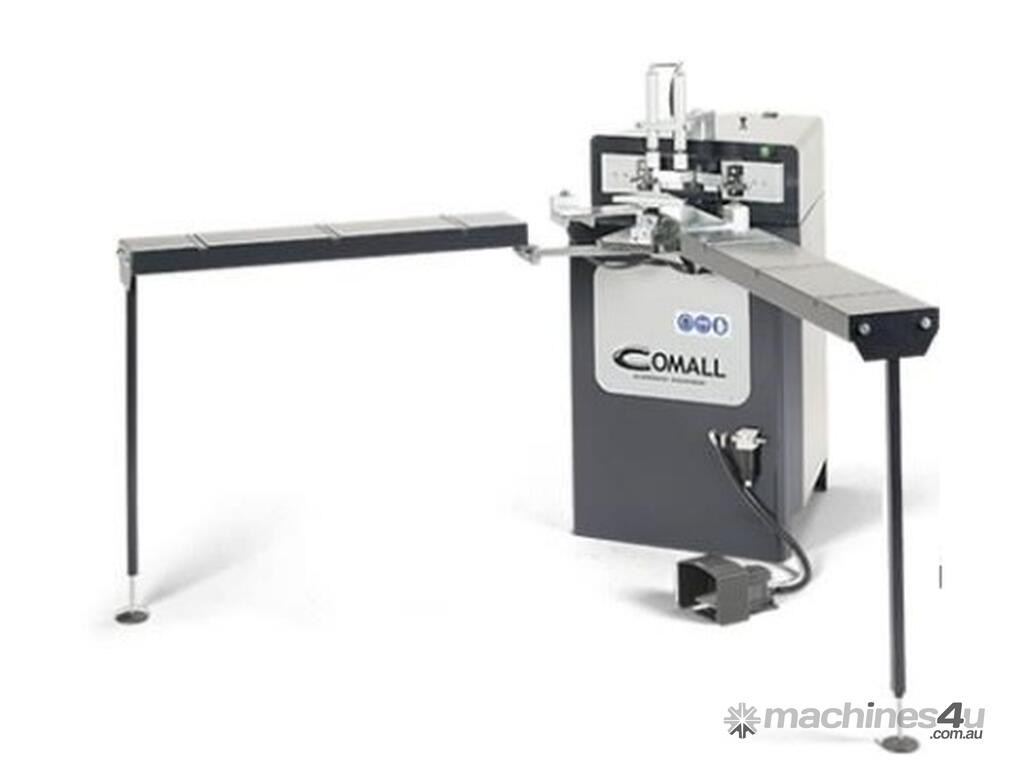

Images and videos show machines with options and updated colour schemes
