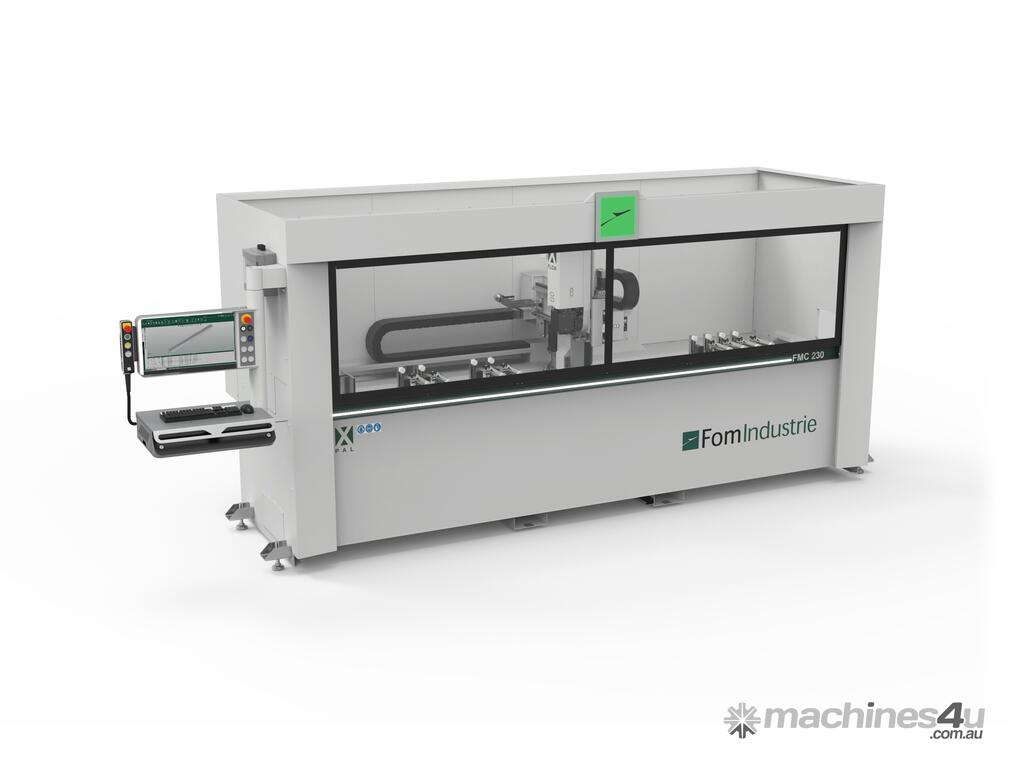

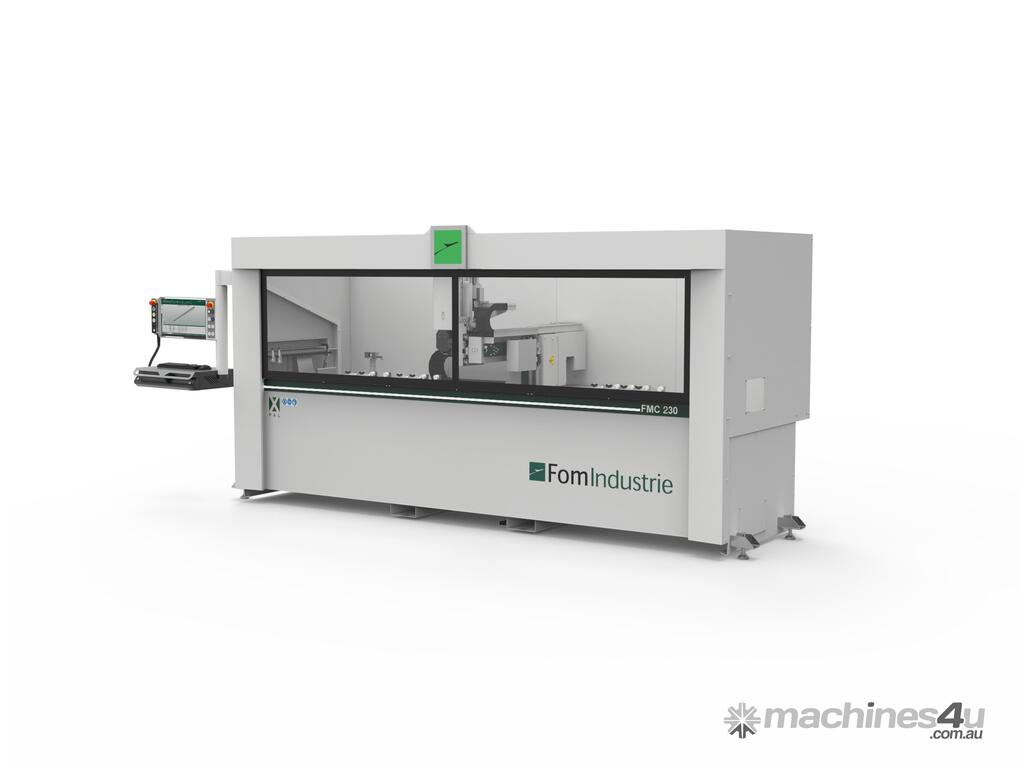

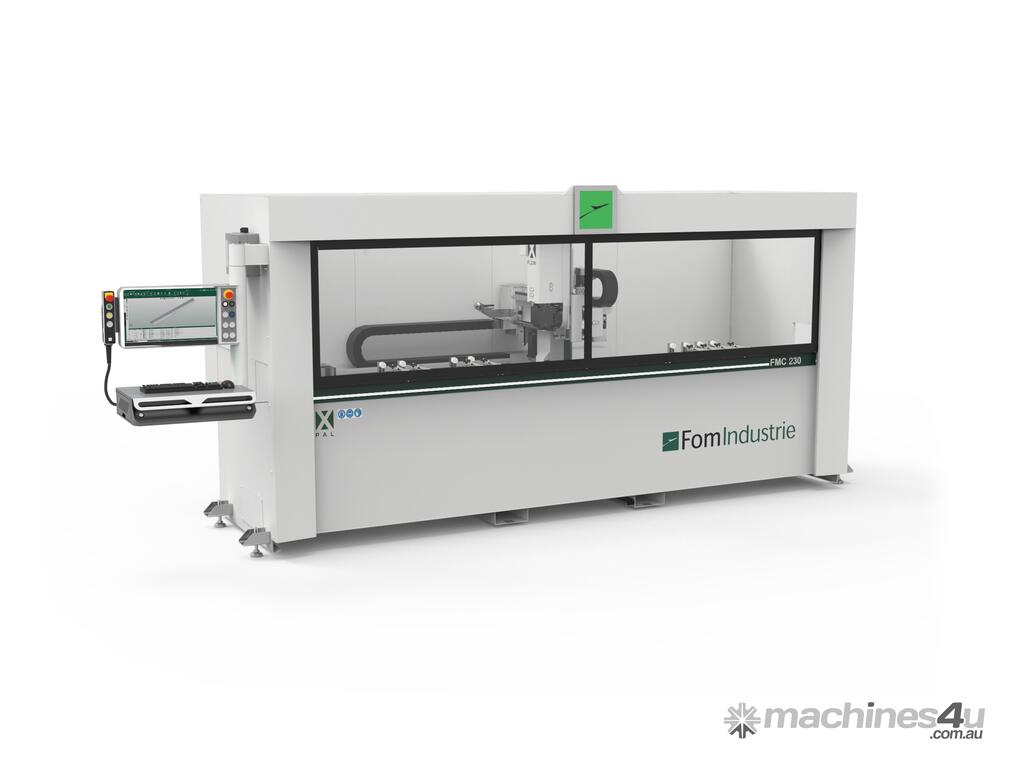

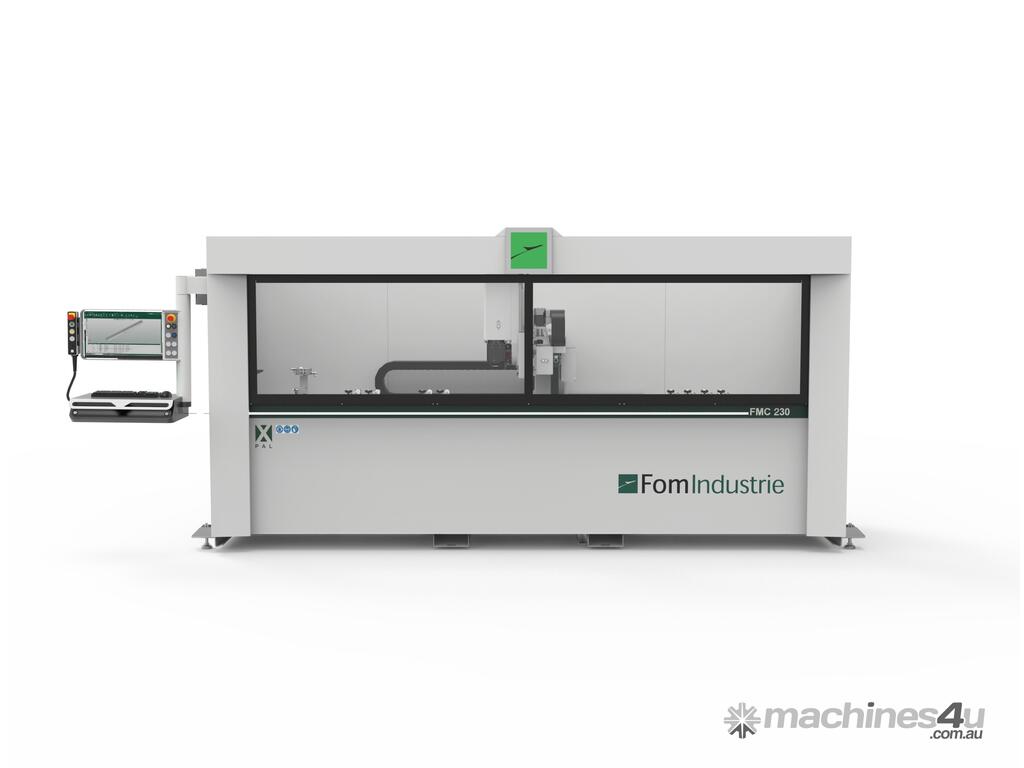

FOM FMC 230 Machining Centre is designed for accurate, fast cnc machining of aluminium profiles. Used extensively in the aluminium window and door industry, the FOM FMC 230 features 4 controlled axis. The included 10 position tool change and tool free vice jaw adjustment make operation quick and easy - speeding up your manufacturing process.
STANDARD SPECIFICATION
Electrospindle 5 kW, 20.000 rpm (ISO 30)

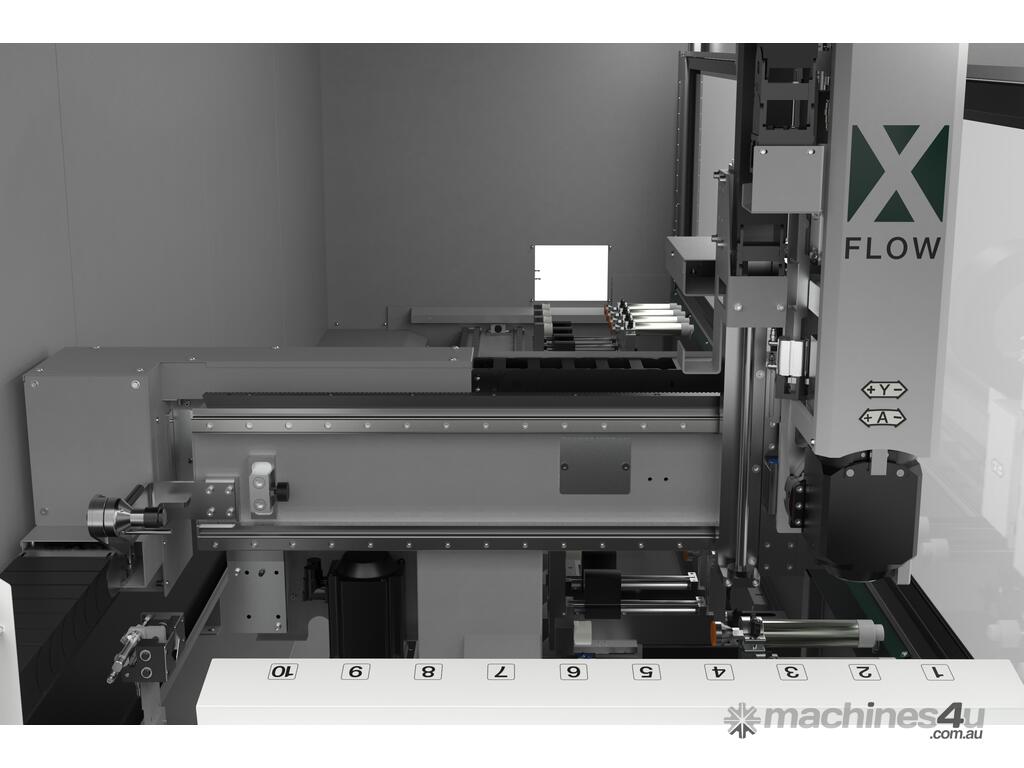

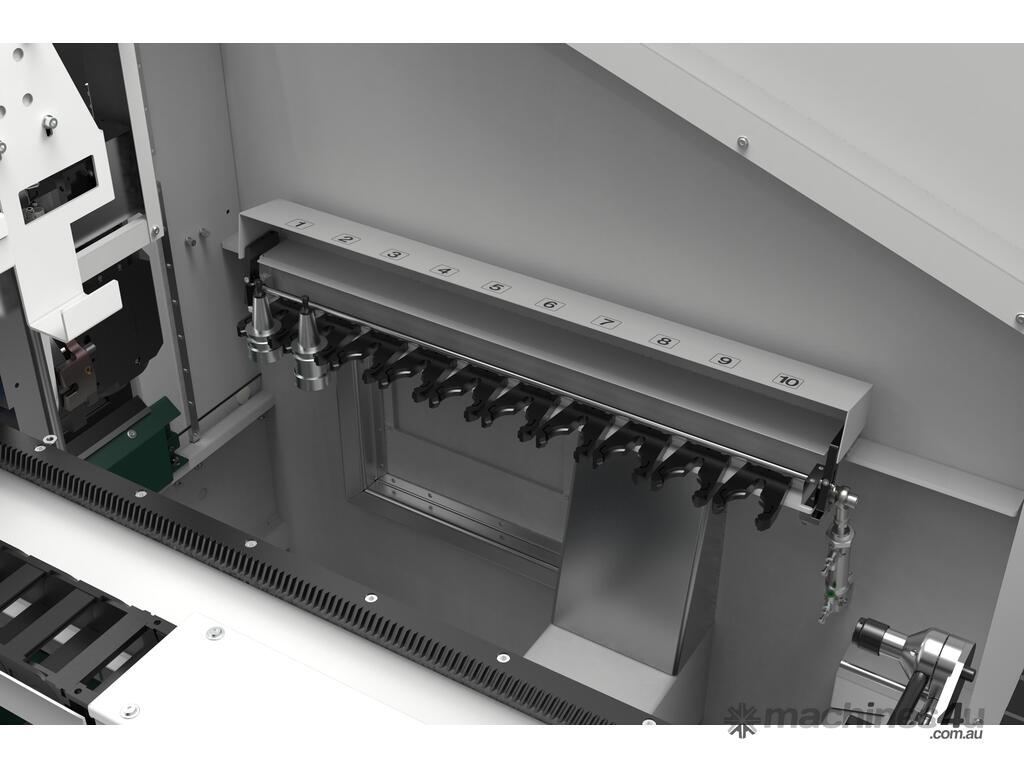

10 location tool magazine on Left side of the machine base

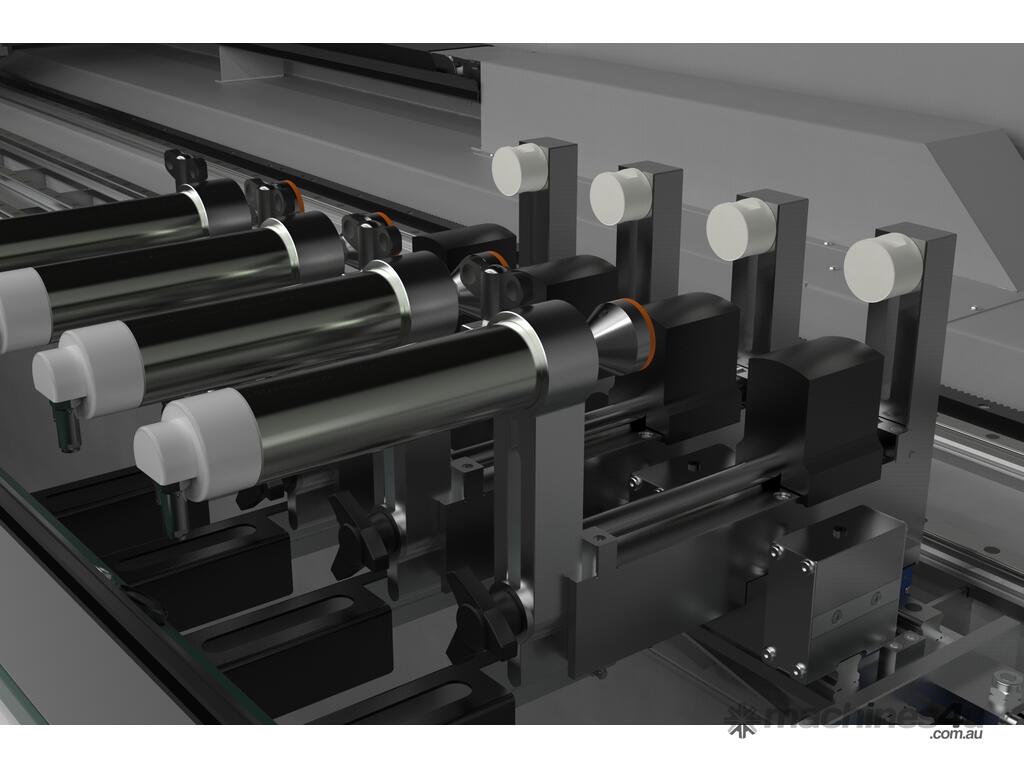

4 pneumatic vices with positioning through the travelling column - the operator does not need to do setups!

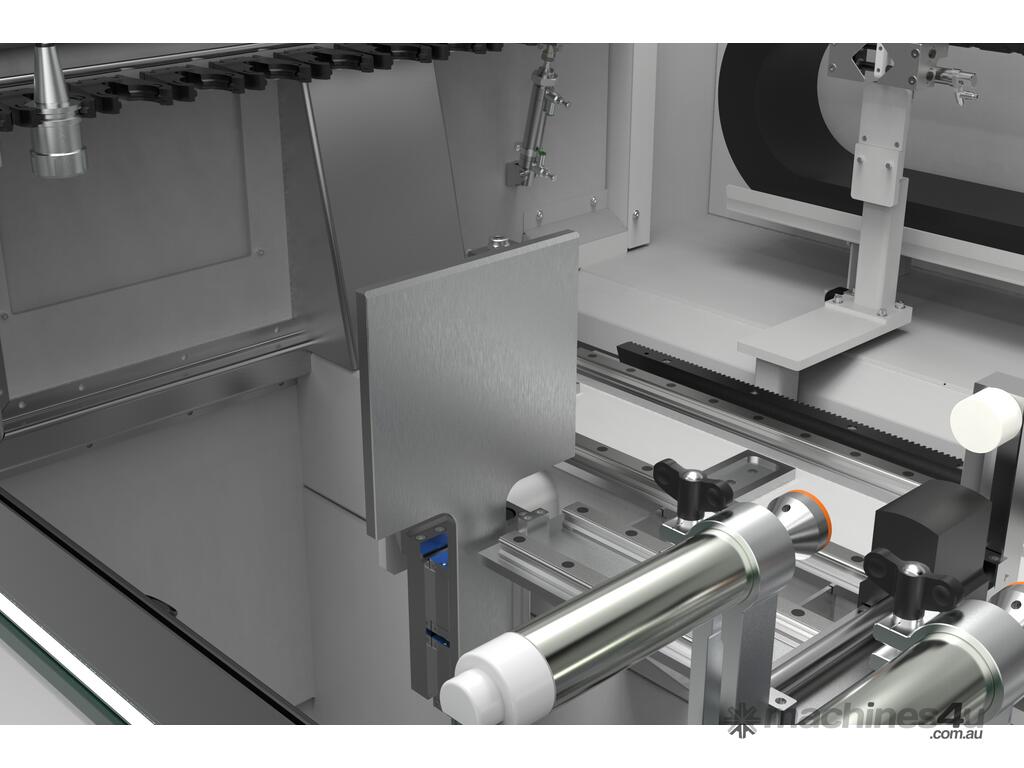

Left retractable fixed pneumatic stop
Minimum quantity lubrication (MQL) with pure oil gives you clean cutting and long tooling life
Centralised automatic lubrication system included Standard.
Chip and waste collection tank in base, away from the machining zone - and making cleaning easier.
Perimeter guard system. Retractable front door with automatic opening ensures operator safety
Control equipment: POWER-D
Movable control console
Oversized ?24” Display makes programming and operation easy and intuitive.
Licence for FST CAM 4 program
TECHNICAL CHARACTERISTICS
The structure consists of a base and a travelling column sized to guarantee exceptional stability and precision during machining. The design of the base localises all the swarf making it easy and simple to clean.

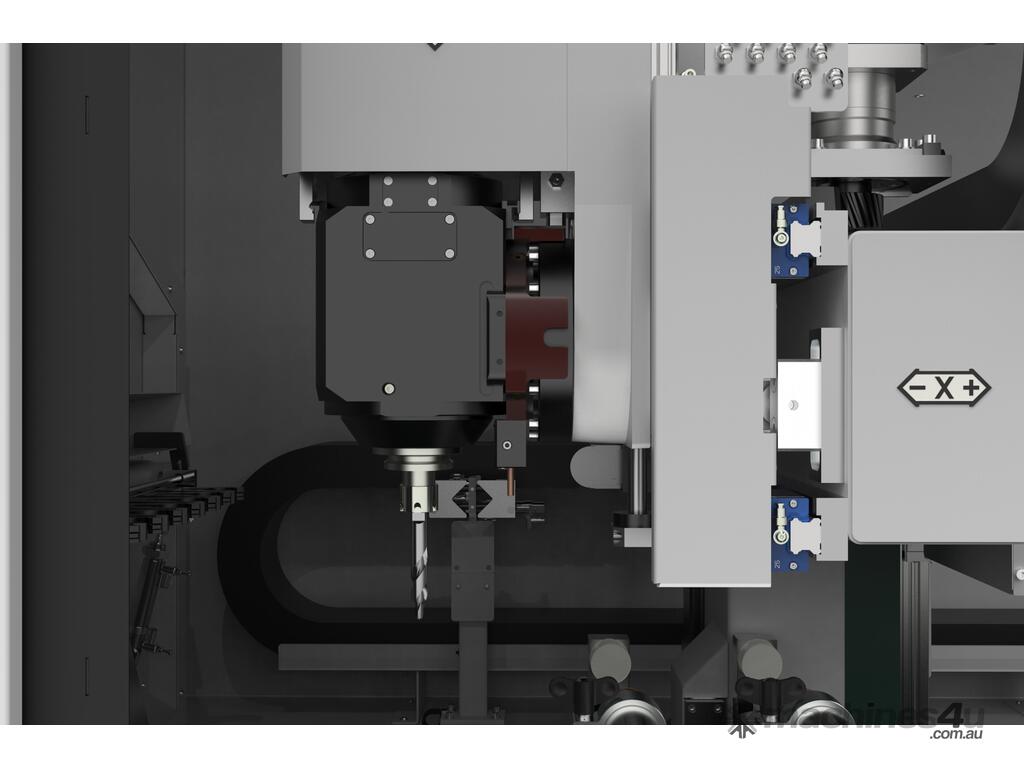

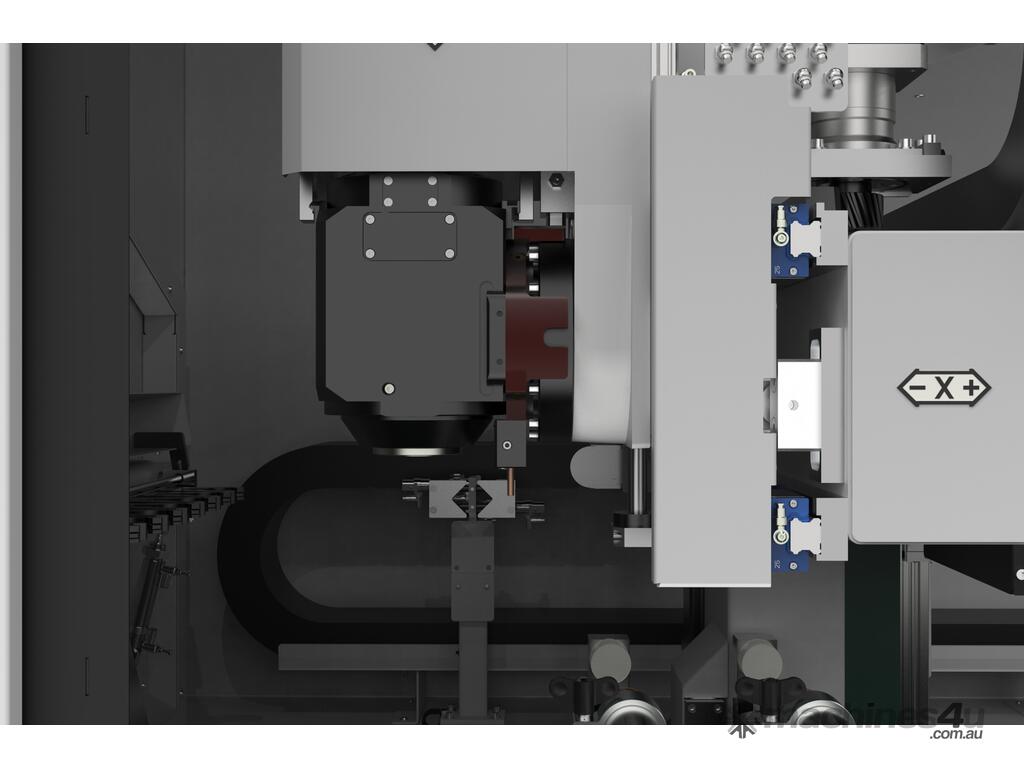

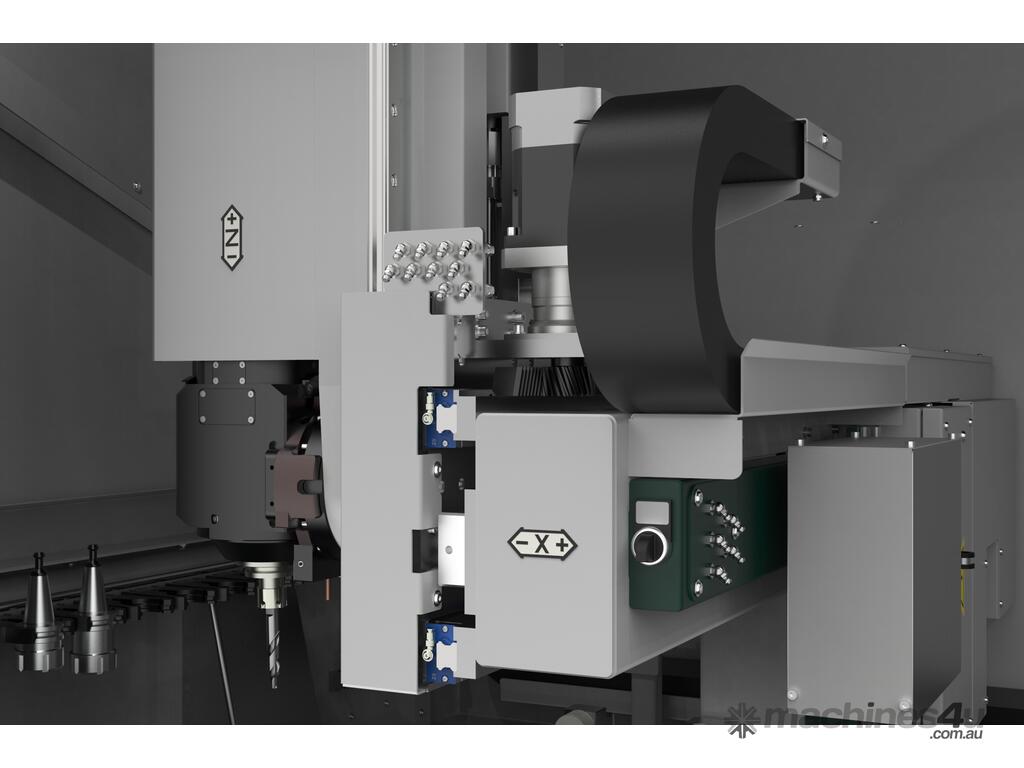

The machining head allows machining operations to be carried out on 3 faces of the profile and on 2 ends. The tilting axis consists of a rotating head of high-precision and rigidity driven by a zero play gear drive and brushless motor
Images and videos show machines with options
