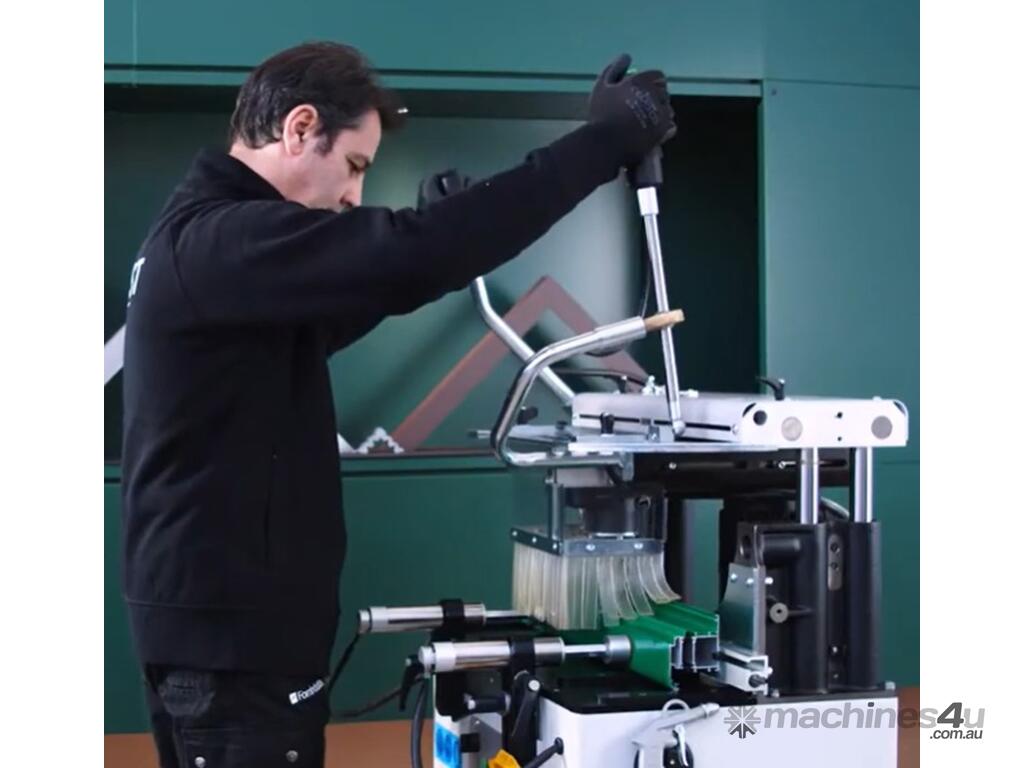

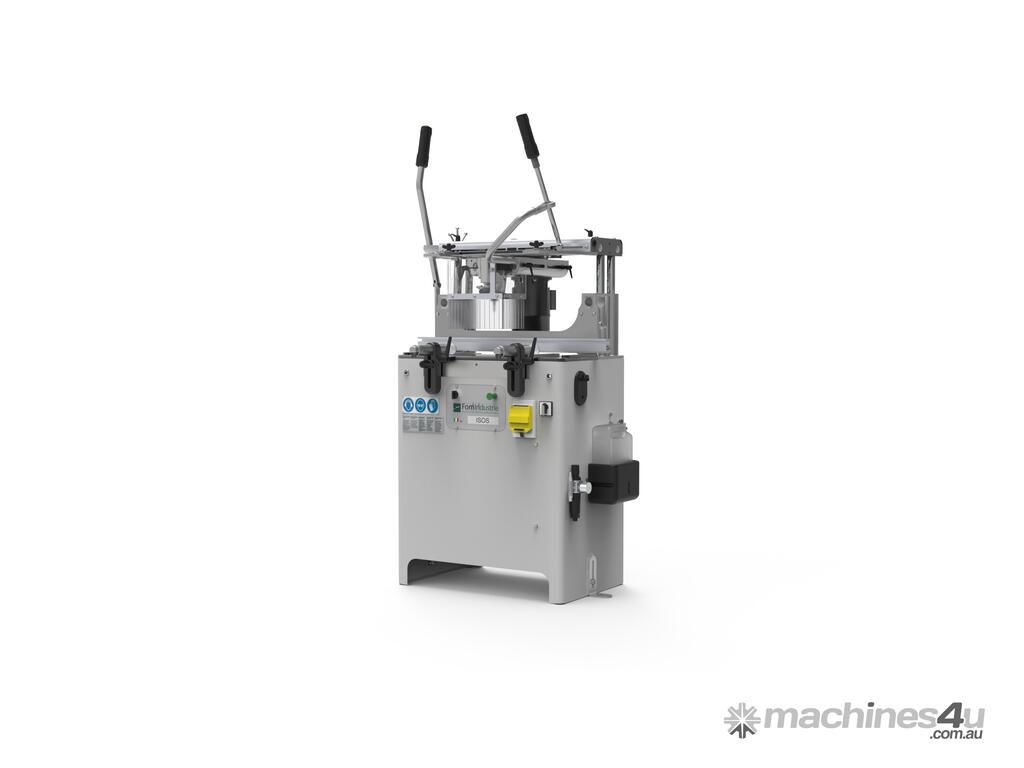

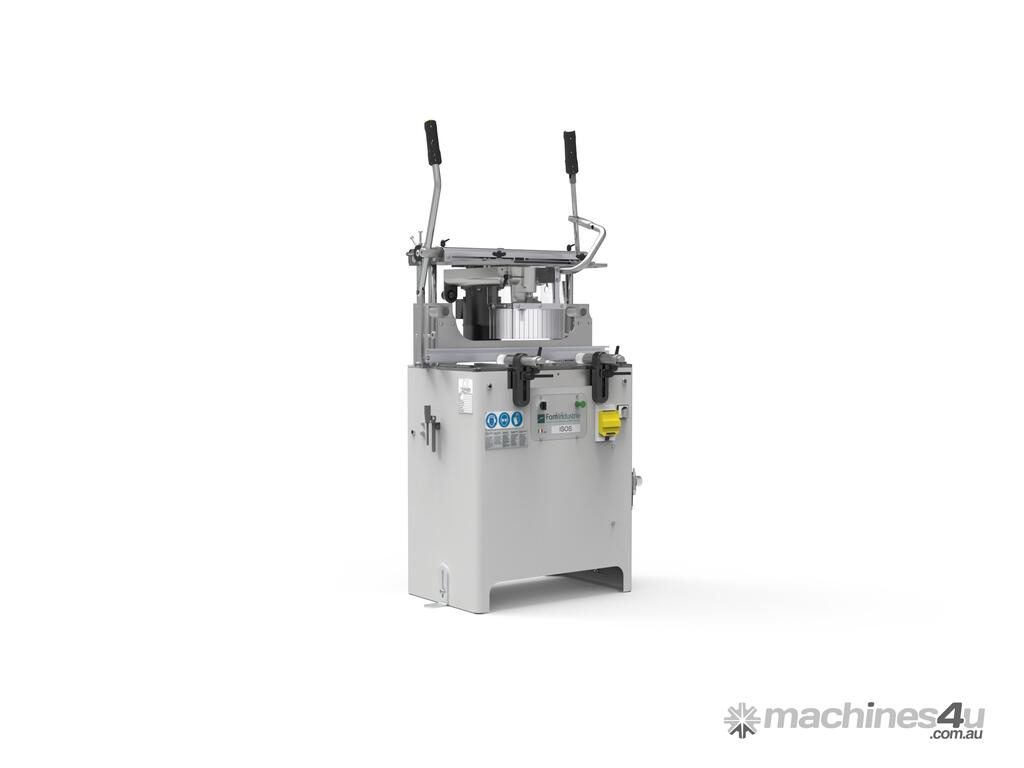

An industrial, easy to use copy router. Twin large levers ergonomically placed make machining movements smooth and controlled - and ensure the operators hands are away from the cutting zone. A quick change tool system (ER16 collett holder). Two adjustable pneumatic vices for secure extrusion clamping
Dual Spindle speed 6000 & 11800rpm

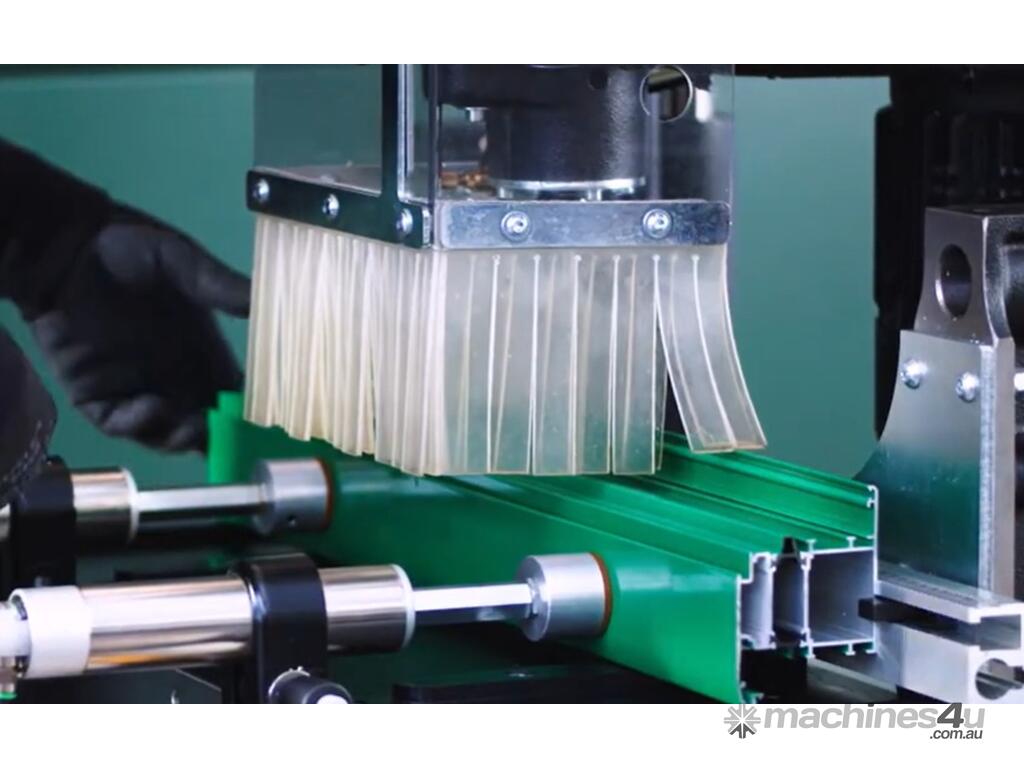

Horizontal vices with safety valves to stop pinching.
Receding length stops build into the fence
Dual pressure clamp system for operator safety
Pneumatic tracer with dual diameter selection (dia 5 and 10mm options)
Possibility of machining with copying jigs

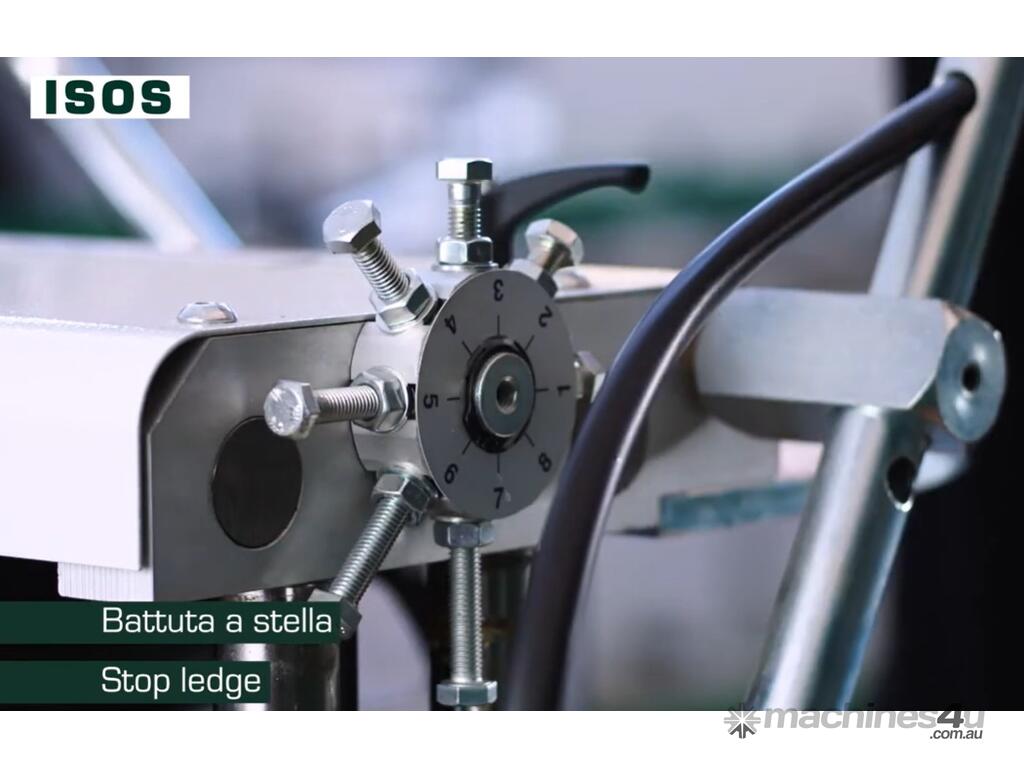

Mechanical stops on a rotating turret allow for 8 preset depth plunges
Mist spray lubrication
Milling tool shank clamping size: from 5 to 8 mm
Quick spindle stop for tool changing
Working pressure: 7 bar
Three phase motor (1 HP) – 2,800 rpm 230/400V – 50Hz
Air consumption per work cycle 2.8 Nl
Total dimension mm 800 x 730 x 1600h, Kg 85
Images and videos show machines with options
