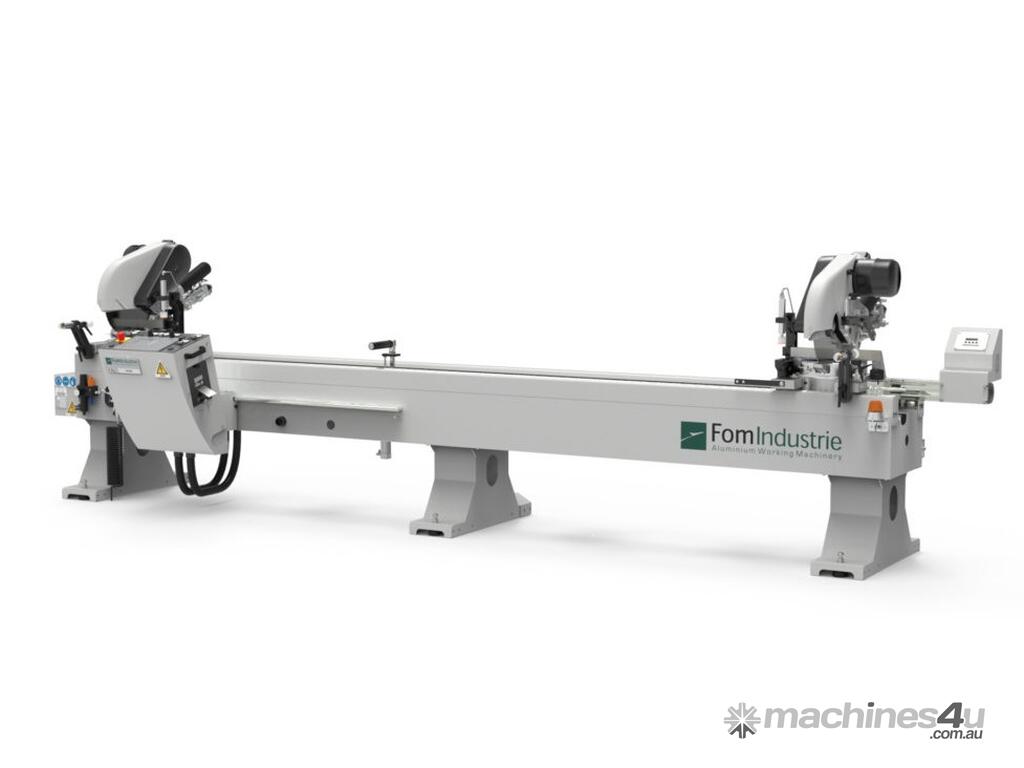

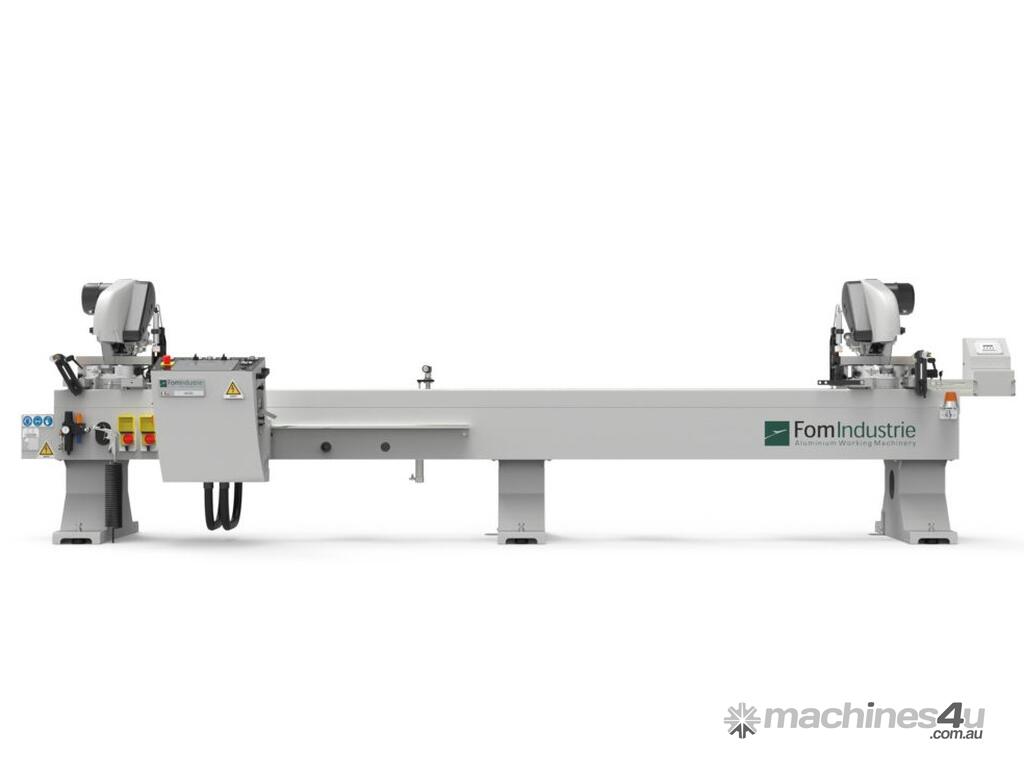

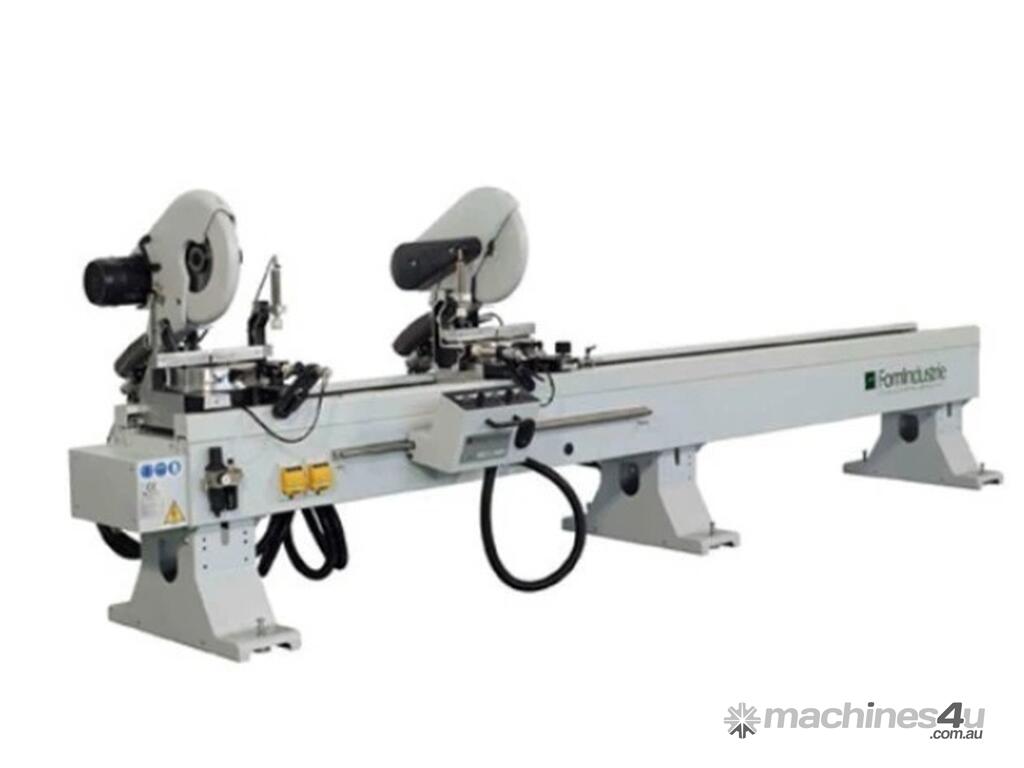

European made twin head cutoff saw, with automatic operation of the heads. Two hand safety operation via the centralised control cabinet, which is movable to allow the operator to be perfectly positiioned for load/unload operations.

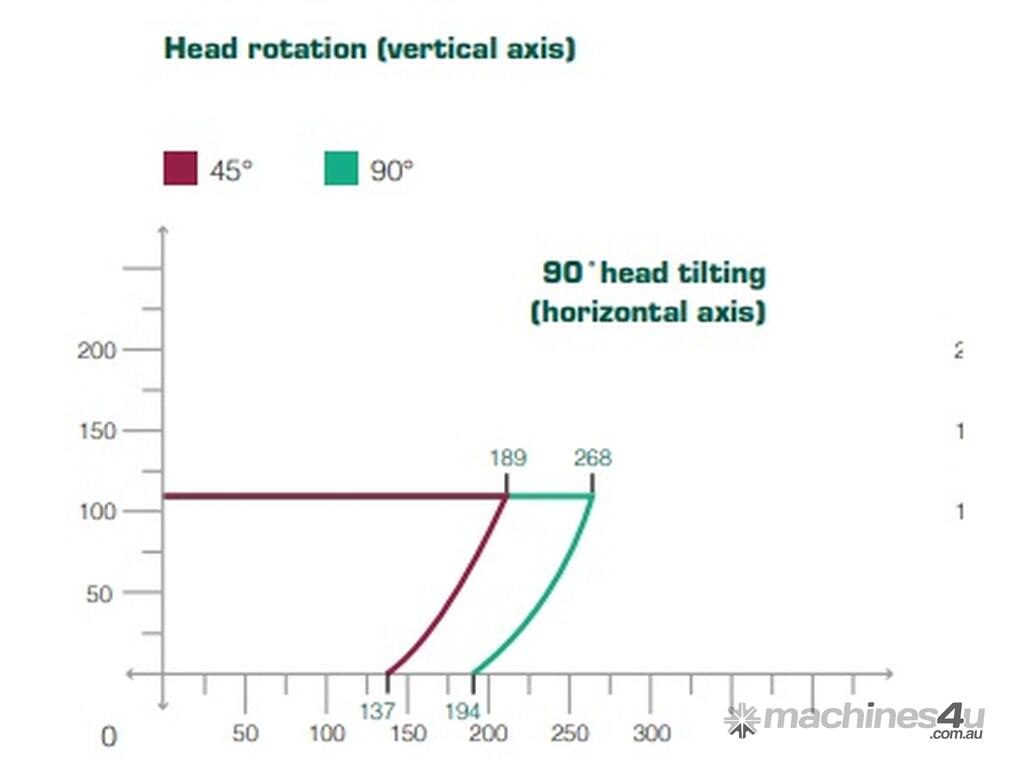

Cutting angles: rotation from 45° outwards to 45° inwards, angle from 45° outwards to 90° Variable Angle
No. 2 tungsten carbide Ø400 saw blades
Hydraulic tungsten carbide saw blade feed (adjustable blade exit speed with quick return)
Blade motors 2.2 kW
Motor transmission by belt
Spray mist blade lubrication system
Maximum cutting capacity between the two heads: 4 m. (according to the version)
Maximum cutting capacity between the two heads: 6 m. (according to the version)

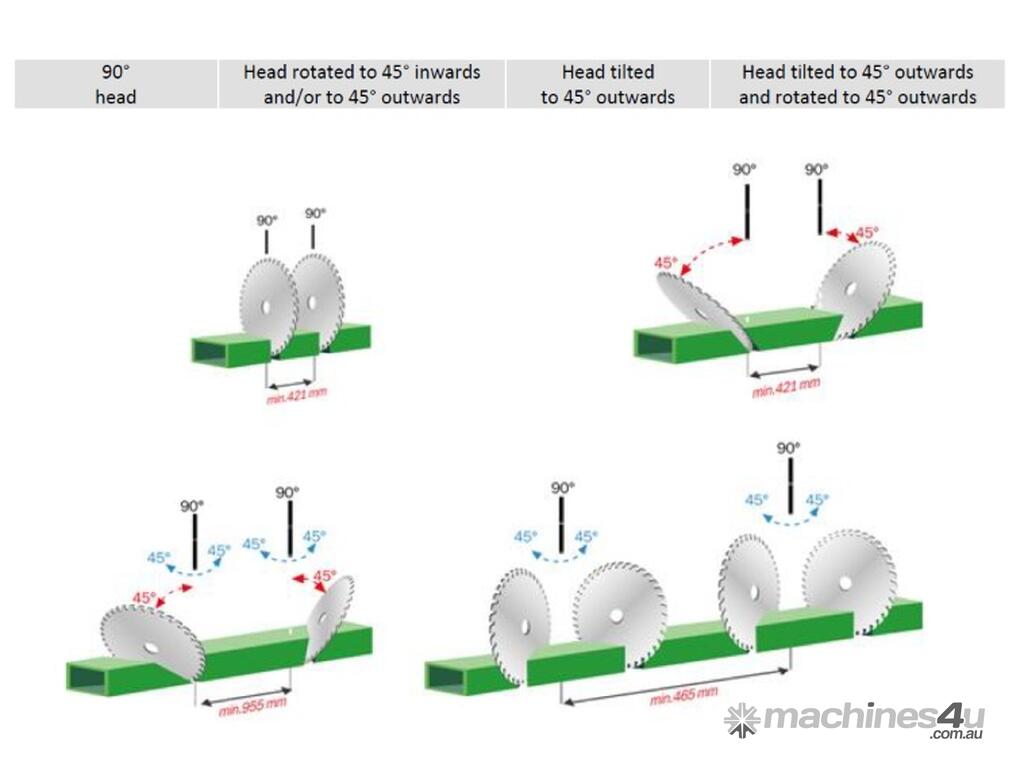

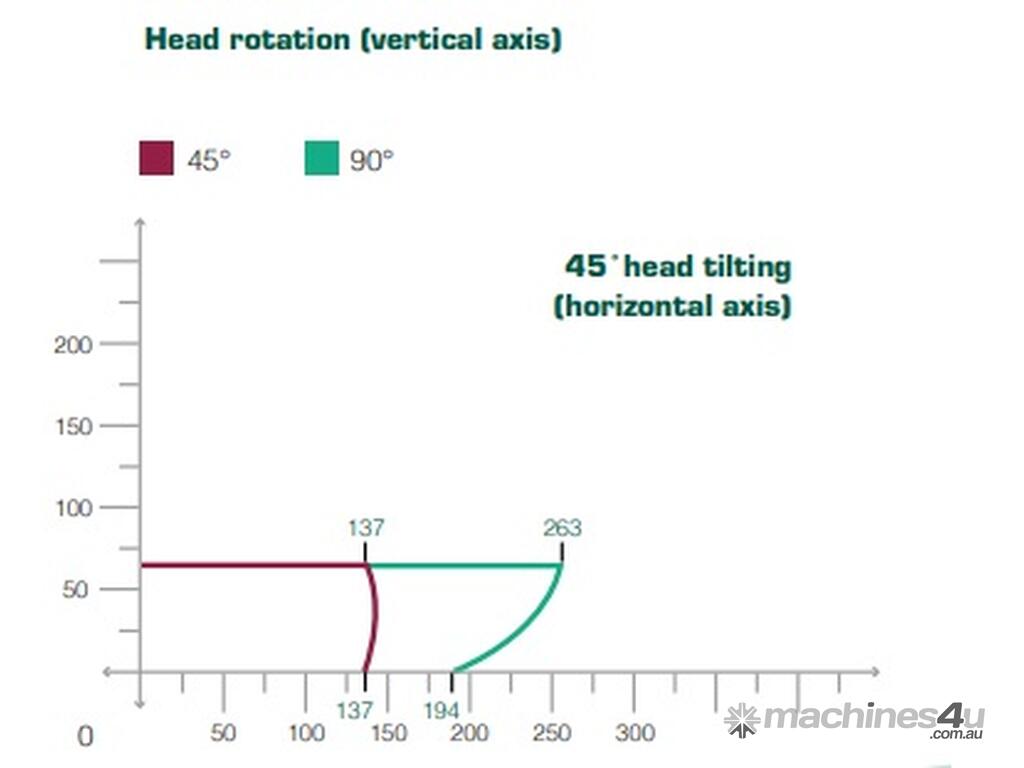

Minimum cut between the two heads: see the diagram

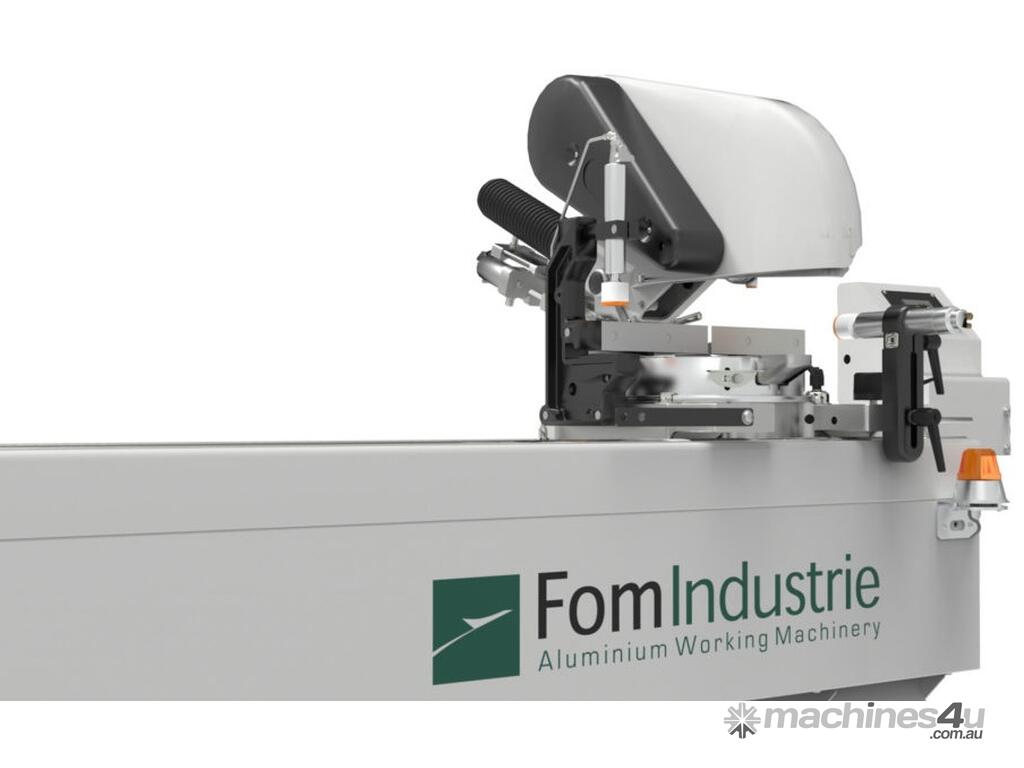

First head fixed, second head mobile with automatic positioning along high precision linear guides by means of recirculating ball blocks (MOXIE M)
Pneumatic vices
Set up for the extraction of chips and fumes
Working pressure: 7 bar
