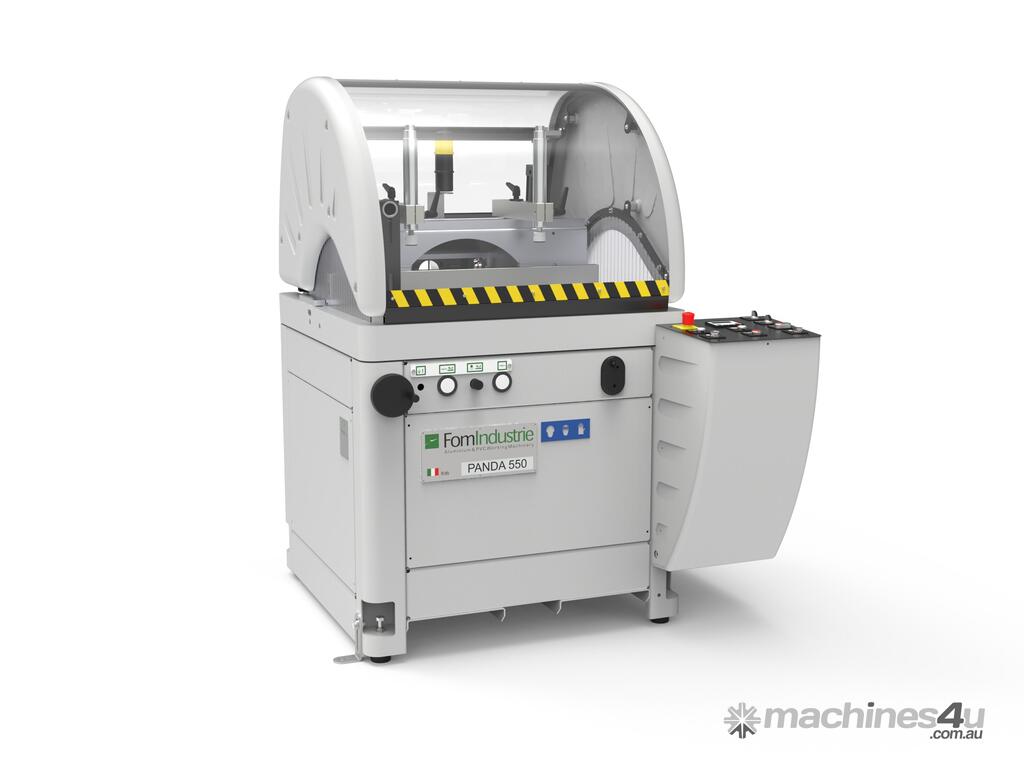

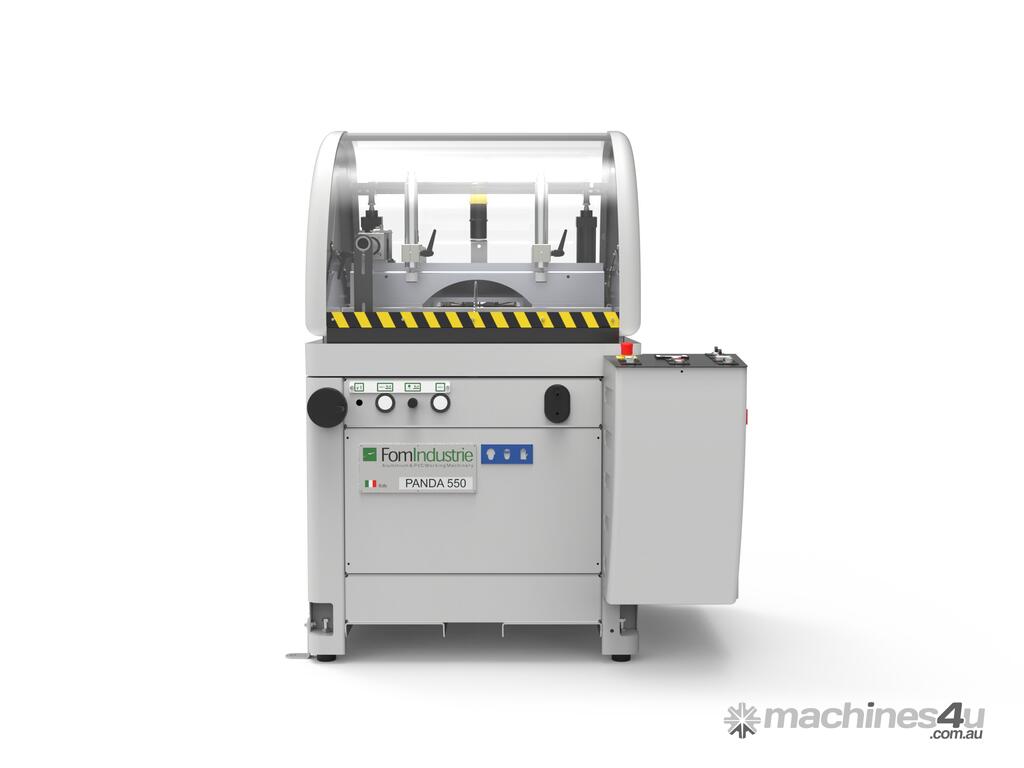

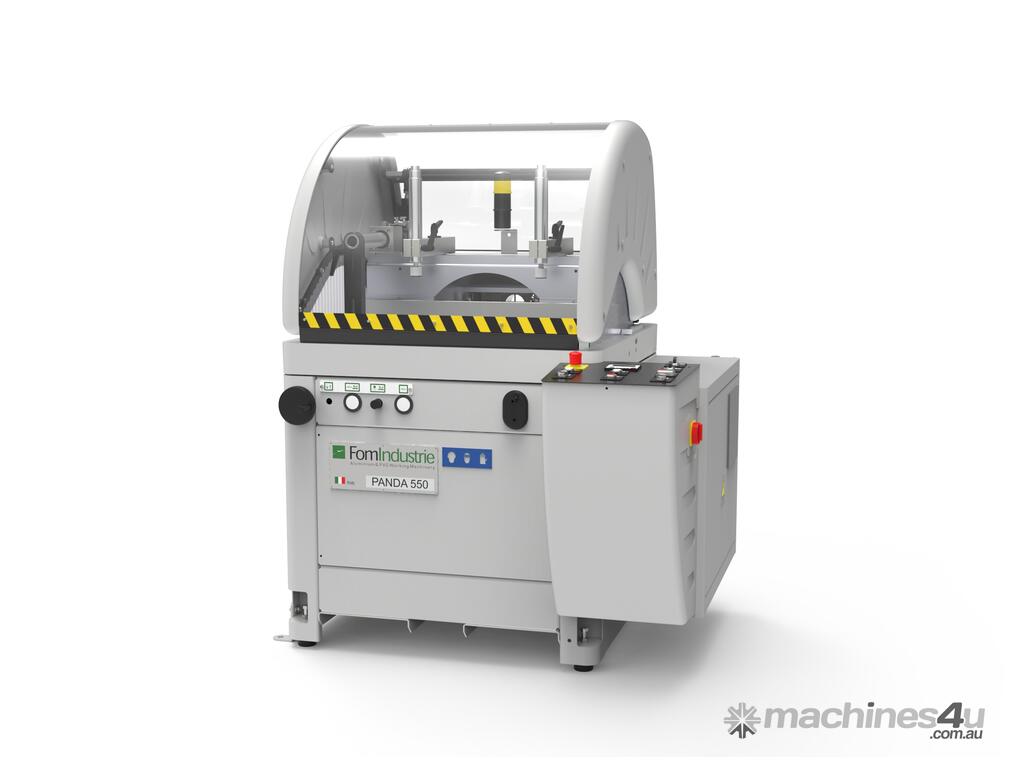

FOM Industrie Panda 550 Aluminium upcut saw

Single head upcut saw for aluminium and PVC with electronic control of the blade tilt.

The large blade capcity of Ø 550mm gives a massive cutting profile for the largest of extrusions. The large clear guard gives the operator a great view of the cutting cycle - while being shielded from swarf and offcuts. CE compliance and a range of adjustments make this an extremely safe and accurate machine to use.

Hydro pneumatic advance of the blade (adjustable blade exit speed with quick return)

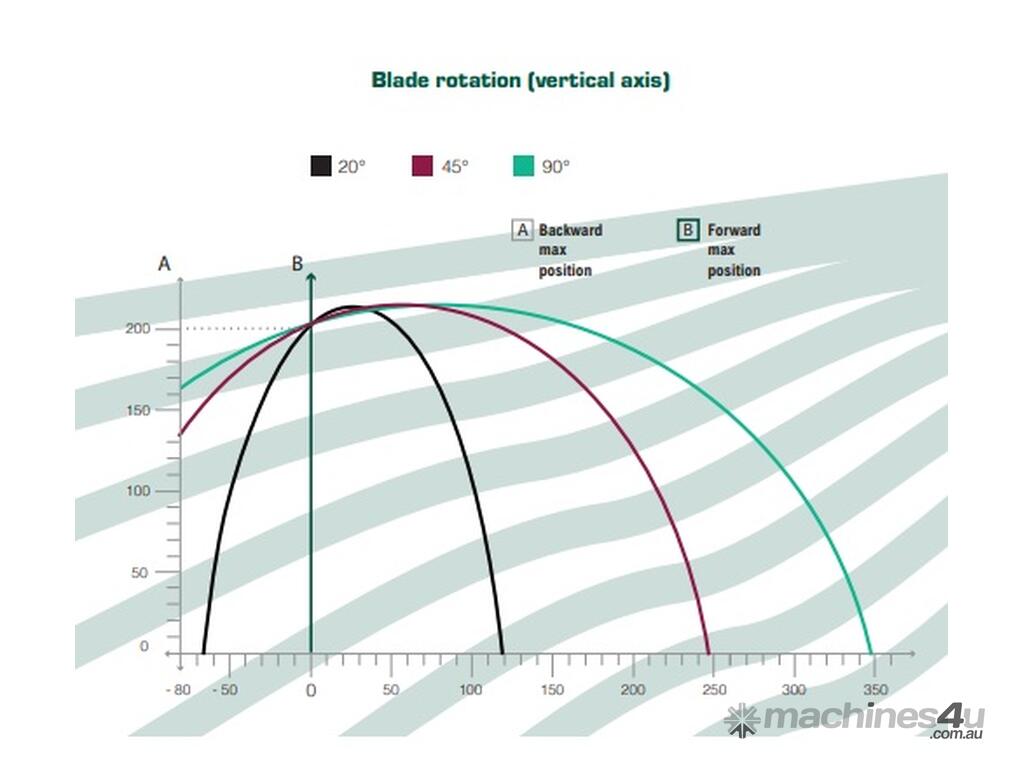

Rotation from 20° Lh to 20° Rh on vertical axis
Positioning accuracy of cutting angle ± 0.01°
Axis position reading by means of magnetic band
Motor transmission by belt
Machine and turntable structure in stabilized cast iron
Turntable rotation on bearings and rollers that guarantees maximum long term precision
Customised devices to clamp special profiles (on request)

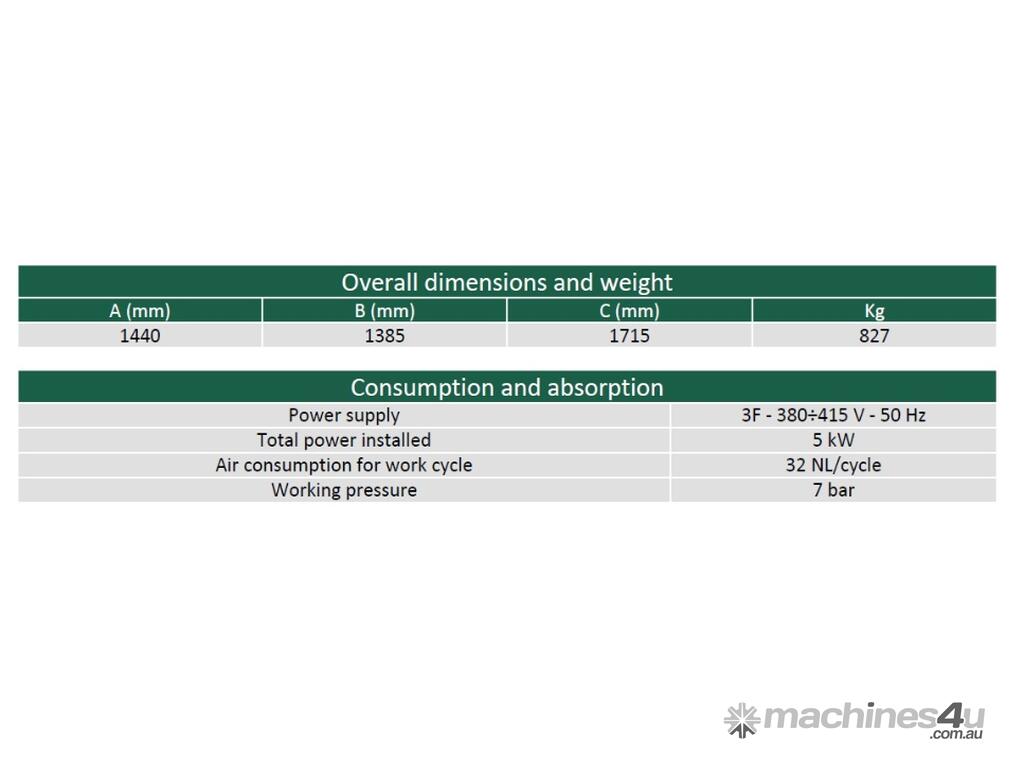

Working pressure: 7 bar
Saw blade motor, three phase (4 kW) - 2800 rpm voltage 230/400 V- 50 Hz
Minimum quantity lubrication (MQL) with pure oil
Set up for the extraction of chips and fumes

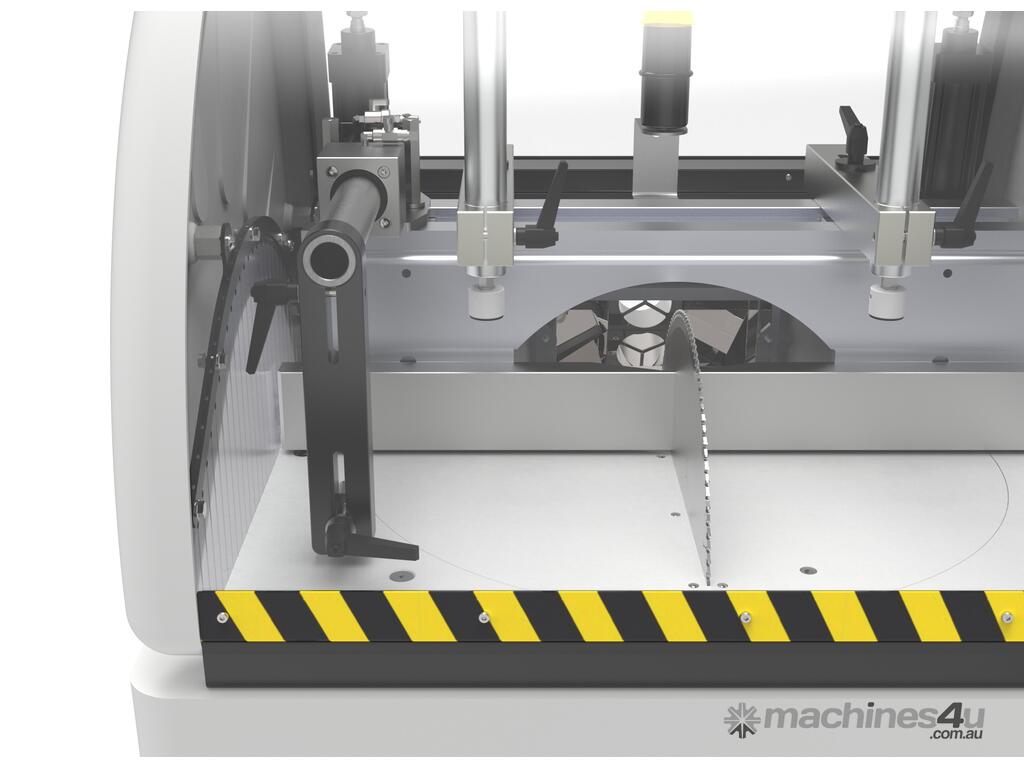

1 x horizontal vice (with swinging movement)
2 x vertical vices
Nanovision controller

Images and videos show machines with options
