FOM TIndustrie Dual head sawing machine with 500mm blades

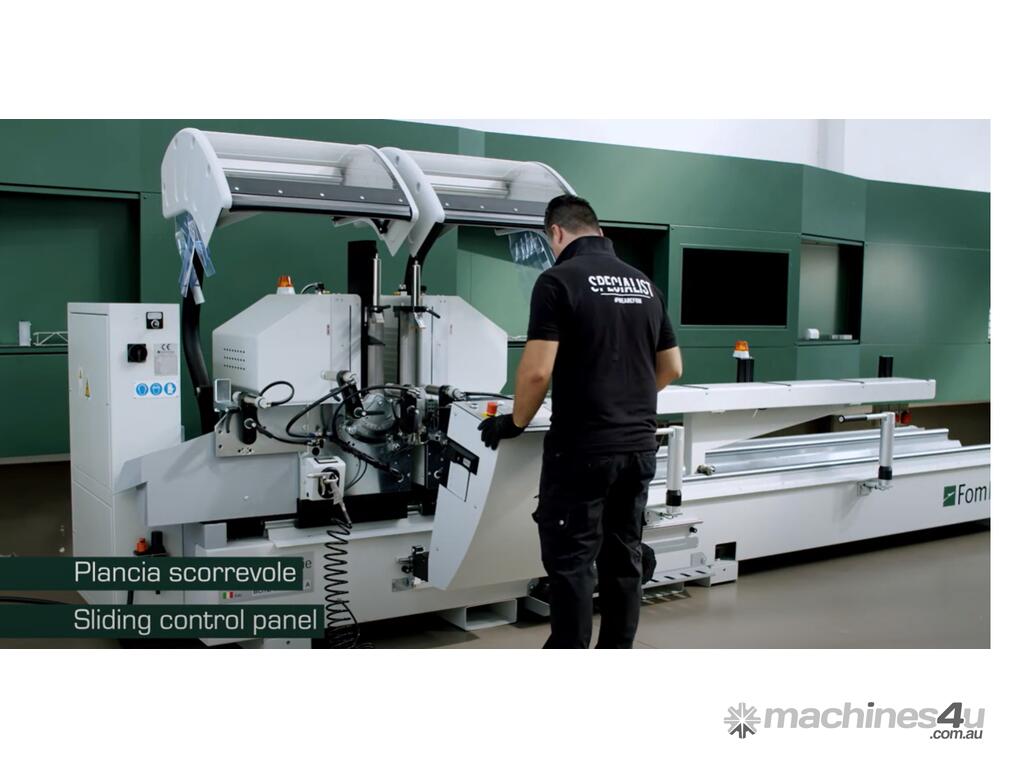

A double head sawing machine with controlled movement of the mobile head. The centralised, and movable, control panel allows the operator to efficiently load extrusions - while protected by the auto guard system and two stage clamps

Head tilting from 22.5° outwards to 90° by pneumatic cylinders, with mechanical stops for intermediate angles
2 x 500mm tungsten carbide saw blades
Blade centring hole ø 32mm with adapter ring, Saw blade motor shaft 28 mm
Hydraulic tungsten carbide saw blade feed (adjustable blade exit speed and quick return)
Direct motor – saw blade transmission
Blade motors, three-phase 3HP (2.208 Kw) – 2800 rpm. Euro voltage 230/400V– 50Hz
First head fixed, second head mobile with motorised automatic positioning
1 x Automatic retractable pneumatic intermediate profile support (2nd and 3rd supports are Optional)
Minimum cutting capacity between the two heads: 305 mm (can be reduced with dedicated software INCLUDED)
Maximum cutting capacity between the two heads: 5000mm (can be increased with dedicated software INCLUDED)
Blade tilting 90°/ 45°/ 22.5° and intermediate angles by means of front-mounted mechanical stop suitably protected from chips
Integral guard around cutting zone
Horizontal (3) and vertical (2) pneumatic vices
Sturdy mobile head roller table 2500 mm
Atomised cutting lubrication kit with possibility of setting lubrication frequency
Electrical switchboard separate from pneumatic one, both positioned vertically and easily accessible for inspection
Set up for forced extraction of chips and fumes
Large swarf collection box to allow easy collection and cleaning
Set up to take an optional motorised conveyor belt for collecting offcuts and a rear motorised chips collection conveyor belt
Real time control of functions by PLC
Working pressure 7 bar
Industrial type numerical control
FOM Multitasking Operating System with user graphic interface with window menu and icons.
LCD colour graphic display 6.5”
Alphanumerical touch keyboard with heat-moulded keys
Semiautomatic cutting function with automatic profile height compensation, extrusion tolerance and piece counter with cutting disabling
USB port for transmission of cutting list data
Ethernet Connection for transmission of cutting list data
Formulae & Type software for up to 6 variables where each element can be assigned a description of the machining operations to be performed
Software for entering cutting lists manually from keyboard
Display of actual cutting time of lists originating from external programs
Display of profile sections while executing cutting lists with indications of piece positioning on the machine
Label printer with customised information and barcodes
