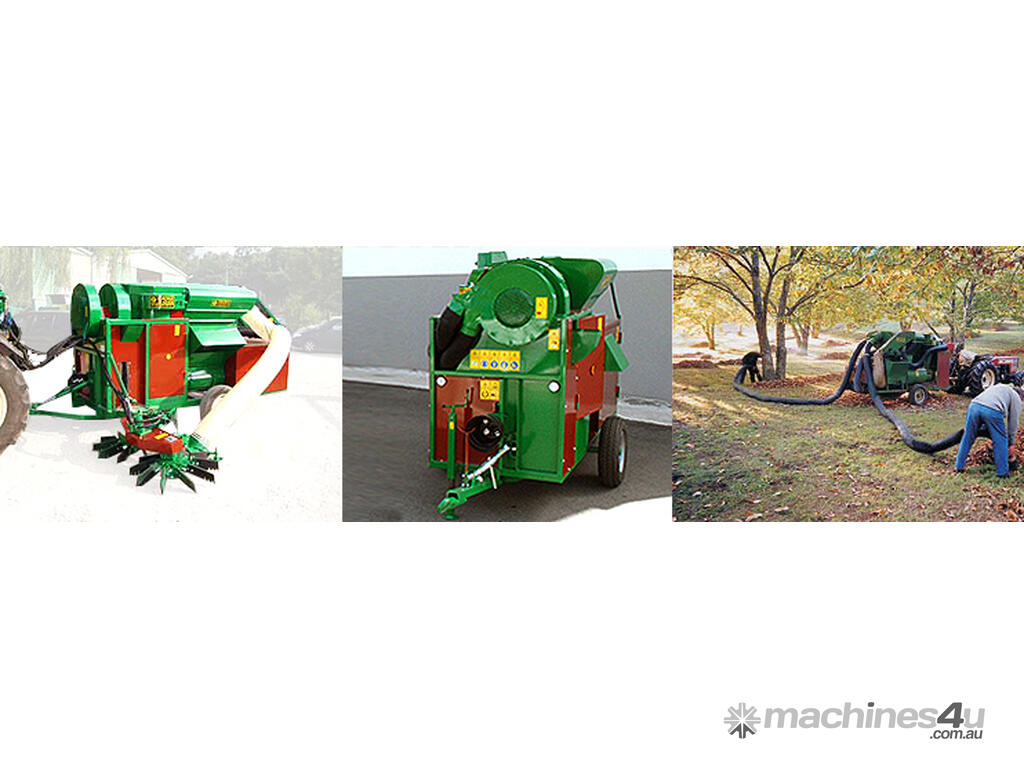

Facma Trailed Nut Harvester C380T

FACMA produces a range of trailed harvesters suitable for the mechanized gathering from the ground of hazelnuts, chestnuts, almonds, walnuts, olives, coffee, macadamias, pecan nuts, etc. The enterprise has a long experience in the manufacture and employment of these machines, whose lasting success is due to their versatility in harvesting a wide range of produces, to the simplicity of use and maintenance, to their manageability and to the capacity of adapting to the ground unevenness.
The manufactured models are classified in order of size and working capacity, to be considered on the basis of the personal harvesting exigencies.
The trailed harvester works thanks to the principle of suction of fruits from the ground, it is powered by the tractor with an universal joint, it is endowed with 1 or 2 light – weight flexible pipes held by walking operators who guide them over mounds or rows of produce on the ground.
The sucked-up produce is propelled into a depression chamber where it is separated from the heavier waste material. Subsequently the produce is poured through a valve into a conveyor with a ventilator where, thanks to an air flow, leaves and light impurities are eliminated. Then a double rotary sieve makes a further selection from impurities with different sizes from the fruits ones. In the end the collected produce is downloaded into sacks or into pulled trailers.
The double rotary sieve is made on the basis of the caliber of the fruits to gather. Just replacing this component it is possible to use the machine for the harvest of different fruits.
For maximum harvesting performance, it is suggested to prepare the ground, working it different times by mulcher during the previous year and before the produce falls to the ground.
It is possible to install a lateral harvester on hydraulic arm (on request for C 200 T, C 300 T e C 380 T models), which is a head with 2 contra-rotating brushes formed of rubber scraper elements. This accessory works by the tractor’s double acting hydraulic outlets, sucking the raked produce from the ground.

PRE-CLEANING KIT
This accessory makes a further cleaning of the collected fruits, thanks to an air flow which intervenes before the outflow of the product, separating it from the remaining impurities.

HUSK REMOVER
It is possible to install on the machine the accessory husk remover, positioned before the rotary sieve and made of an axle with brushes, which rotating against the fruit permits to remove the husk of hazelnuts, chestnuts and almonds.
