CNC Control system removed during scrapping of a functional but unused CNC drilling machine. The CNC Control system includes the Monitor/Operator Panel, CPU, Power Module, Drive modules and 3 AC Brushless motor actuators. Hardware as follows;

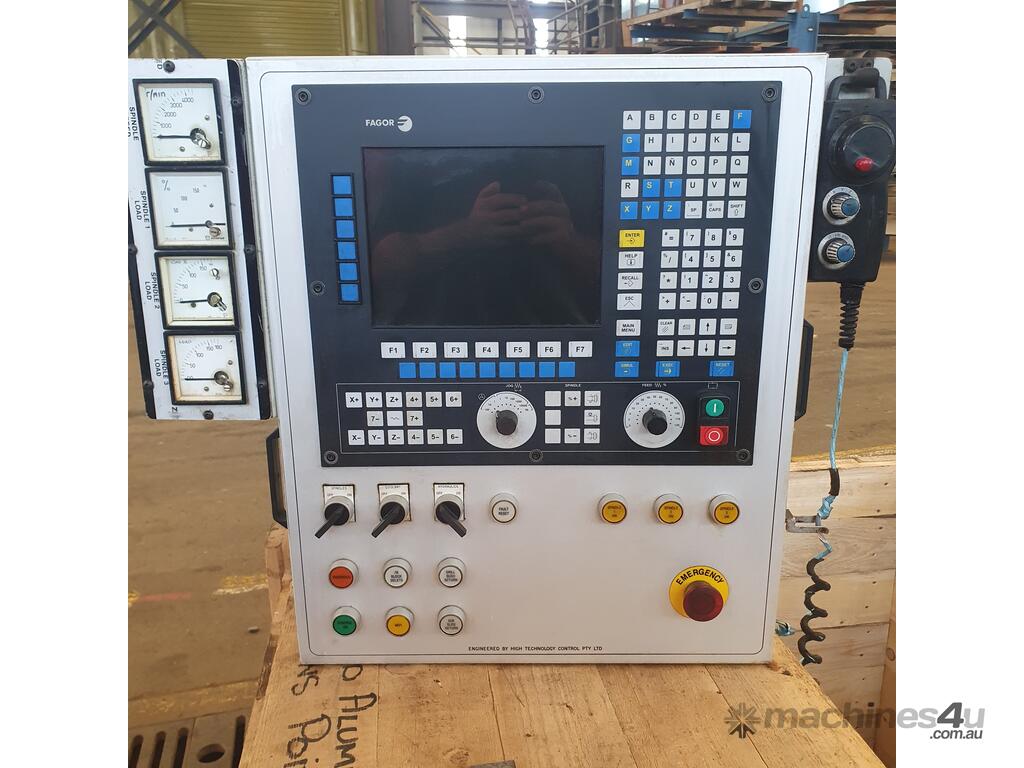

• Monitor/Operator Panel – Fagor MONITOR-55M-11-LCD

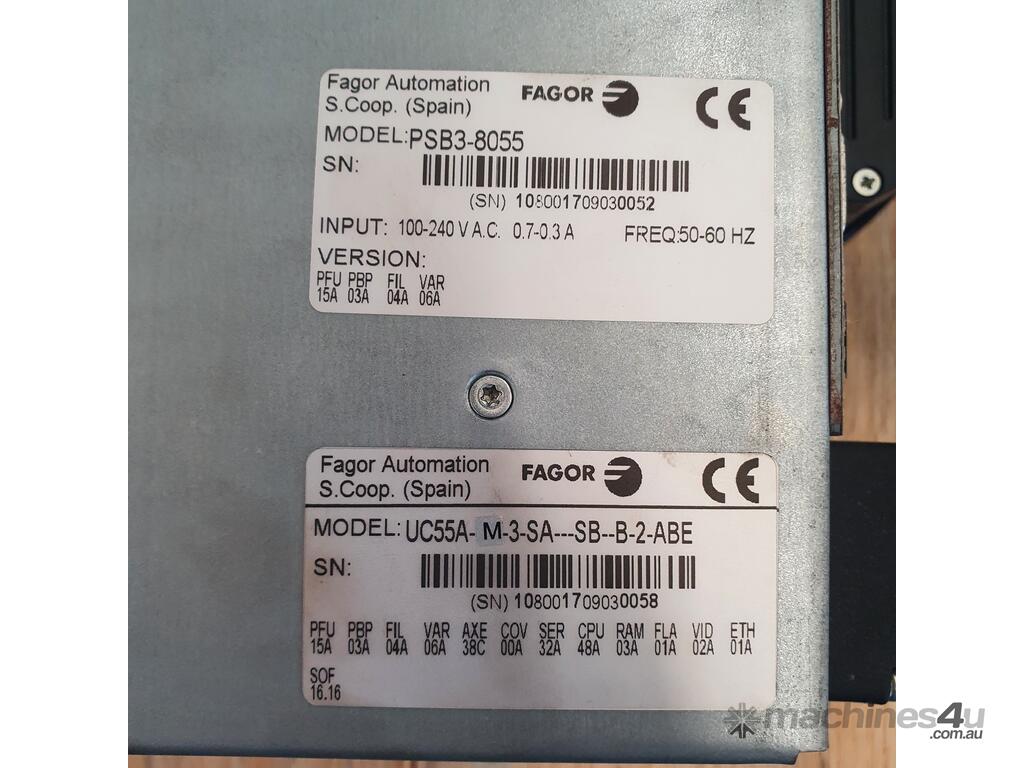

• Power Module – Fagor PSB3-8055

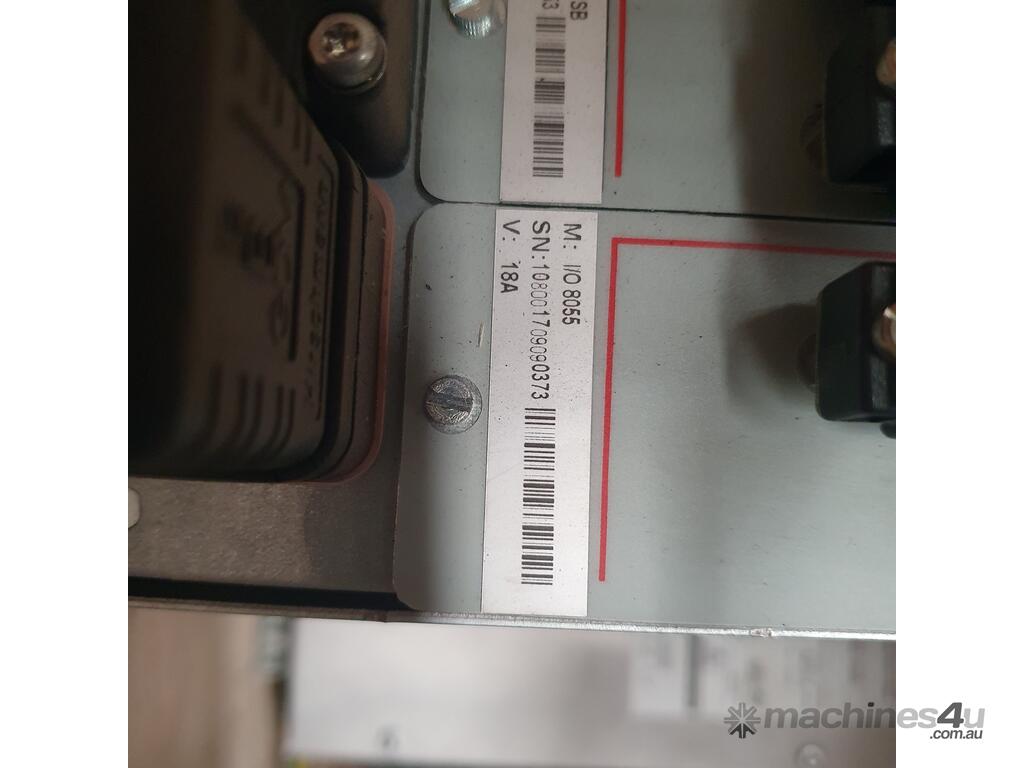

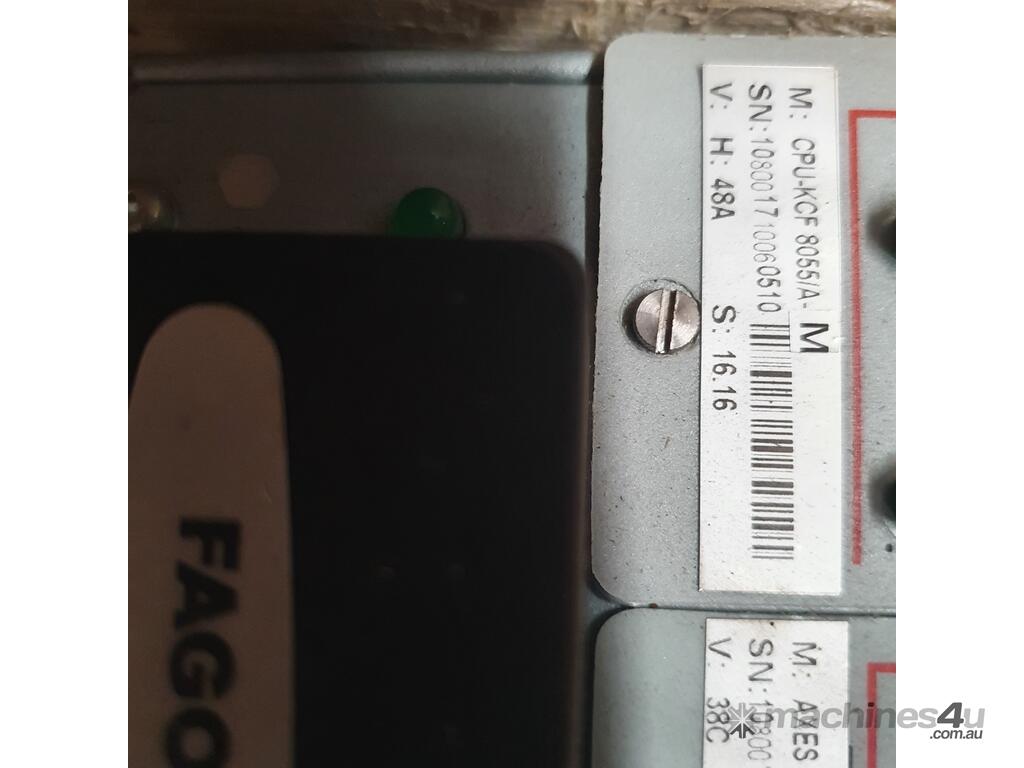

• CPU Module –Fagor I/0 8055, AXES 8055 VPP SB, CPU-KCF 8055A

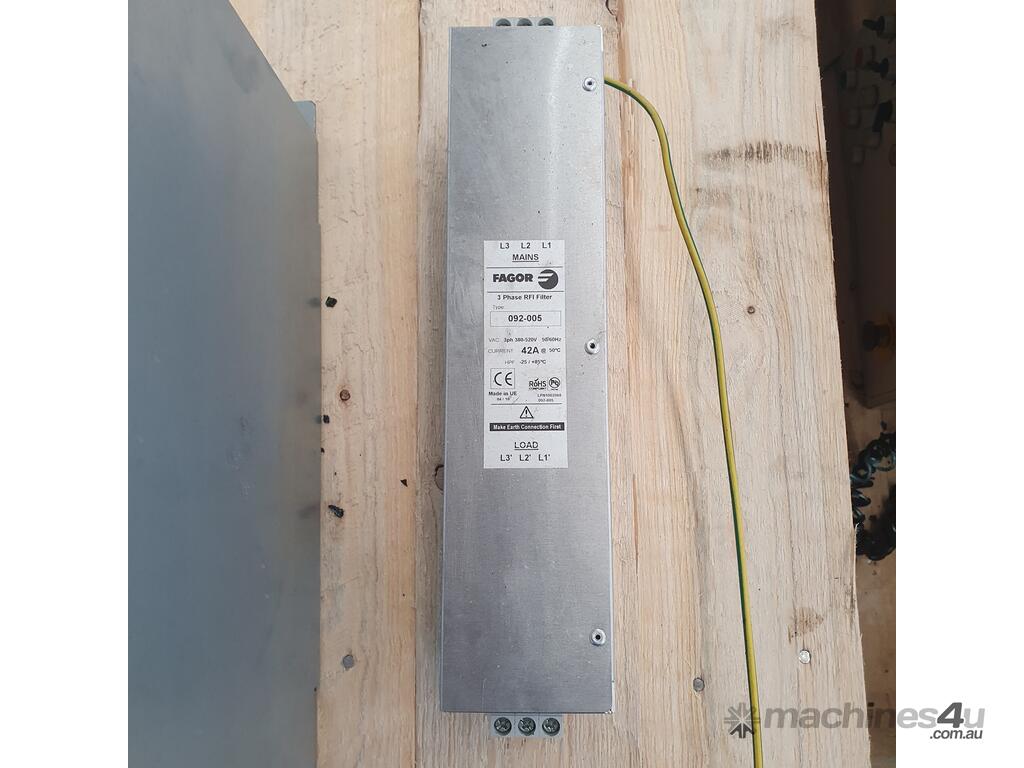

• 3 Phase RFI filter – Fagor model 092-005
• Drive Modules –Fagor AXD 2.50-S0-0

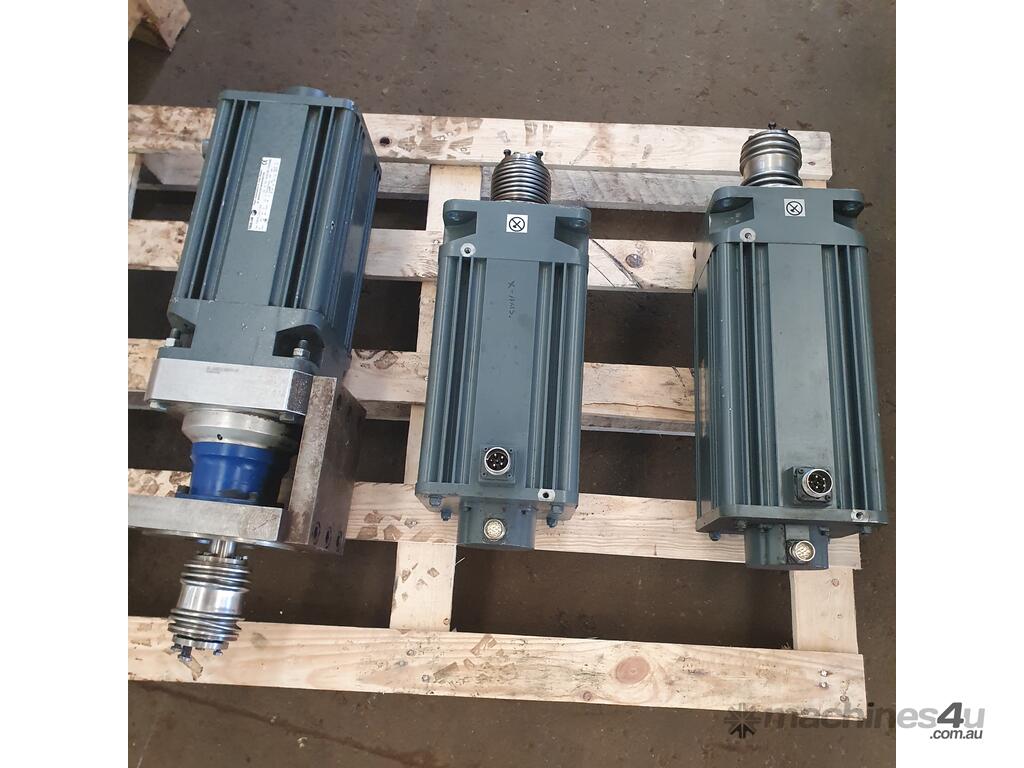

• Motor 1 – Fagor FXM76.12A.E1.010 AC Brushless Motor, 39.7Nm Stall torque 195Nm max torque 24VDC Brake
• Motor 2 – Fagor FXM76.12A.E1.000 AC Brushless Motor, 39.7Nm Stall torque 195Nm max torque
• Motor 3 – Fagor FXM76.12A.E1.001 AC Brushless Motor, 59.5Nm Stall torque 195Nm max torque
