Falc GL & GSL Series Rotary Hoe

Designed and built for professional farmers and contractors who need a reliable rotary hoe for tough, arduous cultivating conditions, the Falc GL and GSL series are available in working widths from 3.0m to 4.5m and are well matched on tractors from 130hp up to 240hp. Their versatility is enhanced by a choice of rotor types as well as depth control options.

? 3pt linkage mounted.
? Floating clevis hitch with Cat 2 pins.
? Front square tube 80mm x 120mm x 6mm.
? 1000 rpm PTO.
? Drive shaft with 1 3/8” 6 spline yoke & automatic torque limiter clutch on 3000 model & 1 3/8” 21 spline yoke & automatic torque limiter clutch on 3500, 4000 & 4500 models.
? Gearboxes: GL model - 220 hp, single speed box producing a rotor speed of 290 rpm. GSL model - 240 hp, single speed box producing a rotor speed of 296 rpm.
? Optional speeds (gears) for both gearboxes are available on request.
? Gear side drive.

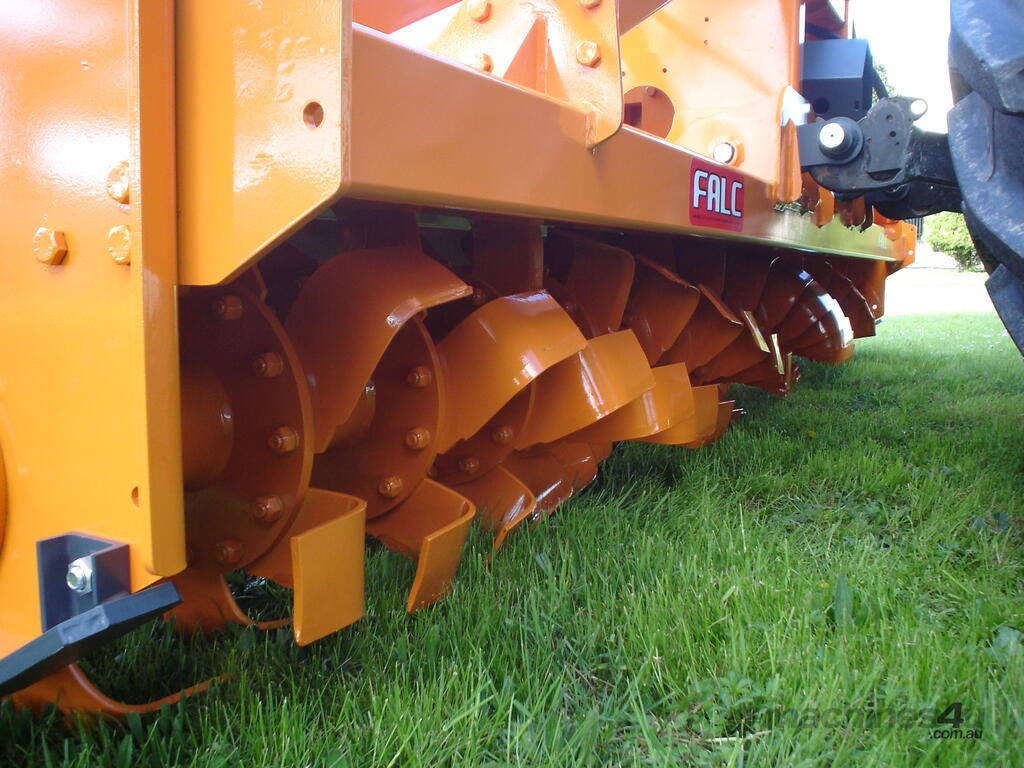

? 3 blade rotor pattern – ‘L’ blades fitted as standard.
? Depth control on GL3000 & GL3500: Dual adjustable skids.
? Depth control on GSL4000 & GSL4500: Rear, 8 tube hydraulically adjusted cage roller.
? Coiled spring adjusters on the trailing board.
? Full CE safety guarding on all models.
? Oil cooler fitted as standard on GSL4000 & GSL4500.
? Double (sleeved) rotor tube on GL3500, GSL4000 & GSL4500.

N.B. Price is for GL3000 only. Other sizes available. Pricing and specifications subject to change without notice. Dealer delivery chargers apply. E&OE.
