The Falc Leon Hydraulic Offset Mulcher is a versatile machine designed for efficient mowing and residue management in orchards, vineyards, and pastures. Featuring hydraulic side shift for precise offset operation, it allows easy work around trees, fences, and boundaries. Built with a durable flail system and low-profile design, the Leon delivers a clean, even finish while offering reliability and ease of use for both farmers and contractors.
? 3pt linkage mounted – Cat 2.
? Hydraulically controlled, right hand offsetting to 600mm.
? 90hp gearbox with internal free-wheeling clutch.
? 540 rpm PTO.
? Rotor speeds: 2250 rpm on 1600-2300 & 1822 rpm on 2500-3000.
? Drive shaft with 1 3/8” 6 spline yoke.
? ‘V’ belt side drive: 4 x belts on 1600-2300 & 5 x belts on 2500-3000.
? 4mm body plate thickness.
? Replaceable 2.5mm wear and tear body lining.
? Rotor tube is 193.7mm dia. with 10mm wall thickness.
? Hammer flails.
? Dual comb counter blades.

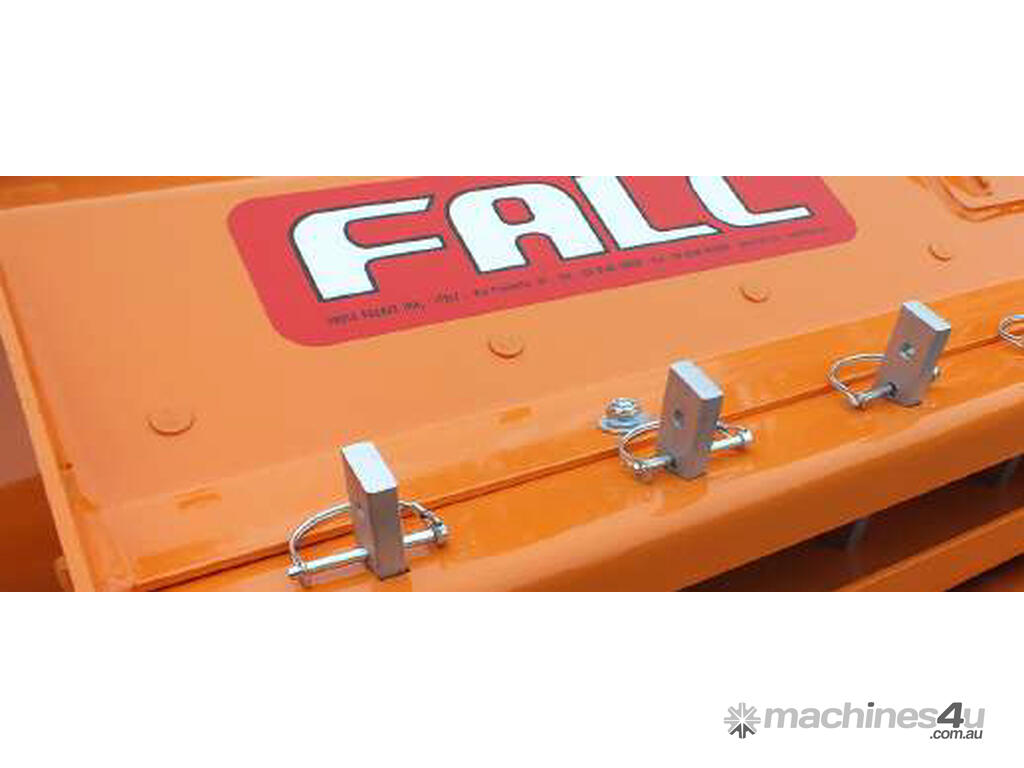

? Removable rear doors for ease of maintenance.
? Parking stand.

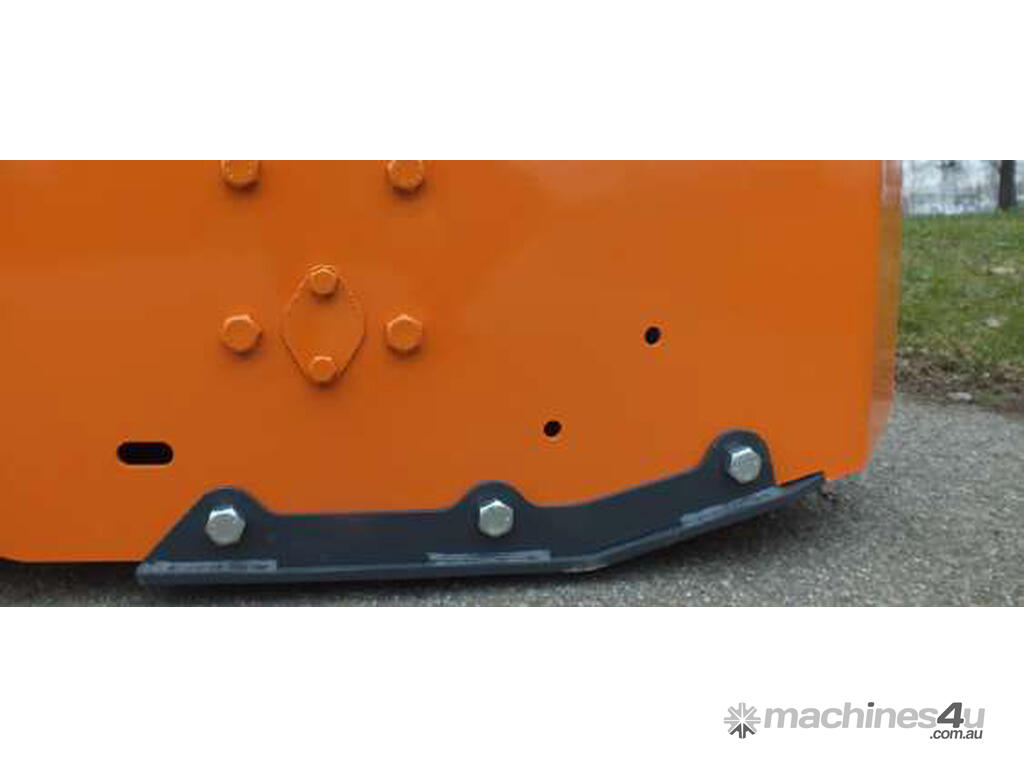

? Fixed side skids.

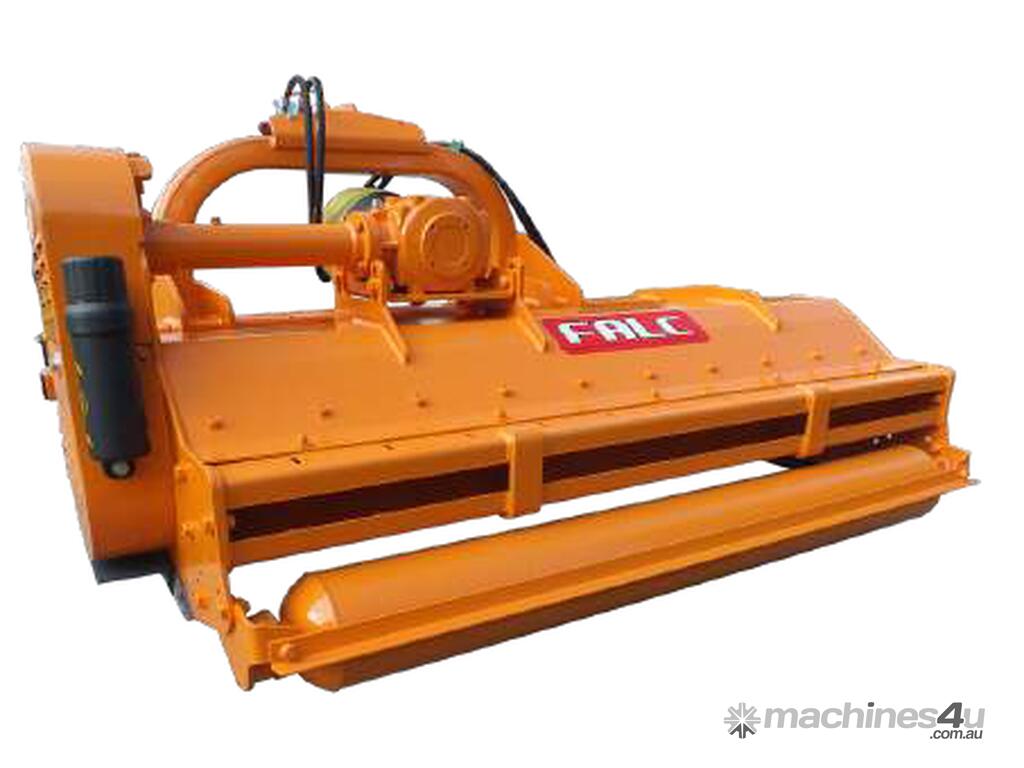

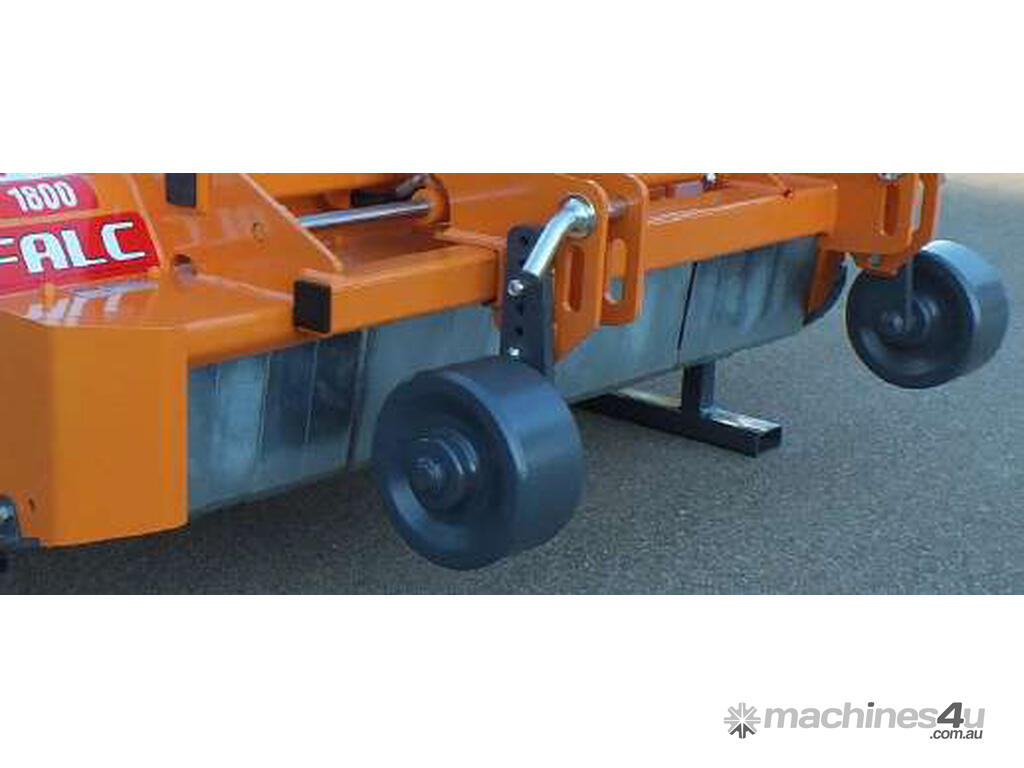

? Rear roller height control: ? 193.7mm with 5mm wall thickness.
? Full CE safety guarding.
N.B. Price is for Leon 1600 only. Other sizes available. Pricing and specifications subject to change without notice. Dealer delivery chargers apply. E&OE
