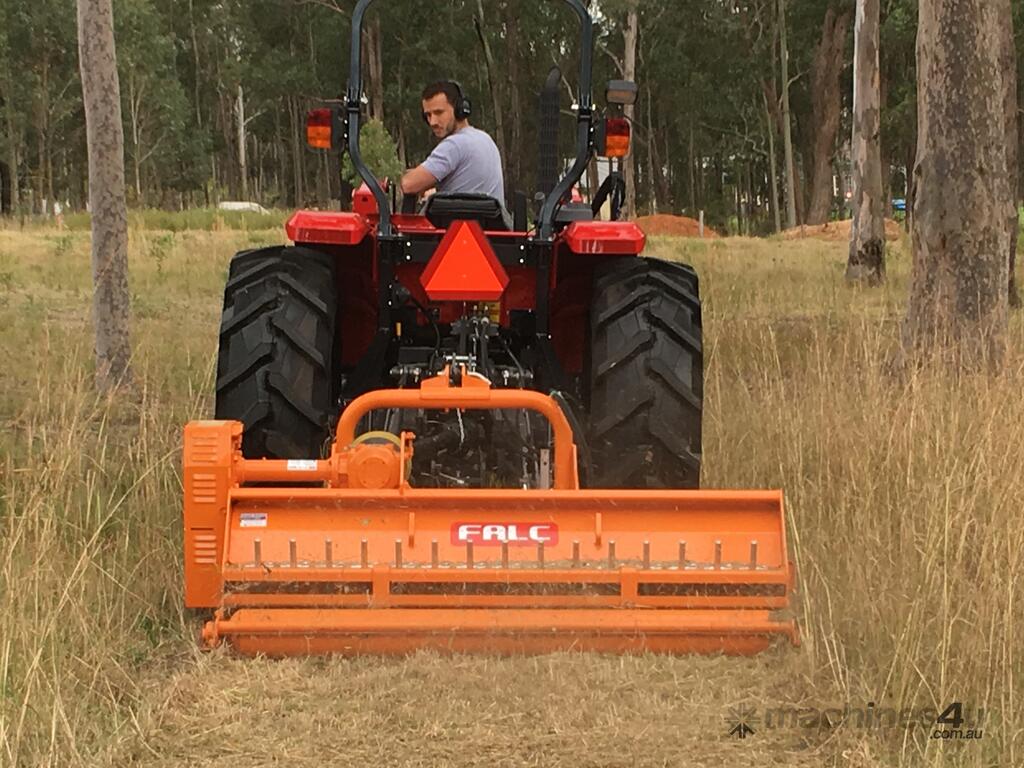

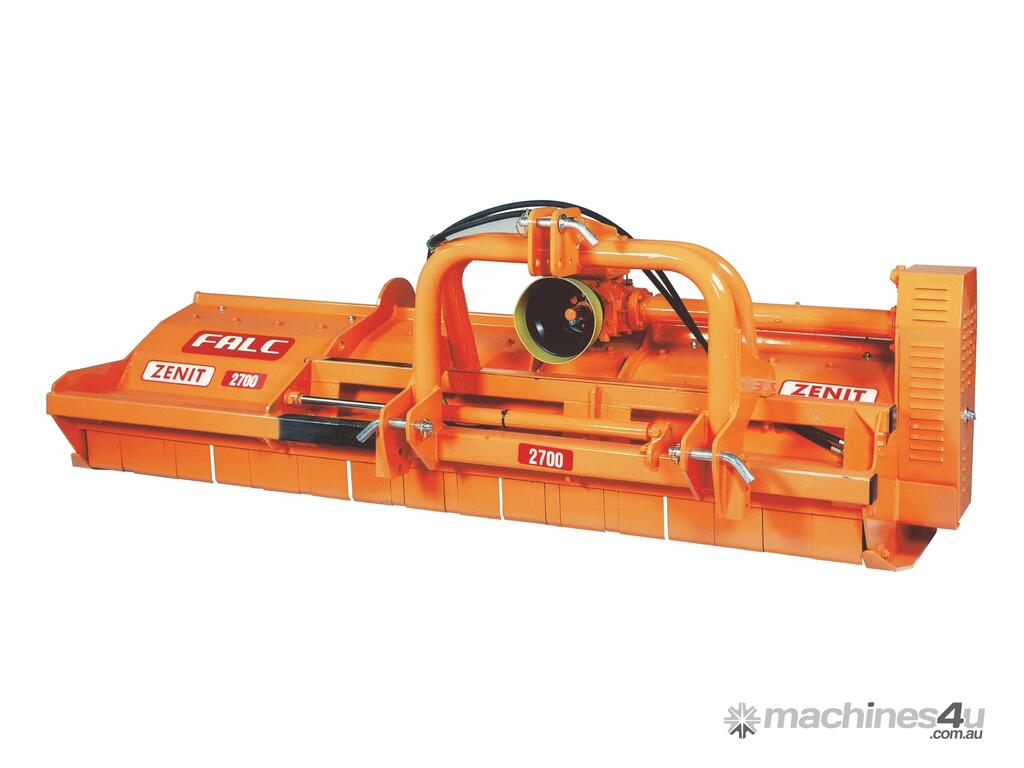

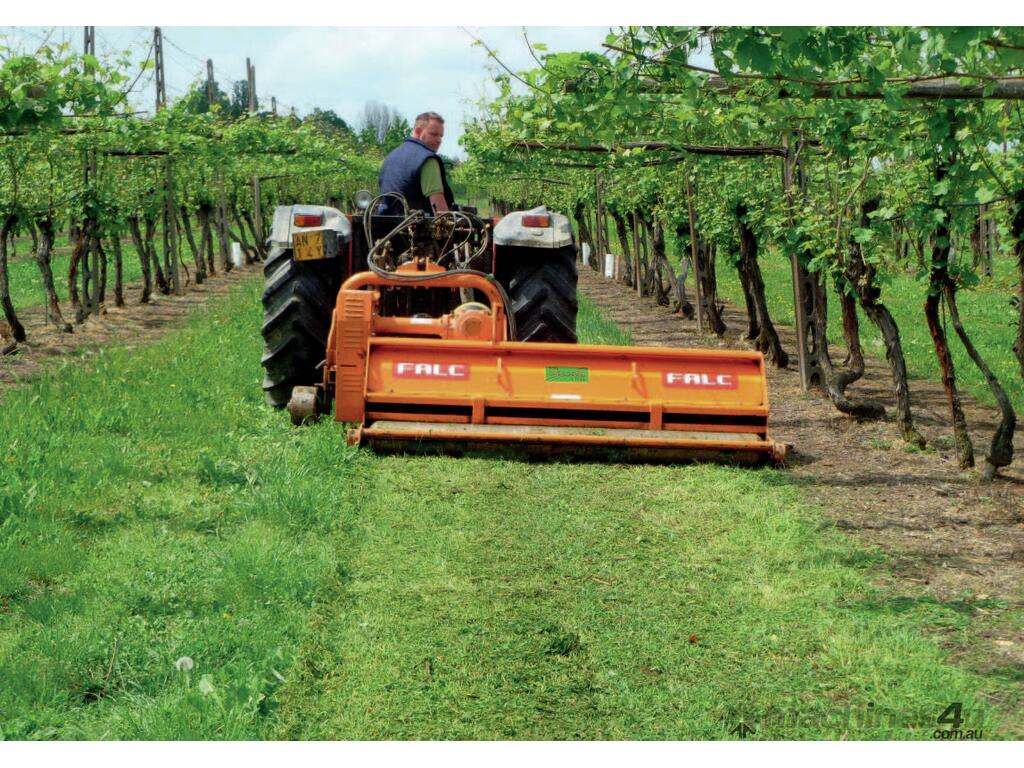

A low bodied shredder with a 90 hp rating and working widths from 1.6m to 3.0m, the Zenit mulcher provides hydraulic offset and will comfortably handle applications such as orchard/vineyard prunings, pasture topping, roadside and general grass and vegetation maintenance.
? 3pt linkage mounted – Cat 2.
? Hydraulically controlled, right hand offsetting to 600mm.
? 90hp gearbox with internal free-wheeling clutch.
? 540 rpm PTO.
? Rotor speeds: 2250 rpm on 1600-2300 & 1822 rpm on 2500-3000.
? Drive shaft with 1 3/8” 6 spline yoke.
? ‘V’ belt side drive: 4 x belts on 1600-2300 & 5 x belts on 2500-3000.
? 4mm body plate thickness.
? Replaceable 2.5mm wear and tear body lining.

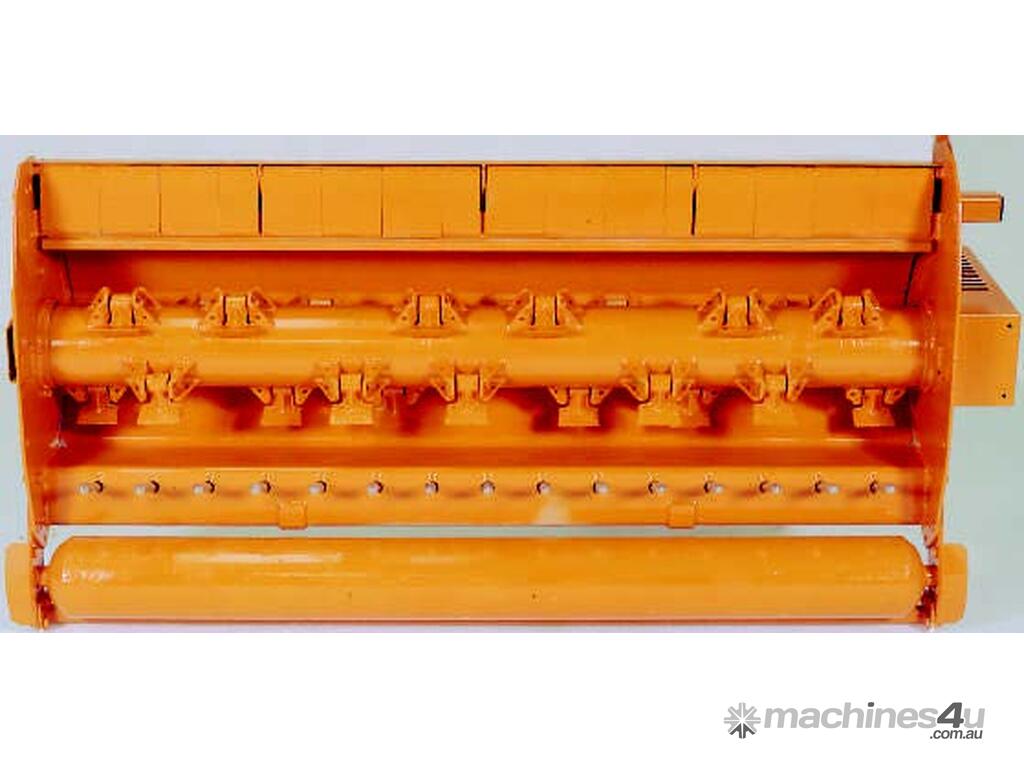

? Rotor tube is 193.7mm dia. with 10mm wall thickness.
? Hammer flails.
? Dual comb counter blades.
? Removable rear doors for ease of maintenance.
? Parking stand.
? Fixed side skids.
? Rear roller height control: ? 193.7mm with 5mm wall thickness.
? Full CE safety guarding.
N.B. Price is for Zenit H 2300 only. Other sizes available. Pricing and specifications subject to change without notice. Dealer delivery chargers apply. E&OE.
