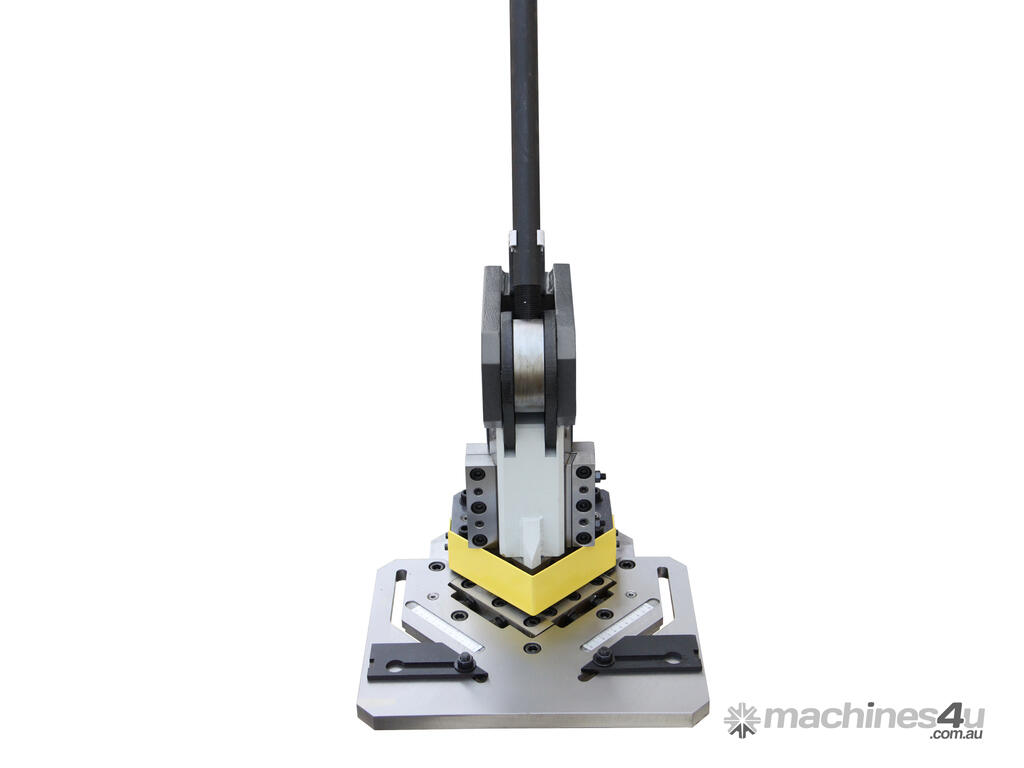

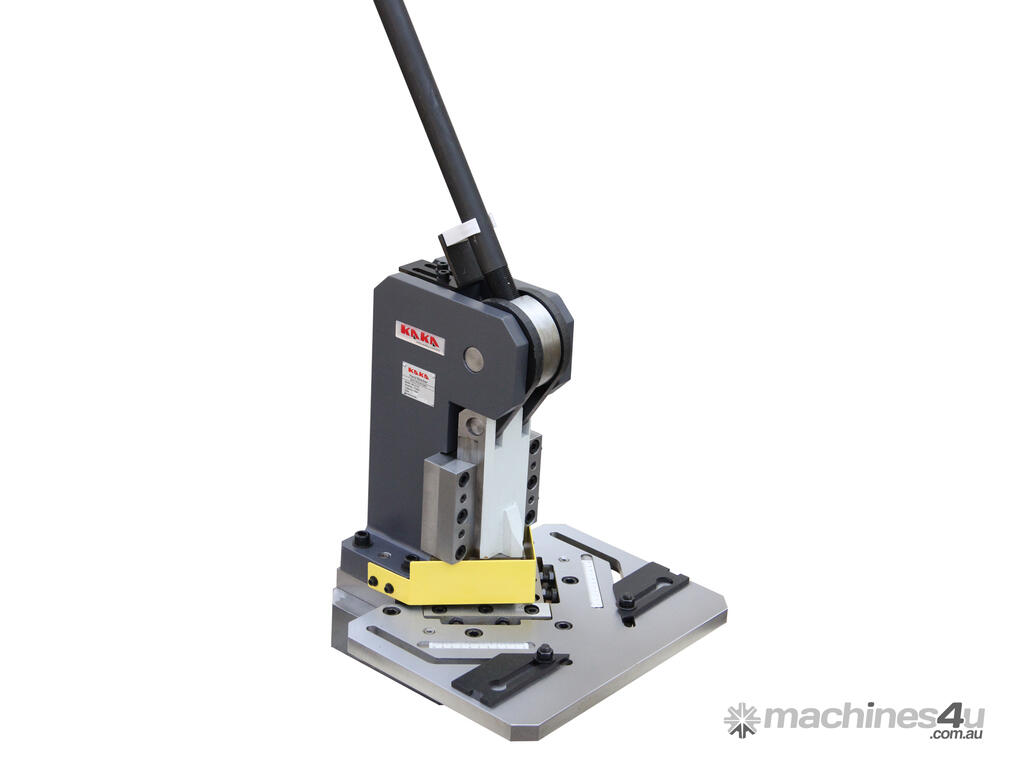

Kang Industrial Manual Sheet Metal Notcher
The KANG HN-1104 is a robust manual notching machine (also known as a corner notcher or fixed-angle notcher) designed for precise, burr-free corner cutting in sheet metal. The Sheet Notcher features a torsion-free, high-quality cast iron body for stability and longevity. The machine uses mechanical power transmission via an eccentric mechanism and hardened tool steel blades to deliver clean 90° notches without deforming the material edges. It's perfect for workshops needing to notch corners, create shapes, or prepare sheet metal for bending/folding in applications like HVAC ductwork, signage, enclosures, automotive panels, or custom fabrication.
Clean, Professional Plate Notching. Delivers burr-free, deformation-free 90° notches up to 100 x 100 mm in 3 mm mild steel—ideal for precise corner preparation in HVAC, ducting, enclosures, or ornamental work, reducing post-processing time.
No Power Required. Fully manual operation means it's energy-independent—perfect for remote sites, off-grid sheds, rural properties, or during power outages common in some regions.
Durable & Low-Maintenance Cutter. Torsion-free steel construction and hardened tool steel blades withstand harsh conditions; adjustable guides maintain accuracy over years of use.
User-Friendly for Repetitive Plate Notching. Adjustable stops with scales enable fast, consistent serial production, great for small business batch jobs like custom panels or brackets.
Compact & Portable Right Angle Notching. At ~90 kg and 380 x 380 mm footprint, it's workshop-friendly for smaller spaces (urban garages or mobile fab setups) and easier to move than larger hydraulic models.
Features
Manual sheet metal notcher
Blade length 100 mm, max. cutting thickness of 3.0 mm
Adjustable blade gap for different thickness materials
Adjustable table stops for repetitive notching
Sturdy steel structure for long-term use
Long leverage handle for easy notching
Hydraulic angle notcher available, HNM-6
Specifications
SKU 172403
Model HN-1104
Thickness 3.0 mm
Cutting dimension 100 mm
Angle 90°
Ram stroke 30 mm
Packing size 46x45x78 cm
N.W./G.W. 95/105 kg
