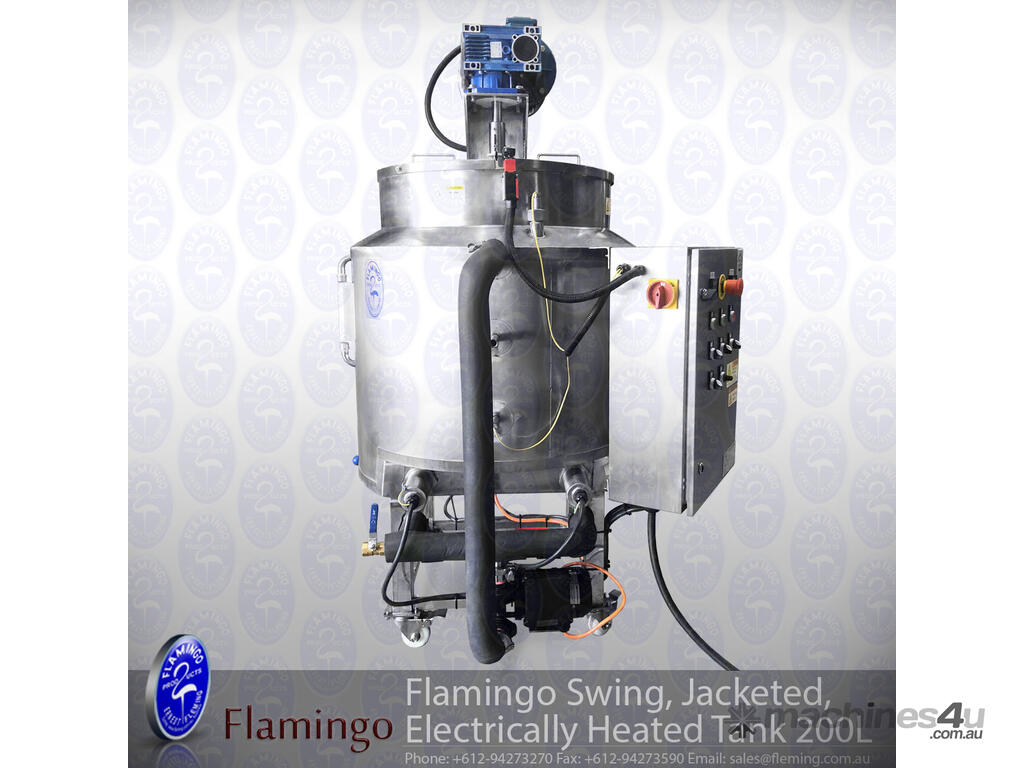

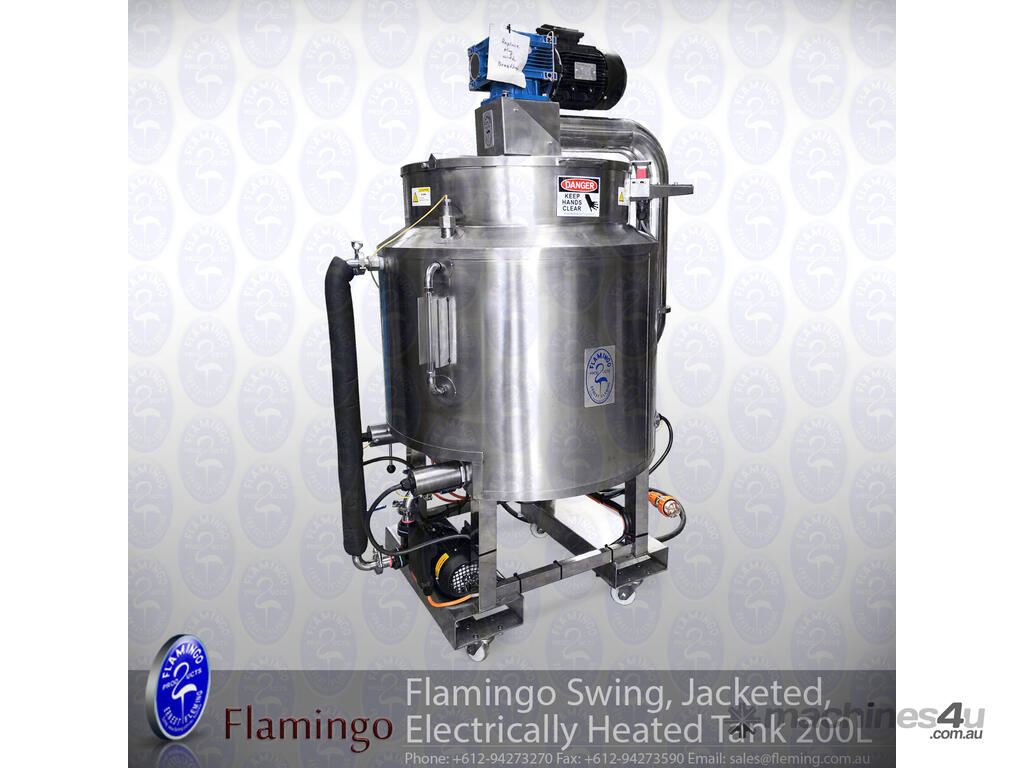

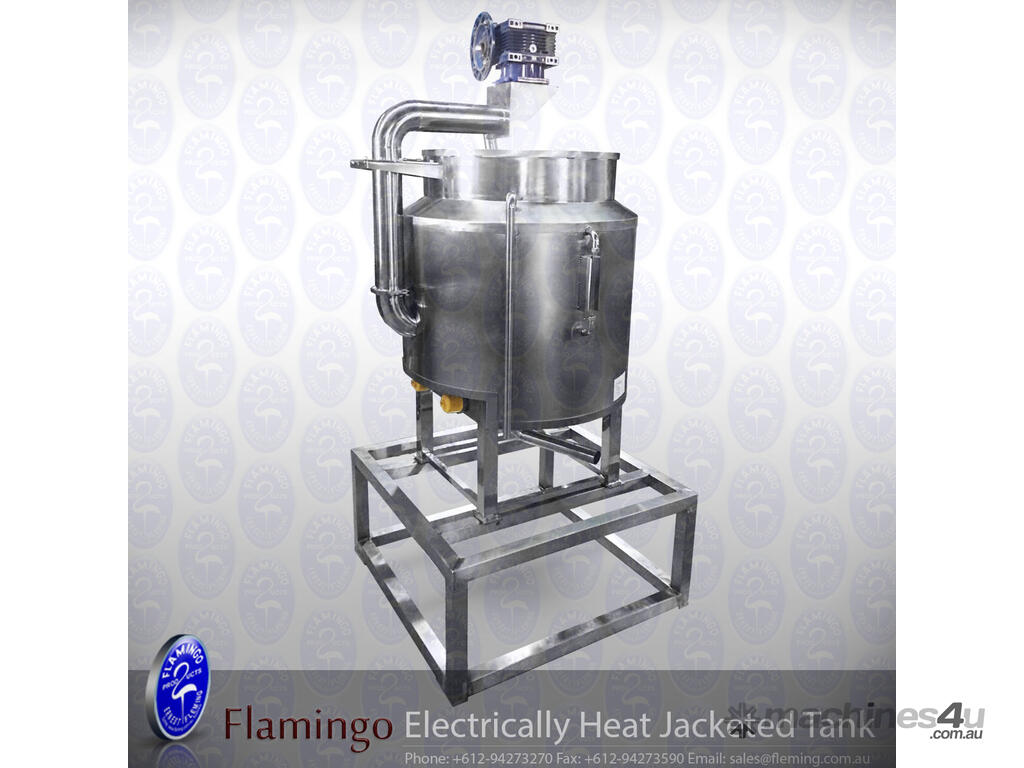

Flamingo - 200L Jacketed, Electrically Heated, Mixing Tank

Our Flamingo Heating Tanks are an electrically heated, high-capacity solution designed for effective heating or cooling in various industrial applications.

Available as a standard model or customizable to meet your specifications, this tank is ideal for the food, chemical, and pharmaceutical industries.

Key Benefits and Advantages:

• Reliable Mixing: The Teflon scrapers prevent sticking and burning, making it suitable for a wide range of products, including creams, sauces, and chemicals.

• Large Capacity: from 60L up to 2000L Tanks, with a skin thickness of 2.5 mm and jacket thickness of 2.5 mm, designed for heavy-duty use.

• Accurate Temperature Control: Equipped with thermostats and temperature controls for precise stability (inquire for more details).

• Hygienic Design: Fully welded cone bottom with radius welds ensures easy cleaning and compliance with hygiene standards.

• Safety Features: Includes safety grids for secure loading, enhancing operator safety during material handling.

• Easy Maintenance: Removable heating elements (up to 24 kW) allow for easy servicing when the jacket is empty.

• User-Friendly Operation: Swing arm method for agitator-gate removal simplifies cleaning and maintenance.

• Flexible Motor Options: Comes with a 1.5 kW motor with a right-angle gearbox, customizable to meet specific needs.

Features:

• Robust Construction: Made from high-quality stainless-steel Grade #304 or optional #316, ensuring durability and hygiene.

• Versatile Jacketed Design: Water/oil jacketed for efficient heating or cooling, facilitating even temperature distribution.

• Customizable Outlet: Equipped with a 2-inch to 2.5-inch cone bottom outlet (custom sizes available upon request) for easy product transfer.

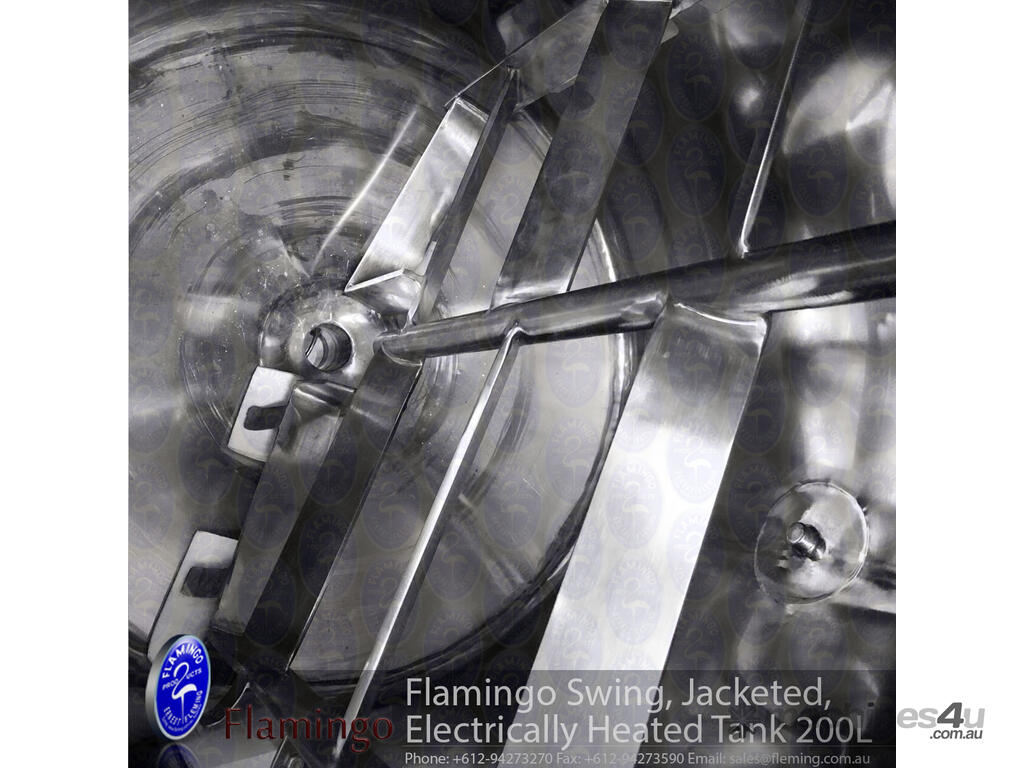

• Effective Agitation: Features a slow-speed outer gate stirrer with bottom and side Teflon scrapers, promoting non-stick mixing and consistency.


Important Notes

• Photos may include additional optional components.

• Please confirm specifications at the time of order, as features may change.

• Jacket is NOT pressure rated.
