Flexstore El + Galaxy 2 Cell

CELL GALAXY 2 + FLEXSTORE EL

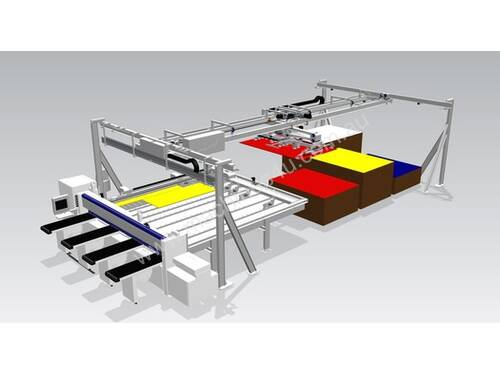

Full automatic cell designed to match production requirement as high flexibility and cutting quality for BATCH 1. The Cell includes the new single-blade panel saw machine Galaxy 2 90 and it is equipped with mobile grippers device and three axes loading System Flexstore EL and it is characterized for versatility of utilization, quality of the components and greater reliability.

Advantages:
1. FLEXSTORE EL: production flexibility
Panels stacks in different sizes and types

2. CUSTOMIZED
Cells are customizable for cutting quantity and warehouse dimensions to match any customer needs

3. WATCH STORE
WATCH STORE, the integrated software with user friendly interface that allows to manage various machining modalities granting high productivity performances.

High performance and Energy saving with Sav€nergy

Technical data:
GALAXY 2 90
Single beam panel saw for industrial applications
• Cutting dimensions: 4500x4300 mm
• Max. blade protrusion: 90 mm
• Max. saw carriage speed: 150 m/min
• Max. pusher speed: 125 m/min
• 7,5 kW-50Hz main blade engine
• FLEXCUT 1/S for simultaneous execution of differentiated cuts

FLEXSTORE EL
Loading flexible warehouse with 3-axes (opt. 4-axes)
• Variable configuration of number station
• Panels thickness: 10 ÷ 60 mm (opt. from 3 mm.)
• Panels length: 2.200 ÷ 4.250 mm
• Panels width: 800 ÷ 2.200 mm
• Max. panel weight: 200 Kg
• Loading arm with 3 degrees of freedom + rotation (opt.)
• Vacuum loading arm with electronic adjustment depending of the dimension of the panels
• Device for the automatic detachment of the panels
• Check device for the detachment of the panels
• Rests management
• Mixed stacks management
