Flextool Tufftruk EB500 - Electric - Max Payload: 500 kg

Flextool’s range of TuffTruk mini dumpers provide maximum versatility and light-touch operation. The Flextool TuffTruk achieves ultimate manoeuvrability with its compact size and articulated steering function.

Operator safety is optimised with the 2-stage self-tipping skip and electric motor brake system, while the wide profile mud gripper tyres, excellent load capacity and robust, heavy-duty construction prove the Flextool TuffTruk is designed for all types of materials and tough terrains across a variety of trades.

Large capacity poly tray
Payload of up to 500 kg
Easy cleanout
Reduced noise
Lifting hook
Central lifting hook for easy and safe onsite handling
Locking pin
Prevents articulation during transportation
Offset rim wheels
Wheels can be flipped to reduce operating width to match narrow poly bucket (730 mm)

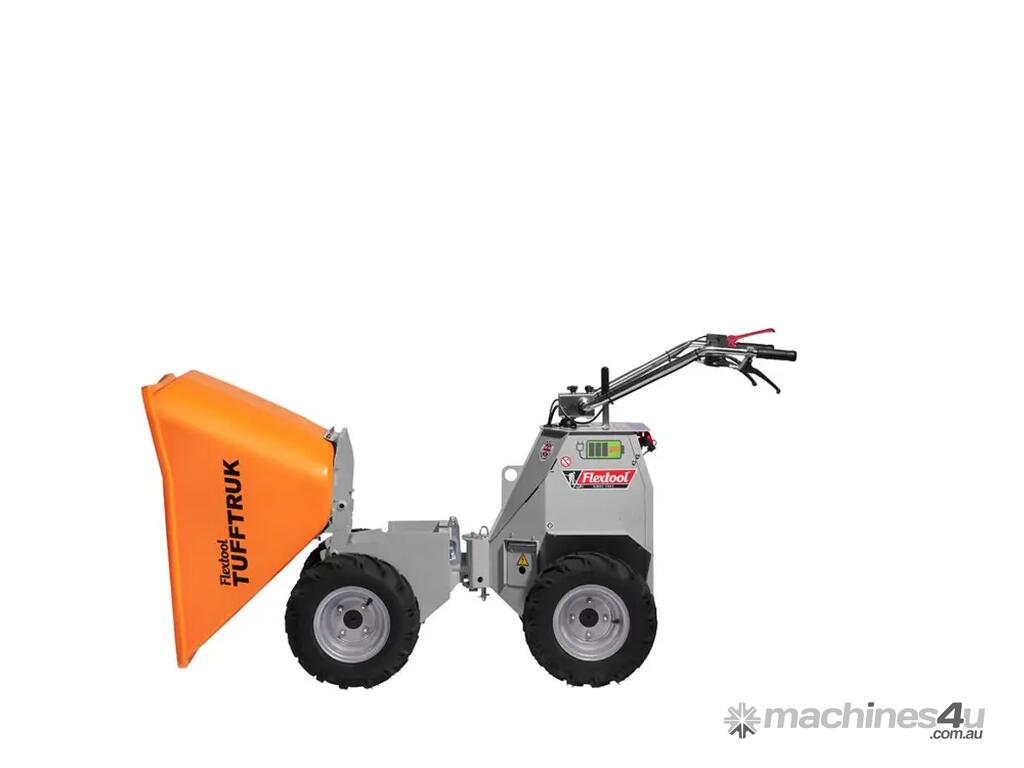

Two stage self-tipping skip
No manual lifting
Ultimate tip angle ensures totally empty skip
Fully sealed drive system
Low maintenance and durable
Smooth and precise operation
No separate gearboxes or drive belts
Adjustable handles
For superior ergonomic and operator comfort
Articulated steering function
Ultimate manoeuvrability
Precise and easy steering in hard to access and tight spaces
Electric brake system
Safe parking mode
Superior operator safety
Battery powered
8 Hours runtime
Zero operating emissions
Quiet operation
Regenerative braking system helps slow down when stopping and increases battery efficiency
Constant electric transaxle 4WD design
Wide profile mud gripper tyres
Ultimate traction and drive

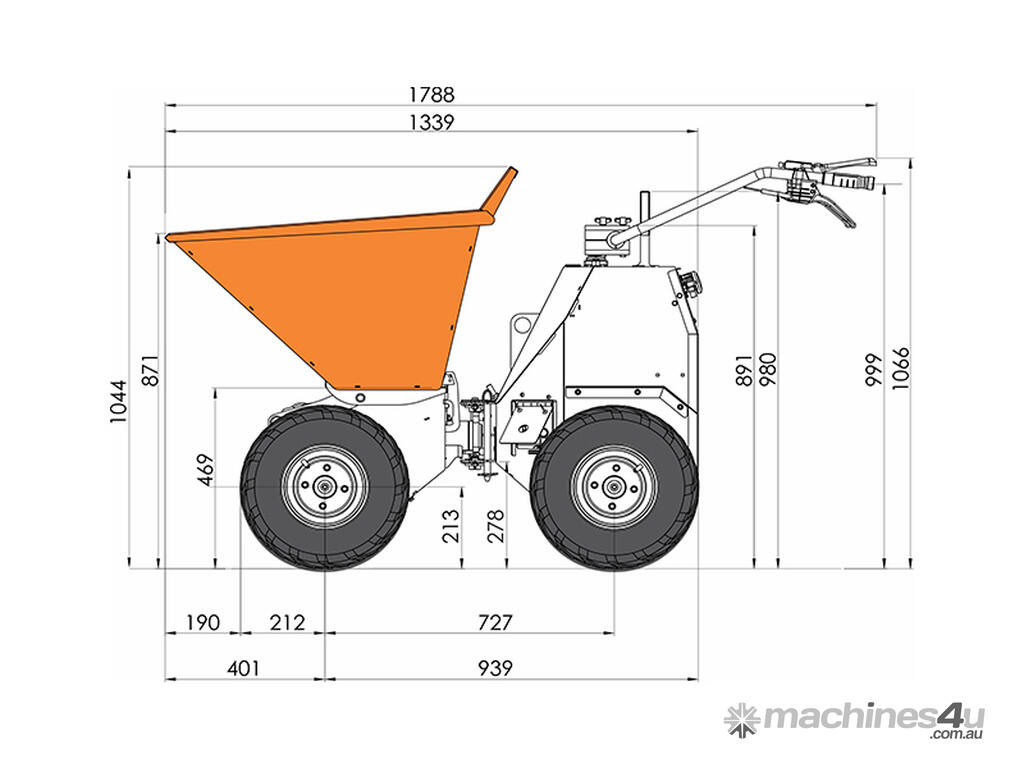

Specifications:
Model EB500
Max Payload 500 kg / 0.35 m³
Operating Width 850 mm
Unladen Operating Weight 240 kg
Working Gradient 25 deg
Drive & Controls 2 x 24 V Transaxle
Brake System Electric
Tyres (Standard) Mud Gripper Pneumatic
Travel Speed Fwd / Rev 5.6 / 2.4 km/h
Noise level < 76 dB
Hand Arm Vibration 2.5 m/s2
Motor DC Brushless
Motor Power 2 x 750 W / 24 V
Batteries 2 x 12 V AGM Batteries
Shipping Dimensions (L x W x H) 1160 x 940 x 1180 mm
