Floor type boring machine HiTRAX-H

loor type boring machine HiTRAX-H

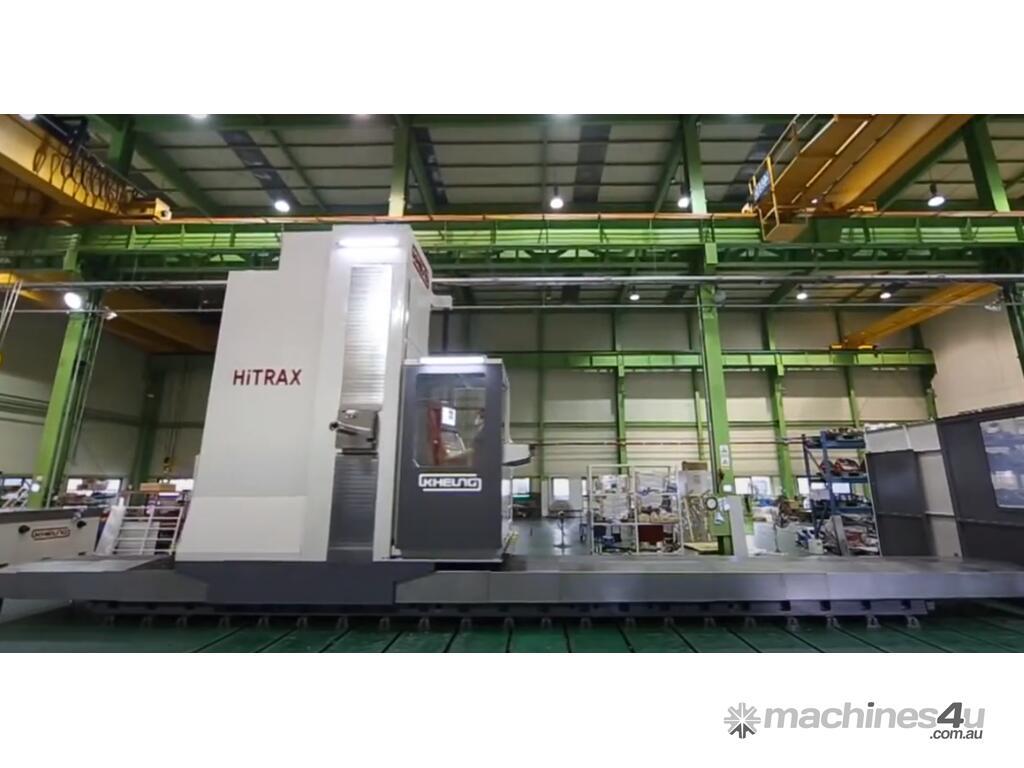

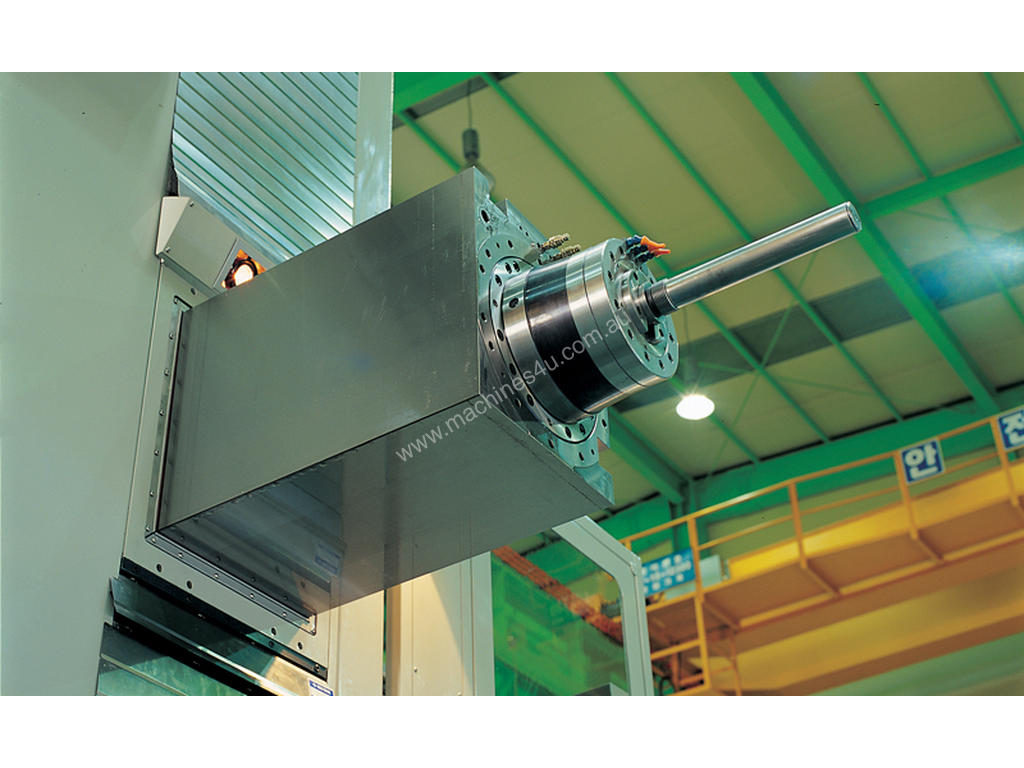

HiTRAX-H is the high rigidity horizontal boring machine equipped with Ø130 boring spindle with 700mm travel!

Max spindle speed at 2500rpm which can provide maximum torque output at 2901 Nm.

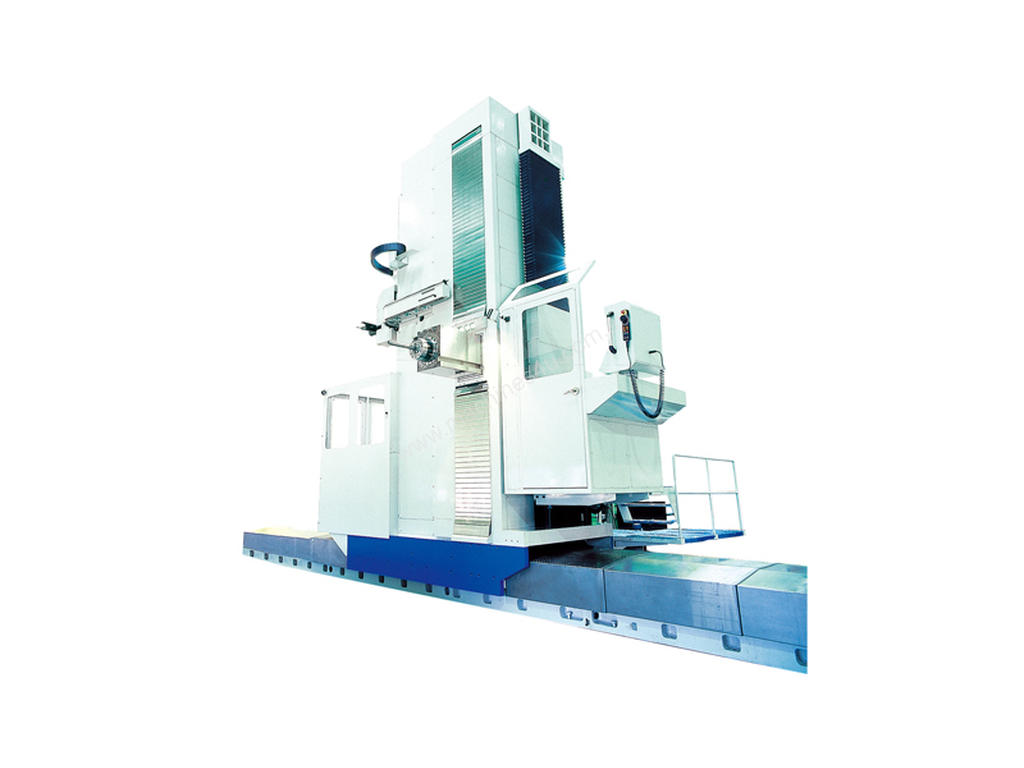

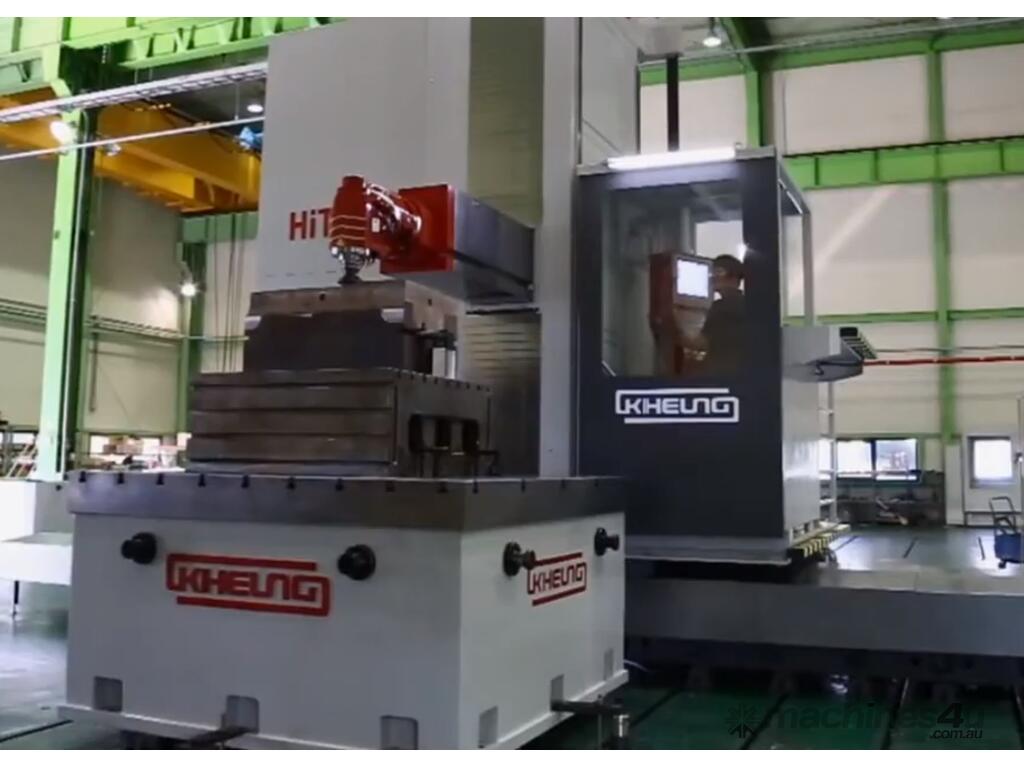

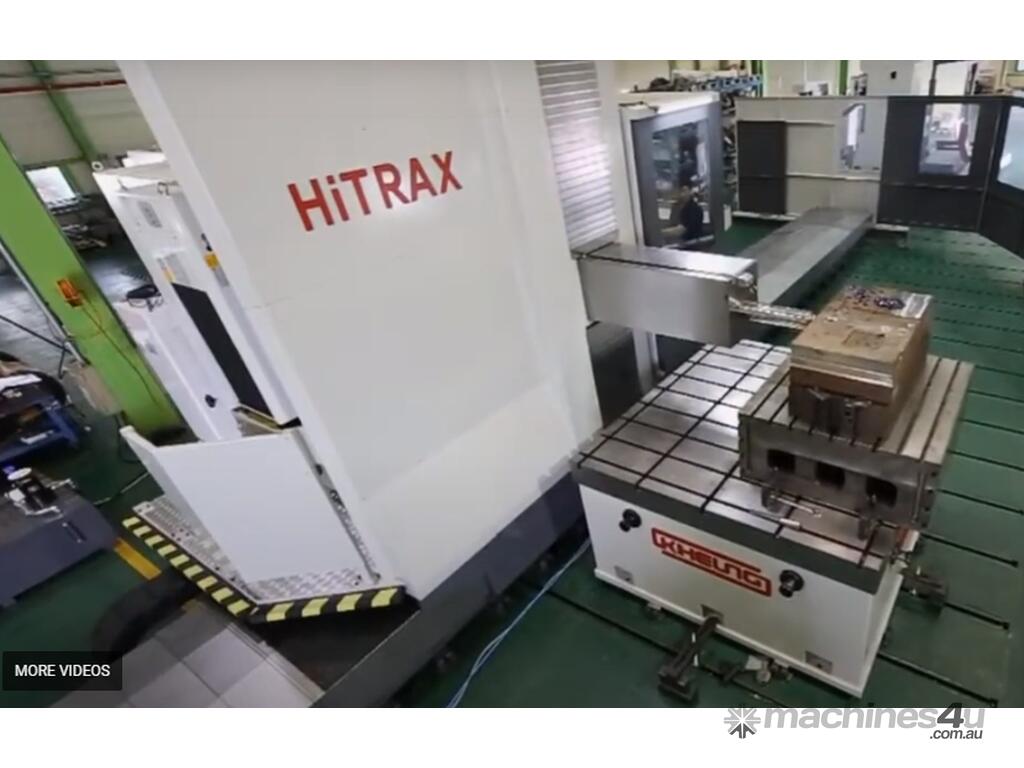

Elevating platform with large window in safety glass and user friendly, which is supplied as standard, enables the operator to stay at the ideal working position.

A wide range of configurations on multiple axes and X-axis movement with Twin-Drive system is composed of preloaded rack and pinion system with 2 servo motors for “dynamic movement”.

One is actual driving, while the other is braking for “backlash free”. Also the moving column system makes the perfect coincidence of the reference plane between column base slide way and column slide way due to the column weight, so it makes “spindle vibration-free running”.

Suitable solutions for end users who require high flexibility and a wide variety of optional features and accessories such as different milling-heads, head change station, automatic tool change, floor or angle plates, auxiliary tables, rotary table, travelling rotary tables and many other special options thanks to its structure.

The machine is ideal for roughing and finishing operation on all parts and can be installed in mould and die operations, aeronautic and power generation industry as well as in general job shops.

To ensure the machine ultimate performance and high quality, all machine should pass heavy cutting test before shipping.

This multitasking machine can satisfy the most customer needs, thanks to this wonderful system of the ram and quil spindle, high axial forces, excellent circular interpolation accuracy and high precision of the additional CNC rotary table etc..


Machine specification HiTRAX-H
TRAVEL
Longitudinal mm 6000~20000 (each 2000mm)
Cross(Ram) mm 1250
Cross(Quil) mm 700(Ø130)/750(Ø150)
Vertical mm 2500/3000/3500
FEED
Axis mm/min 10000
Rapid mm/min 18000(X,Y,Z)
Drive motor Nm 115×2(X), 27(Y), 50(Z)
SPINDLE
Taper ISO50
Speed rpm 2500 (2 step : 1~560, 561~2500)
Drive motor kW 37/56
WEIGHT kg 40000~90000

Please call for more info and for pricing, we are happy to assit.
