Designed for large-scale operations, this FC Variable Speed Screw Compressors range has engine power from 37kw—355kw. These models ensure efficiency while producing quality compressed air. Backed by our 2-year warranty, the FC air compressors are market-leading in quality engineering and reliability.
Our inverter-driven VSD range is designed to be installed in clean environments, largely reducing power consumption and increasing efficiency. We recommend the fixed speed range for a more durable machine that is resistant to a dusty workspace. Optional 8-bar and 13-bar conversions are available.

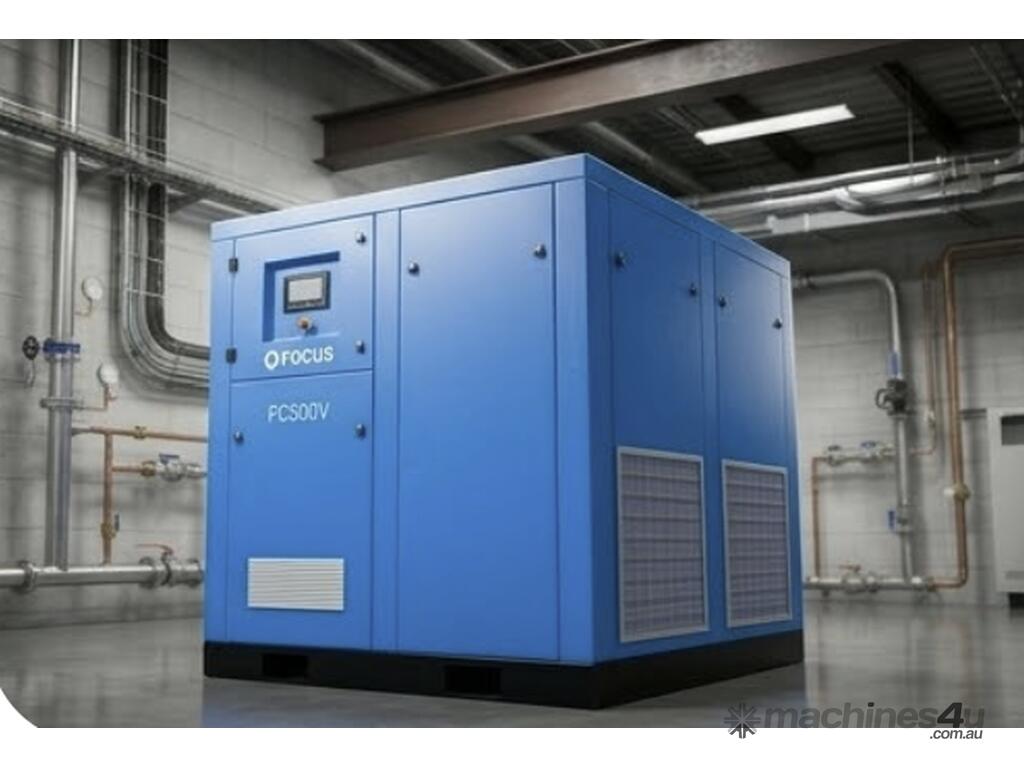

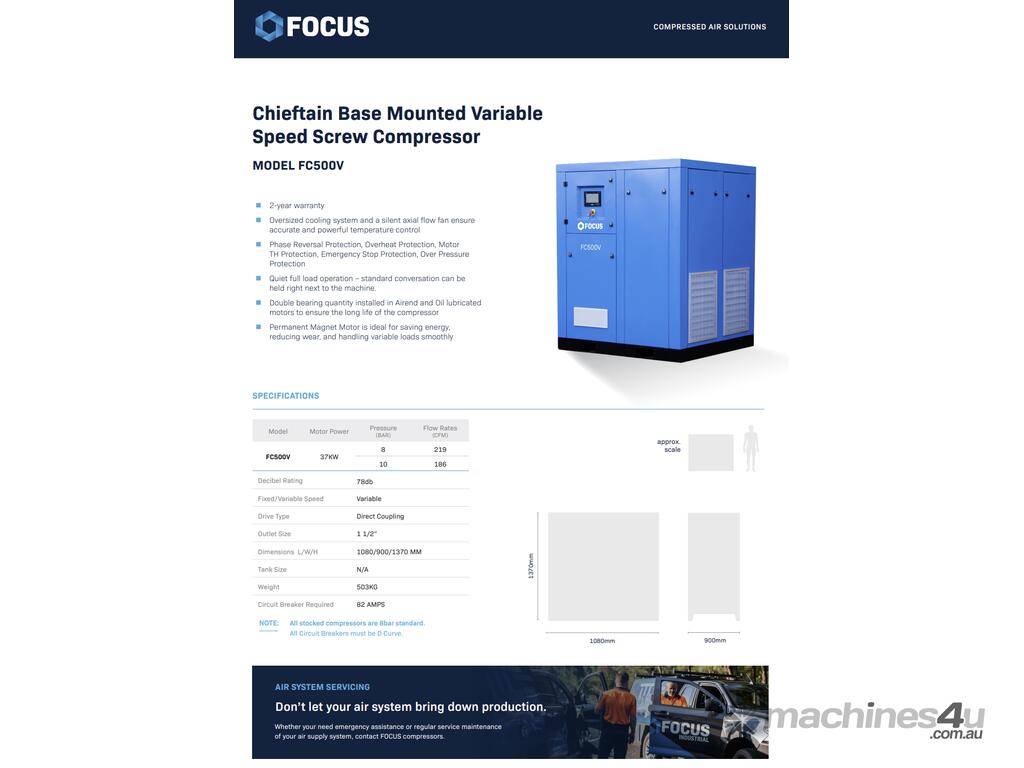

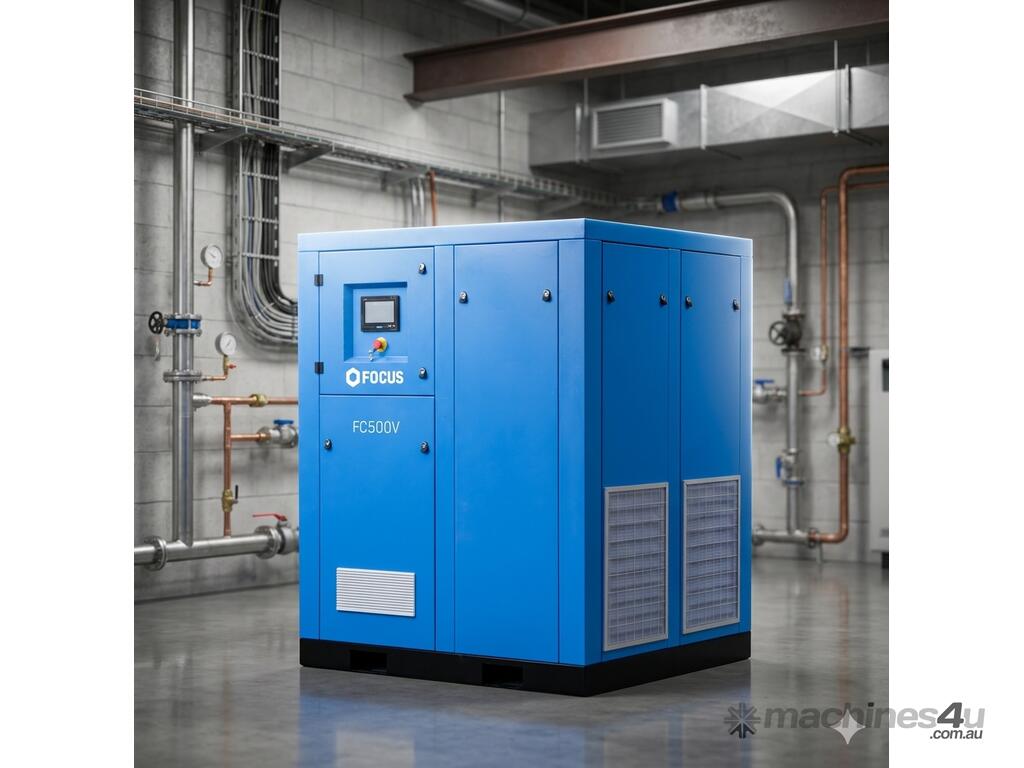

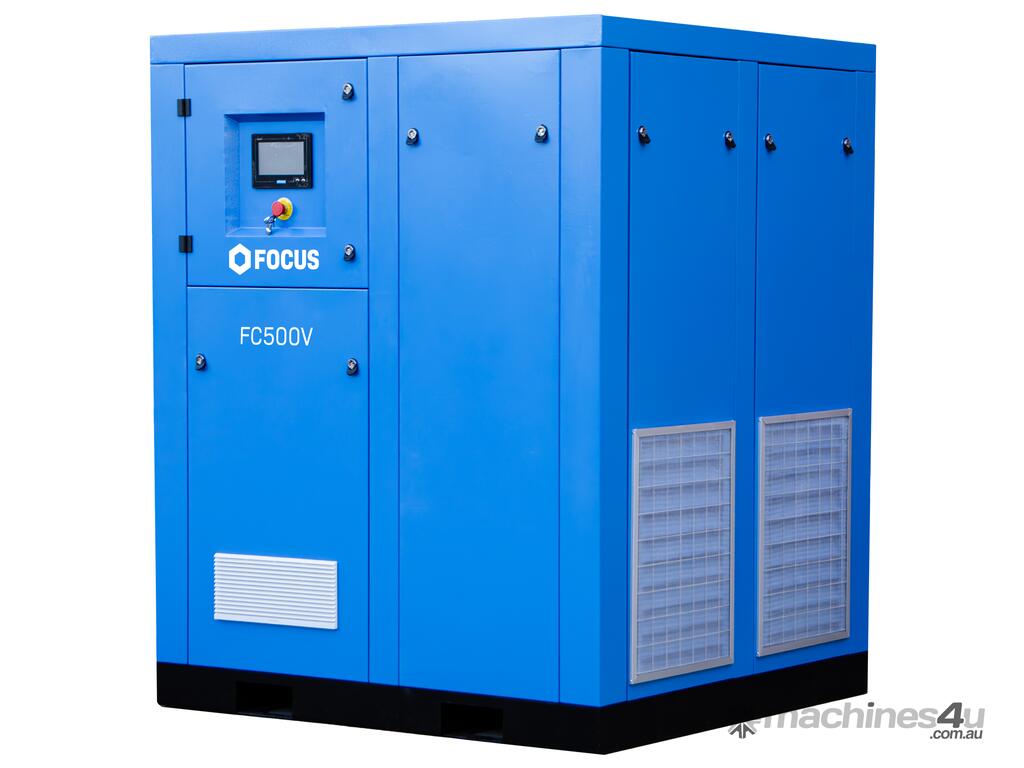

MODEL: FC500V
Motor Power: 37KW
Pressure (BAR) Flow Rates (CFM)
8 219
10 186
SPECIFICATIONS
* Decibel Ratin: 78db
* Fixed/Variable Speed: Variable
* Drive Type: Direct Coupling
* Outlet Size: 1 1/2”
* Dimensions L/W/H: 1080/900/1370 MM
* Tank Size: N/A
* Weight: 503KG
* Circuit Breaker Required: 82 AMPS
NOTE: All stocked compressors are 8bar standard.
All Circuit Breakers must be D Curve.
